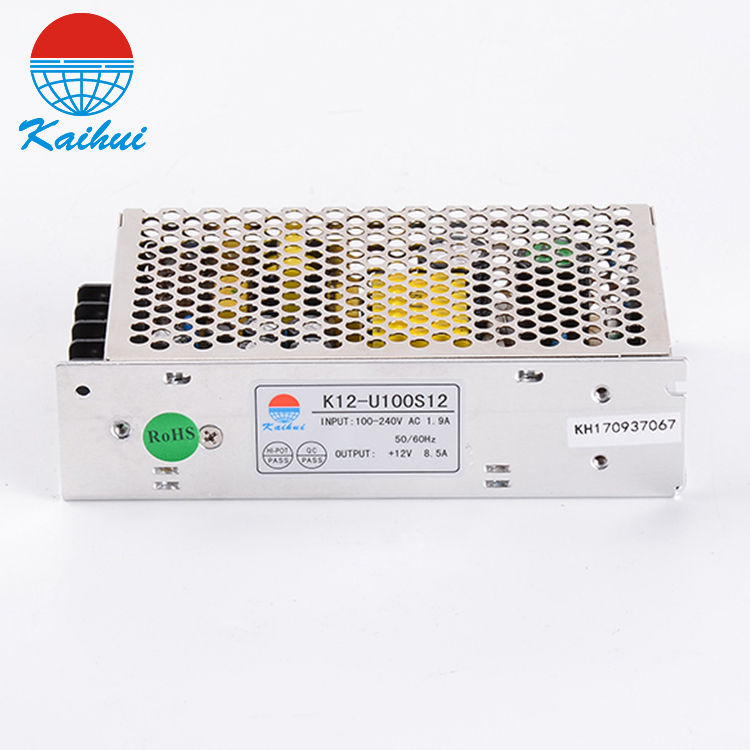

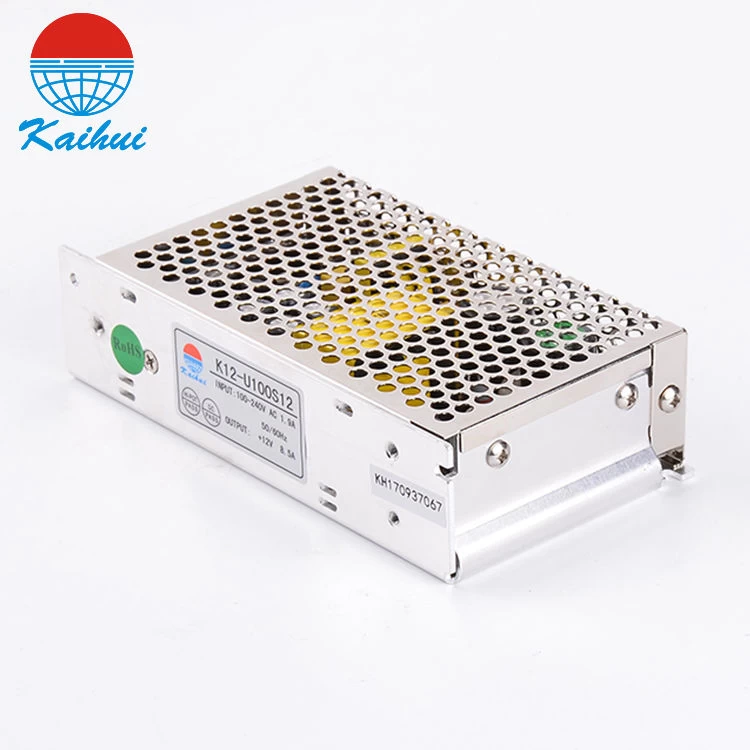

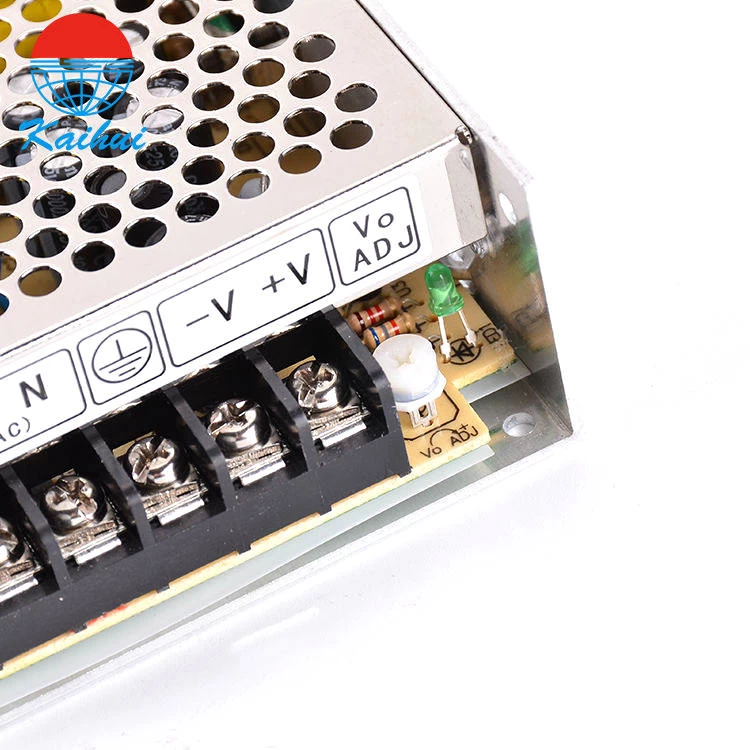

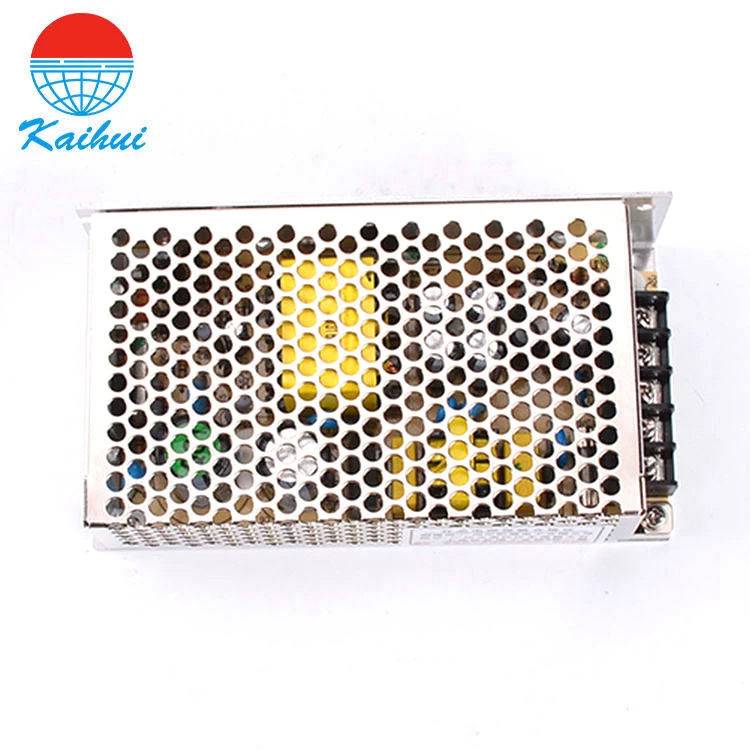

KAIHUI 100W 12v 15v 24v 36v 48v universal single output power supply psu for industry
Description:
K12-U100S series 100W 12Vdc 8.5A switching power supply has high efficiency, wide range of AC input voltage and 12v 15v 24v 36v 48v output voltage adjustable with 2 years warranty, it can used in industrial products.
Features:
1, 100w power supply high efficiency and low temperature rise;
2, 12v 8.5a contains filter, low output noise;
3, DC 12V 100w power supply 90-264vac input voltage;
4, 12v 100w power supply overload and overvoltage protection.
|
Parameter
|
|
Item NO
|
K12-U100S12
|
K12-U100S15
|
K12-U100S24
|
K12-U100S36
|
K12-U100S48
|
|
Output
|
DC Output Voltage
|
+12V
|
+15V
|
+24V
|
+36V
|
+48V
|
|
Output Rated Current
|
8.5A
|
6.6A
|
4A
|
2.8A
|
2A
|
|
Current Range
|
0-8.5A
|
0-6.6A
|
0-4A
|
0-2.8A
|
0-2A
|
|
Rated Power
|
102W
|
99W
|
96W
|
100.8W
|
96W
|
|
Ripple & Niose
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
200mVp-p
|
200mVp-p
|
|
DC Adjustable range
|
±10%
|
±10%
|
±10%
|
±10%
|
±10%
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
250ms,50ms,50ms
|
|
Input
|
Voltage Range
|
90~264V AC;110~360V DC
|
|
AC Current
|
1.6A/115V;0.8A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
84% @230Vac
|
84% @230Vac
|
86% @230Vac
|
87% @230Vac
|
87% @230Vac
|
|
Power Factor
|
--------
|
|
Inrush Current
|
30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~180%,Hiccup,automatic recovery
|
|
Over Voltage Protection
|
16~20V
|
20~24V
|
28~33V
|
40~45V
|
54~60V
|
|
Short circuit protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp., Humidity
|
-10~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
MEET TO GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254,EN55022 CLASS A
|
|
Others
|
Dimension
|
145*80*38mm CASE：K812
|
|
Weight
|
0.5Kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|
