12V 200AH gel battery for off grid solar system


1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.

2). Maintenance-free operation - no addition of water to the electrolyte is required.

3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.

4). Wide range of operating temperatures with temperature compensated charging.

5). Computer designed lead, calcium tin alloy grid for high power density.

6). Extended service life due to low self-discharge levels.

7). Available in flame retardant ABS material for the battery case

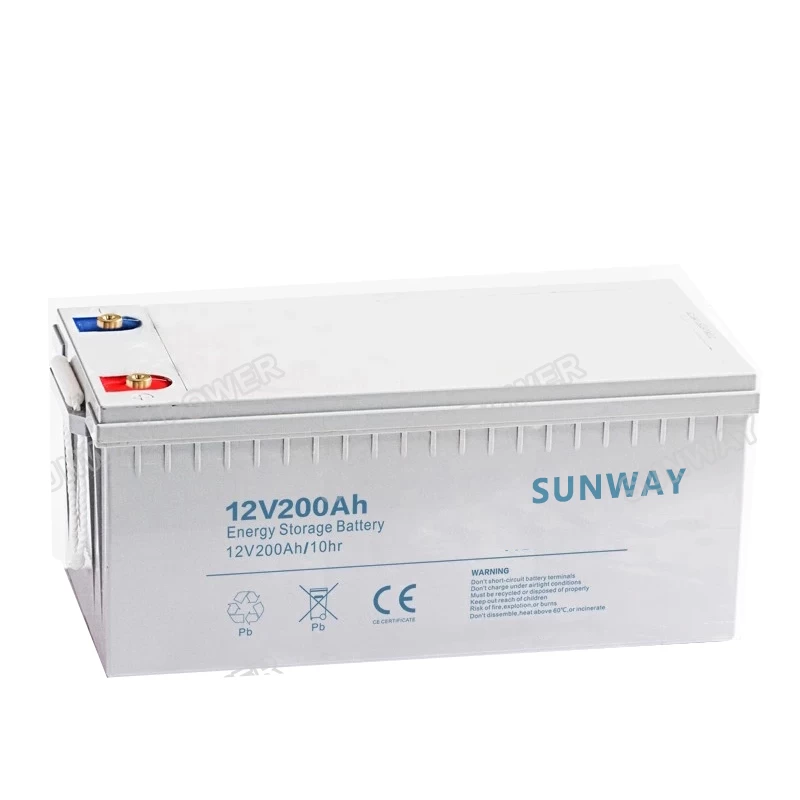

12V 200AH lead acid gel battery

2_01

Description of 12V 200AH lead acid gel battery


Feature of 12V 200AH lead acid gel battery


1). AGM (Absorbing Glass Mat) technology of which the electrolyte is absorbed.

2). Maintenance-free operation - no addition of water to the electrolyte is required.

3). Sealed Battery with Valve Regulated Construction .Can be mounted in any orientation.

4). Wide range of operating temperatures with temperature compensated charging.

5). Computer designed lead, calcium tin alloy grid for high power density.

6). Extended service life due to low self-discharge levels.

7). Available in flame retardant ABS material for the battery case


Technical Data of 12V 200AH lead acid gel battery


Rated Voltage

12V

Rated capacity (10 hour rate)

200Ah







Dimension

Length

522mm (20.57inches)

Width

240mm (9.46inches)

Height

219mm (8.63inches)

Total Height (with terminal)

244mm (9.61inches)

Weight Approx

57.7Kgs (126.94Ibs)

Terminal

M8-20 Copper Terminal

M8-20 copper terminal


Characteristic of 12V 200AH lead acid gel battery


Capacity at 25'C (77'C)

10 hour rate / 1.8V/Cell

200Ah



Charge

Limit initial current to 25A.

Cycle Applications

14.5V-14.8V

"Float" or "Stand-By" Service

13.5V-13.8V

Note: Due to the self-discharge characteristics of this type of battery,

 it is imperative that they be charged within 6 months of storage, otherwise permanent loss of capacity might occur as a result of sulfation.

Operating Temperature Range

-25'C~50'C

Shelf Life



(% of nominal capacity at 77°F(25°C))

1 Month

97%

3 Months

93%

6 Months

87%

The shelf life shall be a minimum of 6 months at 25°C. The available capacity at the end of this time period shall not be less than 80% of the rated capacity. The cell shall recharge to at least 80% of the rated capacity within 8 hours.

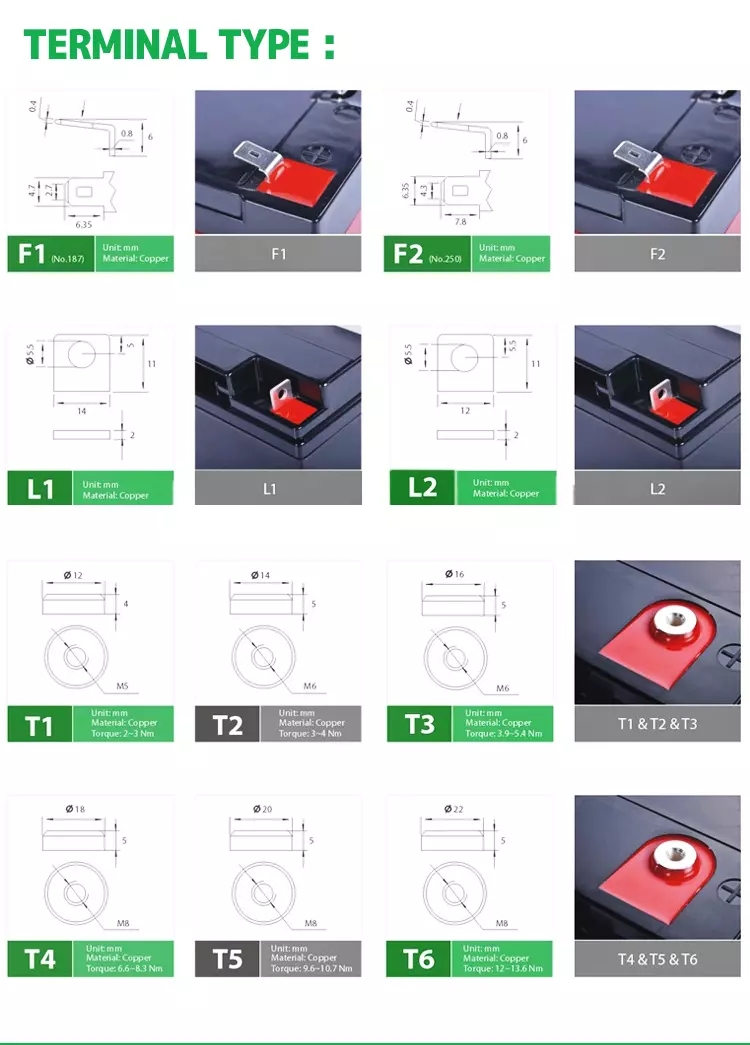

Terminal type of 12V 200AH lead acid gel battery



Product line of 12V 200AH lead acid gel battery

Package information


  In carton

 Packing in wooden Box

  Pcs/Ctn

 Ctn

  Ctns/Box

 Box Size

 1

535*253*283mm

24

1120*1070*1020mm


Payment

Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
