12V 20LPM 70PSI On Demand Marine Washdown Pump With Pressure Switch For Deck
12V DC Washdown Pump
Specification
Model:WEL-55701T
Open Flow:20LPM/5.50GPM
Volt:12V DC/24V is avilable
Amps:8.0a Max.Amps:18A
Pressure:70PSI(4.8Bar)shut-off

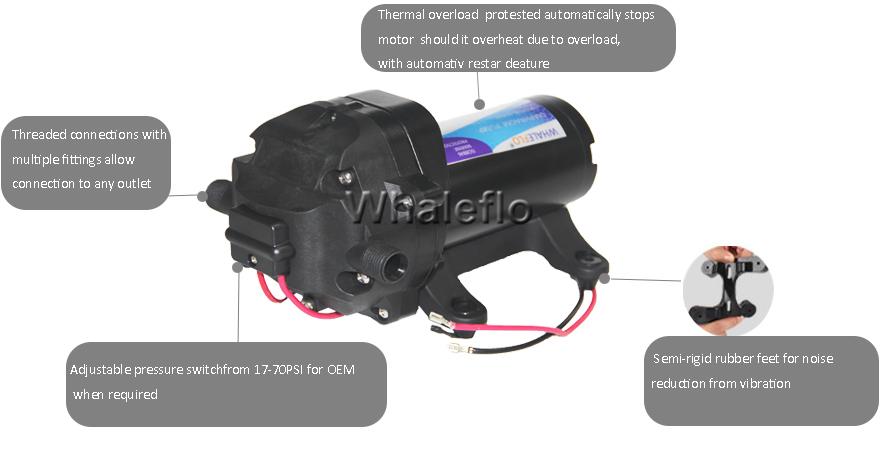

Features include:
Flow capacity of 5.5 gallons per minute
It is 12V DC
Water pressure of 70 psi
18A currents
Santoprene diaphragm
Easy connecting system
Ignition protected
Have rubber mounting feet to reduce noise and corrosion protection
Pros:
Quit operation
Affordable
Corrosion protection
Cons:
Not suitable for continuous use
Whaleflo 12V washdown pump drawing
|
Key
|
Description
|
Quantity
|
|
A
|
Pump Head Assembly
|
1
|
|
B
|
Value Assembly
|
1
|
|
C
|
Diaphragm Assembly
|
1
|
|
D
|
Motor Assembly
|
1
|
|
1
|
New Demand
|
1
|
|
2
|
Pump Head
|
1
|
|
3
|
Seat
|
1
|
|
4
|
Motor
|
1
|
|
5
|
Swing Bracket
|
1
|
|
6
|
Pump Base
|
1
|
|
7
|
Diaphragm
|
1
|
Whaleflo Pump application
Suitable for cleaning boats, fish tanks, anchor wells, boats
Ocean, yacht, boat and RV, camper, caravan flushing application
Suitable for use with fresh and salt water
