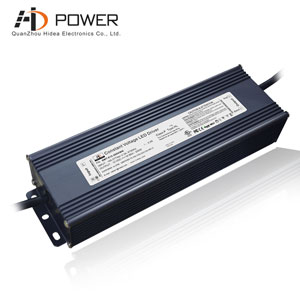

The 12v led transformer driver 250W is suitable for domestc & commercial applicatons. Easy to install, mount, and wire at any indoor applications. We are promise a 7 years warranty.
Specification
|
Model
|
SMT-012-250VWJ
|
SMT-024-250VWJ
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
|
Voltage Tolerance
|
±0.5V
|
|
|
Load Regulation
|
±2%
|
±1%
|
|
Rated current
|
20.83A
|
10.41A
|
|
Rated power
|
250W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120V ;0.98@230V ;0.98@277V
|
0.99@120V ; 0.98@230V ;0.98@277V
|
|
THD(Typ.)@ full load
|
<10% @120V <20%@230V <20% @277V
|
|
Inrush Current (Typ.)
|
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
3.4A@110VAC / 3.7A@277VAC 1.76A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
|
Safety standards
|
UL8750
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
Safety&EMC
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≥50%load)
|
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV)
|
|
Others
|
Net Weight
|
1.9Kg
|
|
Size
|
278*108*46mm (L*W*H)
|
|
packaging
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature.
|
|
2..Tolerance:includes set us tolerance,line regulation and load regulation.
|
Compatible Light Type
This is a UL listed 12V 250W constant voltage led driver supply, suitable for LED lights up to 220W. It shows excellent performance in a wide range of lighting applications, such as AQ lighting LED Neon.
