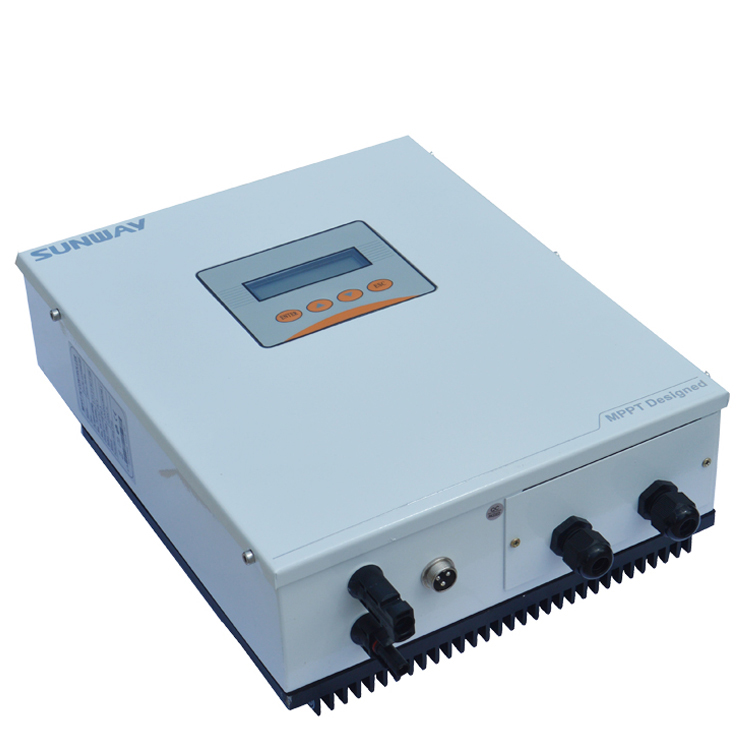

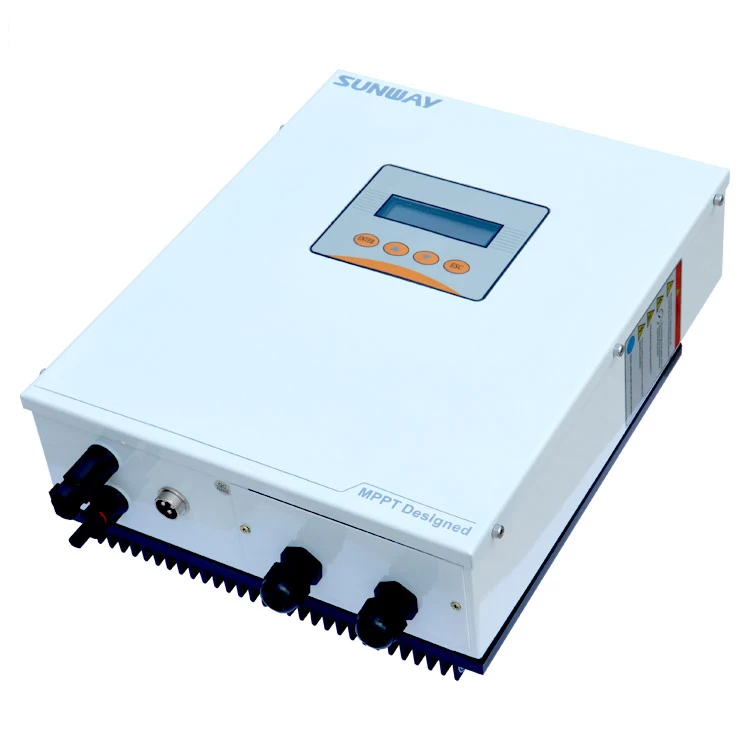

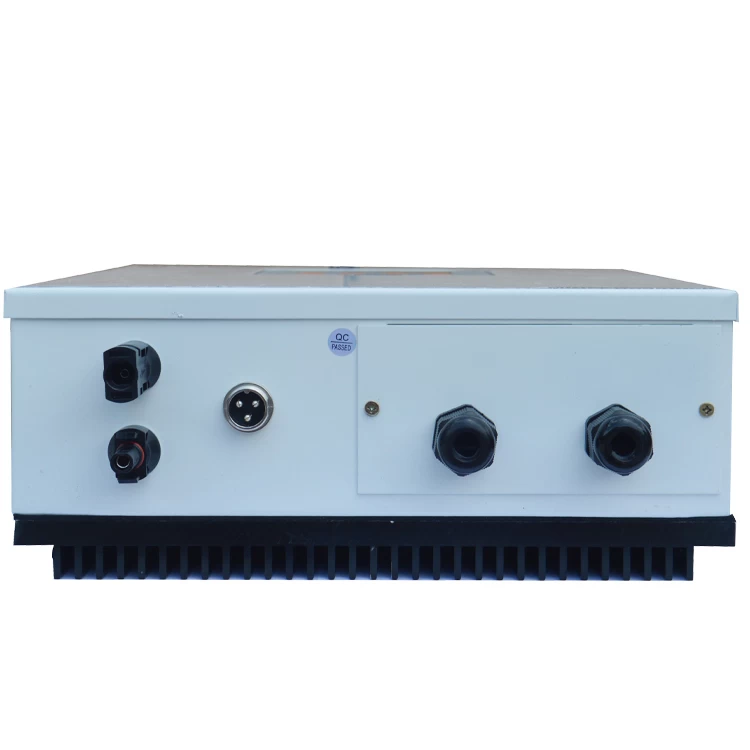

12v 24v 48V 50A 60A MPPT solar charge controller
Description of MPPT solar charge controller
Feature of MPPT solar charge controller:
1.) MPPT technology increases the efficiency of your PV system
2.) Modular Central Unit (MCU) control
3.) 12/24/36/48V selectable and auto recognition
4.) Be suitable for Lead-Acid, GEL,AGM and Li-Fe various kinds of batteries
5.) Users can to modify the system parameters by setting keys
6.) Standard RS485 data transfer function
7.) TTL Control Signal is offered, suitable for PV&Diesel generator hybrid system(optional)
8.) Temperature compensation function (optional)
9.) Utility power backup function (optional)

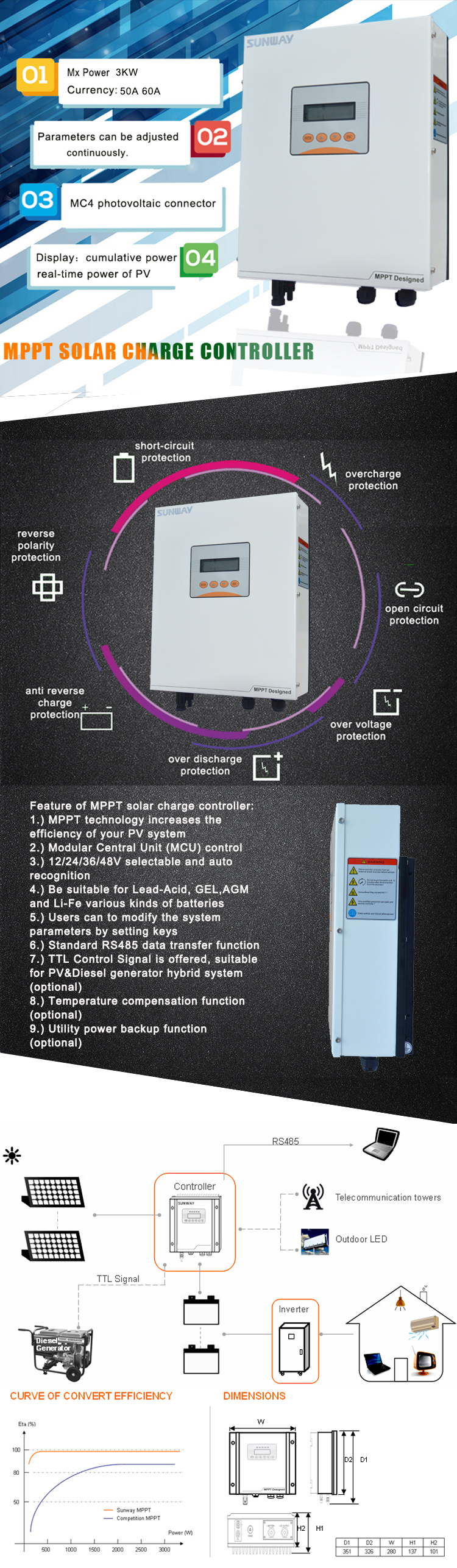

Topology of solar charge controller:
Technical Data of MPPT solar charge controller:
|
System Capability
|
|
Model type
|
SSCM- 12V / 24V / 48V
|
|
Max. PV input power [W]
|
720/1440 / 2880 (12/24/48V 60A system)
|
|
Rated charging current [A]
|
50A / 60A
|
|
Min. input voltage (Vmp) [V]
|
15 / 28 / 58 (12/24/48V
system)
|
|
Max. input voltage (Vmp) [V]
|
18 / 36 / 72 (12/24/48V
system)
|
|
Max. PV input voltage (Voc) [V]
|
150
|
|
Performance
|
|
|
|
Consumption at standby [mA]
|
<30
|
|
Conversion Efficiency
|
Up to 98%
|
|
Peak of conversion efficiency
|
99%
|
|
Topology
|
Inductor
|
|
Ambient Temperature
|
-40℃ to +50℃ (exceed 50℃ with derating)
|
|
Ambient Humidity
|
0%~98% Non-condensing
|
|
Cooling Method
|
Natural Convection
|
|
Temperature compensation
|
-4mV/K(2V cell)
|
|
Altitude [m]
|
<2000 (without power derating)
|
|
|
|
General Data
|
|
LCD Display
|
LCD (16X2characters,green backlight)
|
|
Display Language
|
English
|
|
Data communication (option)
|
RS485
|
|
Grounding
|
Negative
|
|
Ingress Protection Class
|
IP65
|
|
Dimensions (W*D*H) [mm]
|
280 *351 *137
|
|
Net weight [kg]
|
5.5
|

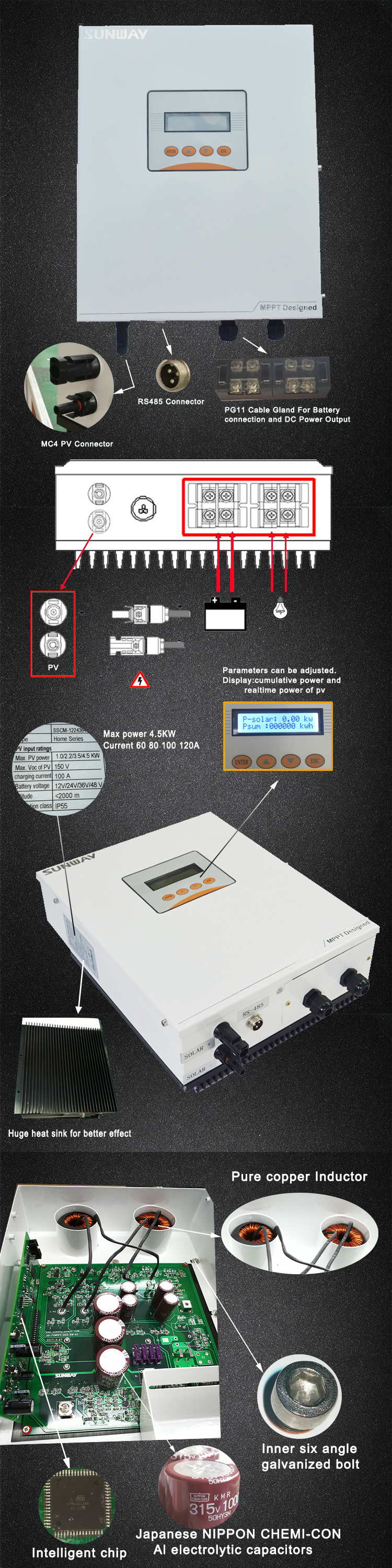

Assemly of MPPT solar charge controller
