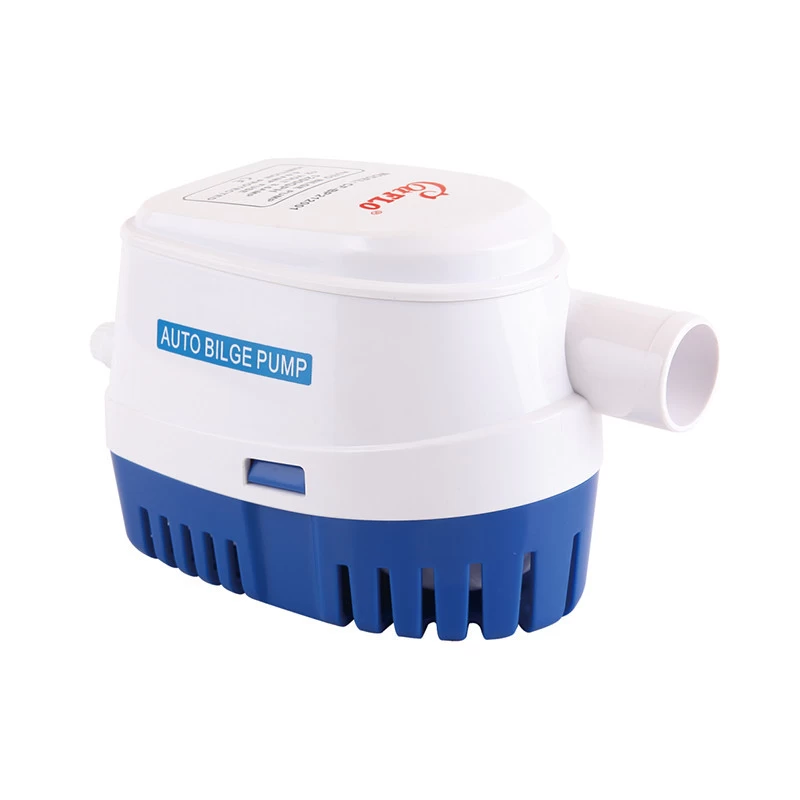

12V/24V 750GPH Automatic Bilge Pump

Automatic Submersible Boat Bilge Water Pump. All-in-one pump & float switch. No additional float switch required. 12V bilge pump turns on when water level rises & shuts off when water is removed.



12V/24V750GPH Automatic Bilge Pump

750GPH Automatic Submersible Boat Bilge Water Pump. All-in-one pump & float switch. No additional float switch required. Pump turns on when water level rises & shuts off when water is removed.

Features

l 3/4’’ nylon hose bard allow formultiple connections options

l 18AWG,1M long leads

l Ignition protection

l ABS exclusive moisture tight seal,liquid temperature 110°F (43°C) temperature limits

l All in one pump& switch, and no flow switch required. Pump turns on when water level rises and shuts off when water removes.

l Compact ,efficient,long life motor

l Easy clean snap-lock strainer base

MORE FEATURES

- 1Year Warranty

- Snap-off strainer base for easy maintenance

- Sealed efficient,long life motors

- Run dry capable for normal workloads
- Quiet operation
- 110°F (43°C) temperature limits
- Stainless steel shaft

- Anti-Airlock protection


TYPICAL APPLICATIONS

Marine, Medical, Pond, Water Research, etc.

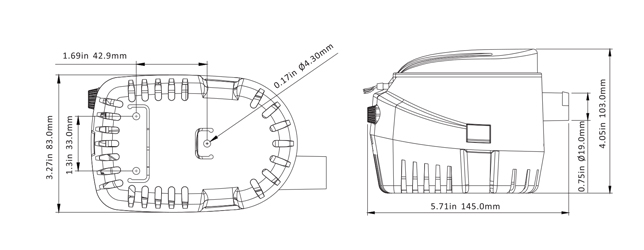

DIMENSION





STANDARD PUMP CONFIGURATIONS


Model

Volt

Flow rate(GPH)

Current rate(A)

Head

Wire lead

Outlet dia

N.W/G.W (KG)

CFBP-0201-01

12

750

6

3m

1M

3/4"

0.47/0.52

CFBP-040-01

24

750

3

3m

1M

3/4"

0.47/0.52

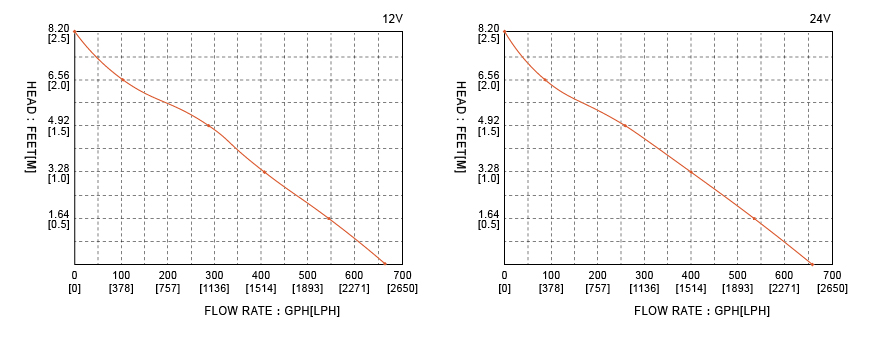

Performance


Voltage

Current

Flow rate

Head (M)

GPH

LPH

Open

2.48

676

2558

0

12

311

545

2062

0.5

12

3.78

411

1555

1

12

4.26

284

1075

1.5

12

4.66

103

390

2

12

5.0

0

0

2.5



Voltage

Current

Flow rate

Head (M)

GPH

LPH

Open

1.3

660

2498

0

24

1.6

533

2017

0.5

24

1.94

400

1514

1

24

2.31

263

995

1.5

24

2.54

86

325

2

24

2.9

0

0

2.5

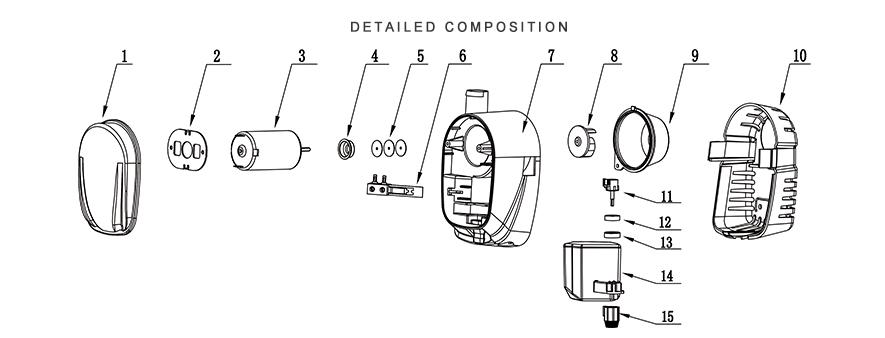

Item

Description

Quantity

1

Pump cover

1

2

Motor bracket

1

3

Motor

1

4

Motor oil seal

1

5

Wear plate

1

6

Switch assembly

1

7

Pump housing

1

8

Impeller

1

9

Impeller cover

1

10

Strainer

1

11

Rotor

1

12

Round wearplate

1

13

Oil seal

1

14

Float

1

15

Knob

1

Shipping information

Unit pump weight(N.W/G.W)

0.47/0.52kg

Unit size

16.2*9.5*11.4cm

Mater carton size

64.5 x 38.5 x24.8 cm

Mater carton quantity

32pcs

Mater carton weight

19.3kgs
