12V/24V High Efficiency Brushless Axial Cabinet Cooling Fan

12V/24V DC energy saving axial cooling system fan is certified by CE, UL and RoHS. Each item will be tested carefully and packed well by professional.  Cooling and Ventilating Solution, Axial force with 43.07 CFM Airflow (max.) Speed 3500RMP (max.) Noise 39dB-A (max.).




High Airflow 12V 24V DC brushless fanFeatures sleeve/ball bearing. Compact design technology allows this to be completely dustproof and waterproof.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

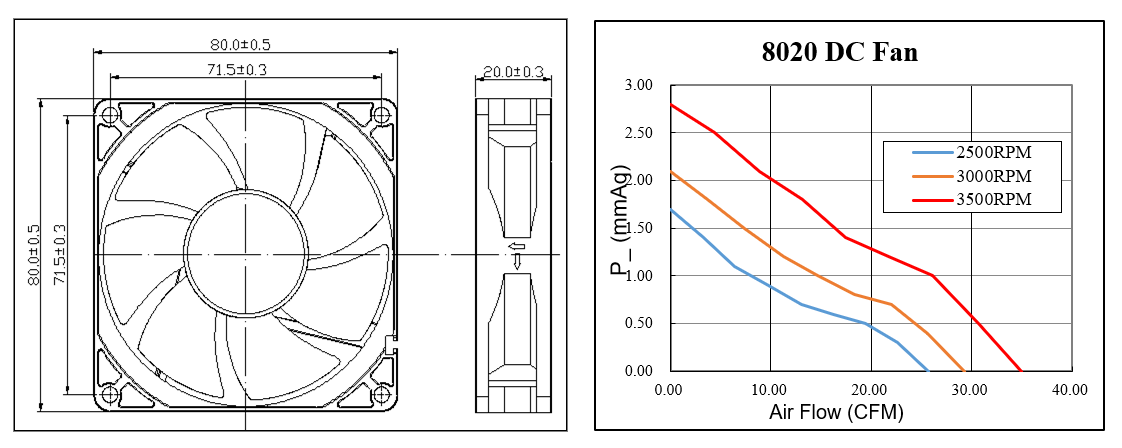

  • Dimension of outer the frame is 80 mm(L) x 80 mm(W) x 20 mm(H) / The size of fan in inch is 3.15 in(L) x 3.15 in(W) x 0.78 in(H); The center to center distance beween the mountiong holes is 71.5 ± 0.3 mm / 2.81 in.

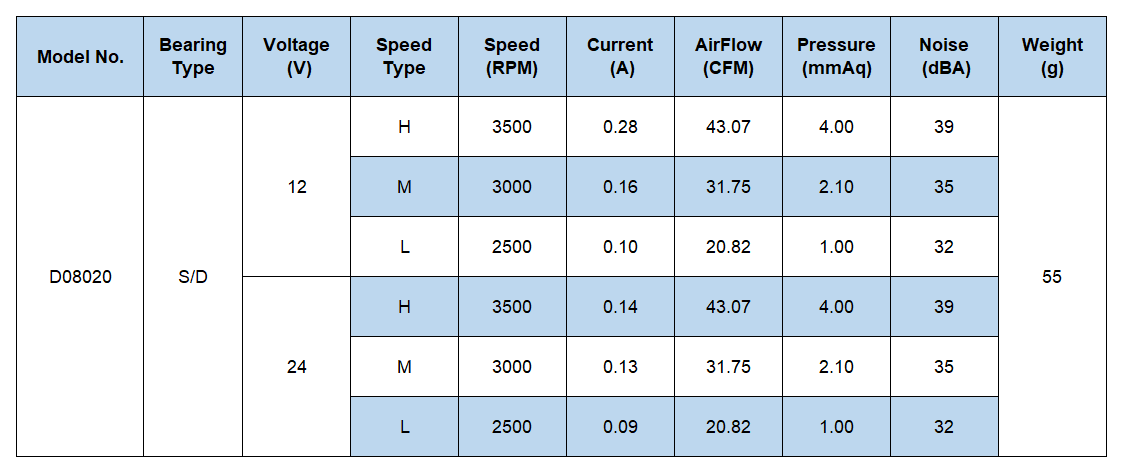

  • Operating Voltage Range: DC 12V/24 | Current: 0.09 ~ 0.28 Amp | Speed: 2500 ~ 3500 RPM | Airflow: 20.82 ~ 43.07 CFM | Noise: 32 ~ 39 dBA | Pressure: 1.00 ~ 4.00 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

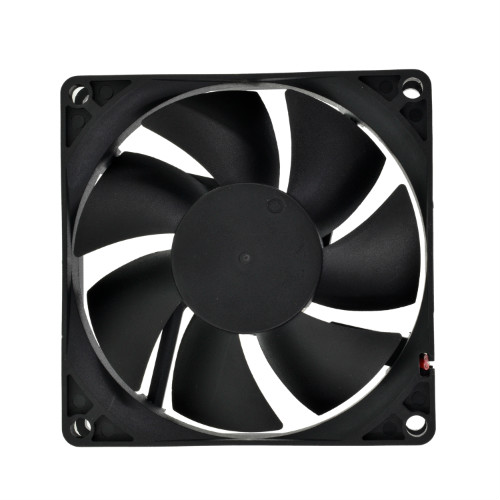

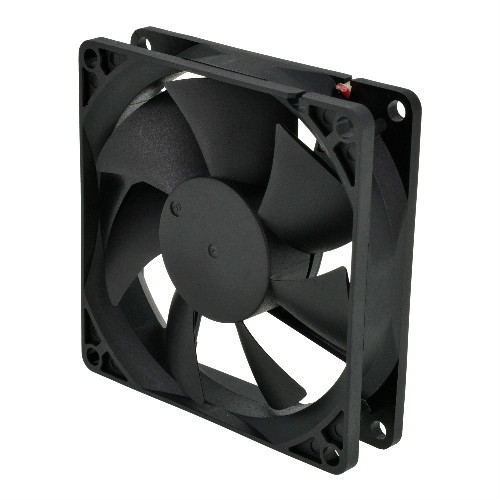

DC AXIAL FAN 80x80x20mm(3.15"x3.15"x0.78")

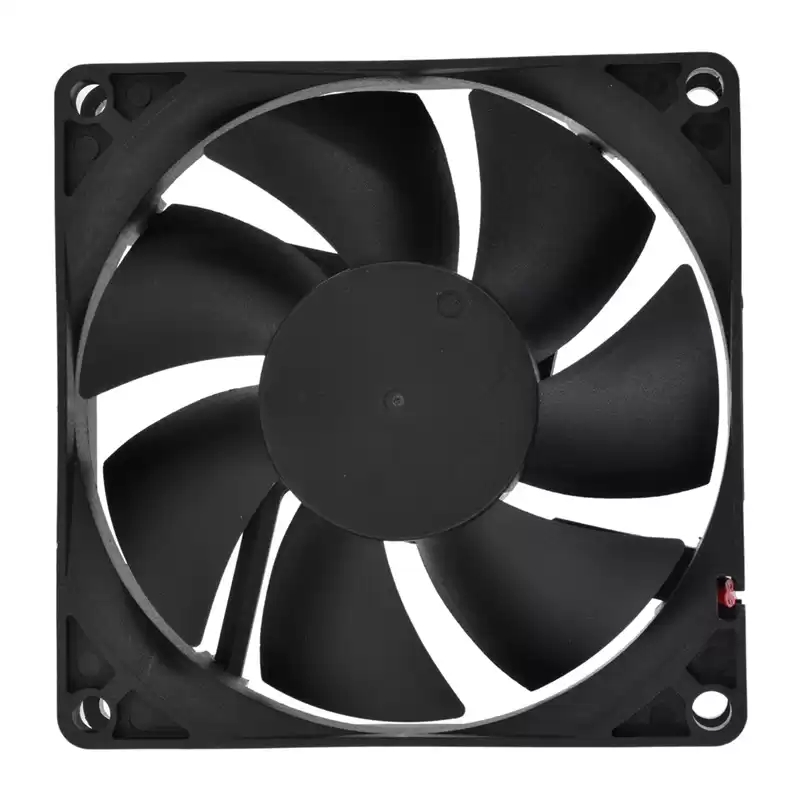

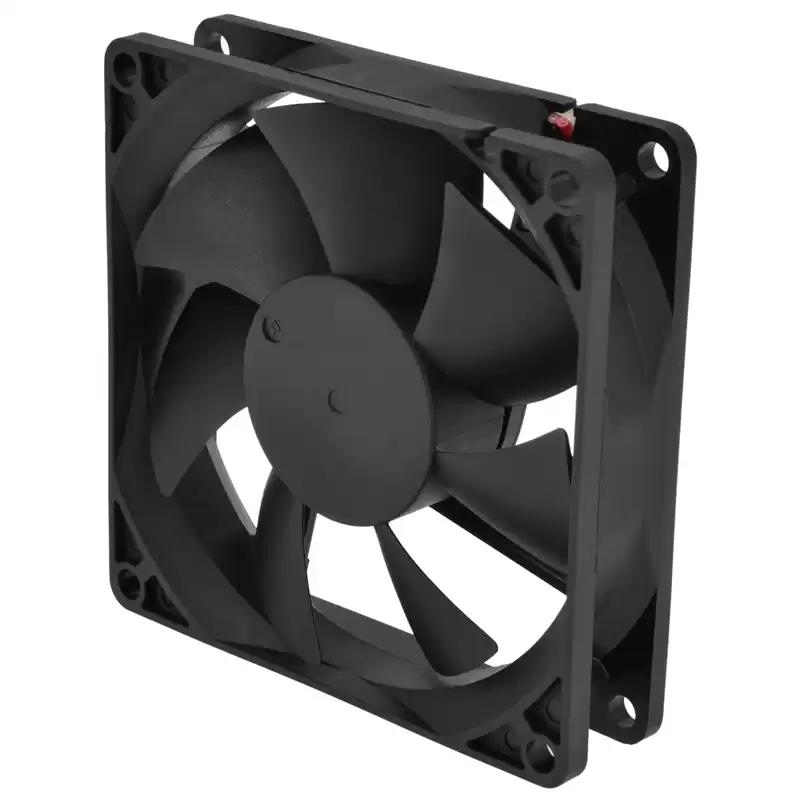

 8020 dualball bearing dc cooling pc fan 80x80x20mm DC 12V Cooling Fan


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


High Speed Brushless DC Axial Fan

    low noise mini 12v dc axial cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Stable performance, lower operating noise and long service life;
  • Our products are customized accroding to customer's requirements;
  • Excellent performance and impeccable quality for dc cooling system fan with a square housing;
  • Impedance protection ensures safe operation at high temperatures;
  • Wrappeed in pure copper wire high temperature resistance, and energy saving .It make fan have a at least 35000 hours long life span.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type

Model

Size

Type

Model

Size

DC Axial Fan

D02507

25x25x7mm(0.98"x0.98"x0.27")

DC Axial Fan

D06025

60x60x25mm(2.36"x2.36"x0.98")

D02510

25x25x10mm(0.98"x0.98"x0.39")

D07015

70x70x15mm(2.75"x2.75"x0.59")

D03007

30x30x7mm(1.18"x1.18"x0.27")

D07025

70x70x25mm(2.75"x2.75"x0.98")

D03010

30x30x10mm(1.18"x1.18"x0.39")

D08010A

80x80x10mm(3.15"x3.15"x0.39")

D03015

30x30x15mm(1.18"x1.18"x0.59")

D08010B

D03510

35x35x10mm(1.37"x1.37"x0.39")

D08015

80x80x15mm(3.15"x3.15"x0.59")

D04007

40x40x7mm(1.57"x1.57"x0.27")

D08020

80x80x20mm(3.15"x3.15"x0.78")

D04010A

40x40x10mm(1.57"x1.57"x0.39")

D08025A

80x80x25mm(3.15"x3.15"x0.98")

D04010B

D08025B

D04010C

D08025C

D04015

40x40x15mm(1.57"x1.57"x0.59")

D08038

80x80x38mm(3.15"x3.15"x1.5")

D04020

40x40x20mm(1.57"x1.57"x0.78")

D09025A

92x92x25mm(3.62"x3.62"x0.98")

D04028

40x40x28mm(1.57"x1.57"x1.10")

D09025B

D05010A

50x50x10mm(1.96"x1.96"x0.39")

D09025C

D05010B

50x50x15mm(1.96"x1.96"x0.59")

D09232

92x92x32mm(3.62"x3.62"x1.26")

D05015

50x50x15mm(1.96"x1.96"x0.59")

D09238

92x92x38mm(3.62"x3.62"x1.5")

D05020

50x50x20mm(1.96"x1.96"x0.78")

D11335

113x113x35mm(4.46"x4.46"x1.38")

D05025

50x50x25mm(1.96"x1.96"x0.98")

D12025A

120x120x25mm(4.72"x4.72"x0.98")

D06010

60x60x10mm(2.36"x2.36"x0.39")

D12025C

D06015

60x60x15mm(2.36"x2.36"x0.59")

D12038

120x120x38mm(4.72"x4.72"x1.5")

D06020

60x60x20mm(2.36"x2.36"x0.78")

D12539

125x125x39mm(4.93"x4.93"x1.54")

D06025

60x60x25mm(2.36"x2.36"x0.98")

D13538

135x135x38mm(5.31"x5.31"x1.49")



Application

DC/AC axial fans are available in several sizes to accommodate diverse applications. They are often used for cooling cabinet refrigerator,wine cabinet.

8020 Made in China 12v dc axial flow fan


switching power supply transformer amplifier cooling fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
