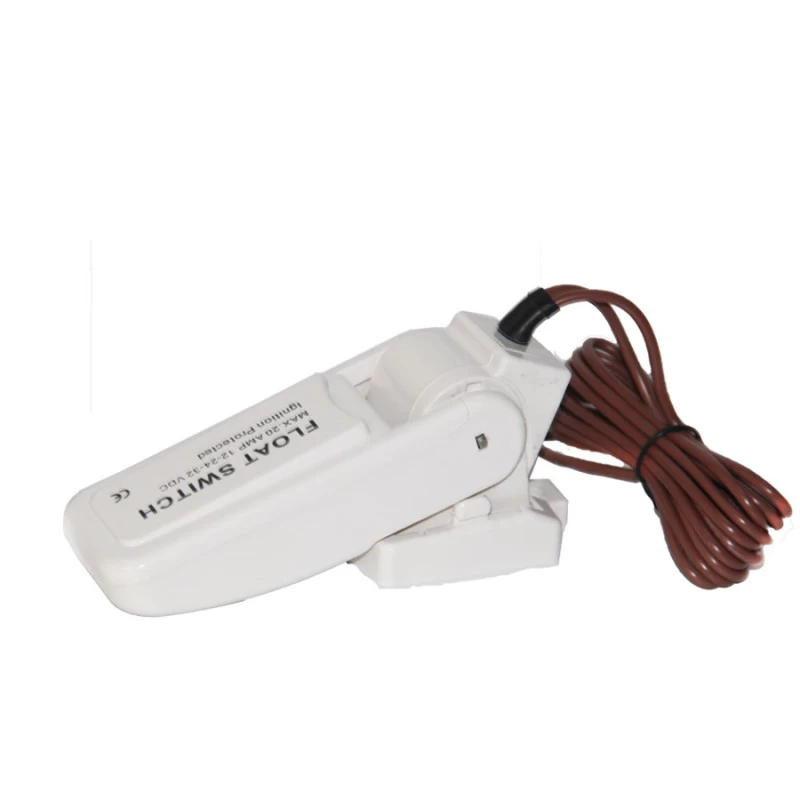

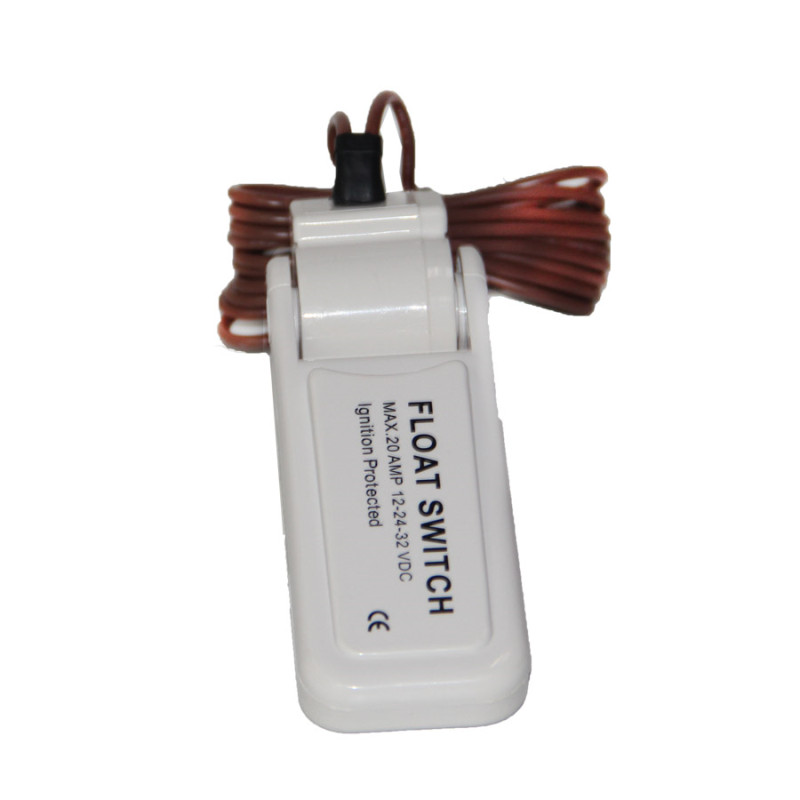

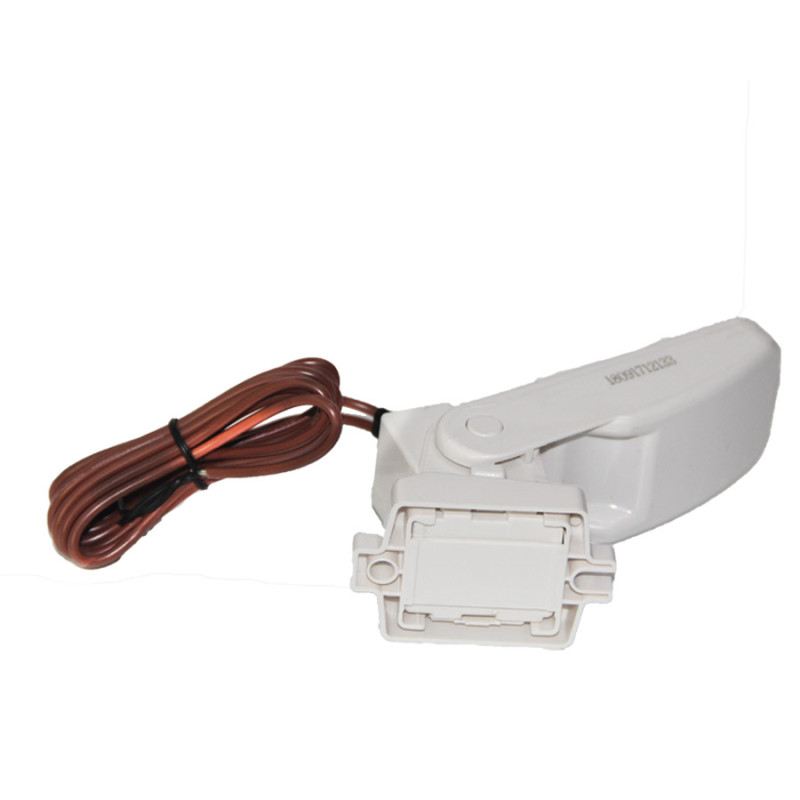

12V-32V Automatic Float Switch for Marine Boat Bilge Pump

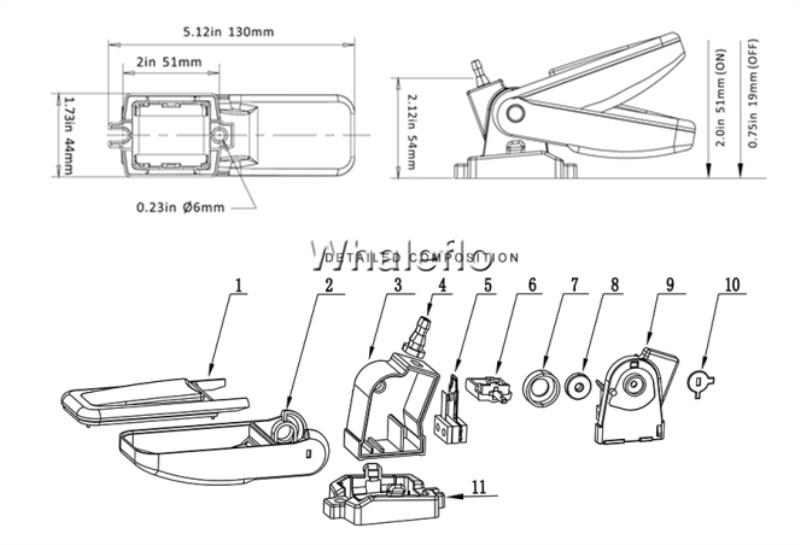

Feature& Dimension
Ignition protected
Turn pump on when water level reaches2"(51mm);
Turn pump off when water level reaches3/4"(19mm)
This product should be used with recommended size fuse for the pump to which it is connected.
Not to be used with 110V applications.
Important:Keep all wire connections above the highest water level.Wires should be sealed with a waterproof marine sealant to prevent wire corrosion!
Technical Data:
Max Amps 12Volts
|
18Amps
|
|
Max Amps 24Volt
|
10Amps
|
|
Wire Length
|
1m
|
|
Wire Gauge Size
|
16
|
|
N.W./G.W.(kg)
|
0.14/0.18kg
|
