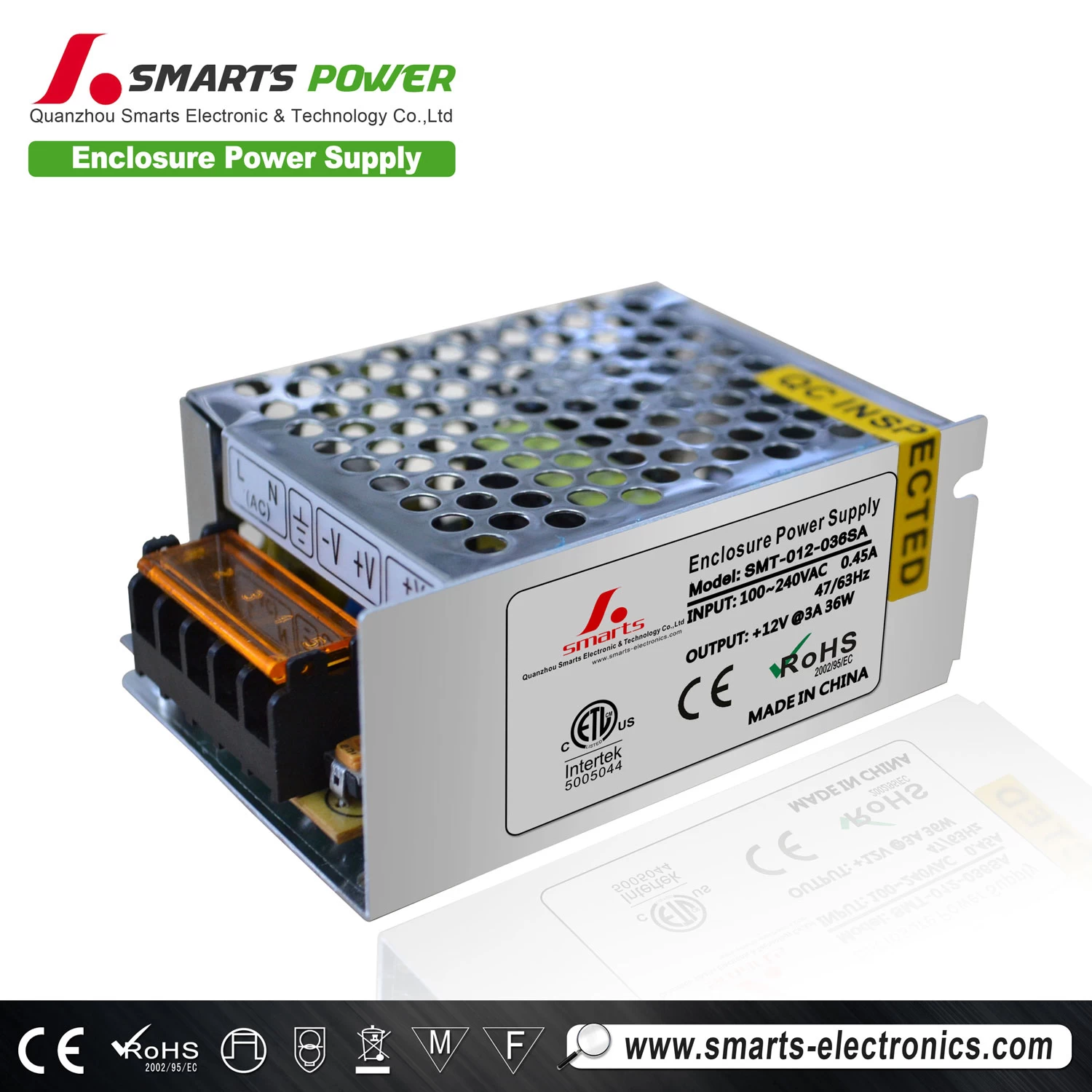

12v 36w enclosure power supply with CE/ROHS Listed

12v 36w enclosure power supply with CE/ROHS Listed



12v 36w enclosure power supply with CE/ROHS Listed


Specifications:

Product size: 110*78*38mm
Case material: Aluminum housing
Net weight/pc: 165g
Input voltage: 100-240V
output voltage: 12V, 24V, 36V, 48V
Frequency: 47-63Hz
Output power: 36W

Features:
1. Constant voltage design with high accuracy.
2. International wide input voltage.
3. output voltage 5v/12v/24v/36v/48v selectable.
4. Wattage: 15w-600w.
5. High efficiency, save energy, protected environment.
6. High stability and low ripple, increase light efficiency and decrease light attenuation.
7. Meet to safety standard and EMC.
8. Assure LED stability long lift and light efficiency by constant voltage.
9. Overcurrent, overvoltage, overheat, short curcuit protection:Auto-recovery
10. Start,raise,stable time:  500ms,30ms,40ms/230VAC,500ms,30ms,16ms/115VAC
11. Cooling by free air convection.
12. 100% full load burn-in test.
13. Brand electrotronic components.
14. ROHS material.
15. Well match with LED guardrail lamp, Flood light, light word, street lamp etc, For LEDs series-parallel.
16. Competitived price and high reliability
17. 105 °C Output capacitor
18. AC input power suitable for the world
19. High efficiency and low operation temperature
20. Soft-start current can reduce the AC input impact effect
21. With short-circuit and overload protection
22. Compact size, light weight
23. 100% full-load burn-in test
24. Installed with EMI filter, minimum wave
25. 2 years warranty

Environment:
Working temp,humidity: -25°C~+50°C,20%~90%RH
storage temp,humidity:  -20°C~+85°C,10%~95%RH non-condensing
Withstand vibration:  10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety:
Withstand voltage:  I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance:  I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
EMC standard: Comply with EN55022,CLASSA

parameter:

Model



SMT-012-036SA

SMT-024-036SA

SMT-036-036SA

SMT-048-036SA







output

DC voltage



12V

24V

36V

48V

Voltage tolerance



±1%

±1%

±1%

±1%

Rated current



1.25A

1.5A

1.0A

0.75A

Current range



0~3.0A

0~1.5A

0~1.0A

0~0.75A

Rated power



36W

36W

36W

36W

Ripple&noise



150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range



±10%

±10%

±10%

±10%





input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

3.1A/115VAC,1.8A/230VAC

efficiency



>82%

>82%

>83%

>83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC



protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage



15.5~17.4V

18.5~20.4V

30.2~33.1V

33.2~35.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

Short circuit

protection

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
