12V 55ah Front Access Terminal SLA Sealed Storage Battery

The success of DGF batteries comes from the internationally superior Gel technology. It is ideal for standby or frequent cyclic discharge applications under extreme environments


  • Sampleavailable


Application:


1. Suitable for 19inch and 23inch power cabinet.
2. Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station.
3. Great for power supply system of private network or LAN.
4. Used as signal system battery and emergency lighting system battery.
5. Perfect for EPS and UPS system.
6.Front terminals to make the installation, maintenance and supervision easy


Battery Use and Maintenance:

1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.

6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.


Front Terminal Gel Battery Series:

Model

Voltage

Capacity
(20h)

Size
(mm)

Weight
(kg)

Download

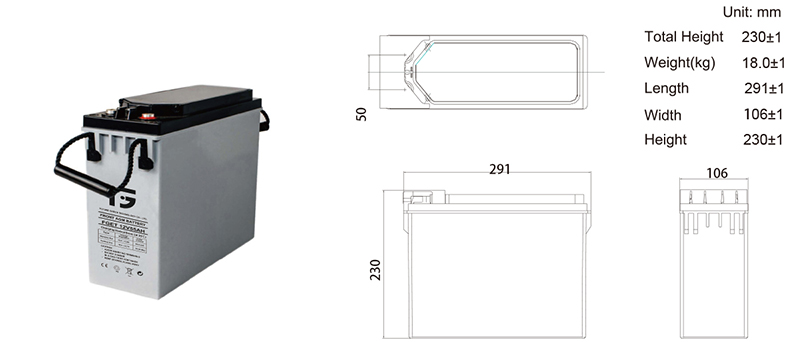

DG12V55Ah-F

12V

55Ah-F

277*106*222.5*222.5

17

DG12V80Ah- F

12V

80Ah-F

562*114*188*188

25

DG12V100Ah-F

12V

100Ah-F

394*109*286*286

32

DG12V105Ah- F

12V

105Ah- F

394*109*286*286

33

DG12V150Ah-F

12V

150Ah-F

507*109*288*288

45

DG12V180AH- F

12V

180Ah- F

560*125*316*316

53


Work Shop

 View More



Main Workshop

FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.

Battery Charging

In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.

Produce line

FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.


Packing & Delivery

 View More



Carton Packing

20, 10 or 4 pieces in one carton for batteries smaller than 12V24AHone in one carton for larger batteries.

Batteries Layer

Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.

Fumigation Free Tray

As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.

Our Certification

 View More




Company Certificate

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.

ISO Certificate

 SGS ISO9001 quality management system certificate, ISO14001 environment system certificate



MSDS & Transport

Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.



Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty: 2 Year
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
