12V 7AH Top Sales Sealed Lead Acid VRLA UPS Battery

The FGET sealed lead acid rechargeable battery (VRLA battery) is leak-proof and maintenance free. The Superiority of VRLA battery is derived from its uniquely efficient oxygen recombination technology.


  • Sampleavailable

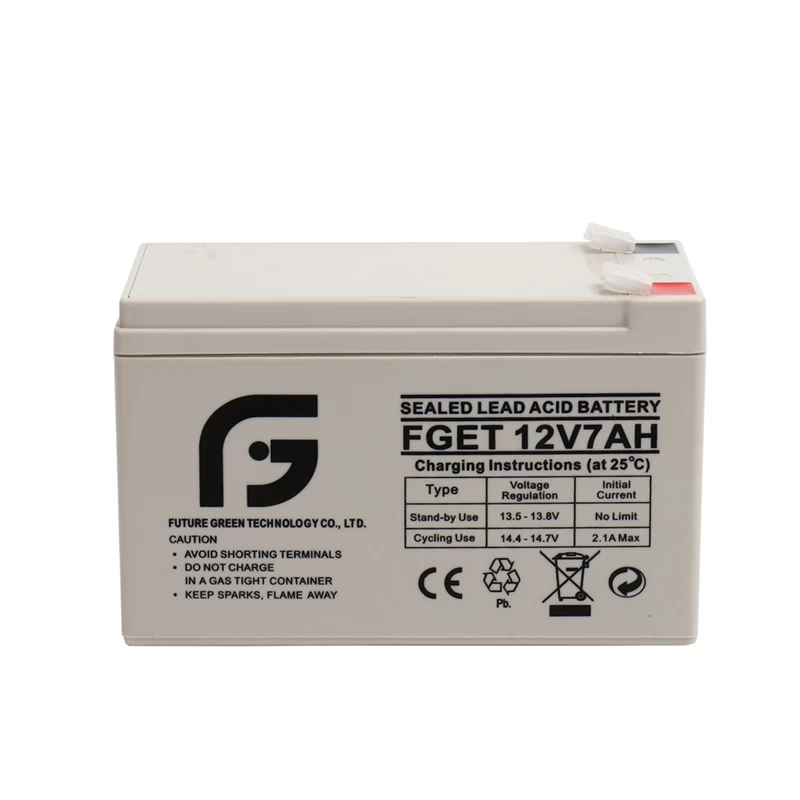

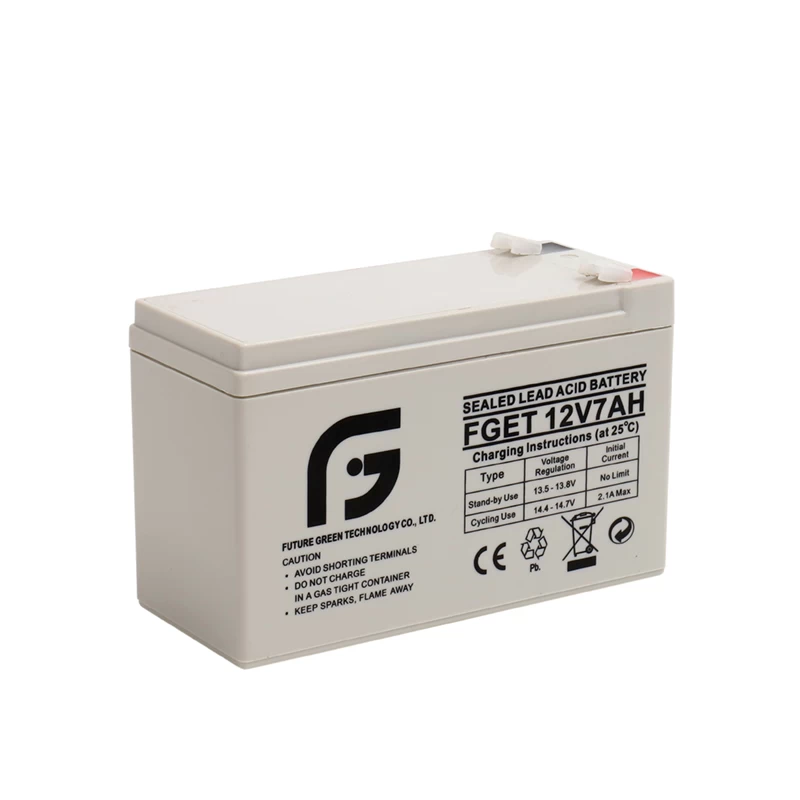

Future Green 12V 7AH Top Sales Sealed Lead Acid VRLA UPS Battery



Main Application and General Features of AGM Battery Series:



Product Series AS series small sizeCapacity below 33Ah AM series mediuml size6V,12V,Capacity above 33Ah SL series large size2V, Capacity above 65Ah
Main Applications 1) Small UPS
2) Baby carriage, scooter, lawn mower, bag car
3) Electronic scales, portable lamps, table lamps, garden lamps, electric fans
4) Instrumentation equipment such as electronics, power tools, and electric toys, etc.
5) Car starter, generator
6) Solar/ wind energy indicator lights, signal lights, emergency lights, fire alarms and security systems
7) Consumer products supporting power supply, etc.
1) Medium and large UPS
2) Banking, finance, traffic signals (metro, railway, highway, air station, navigation mark, etc.) system
3) Power DC screen
4) Emergency power supply (EPS)
5) DC power supply for hospitals, laboratories, schools, and research institutes
6) Electronics, equipment
7) Automation control system, etc.
1) Communication base station/office
2) Backup power supply for power DC screen, power communication backup power supply
3) Large IDC machine room backup power supply, large UPS backup power supply
4) Solar/ wind energy off-grid energy storage system
General Features Affordable, consumer design
Children's car, lamps, scales, etc. adopt cycle technology, deep cycle and long discharge life
The starter adopts cast welding and wall welding technology, and has excellent super-current discharge performance.
High capacity design, longer standby time
High corrosion-resistant multi-alloy grid, long life of float charge
 A variety of sizes, suitable for a variety of equipment or cabinet installation
Thick plate, low density, internalized design, long life of floating charge, suitable for standby power supply


Battery Use and Maintenance:

1) Please use constant-voltage charge.

2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.

6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

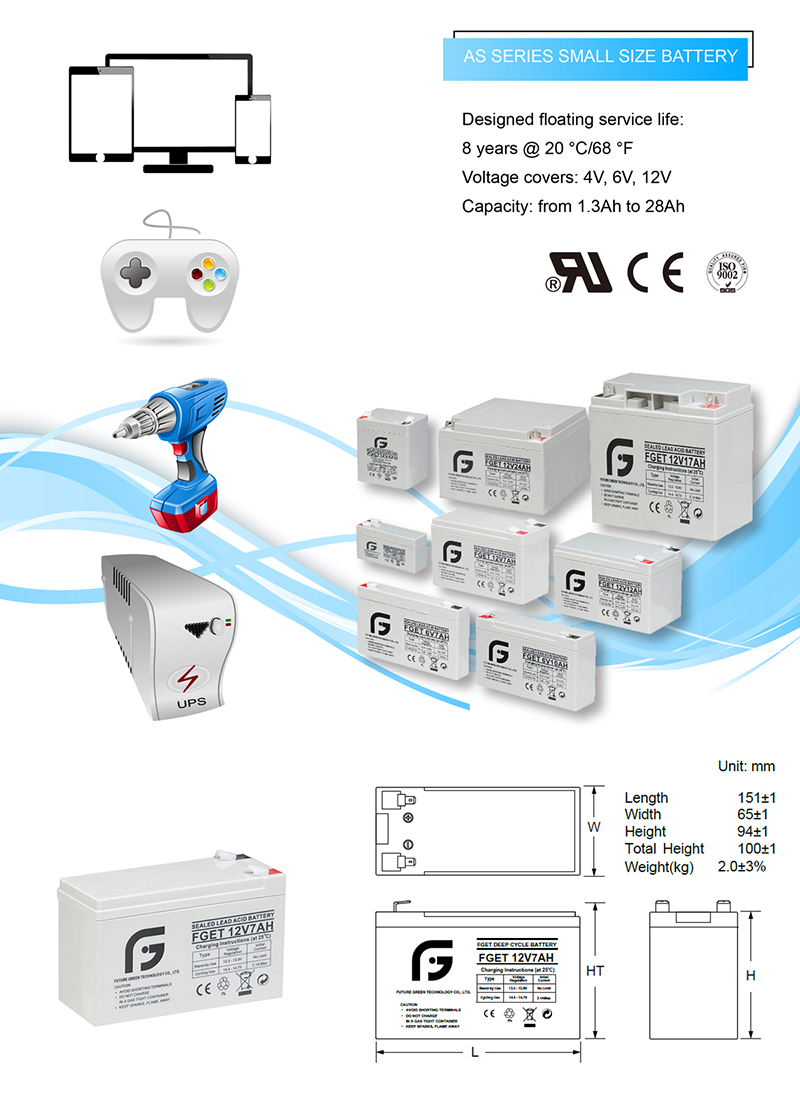

Battery Out Size:





Battery Parameters:


Capacity
25'C (77'C)

20 hour rate(0.350A )

7.00AH

10 hour rate(0.653A )

6.53AH

1 hour rate(4.500A  )

4.50 AH

Internal Resistance

Full charged Battery at 25  'C(77'F  )

23 milli-ohm

Capacity affected by Temp

40'C (104F)

102%

25'C (77'F)

100%

0'C (32'F)

85%

(-15'C )5'F

65%

Self-Discharge
25'C (77'F)

Capacity after 3 month storage

91%

Capacity after 6 month storage

82%

Capacity after 12 month storage

64%

Charge
(Constant Voltage)

Initial Charging Current less than 2.1 A

Voltage 14.4-15.0V


Lead acid battery series:

Model Voltage Capacity Size Plate  Weight Download
(20h) (mm) Number (kg)
AS12V1.3Ah 12V 1.3Ah 97*43*51*57 30 0.56
AS12V2.3Ah 12V 2.3Ah 178*35*61*67
36 0.78
AS12V3.2Ah 12V 3.2Ah 134*67*61*67
36 1.2
AS12V4Ah 12V 4Ah 90*70*101*107 36 1.4
AS12V4.5Ah 12V 4.5Ah 90*70*101*107
36 1.45
AS12V5.5Ah 12V 5.5Ah 90*70*101*107
36 1.6
AS12V6Ah 12V 6Ah 151*65*94*100
48 1.9
AS12V7Ah 12V 7Ah 151*65*94*100 48 2
AS12V7.2Ah 12V 7.2Ah 151*65*94*100
54 2.1
AS12V8Ah
12V 8Ah 151*65*94*100
48 2.3
AS12V9Ah 12V 9Ah 151*65*94*100 54 2.6
AS12V10Ah
12V 10Ah 151*98*95*101
72 3
AS12V12Ah 12V 12Ah 151*98*95*101 78 3.5
AS12V15Ah
12V 15Ah 181*77*167*167
42 4.6
AS12V17Ah 12V 17Ah 181*77*167*167 48 4.9
AS12V18Ah
12V 18Ah 181*77*167*167
48 5.15
AS12V20Ah
12V 20Ah 181*77*167*167
54 5.6
AS12V22Ah
12V 22Ah 181*77*167*167
54 6
AS12V24Ah 12V 24Ah 177*165*126*126 66 7.3
AS12V26Ah
12V 26Ah 177*165*126*126
66 7.9
AS12V28Ah
12V 28Ah 177*165*126*126
78 8.3


Work Shop

 View More



Main Workshop

FGET, it is highly resistant to battery acid, oxidation and heat, and can maintain its shape and strength after prolonged exposure to sever environmental conditions. Customized specifications are available.

Battery Charging

In the fully charged state, the negative plate consists of lead, and the positive plate lead dioxide, with the electrolyte of concentrated sulfuric acid.

Produce line

FGET have 3 produce lines for AGM battery from 2V to 12V, GEL battery and OPzV battery.


Packing & Delivery

 View More



Carton Packing

20, 10 or 4 pieces in one carton for batteries smaller than 12V24AHone in one carton for larger batteries.

Batteries Layer

Load Lead acid batteries 3-5 layers high with cardboard between each layer, and stretch wrap. Make sure to catch the top of the pallet to help anchor it.

Fumigation Free Tray

As Lead Acid batteries are very heavy, we all use fumigation free tray to transport them.

Our Certification

 View More




Company Certificate

Commitment to quality, consistency, innovation and service is taking the Company through a steady growth in the competitive market.

ISO Certificate

 SGS ISO9001 quality management system certificate, ISO14001 environment system certificate



MSDS & Transport

Our batteries have UL and CE approvals. MSDS and Report for Safe Transport of Goods.



Our Services:

Samples and OEM, Warranty and After-Sale Service:

Sample can be provided for quality testing

  •  OEM Welcomed
  •  Warranty: 2 Year
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
