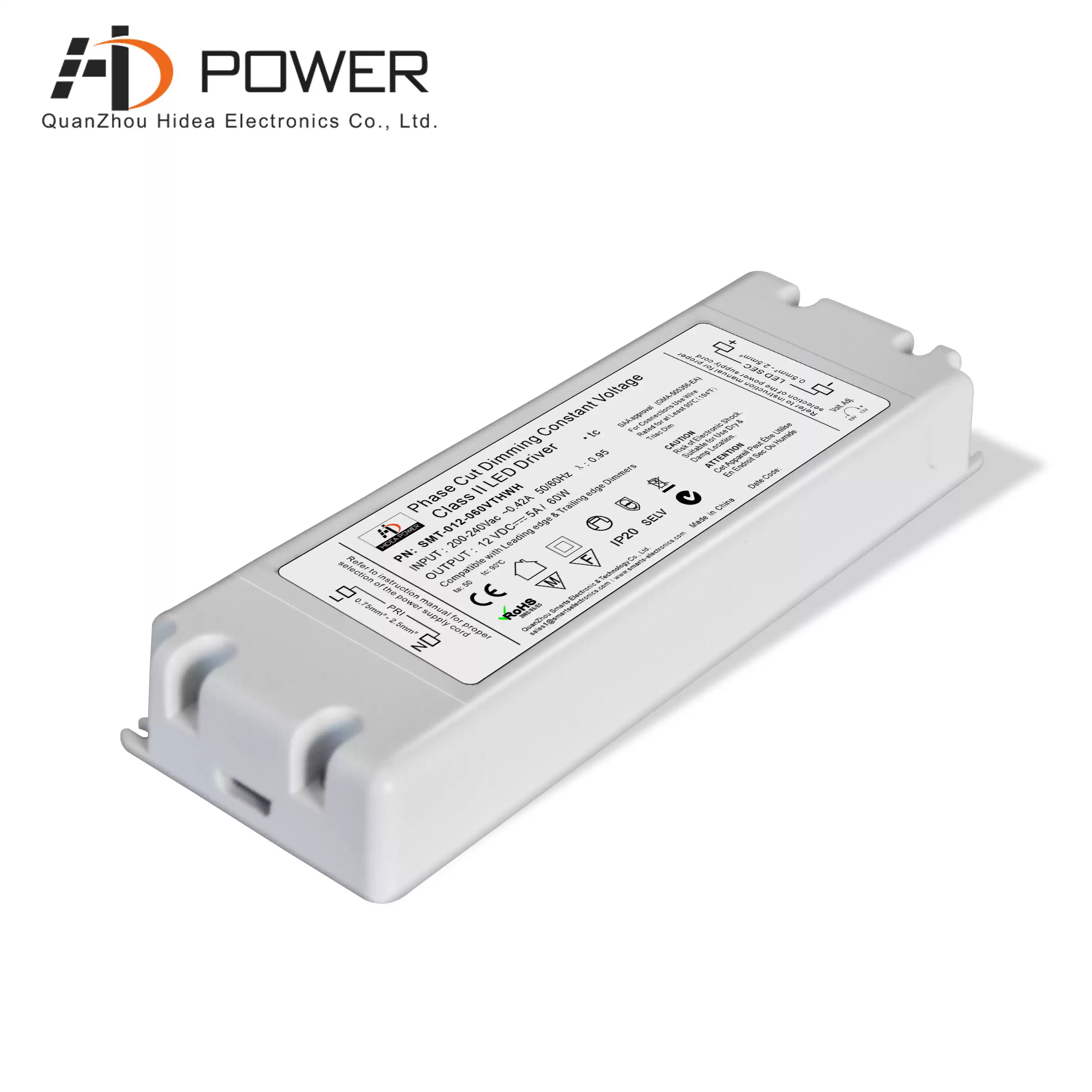

12v dc triac dimmable 24v 60w constant voltage dimmable led driver
60W triac dimmable led driver work efficiency with short -circuit, overloading, and over temperature can reach 85%, suitable for indoor LED lighting projects
Specification
|
model
|
SMT-012-060VTHWH
|
SMT-024-060VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
5A
|
2.5A
|
|
Rated power
|
60W
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
85%
|
85%
|
|
AC Current (Max.)
|
0.38A
|
0.38A
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≦120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Current
|
≦ 1.2 *Iout
|
|
Over Temperature
|
100℃± 10℃ shut down o/p voltage ,re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40-+70℃
|
|
Working Humidity
|
20-90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10-95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧60%loading)
|
|
Others
|
Net.Weight
|
0.35KG
|
|
Size
|
178*61*24mm (L*W*H)
|
|
packing
|
185*65*28mm inner box 290*215*240mm outside carton 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
|
4. Loading range from 10% to 100%
|
Compatible Light Type

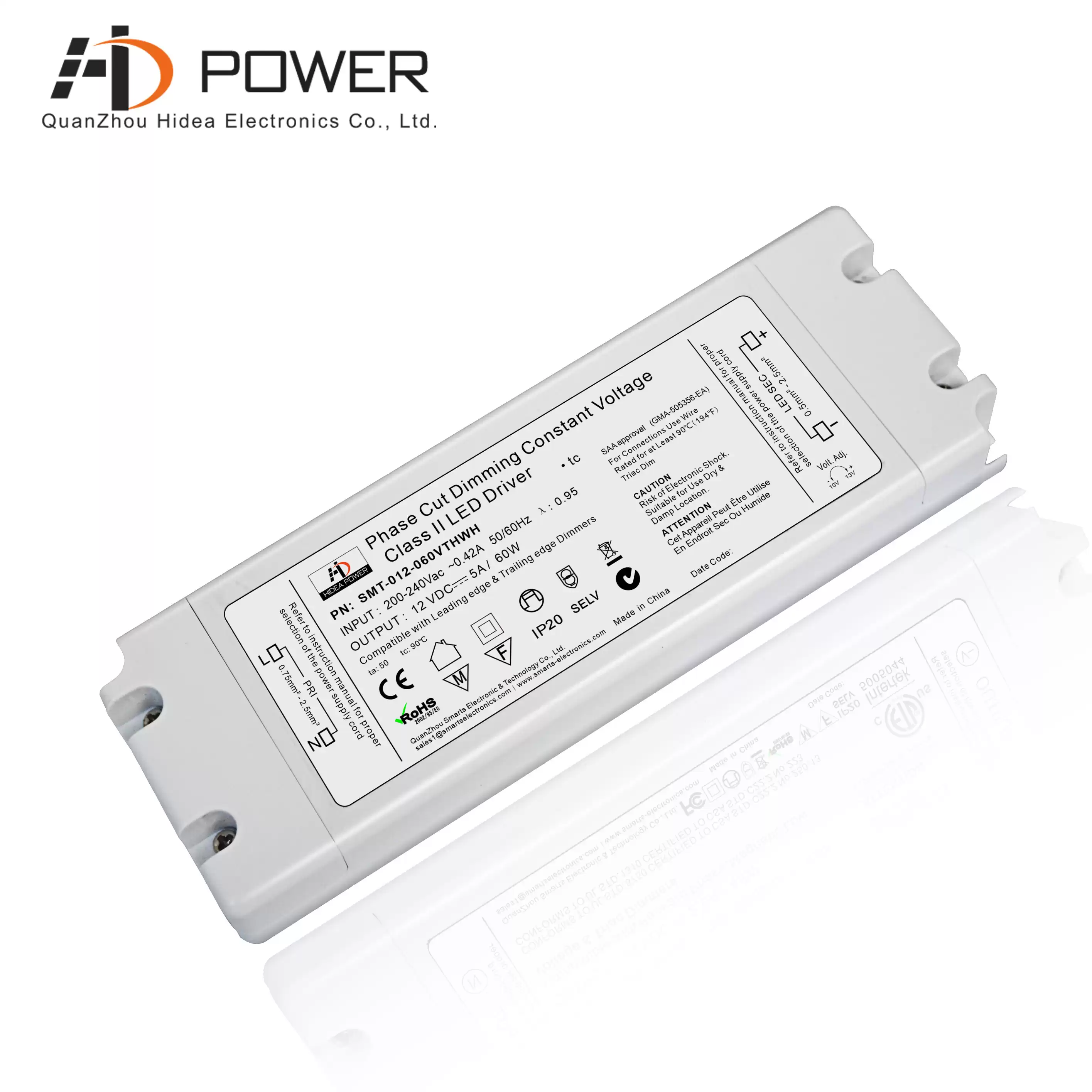

60W 12V Triac Dimmable LED driver IP20 Design for Indoor Installation Being able to be well compatible with TRIAC DIMMER to light without flashing
Related Products
|

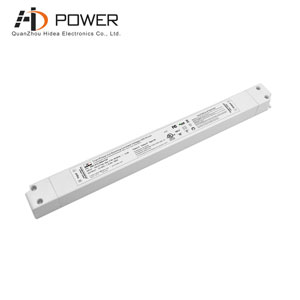

Slim Size 60W TRIAC DIMMABLE LED DRIVER Plastic Shell is suitable for indoor installation
Mode：SMT-012-060VTSP
Dimming Mode : triac-Dimming
Output Power : 60W
intput voltage：100~277V AC
Size：300*30*18.5MM （L*W*H）
|
