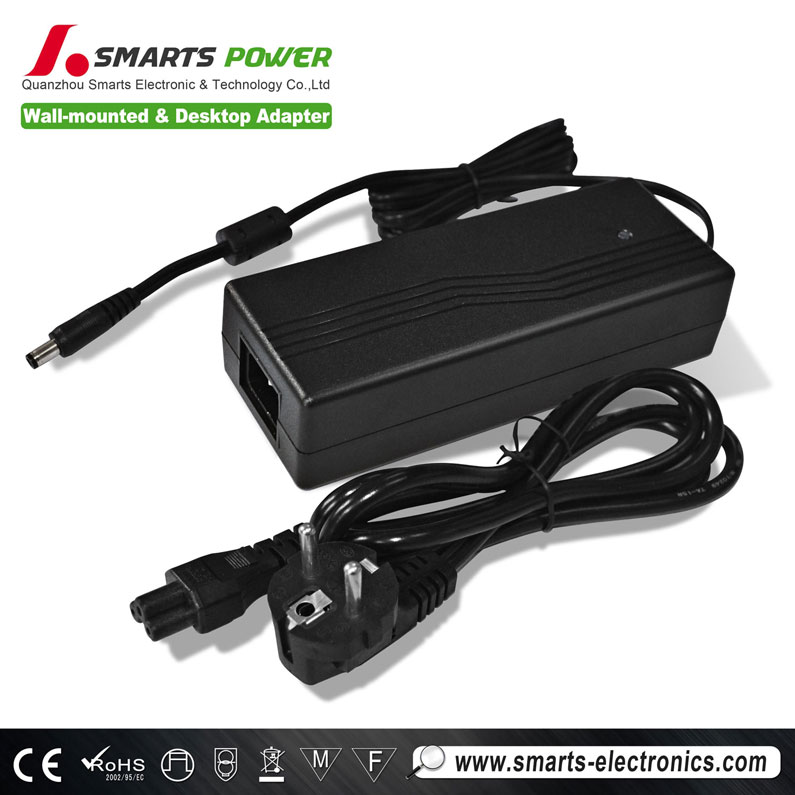

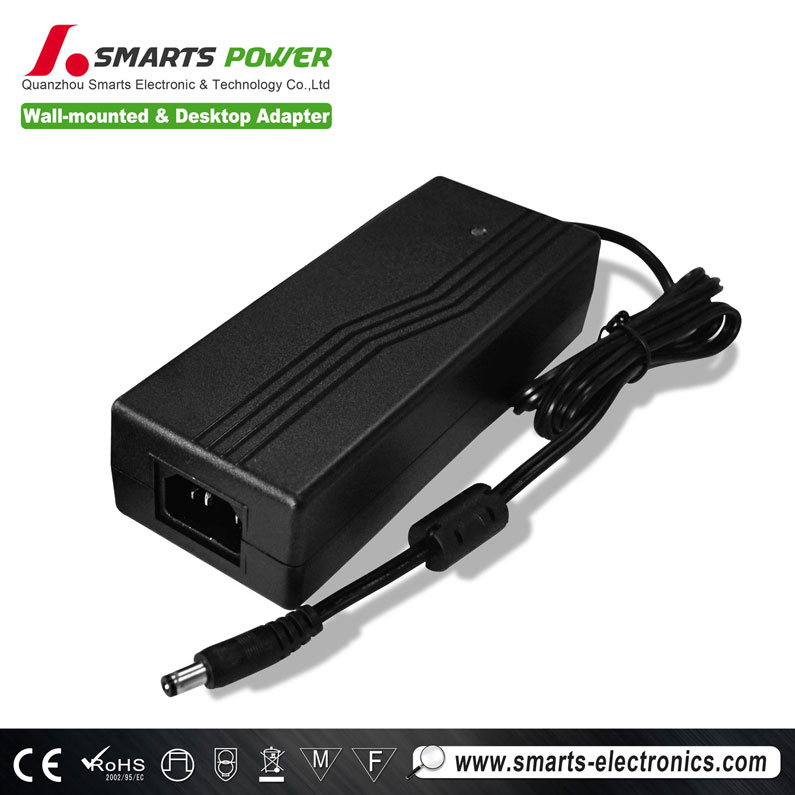

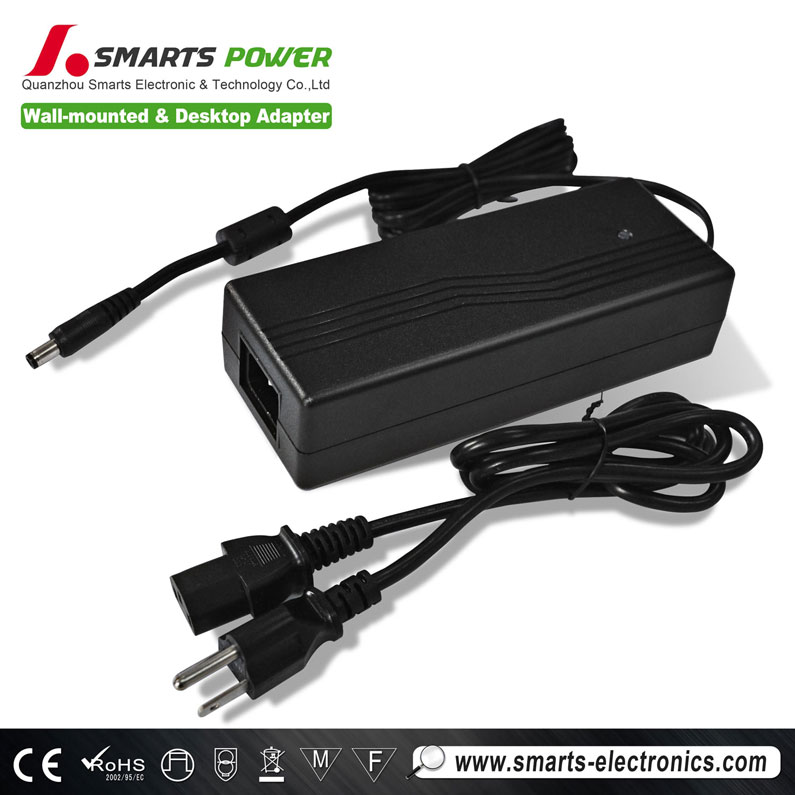

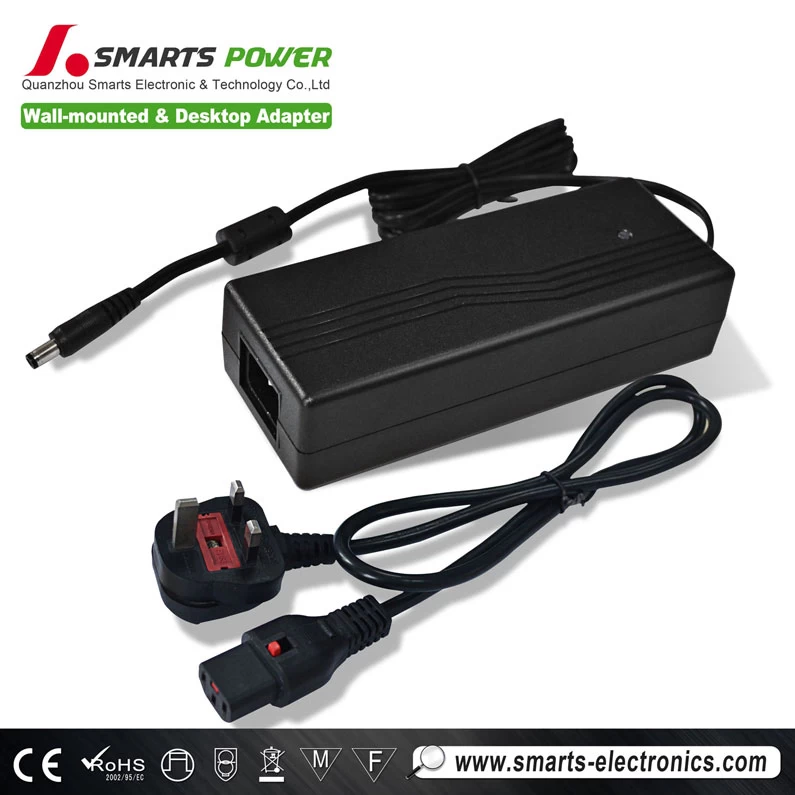

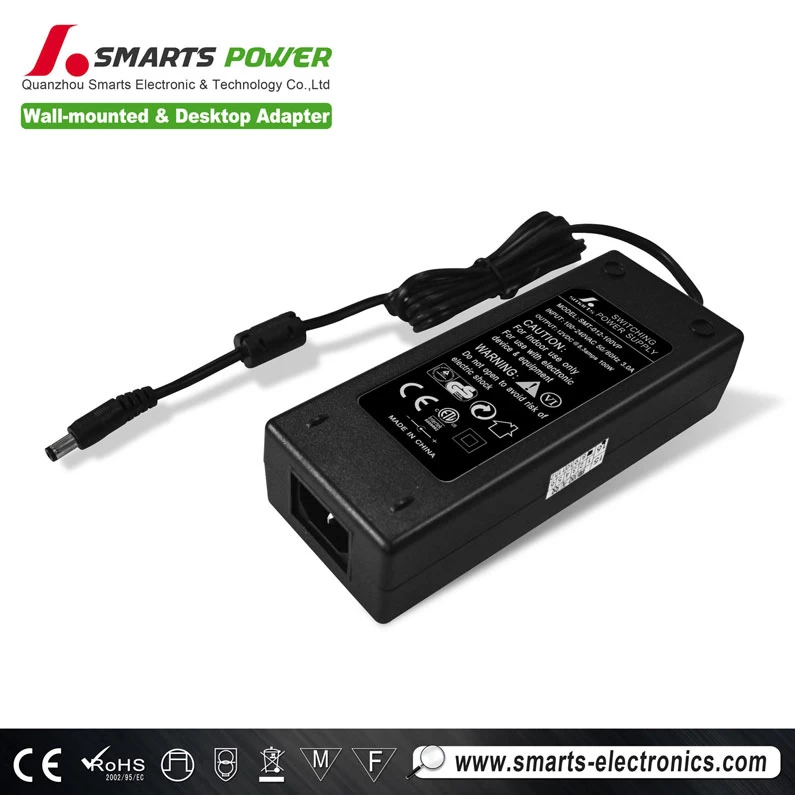

12v 100w desktop power adapter

Features :

• Universal AC input: 100~240Vac

• Protections: Short circuit / Overload

• No load power consumption < 0.5W /Over voltage

• 2 pole US / European type plug

• Fully enclosed plastic case

• Class II power (without earth pin)

• Pass LPS for 12V, 24V

• Full output 12v, 24v safety approved

• 18 months warranty


Feature:

AC-DC power adapter

output: 12V ,24v ; Universal AC  input:100-240v; 47-63Hz

Low ripple&noise regulation

Ac cord;EU standard ac plug,

DC cord:1.2m EU standard cord with male plug

Protections: Short circuit / Overload

No load power consumption < 0.5W /Over voltage

2 or 3 pole US / European type plug

Fully enclosed plastic case IP20

Class II power (without earth pin)

CE,approval

1.5 years warranty


General Description:

AC input voltage range ............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W

AC inrush current (max.) ........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC

Overload protection...................  Hiccup mode, auto-recovery

Over voltage protection ............. Clamp by zener diode > 120%

Withstand voltage......................  I/P-O/P: 4242VDC, 1minute

Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load

Safety standards........................  EN61347-1-2, CSA 22.2, TUV EN60950-1

EMC standards..........................  EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11

Length of output cable................ 180cm of  20AWG

Standard DC plug.......................  P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm /  -C+, turning fork type


desktop type LED strip power adapter:

• 2 or 3 pole AC inlet                                             • Fully enclosed plastic case

• Class I power (with earth pin)                          • Pass LPS for 12V, 24V

• Full output 5V~48V safety approved                • LED indicator for power on

• Protections: Short circuit / Overload /              • Approvals: CE

   Over voltage                                                         • 18 months warranty



General Specification:

AC input voltage range ............. 100~240VAC / 1.9A

AC inrush current (max.) ........... Cold start, <40A at 230VAC

Overload protection...................  Hiccup mode, auto-recovery

Over voltage protection .............110~140% rated output voltage

Hold up time............................... 16ms at full load

Withstand voltage......................  I/P-O/P: 42VDC, 1minute

Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load

Safety standards........................  TUV EN60950-1 approved

EMC standards..........................  EN55022-B, EN61000-3-2,3

Length of output cable................180cm of SPT-1,18AWG x2C

Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type

 Item No.  output voltage current         power        Tol.          R&N            Effi.            IP Rate
 SMT-012-100VP  12V  8.3A  100W  ±4%  100mV  >81%  IP20
 SMT-024-100VP  24V  4.16A  100W  ±4%  180mV  >81%  IP20
