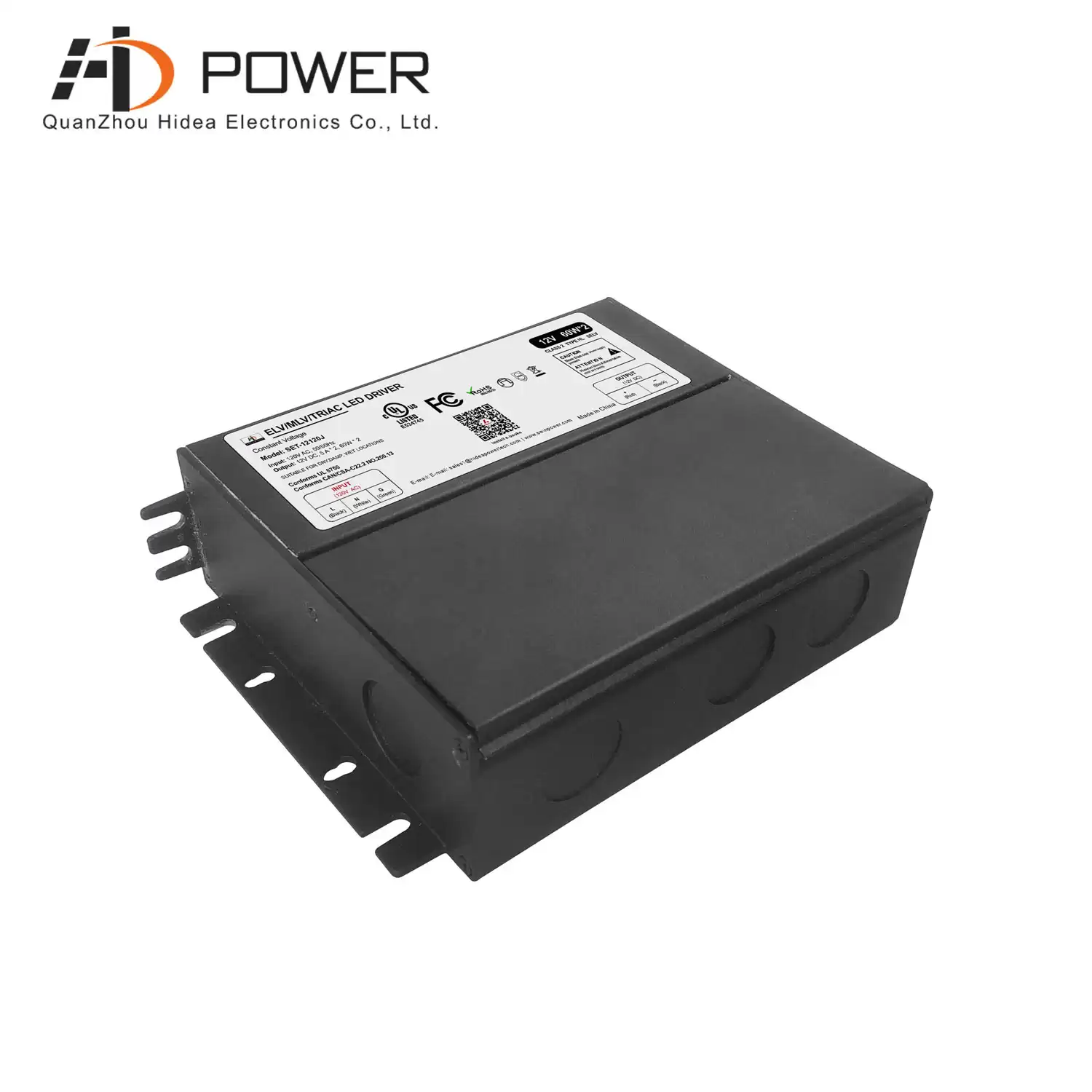

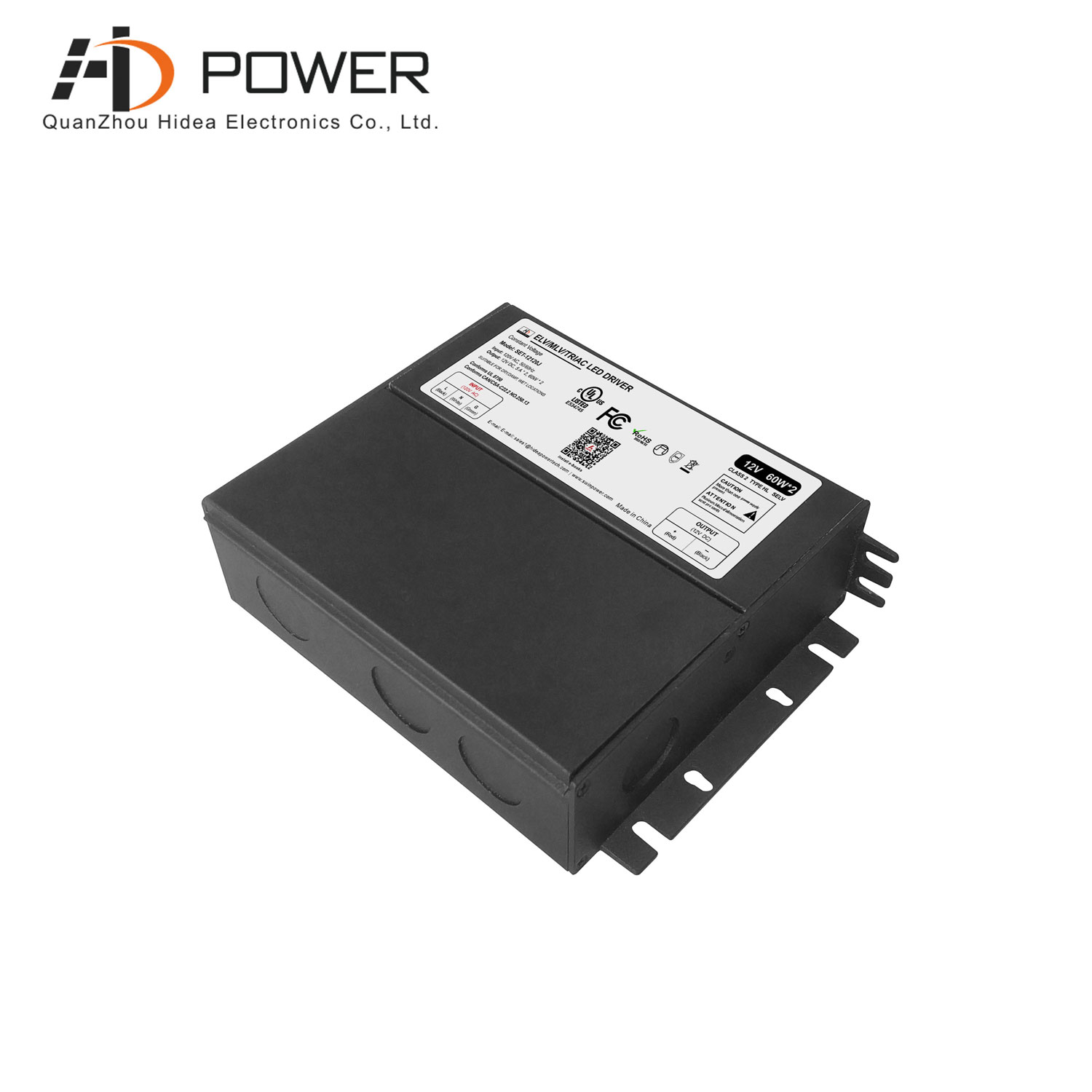

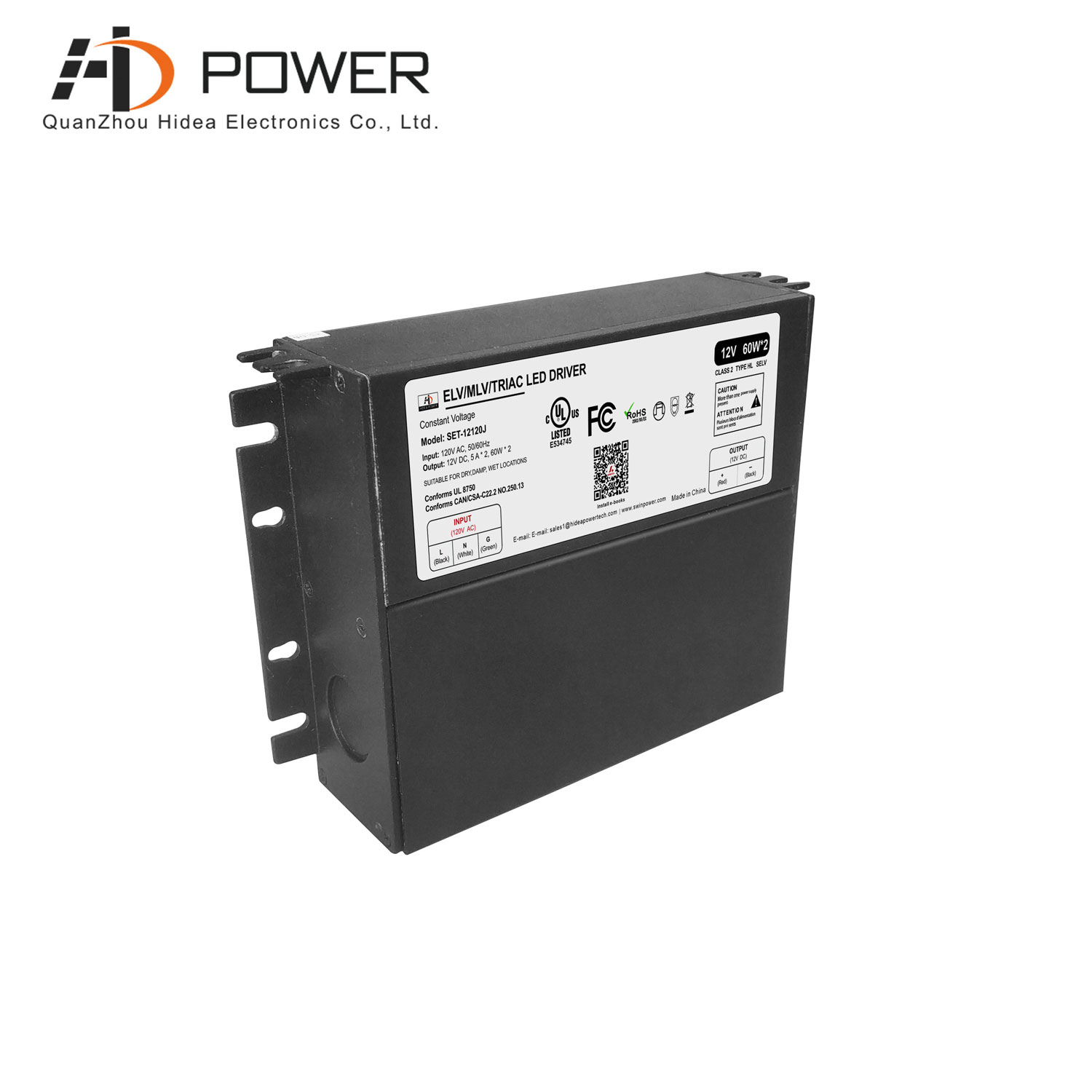

12v outdoor 120w triac led dimmable driver transformer suppliers for led lights

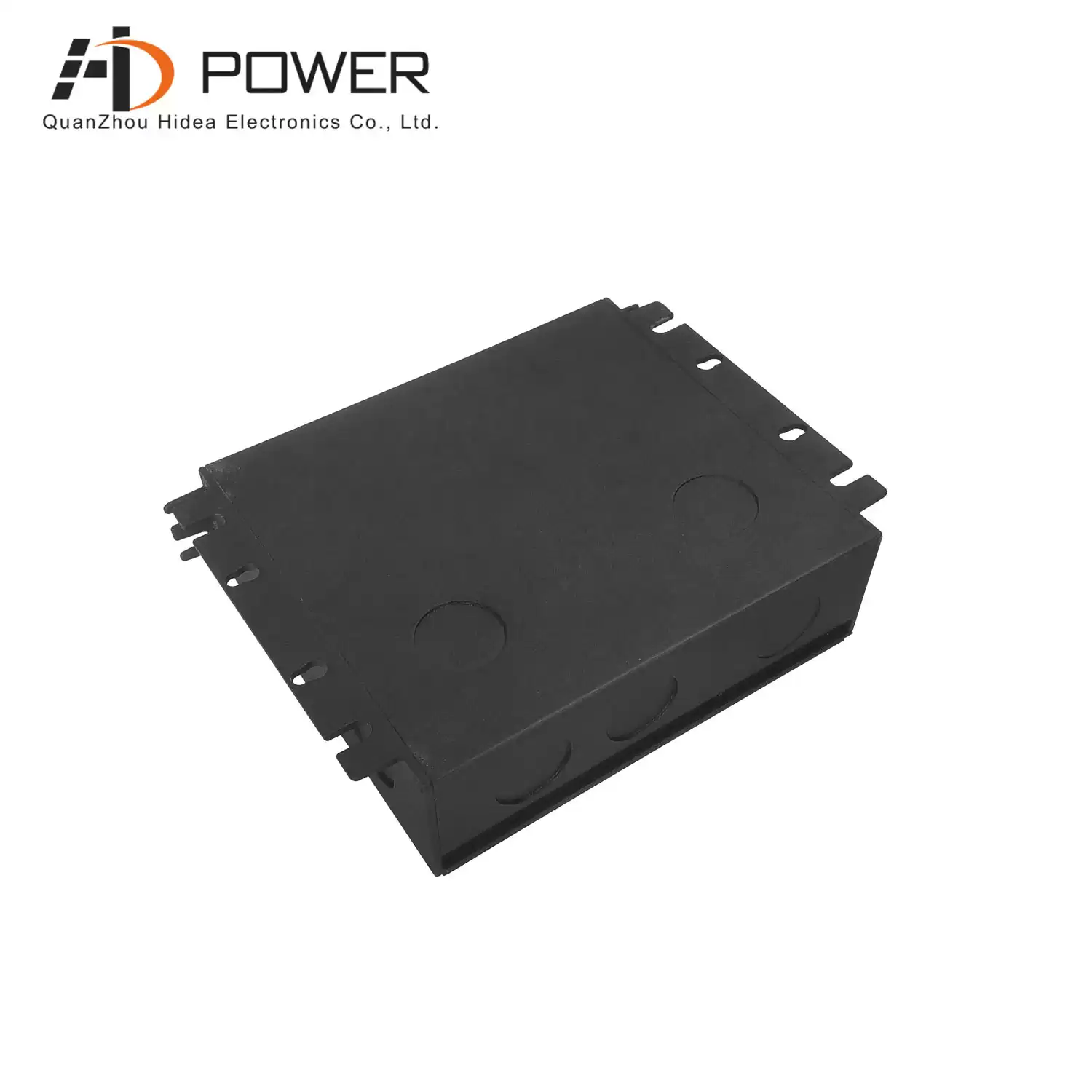

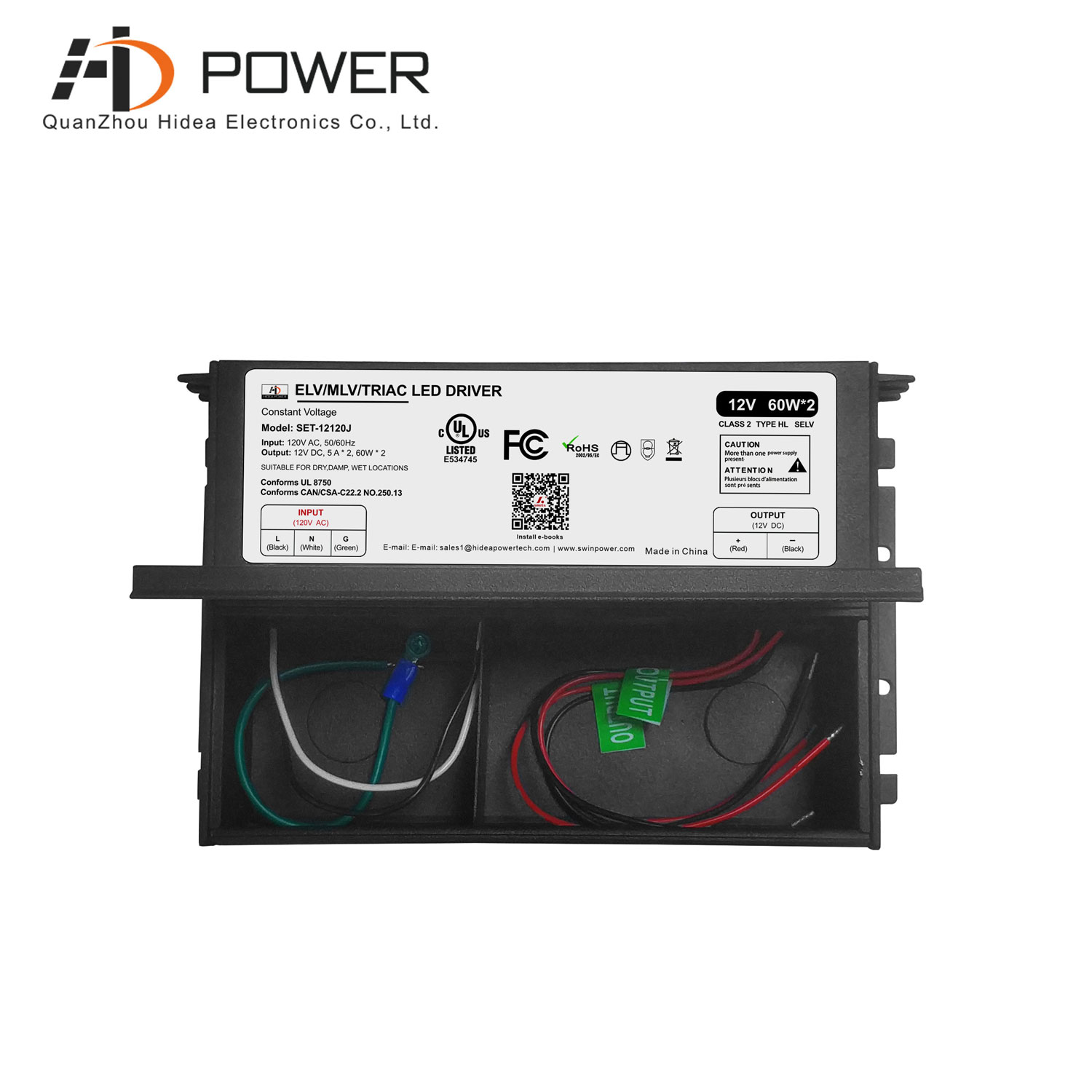

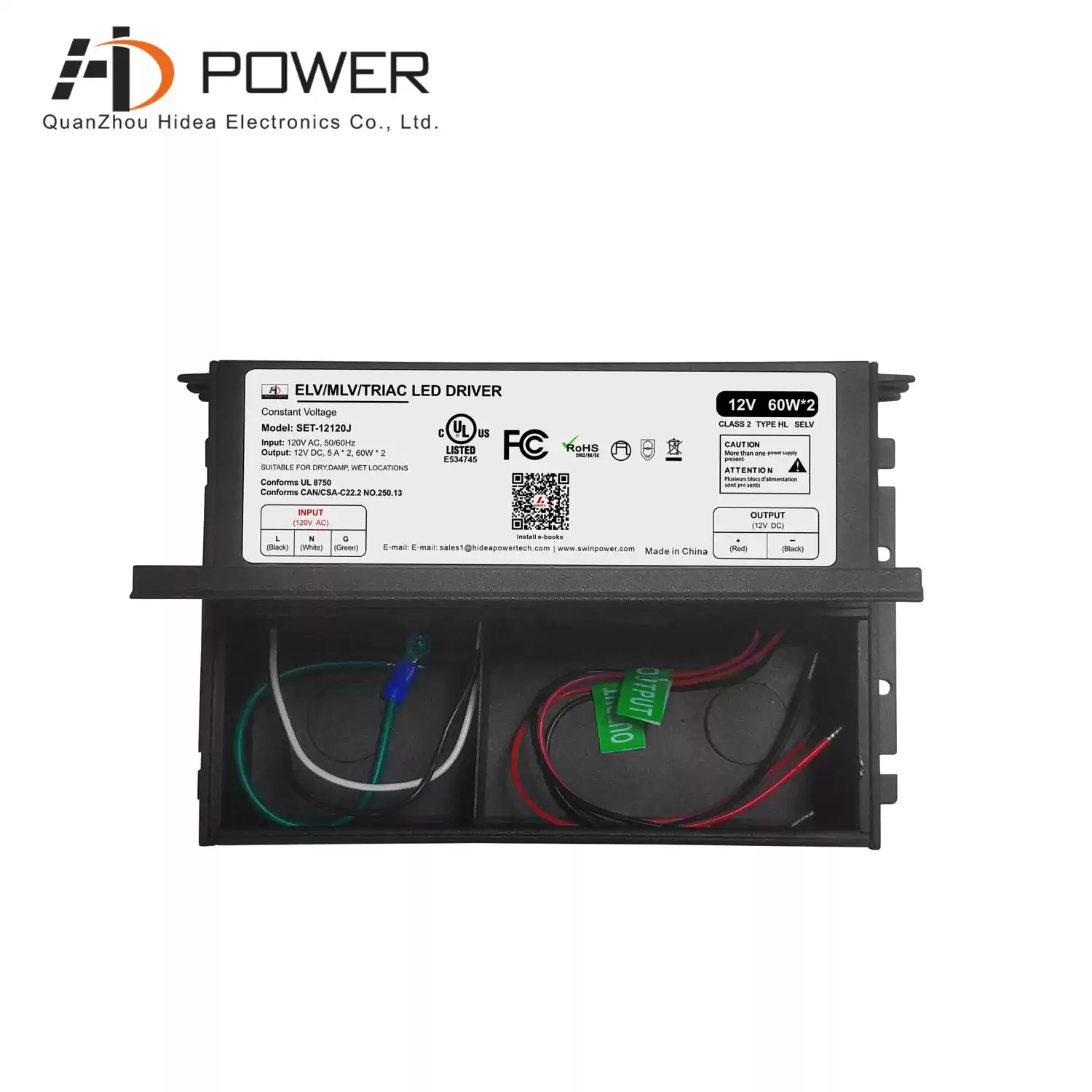

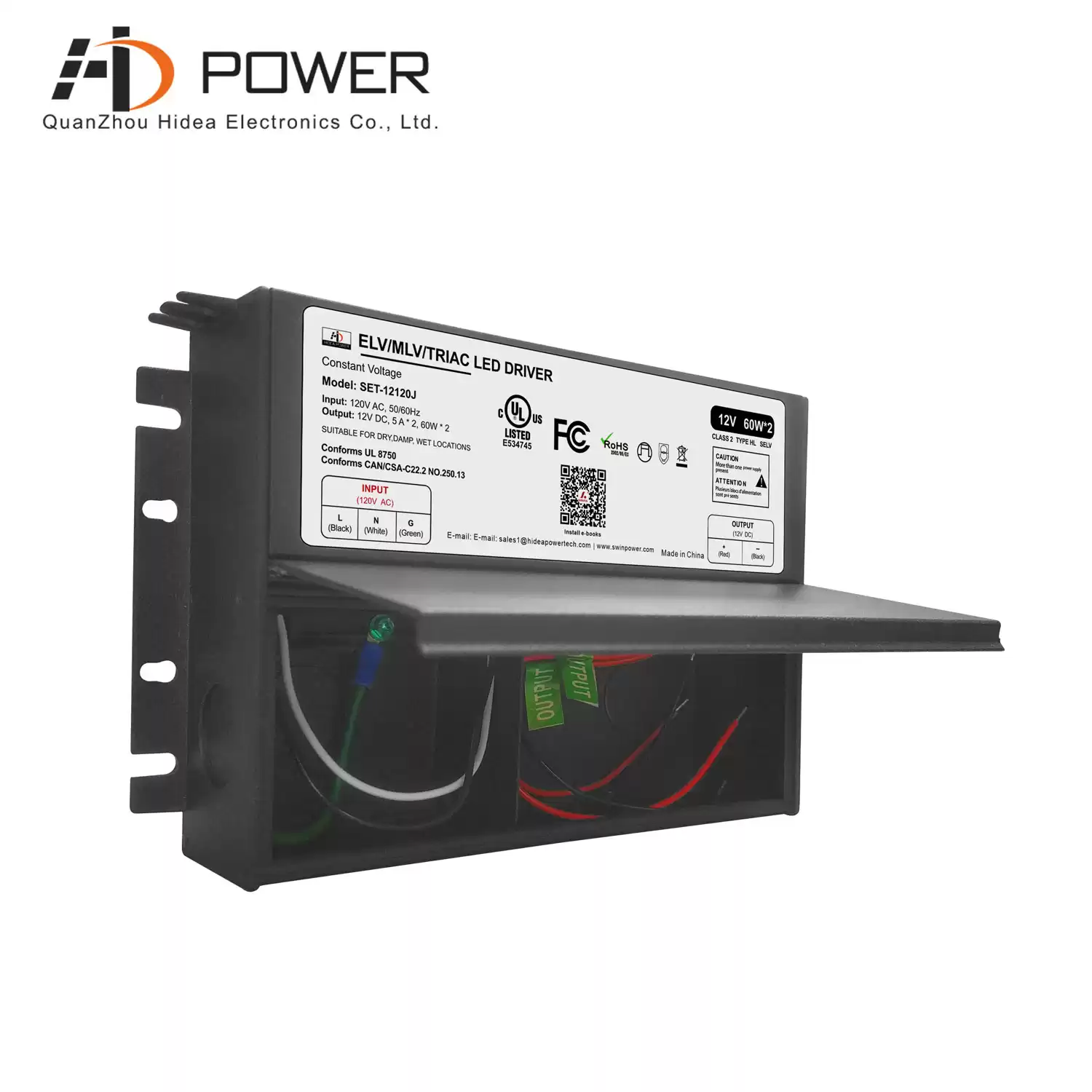

triac dimmable led driver 120W UL certified with short circuit, overload protection, size 188*120.5*42mm, easy to install, built-in wiring slot, can make the wire not exposed, Compatible with Acuity Brands LED downlight
Specification
|
Model Number
|
SET-12120J
|
|
Output Type
|
|
Reted Power
|
60W * 2
|
|
Reted Voltage
|
12V
|
|
Reted Current
|
5A * 2
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input Type
|
|
Voltage Range
|
120V
|
|
Frequency Range
|
47-63HZ
|
|
Efficiency(Typ.)
|
87%@120VAC
|
|
Total Harmonic Distortion
|
THD< 20%(@100% load)
|
|
Power Factor(typ.)
|
0.98@120VAC
|
|
AC Current(Typ.)
|
1.16A
|
|
Inrush Current(Typ.)
|
-
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Load
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, Class 2
|
|
Safety standards
|
I/P-O/P:1.88KVAC
|
|
OTHERS
|
|
Dimension
|
7.40x4.74x1.65 inch (L*W*H)
|
|
Packing
|
-
|
