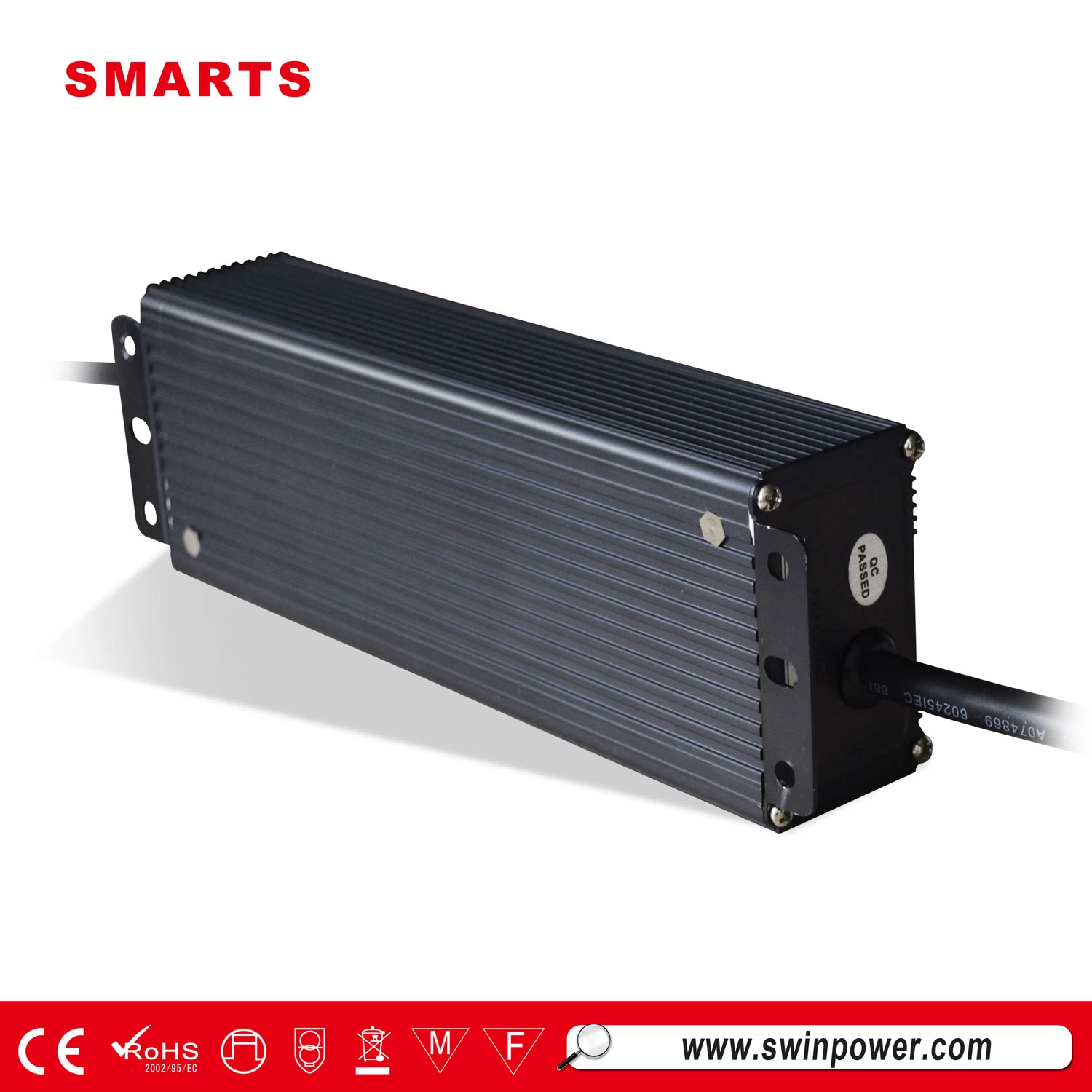

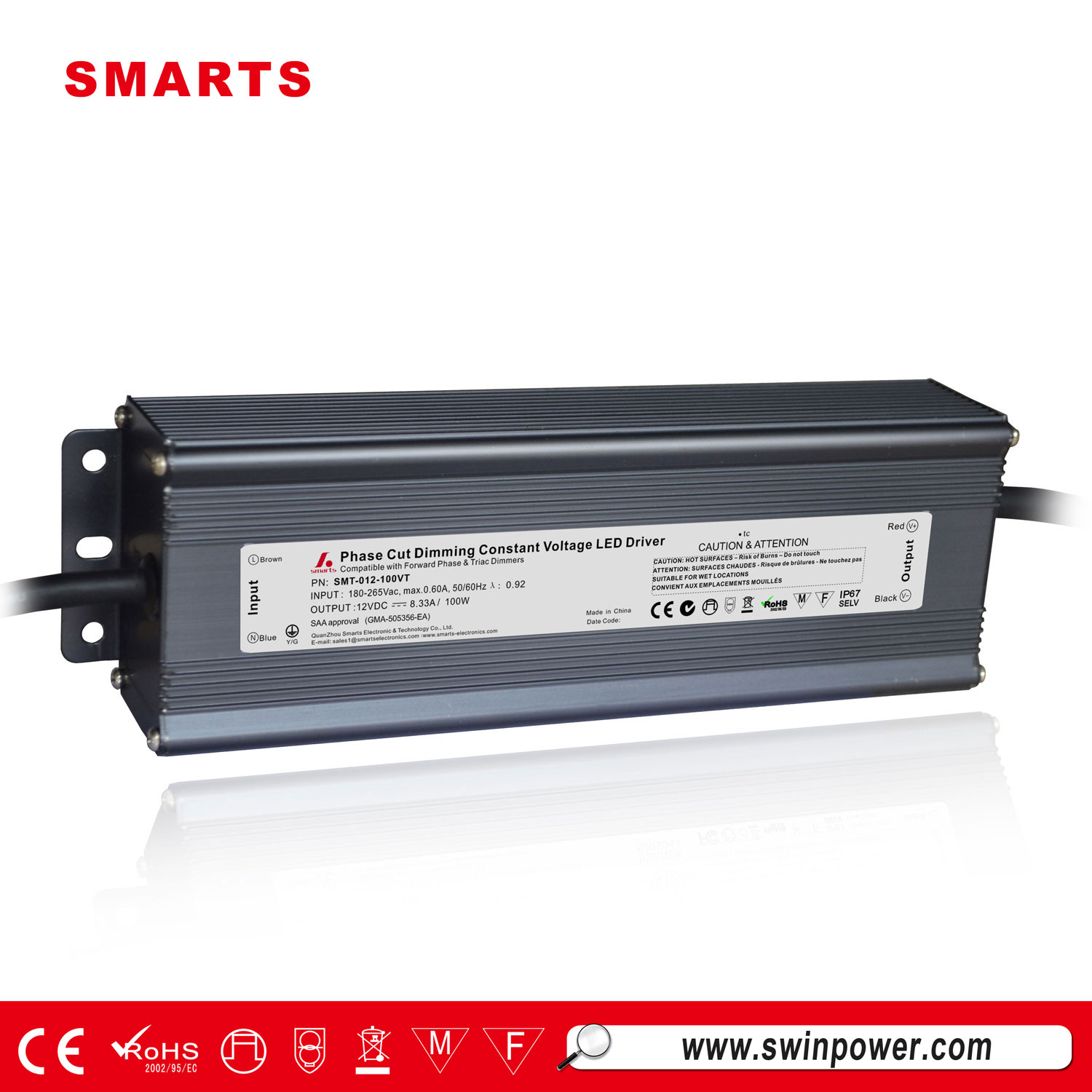

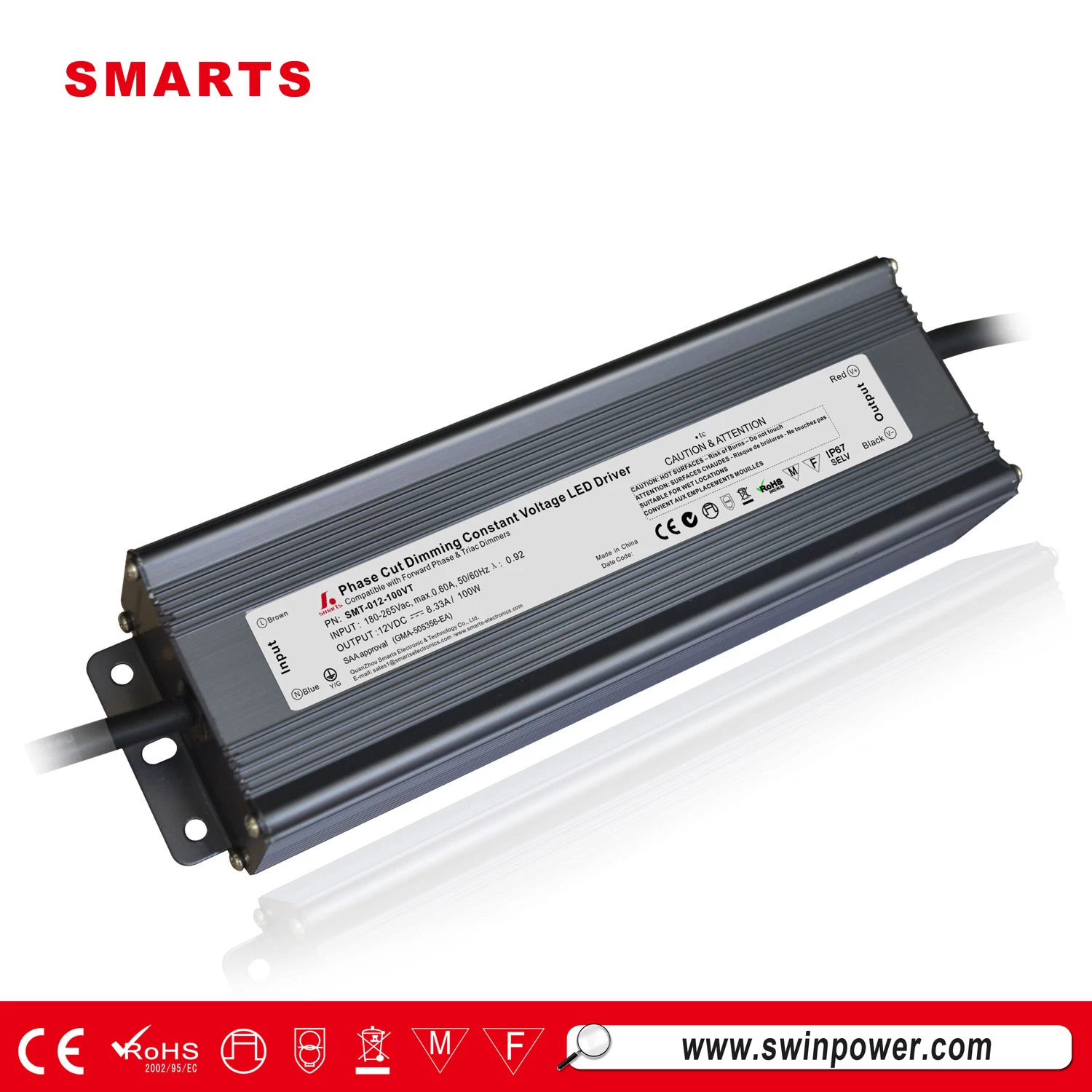

12v power supply 100w constant voltage LED driver triac power source for led strip lights
Dimmable 12v power supply delivers smooth, stable, flicker-free dimming with soft start and desirable fade-on and fade-to-dark performance. These power source are applied to led strip lights. This constant voltage LED Drivers are fully dimmable with any standard TRIAC dimmer switch.
Specification
|
model
|
SMT-012-100VT
|
SMT-024-096VT(class 2)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.33A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
180～265V AC
|
|
Frequency Range
|
50～60HZ
|
|
Power Factor ( Typ.）
|
PF≧0.94/180V,PF≧0.95/220V,PF≧0.95/265V
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>83%
|
|
AC Current（Typ.）
|
0.58A/180VAC 0.46A/220VAC 0.41A/265VAC
|
|
Leakage current
|
﹤0.25mA/180V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over voltage
|
≦270VAC(180~265V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*70*46mm（L*W*H）
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Certifications
CE, FCC, ETL, SAA, ROHS approval.
