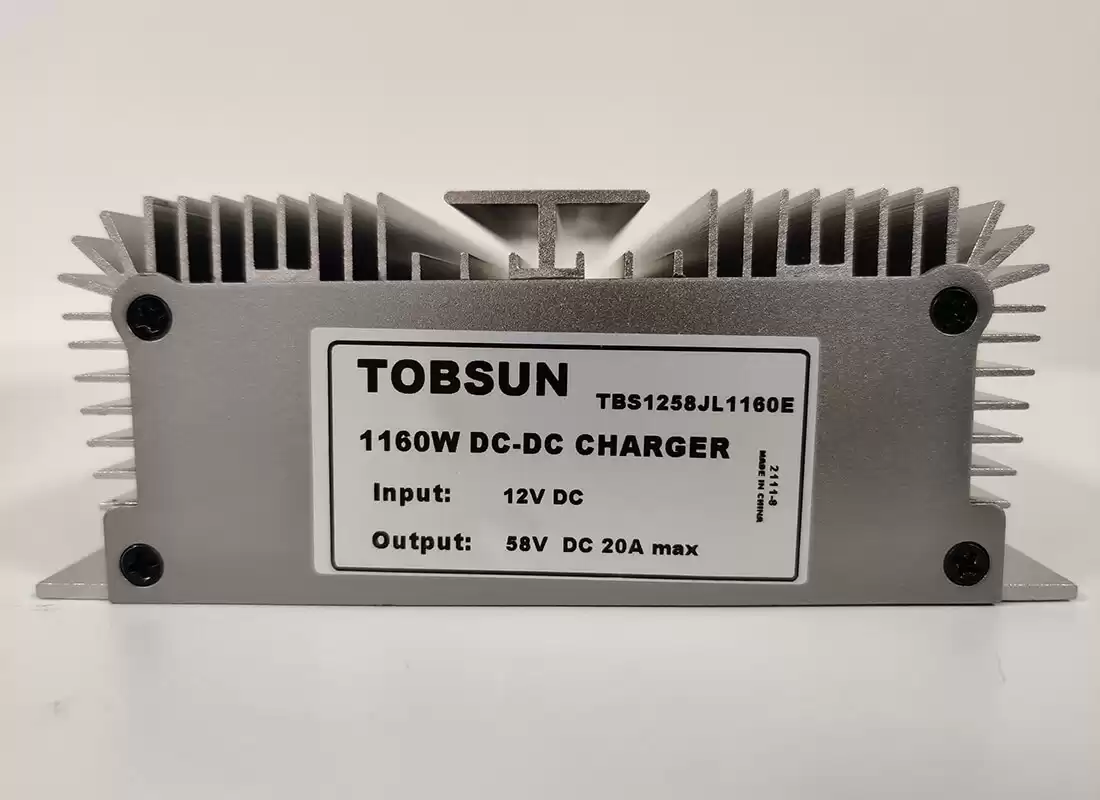

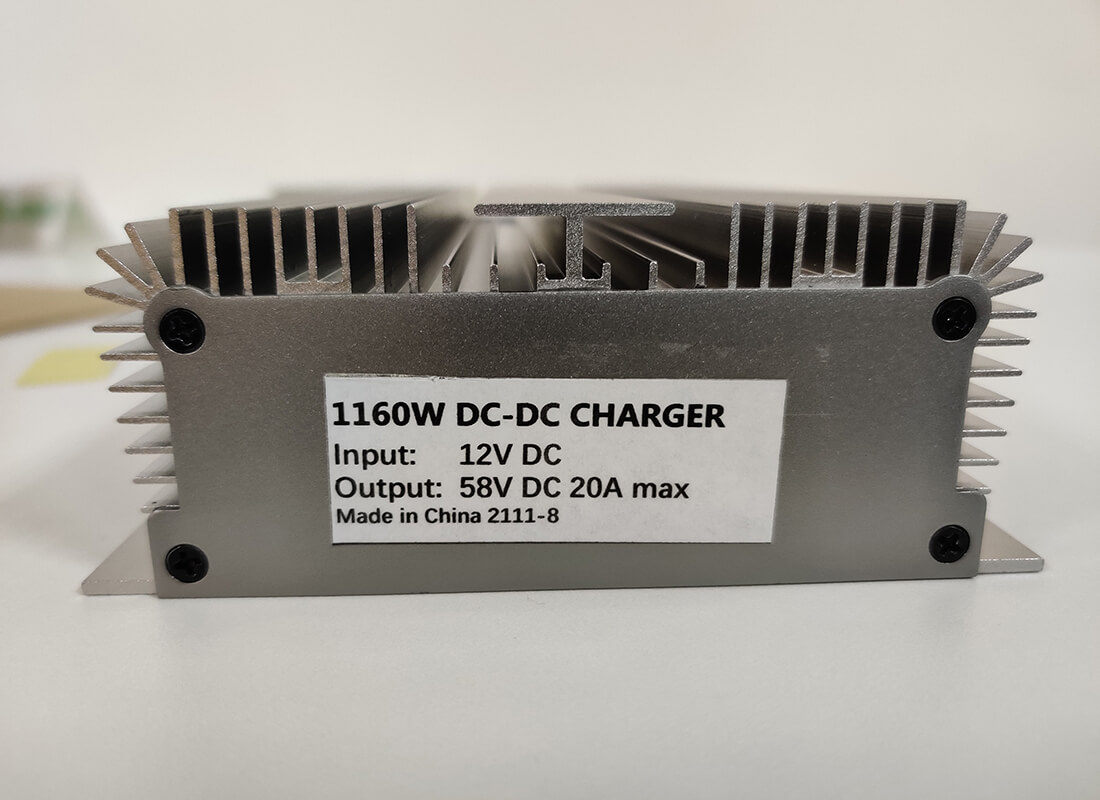

12V to 58V 20A DC to DC booster converter 1160W boost module voltage regulator
Voltage Boosting Capability: The AJPOWER 12V to 58V 20A DC to DC Booster Converter has the ability to boost the voltage from 12V to 58V, allowing for compatibility with higher voltage systems or devices.
High Power Output: With a maximum power output of 1160W, this booster converter can handle high power loads and provide sufficient power for demanding applications.
Efficient Voltage Regulation: The voltage regulator ensures stable and accurate voltage output, maintaining a consistent and reliable power supply for connected devices or systems.

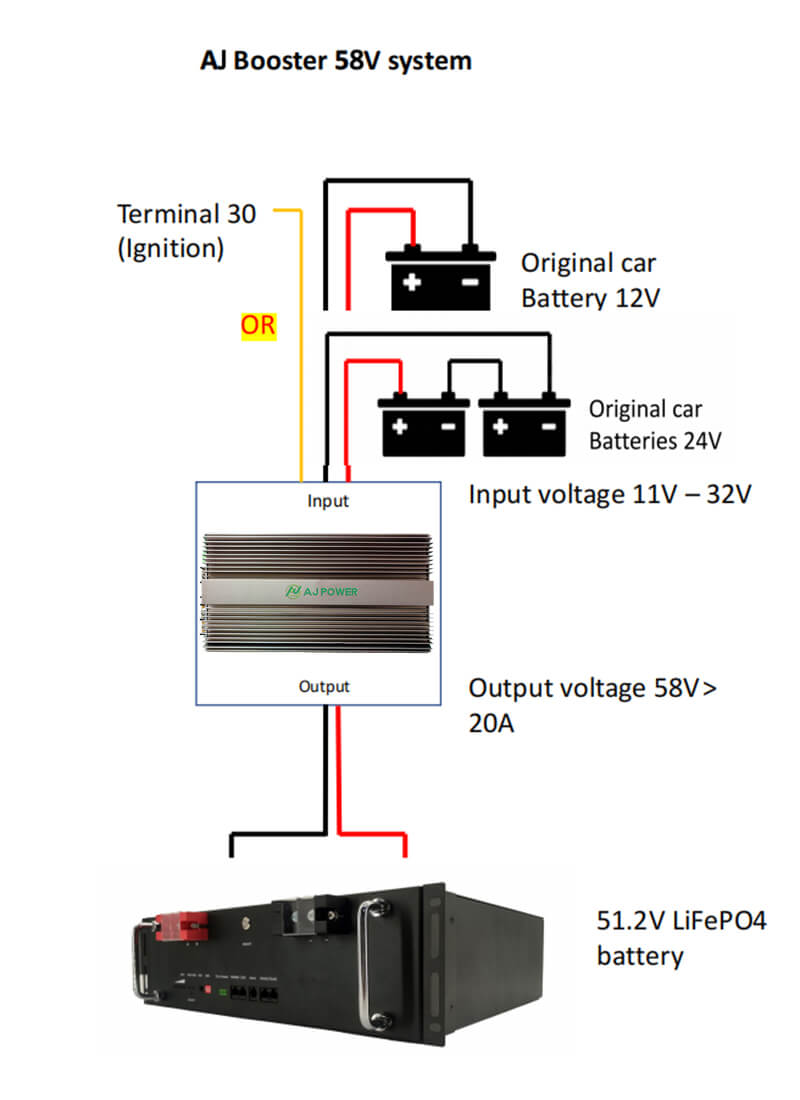

Wide Range of Applications: This booster converter can be used in various scenarios, such as automotive, industrial, or renewable energy applications, where a higher voltage is required.
Compact and Reliable Design: The AJPOWER booster converter features a compact and robust design, ensuring durability and reliability in different operating conditions.
 |
MODEL |
AJP1258JL1160H |
| Rated output power (W) |
1160W |
| Rated input voltage (V) |
12VDC |
| Rated output voltage (V) |
58VDC |
| |
|
Input
Characteristics
|
Voltage (V) |
10~32VDC |
| Starting voltage: |
10V |
| No-load power consumption (W) |
＜0.4W |
| Typical Efficiency |
94% |
| |
|
Output
Characteristics
|
Voltage (V) |
58 VDC |
| Current (A) |
20A |
| Voltage regulation rate |
1% |
| |
| Characteristic |
Load Regulation |
3% |
| Ripple Voltage（mvp-p） |
< 200mv External 22UF capacitor ESR﹤0.1Ω100KHZ |
| Protection circuit and others |
Overcurrent Protection |
In the case of rated output, if it is greater than 20% of the rated current, the overcurrent protection will operate, the power will be limited and the voltage will be reduced, and it will automatically recover after the overcurrent disappears. |
| Output short circuit protection |
YES |
| Insulation |
Input-Output |
non-isolation |
| Waterproof |
Fully sealed glue filling and waterproof |
| Other |
Size |
220*130*50mm |
| Weight |
2200g |
| Rated temperature rise (°C) |
45℃ |
| Reliability |
＞100000h |
| cooling method |
Natural cooling is designed for natural cooling and heat dissipation (differences in the use environment and installation location affect the power usage), pay attention to ventilation and heat dissipation when using high power. |

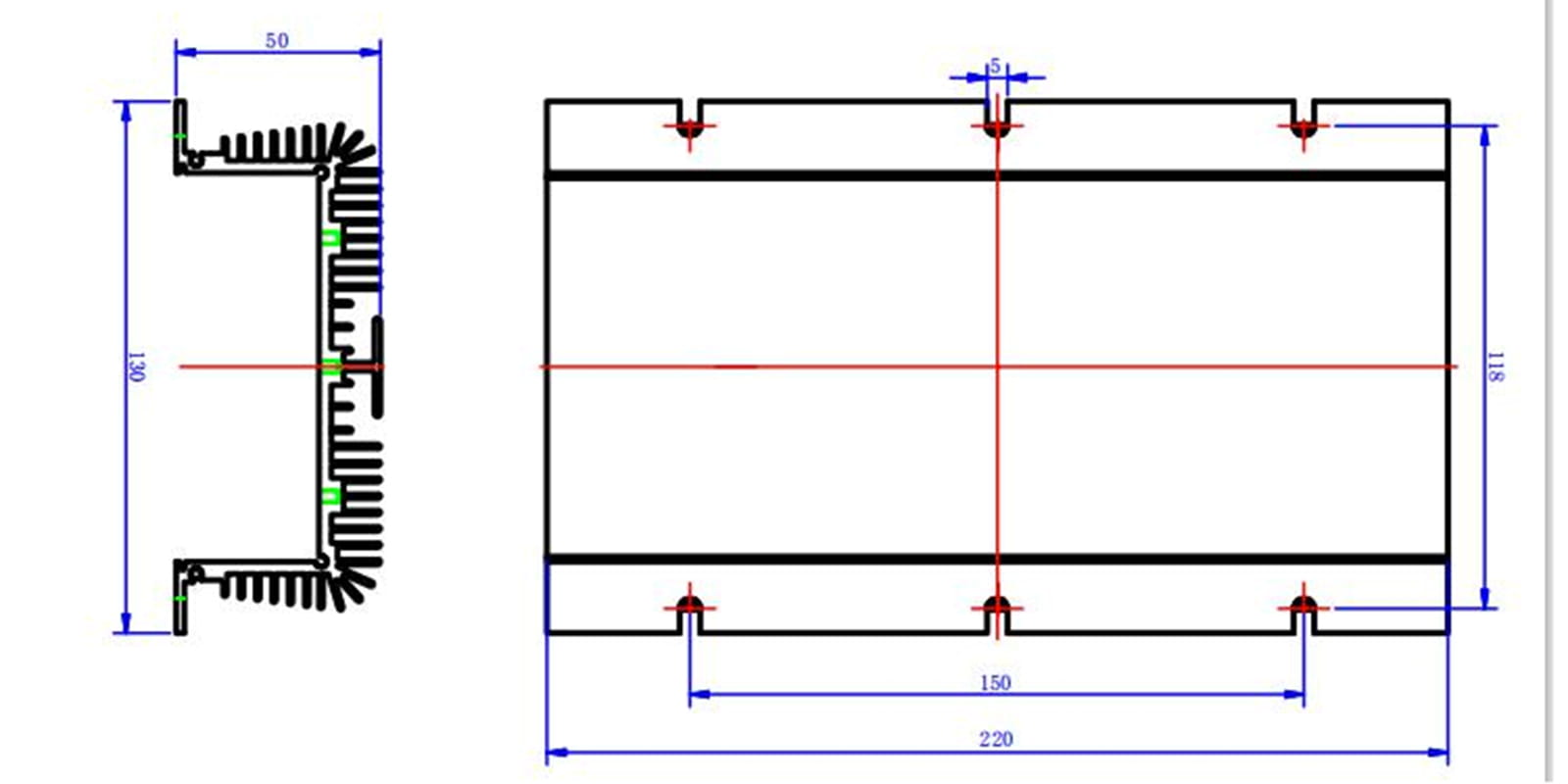

| Installation dimensions |
|
|
|
|
| 1 |
Design meeting RoHS / CE |
| 2 |
High efficiency: 94% |
| 3 |
Non-isolated between input and output |
| 4 |
Internal capacitor: NCC & NICHICON (high reliability) |
| 5 |
100% full load burn-in test |
| 6 |
Over load, Over temperature and Over voltage protections |
| 7 |
Fully sealed glue filling and waterproof |
| 8 |
12 months warranty |
