LED underground lights also called led inground light, led deck light, led path light, led stair light,led buried light, led recessed light ,led driveway light, led sidewalk light, led up light, led walkover light, led recessed wall light, RGB led buried light, waterproof RGB floor lamp, RGB led plaza light, stainless LED RGB inground light, led step light, led terra light. Led underground lighting, LED Underground Lamps, LED Uplights spotlights ,etc.
All led underground lights have CE, RoHS, SGS certifications. With 2 years warranty.
LED underground light with Cree & Edison high power led. The led underground light Working Voltage：AC/DC12V or DC24V, AC110V or 220V, Constant current driver, No flash, fast response to achieve over-current,use of safty. RGB DMX512(1990 standard) and RDM system. No waterproof glue to seal the light,IP67 waterproof structure. Easy maintain and replace freely.
To make sure of high quality for the led underground lights, we use rubble cable.

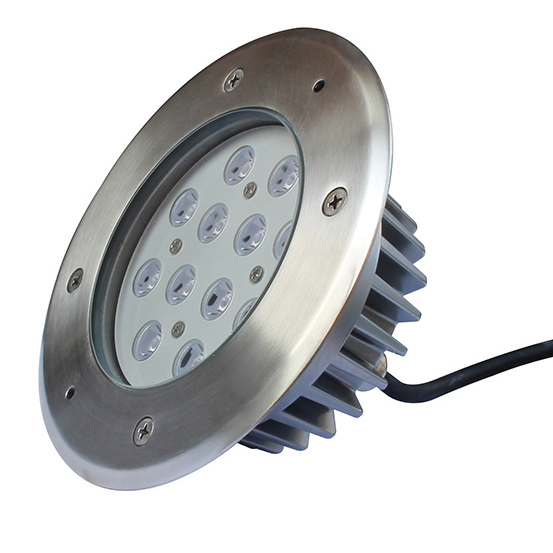

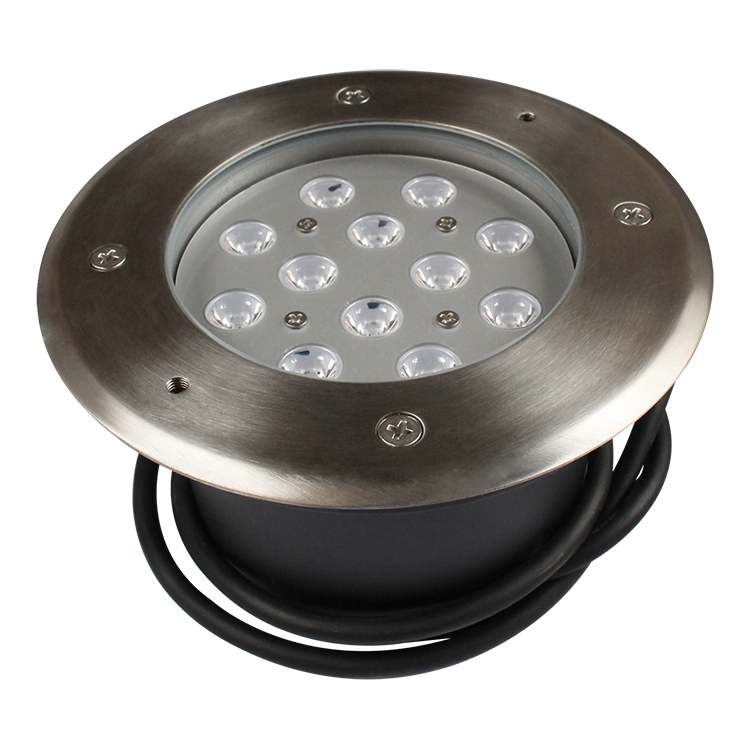

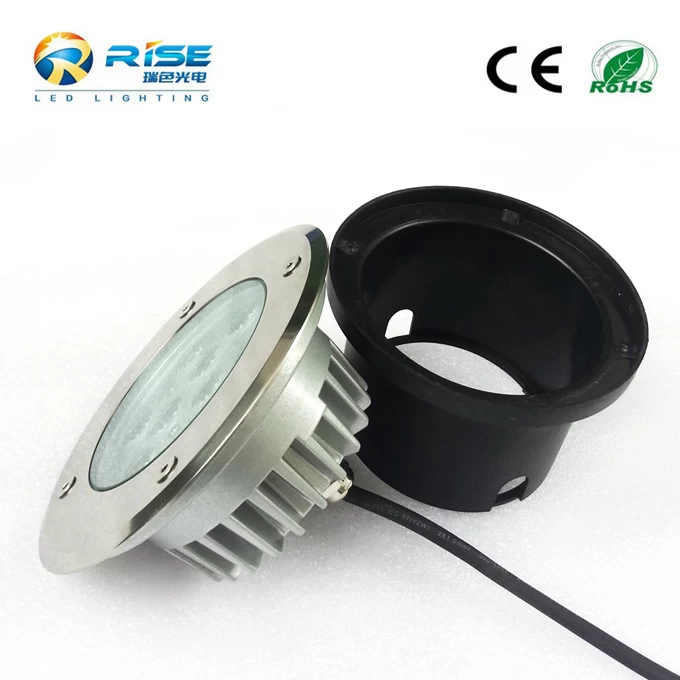

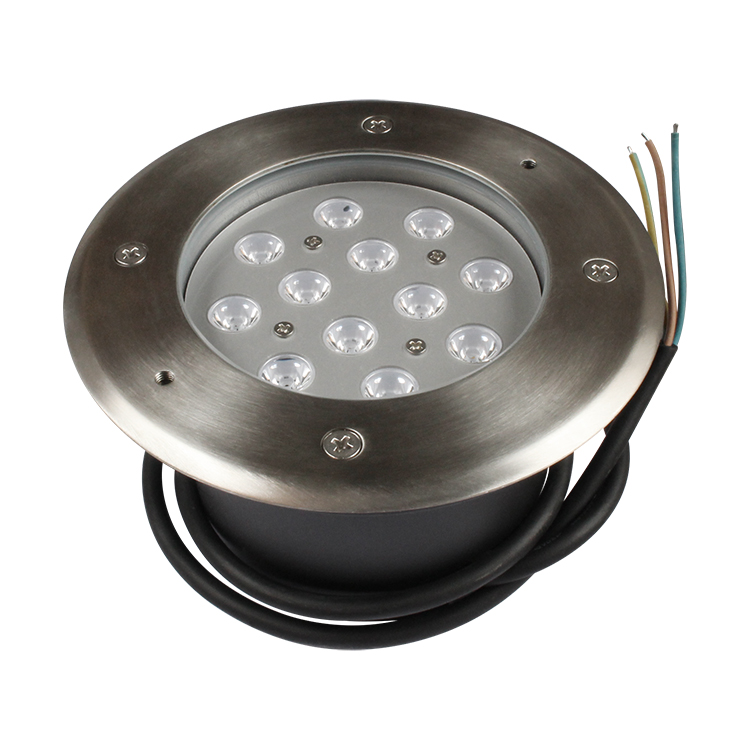

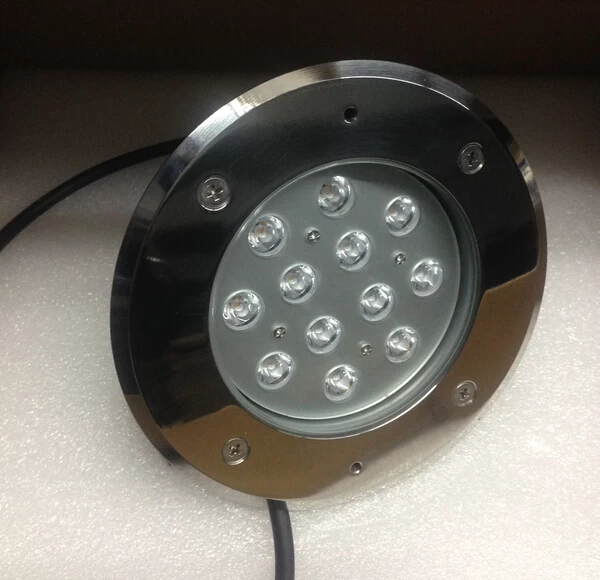

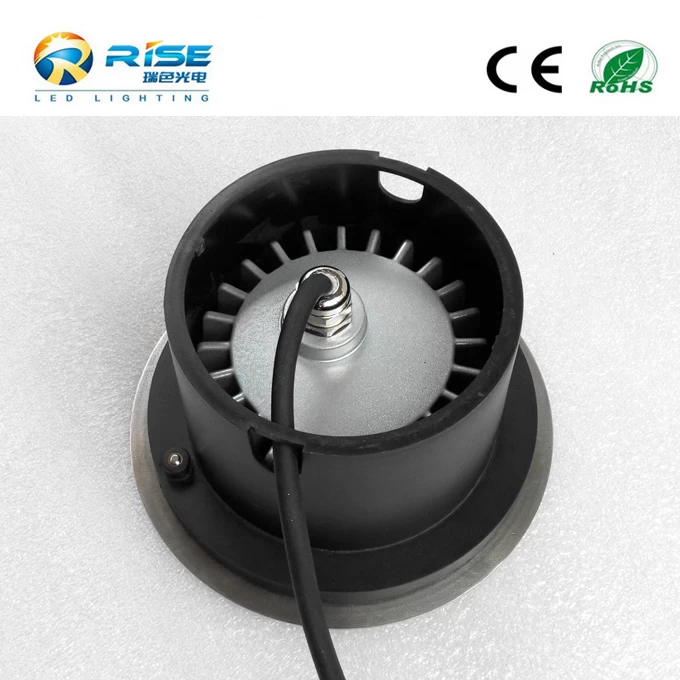

Specifications for 12W LED Underground Lighting
|
Item Number
|
RS-UG12W-PM
|
|
Input Voltage
|
AC/DC12V 24V, AC110V 220V
|
|
Input Current
|
320-350mA
|
|
Output Power
|
12W
|
|
Luminous Flux Output
|
80-90LM/W
|
|
Rendering Index
|
>70Ra
|
|
Body size
|
D160*H90mm
|
|
Beam angle
|
8-90degree
|
|
Lens
|
Transparent or Frosted
|
|
Light source
|
High power 1W CREE & Ediosn LED
|
|
Operating temperature
|
-20~ +45 Degrees Celsius
|
|
Storage temperature
|
-30~ +65 Degrees Celsius
|
|
Color optional
|
White (2700-6500K),RGB,Red,Yellow,Blue,Green
|
|
Housing material
|
Stainless steel 304 +Aluminum body + tempered glass
|
|
LED’s Operating Life
|
≥45,000Hours
|
|
IP Grade
|
IP67
|
|
Cable wire
|
2core/3core /4core Rubber cable
|
|
Control Mode
|
Auto color change /DMX512 controllable
|
Features of 12W LED Underground Lighting
1. High efficiency light source, Cree &Edison 1W high power led.
2. Working Voltage：DC12V 24V, AC110V 220V, Constant current driver, No flash, fast response to achieve over-current, use of safety.
3. High quality Alumimum lamp fixture/lamp, Beautiful appearance and reasonable structure.
4. Tempered glass as cover, heat-resisting and impact resistance.
5. Waterproof IP67, outdoor use.
6. Beam angle 8-90°.
7. Long life, up to 45,000 hours.
Applications for 12W LED Underground Lighting
Applicable to green belt, park landscape design, garden pedestrian street, parking area, square night view, bridge and building outdoor decoration, residential areas, road lighting, etc.
