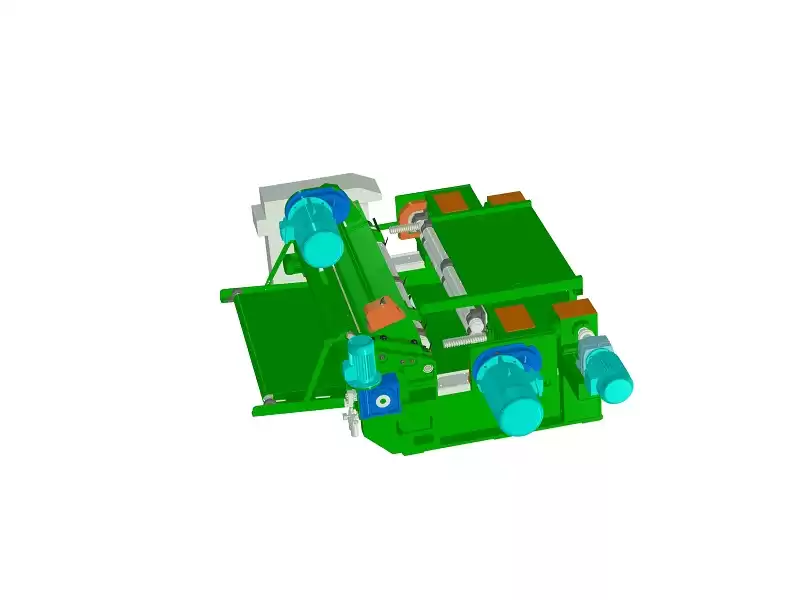

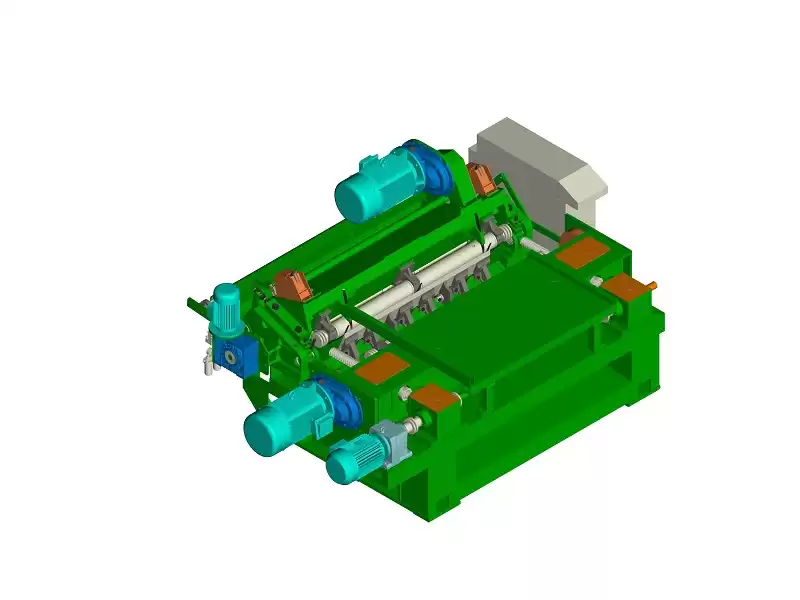

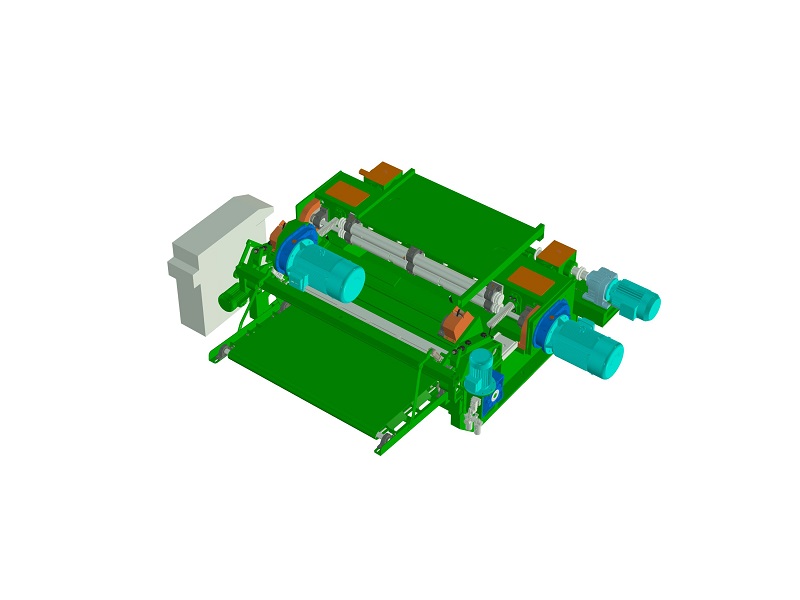

Product Name: 1300mm Core veneer peeling lathe machine

Major Technical Parameters

Model : BQ1813/F2SI-J

Length of Veneer Log: 900-1400mm

Diameter of Veneer Log: Φ22/26-Φ2500mm

Length of Peeling Knife: 1500mm

Thickness of Veneer: 0.5-4.0mm

Width of Veneer: 500-1300

Linear Speed of Veneer Peeling Line:  63 m/min

Total Power:  34KW

Total Weight:  5500kg

Overall Dimensions: 3800*2600*1400

Main Advantages

1.  An advanced CNC system ensures the tolerance of wood veneer which is peeled bywood veneer machine.

2. Adjusted veneer peeling knife makes the small diameter log processing easily.

3. The text display helps the operator to adjust and operate the wood veneer thickness easily.

4. The operators can change the wood veneer thickness during the rotary veneer peeling without stopping the veneer machine.

5.  A two-in-one structure,veneer peelingandveneer cuttingtogether, which will save cost and labors.
