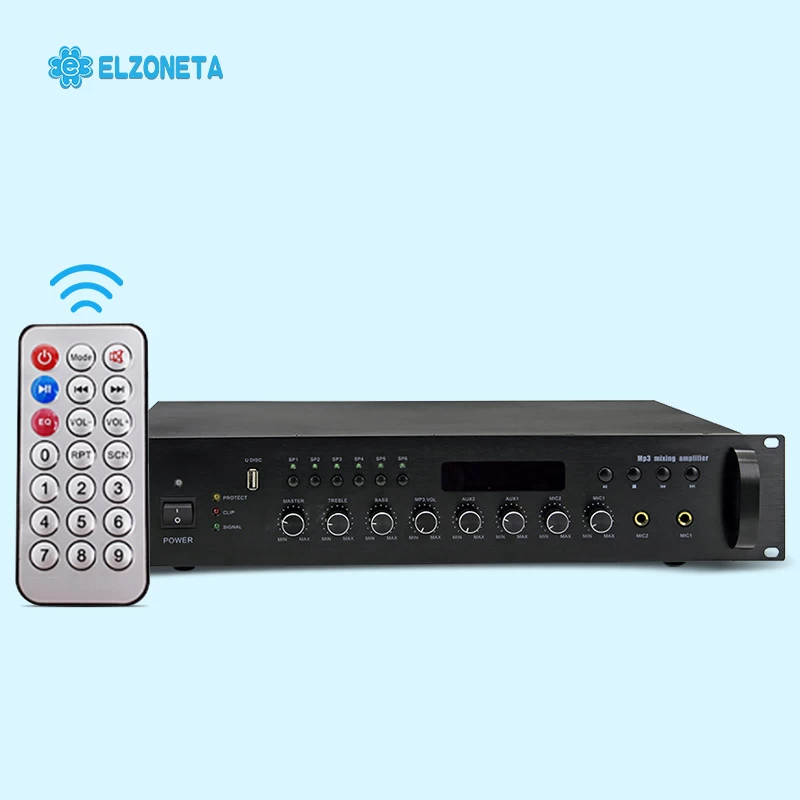

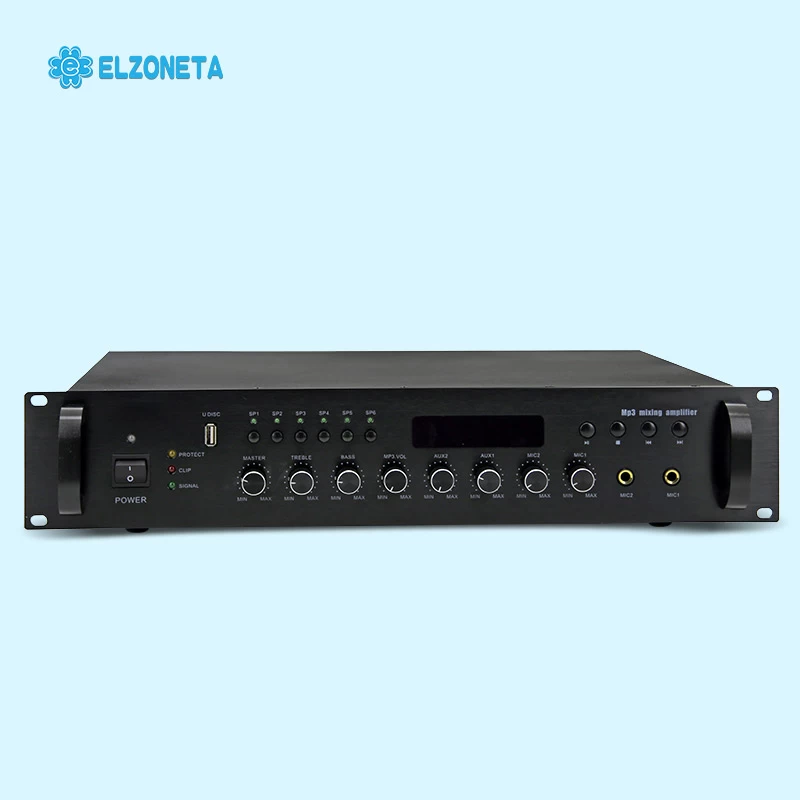

EC-PVS-MPA130W-6    6 Zones MP3 Remote Control Power Amplifier

Features:

1. Ideal for small PA cost-effective system

2. Treble / bass control, total volume and independent volume control, MP3 decoder built-in USB interface, compatible with the MP3/WAV music formats

3. 2 channel microphone input, 3 lines input, 1 way auxiliary output

4. Microphone 1 has the highest priority mute function, automatic suppression of other input signal

5. With output short circuit, overload, overheating and other protection and warning function

6. 130W,  mixed amplifier with USB MP3 player, remote controller, 3 AUX input, 2 Microphone input, silent function, 70V, 100V, 4-16Ω output,6 zones built-in alarm

7. Touch button design, high sensitivity, easy operation, can remotely control the musical selection, volume control, etc., effective distance is up to 3 meters (Note: remote control is only used when using U disk)

Specifications:

Power Consumption: 130W

Input Sensitivity: 1V 0dBV

Equivalent Input Noise: -95 dB

Damping Coefficient 200:1

Common-mode Rejection Ratio(CMRR): no less than 92dB

Frequency Response: 90HZ-20KHZ ±3dB

Total Harmonic Distortion ( THD ) 4/1KHZ:<0.3%

Degree of Distortion: <1%

Up speed: >15V/microsecond

Size: 480×350×90mm

Weight: 10Kgs
