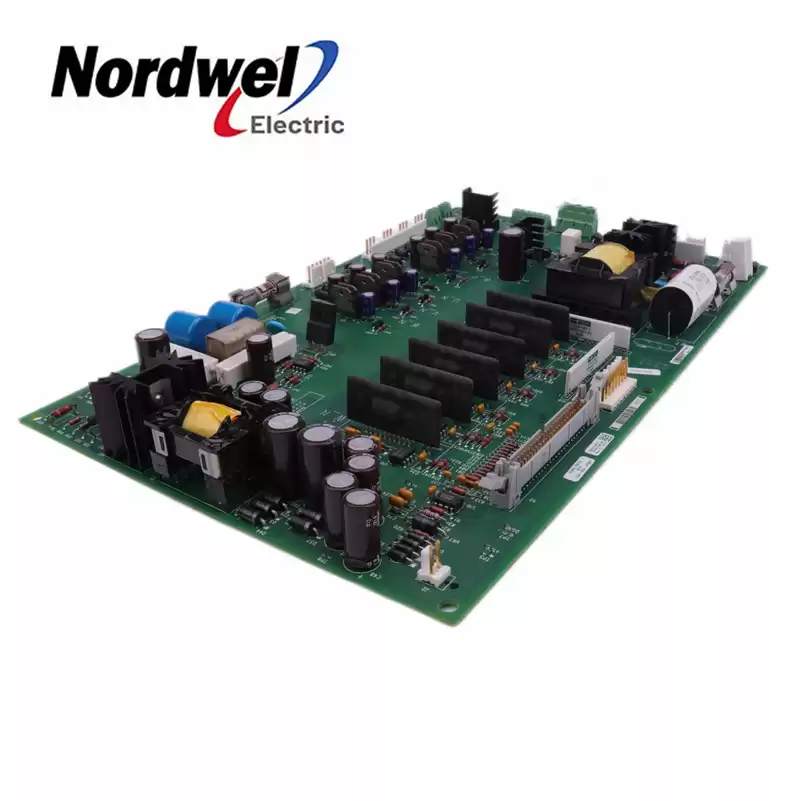

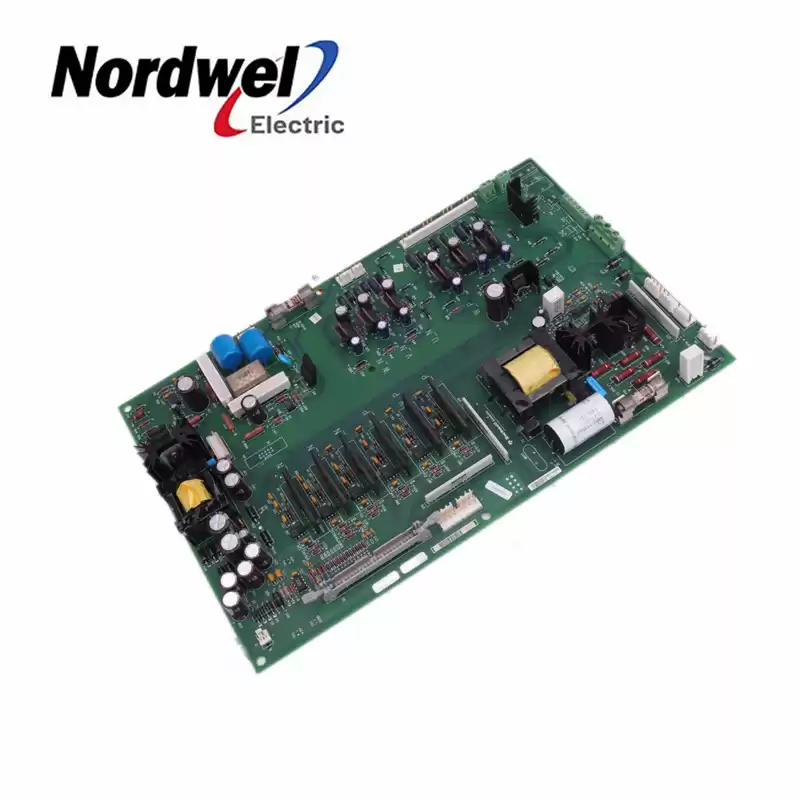

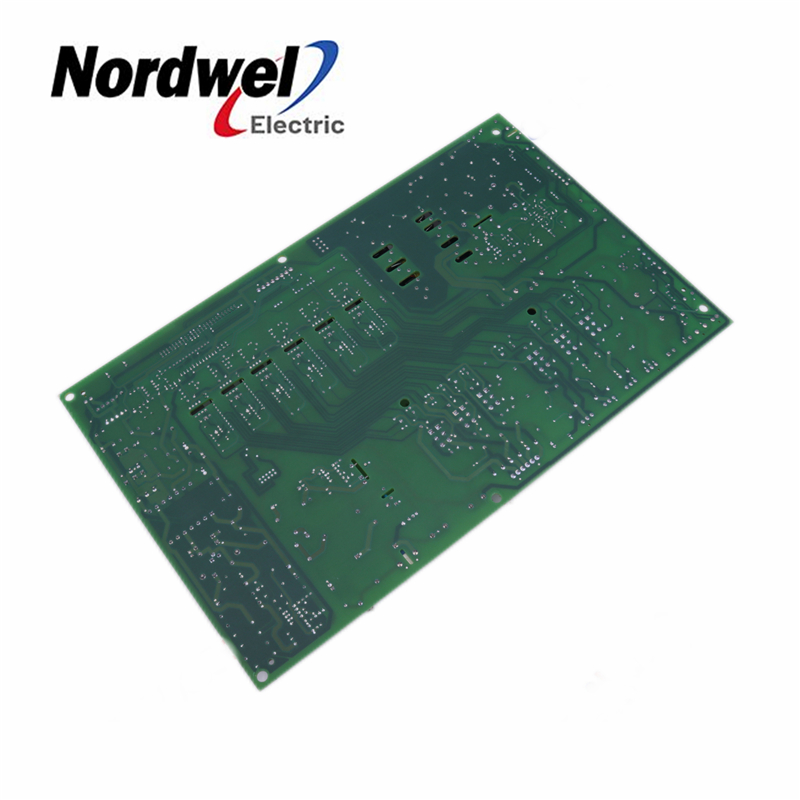

The 74101-169-54 is a PCB gate drive board, manufactured and designed by . This board is a
spare part that belongs to the 1336 series of adjustable frequency AC drives. This part can also be found under
the catalog number 1336-BDB-SP30D. A gate driver consists basically of a level shifter; it receives low-power
input and it produces at the same time a high-current drive input.
The 1336-BDB-SP30D is a PCB Gate Drive Board for AC drives. This spare part kit is used with
460 Volt AC-powered 1336 series AC drivers. It can only be used with “D” frame sized drives that
are 100 Horsepower rated. This PCB Gate Drive Board is categorized in the most important group of Allen-
Bradley AC drives spare parts (level 1 spare parts - major assemblies)
