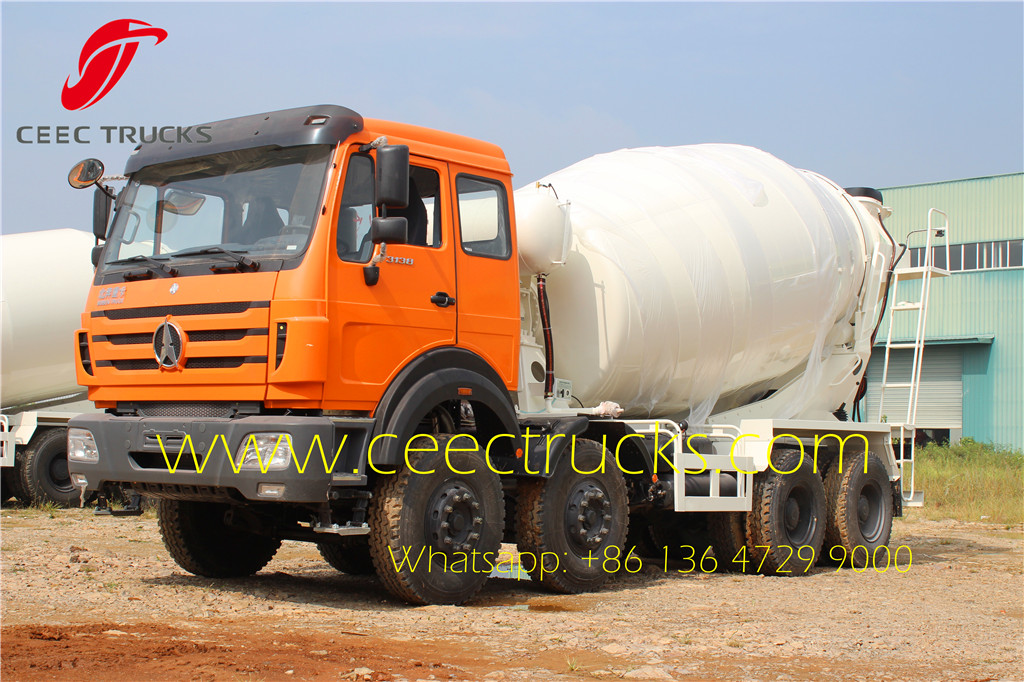

China beiben 3138 concrete mxier trucks als can be named as beiben 8*4 transit mixer truck, beiben 14 CBM mixer tanker truck, beiben 12 wheeler cement mixer truck, which mainly used for cement mixing and being widely used in Factory, Construction Plant, etc. Our beiben mixer trucks widely export to Congo, Tanzania, Ethiopia, Zambia, Dubai, Myanmar, etc.
Beiben 14 CBM transit mixer truck exporter
Fetures for Beiben 3138 cement mixer truck:

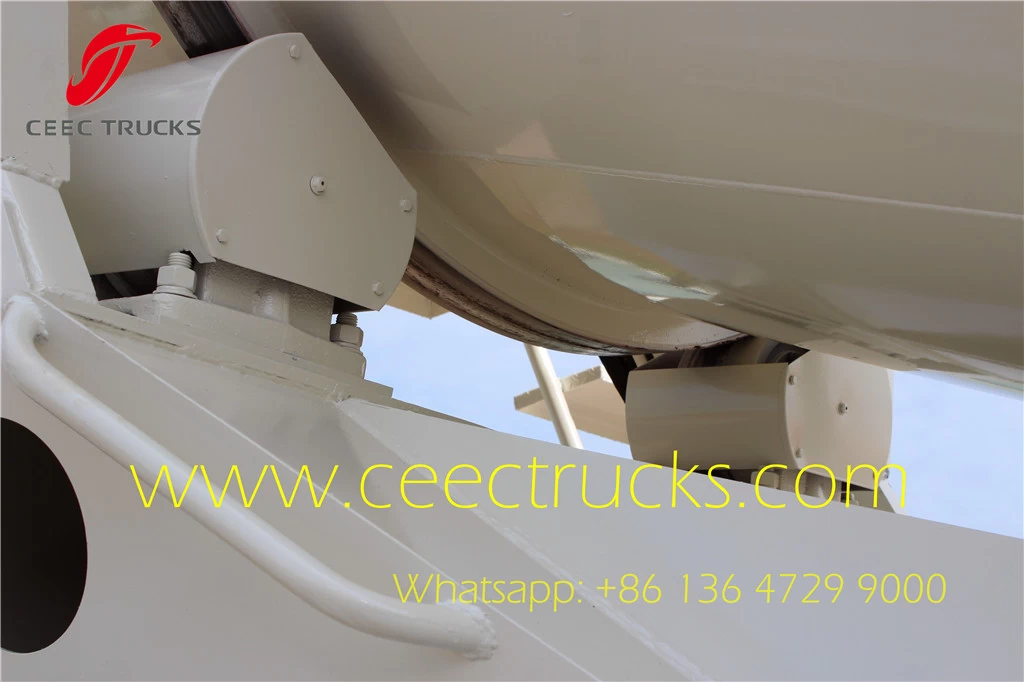

1.Beiben mixer truck mixing drum and mixer blade using special wear-resisting material Q345/16Mn

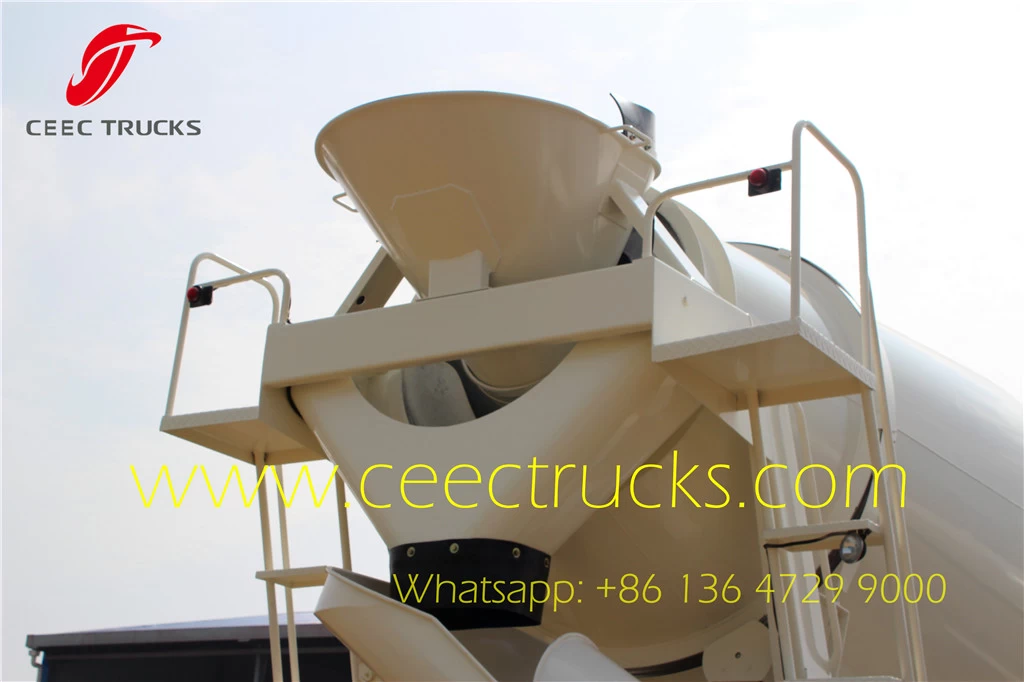

2.Material of blowpit and feed hopper scaleboard is just the same as the mixing drum
3.Humanizing operating system,connecting rod operation,concise safe and reliable

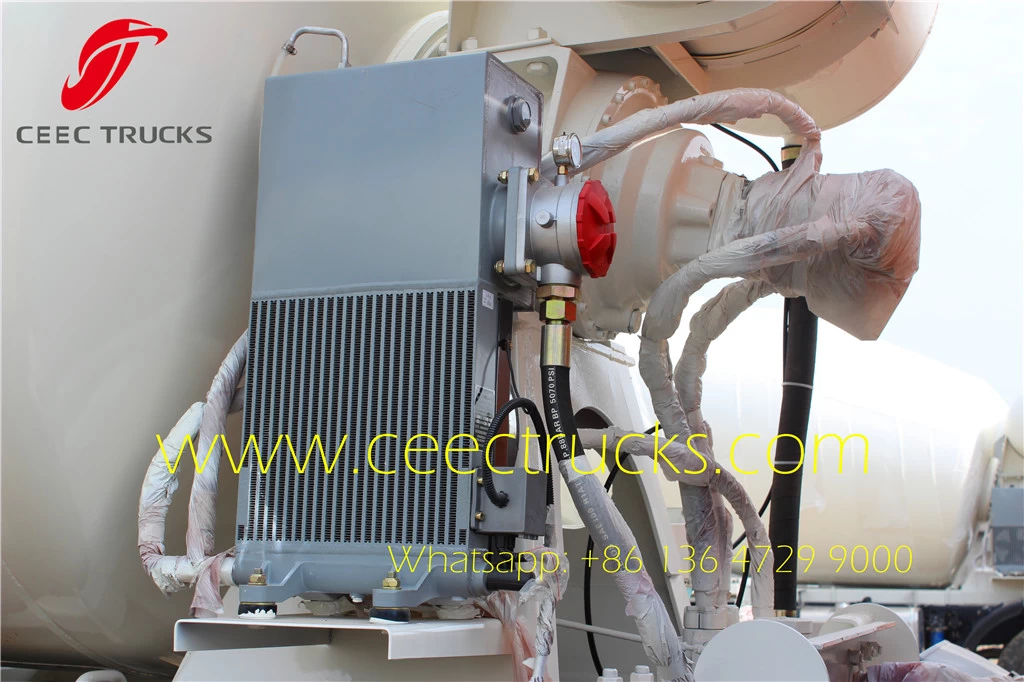

4.Benz mixer truck using imported brand-name hydraulic syste, American Eaton, Germany Rexroth, Italy PMP, etc

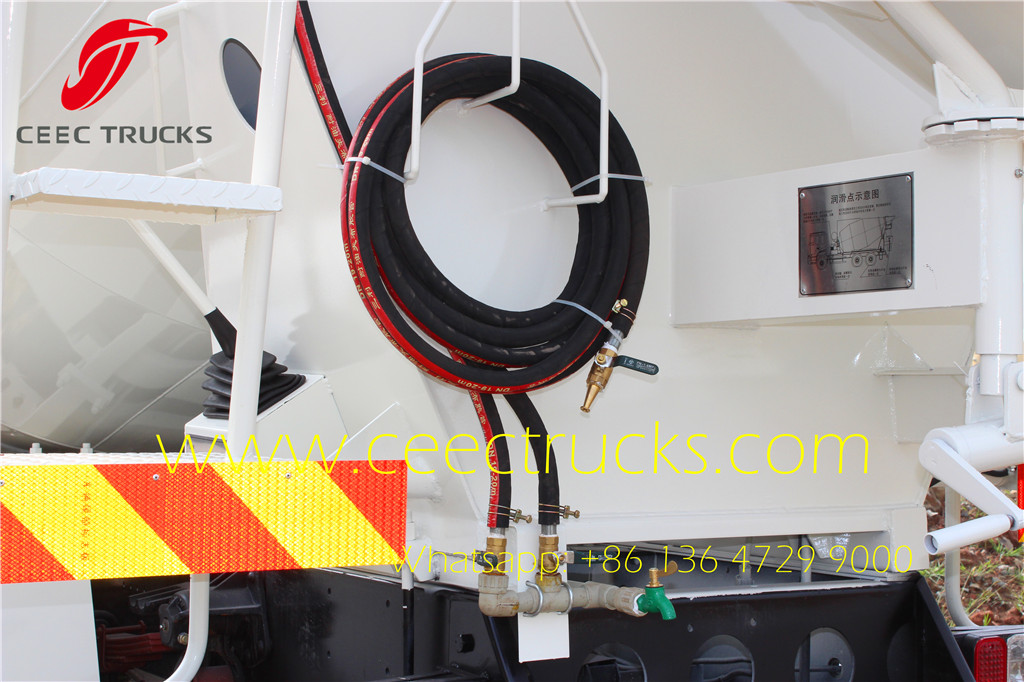

5.Flushing water back control, easy control and maintenance
6.Cement with quick discharging, no residual
7.China famous Beiben 3138 eavy duty cement mixer truck chassis, with 380 HP euro 2 engine
8.Drive mode:4x2,6x4,8x4 by right hand drive or left hand drive.

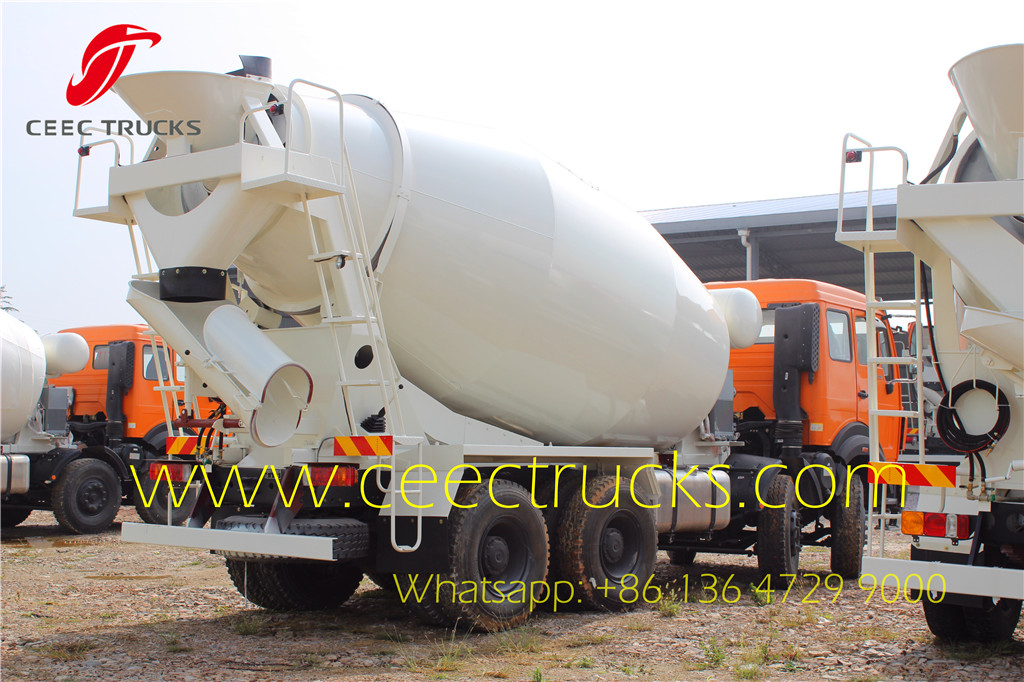

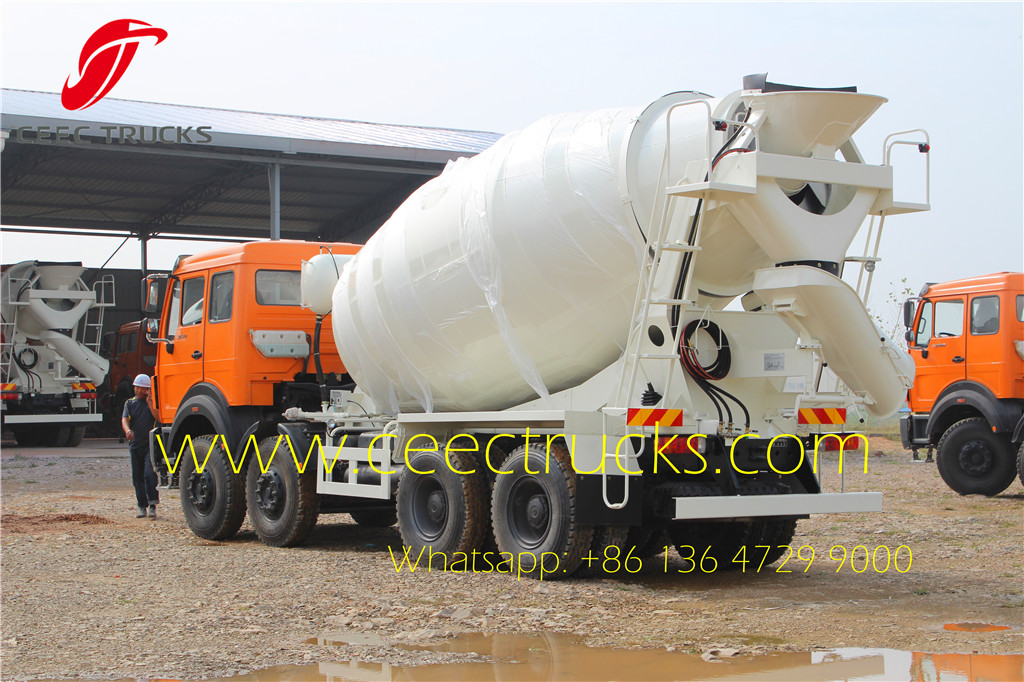

Congo and Ivory Coast Beiben 3138 cement mixer truck:
Similar Key Words: beiben 14 CBM concrete mixer truck, north benz 3134,3138 transit mixer truck, beiben 3138 mixer trucks, beiben 12 wheeler mixer truck, beiben 14 CBM mixer truck
|
Overall dimension (mm)
|
11080×2500×3900
|
|
Driving Model
|
8x4
|
|
Wheel base (mm)
|
1500+3550+1450
|
|
Curb weight （kg）
|
16500
|
|

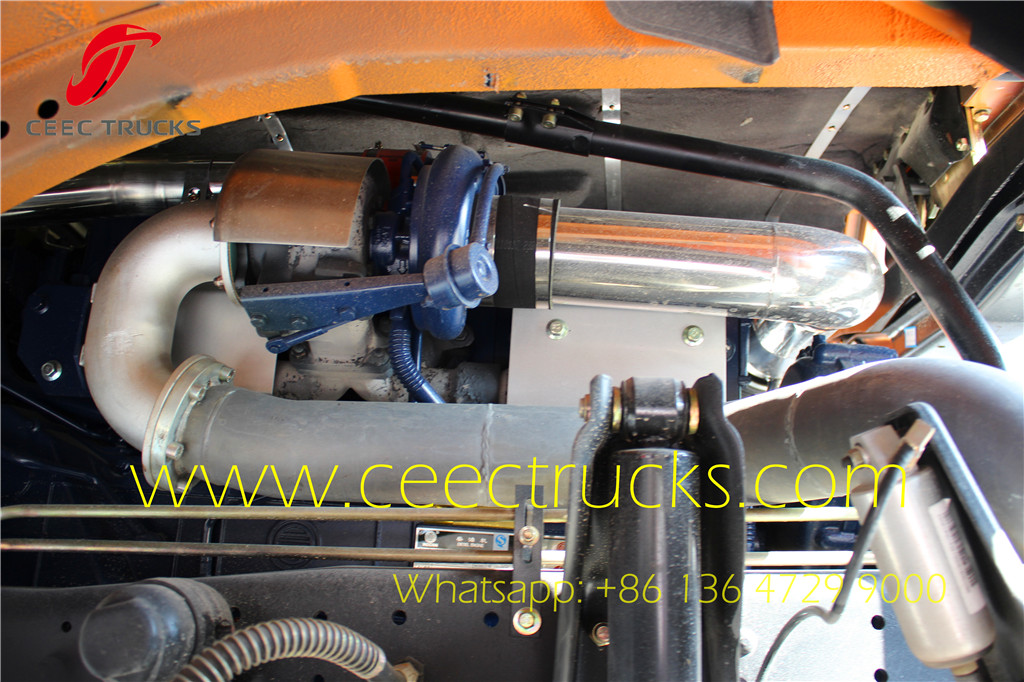

Engine Model
|
WD615.38，water-cooled，four
strokes，6 cylinders straight in line，turbocharged
|
|
Gearbox Model
|
9T-180, mechanical type，9 Forward speed gear
|
|
Frame
|
Based on Germany Benz
Technology
|
|
Axle(Front, Middle and Rear)
|
Based on Mercedes Benz
Technology
|
|
Brake system
|
Safe(consist of Service
brake, Assistant brake and Park brake)
|
|
Steering system Model
|
ZF8098
|
|
Fuel tanker capacity （L）
|
400
|
|
Clutch Model
|
430，Hydraulic boosting
|
|
Tire
|
12.00R20 radial tire
|
|
Electrical system
|
2 Batteries (12V/135Ah each
)
|
|
Safe Cab(driver die Zero
record)
|
full steel skeleton
structure, covered with double layer steel plate;
|
|
Upper body dimension (CBM)
|
14
|

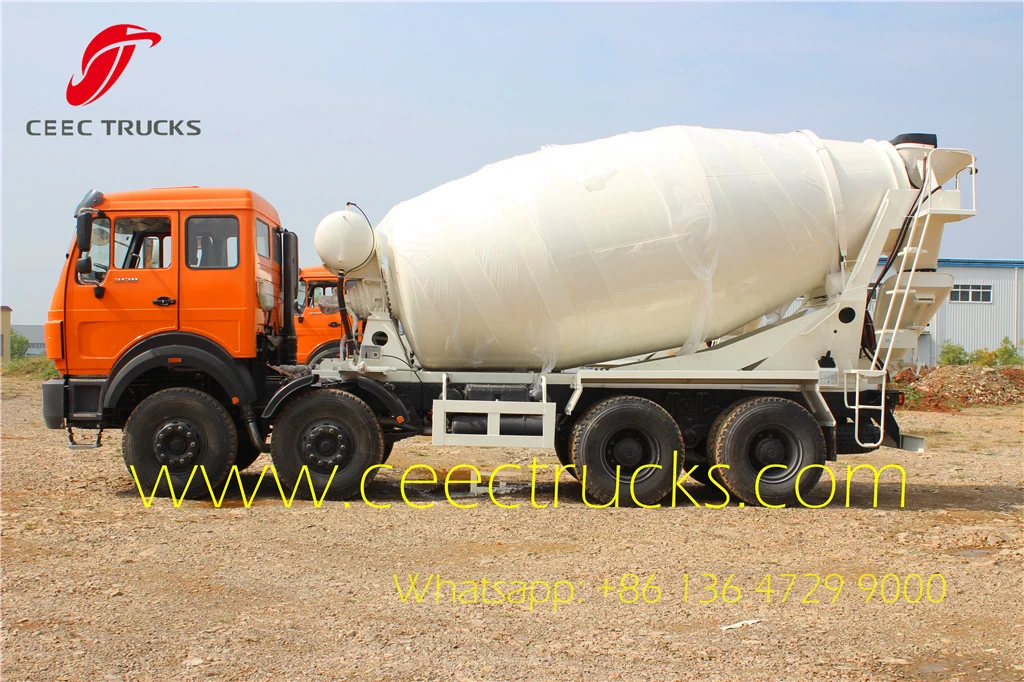

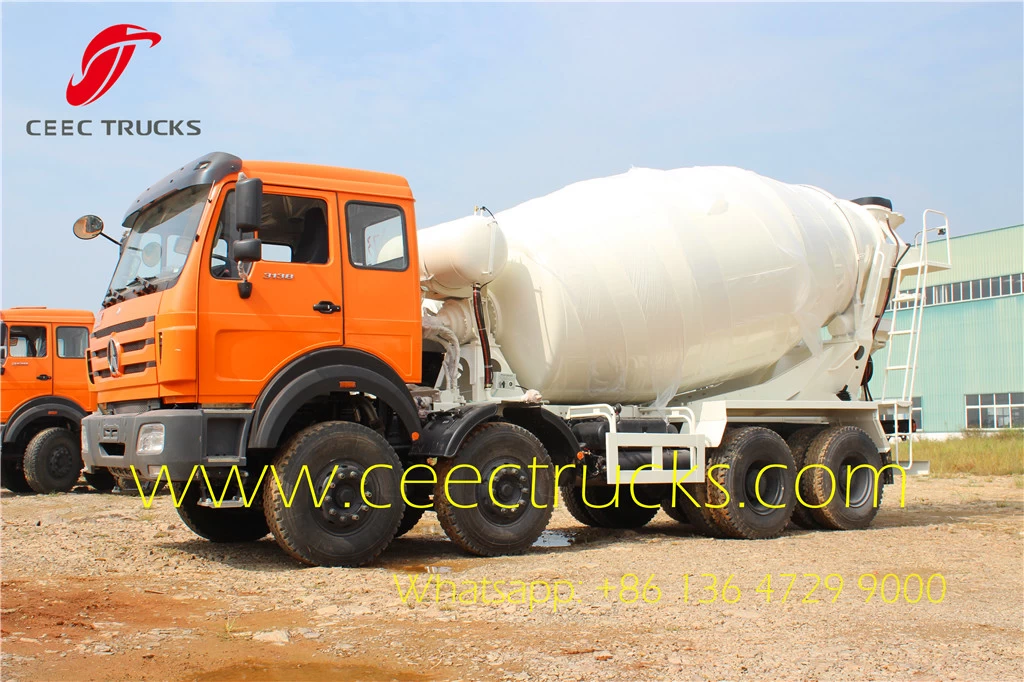

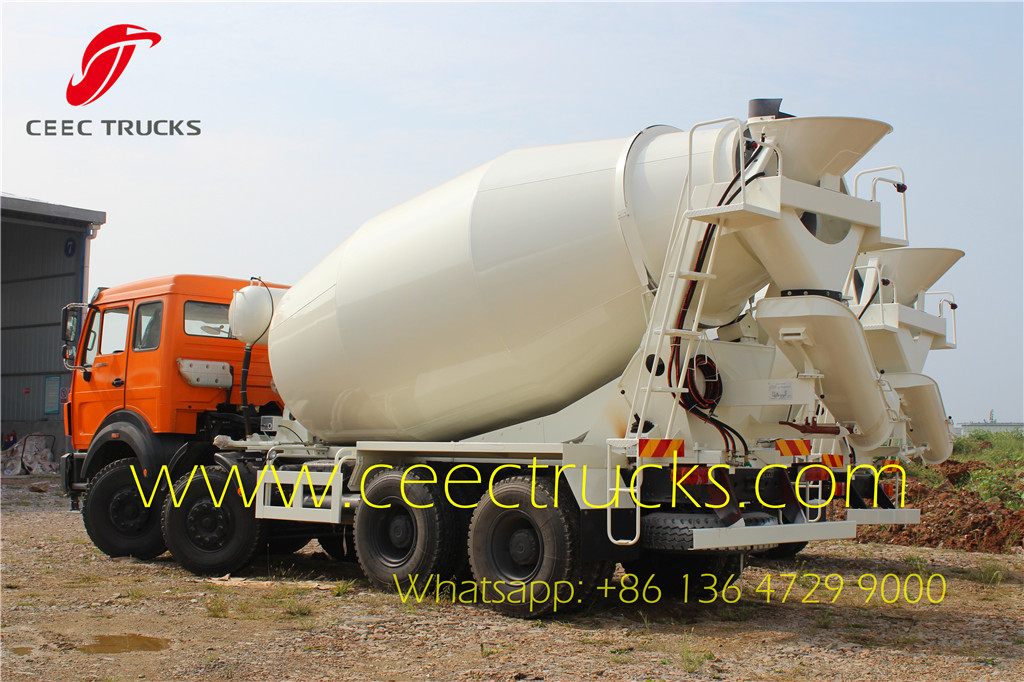

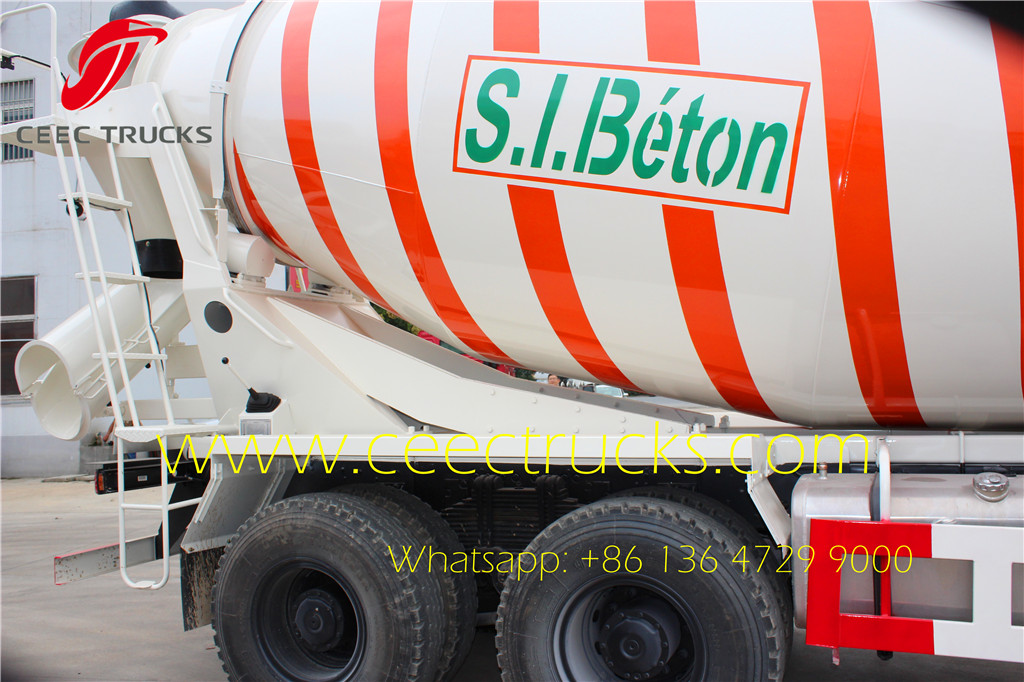

Beiben 14 CBM concrete mixer trucks for painting:

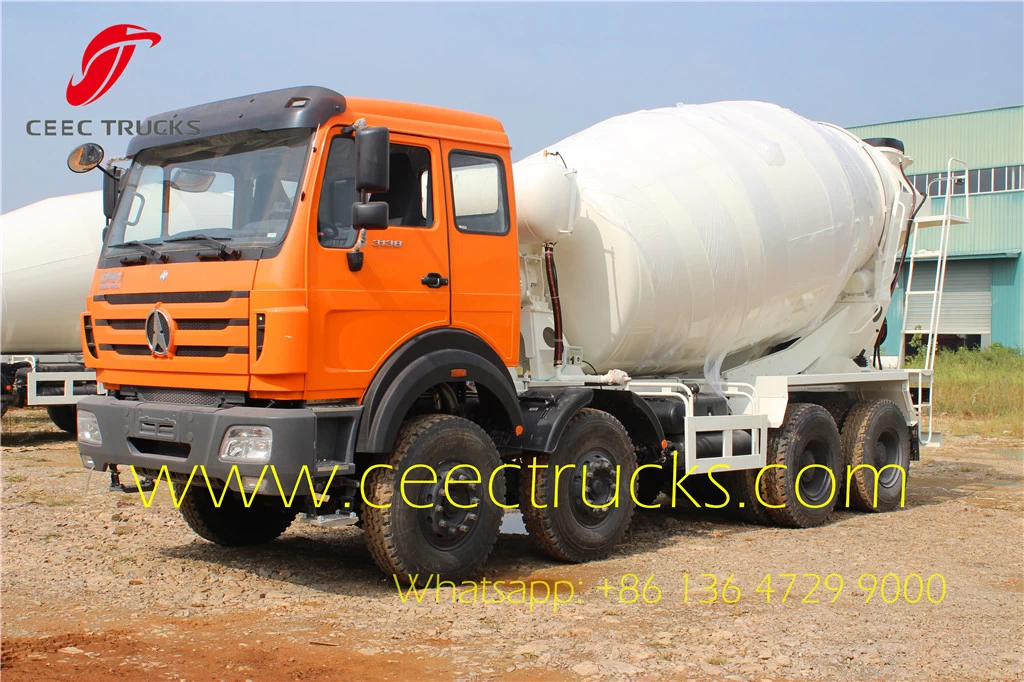

Beiben Transit mixer trucks on sale
