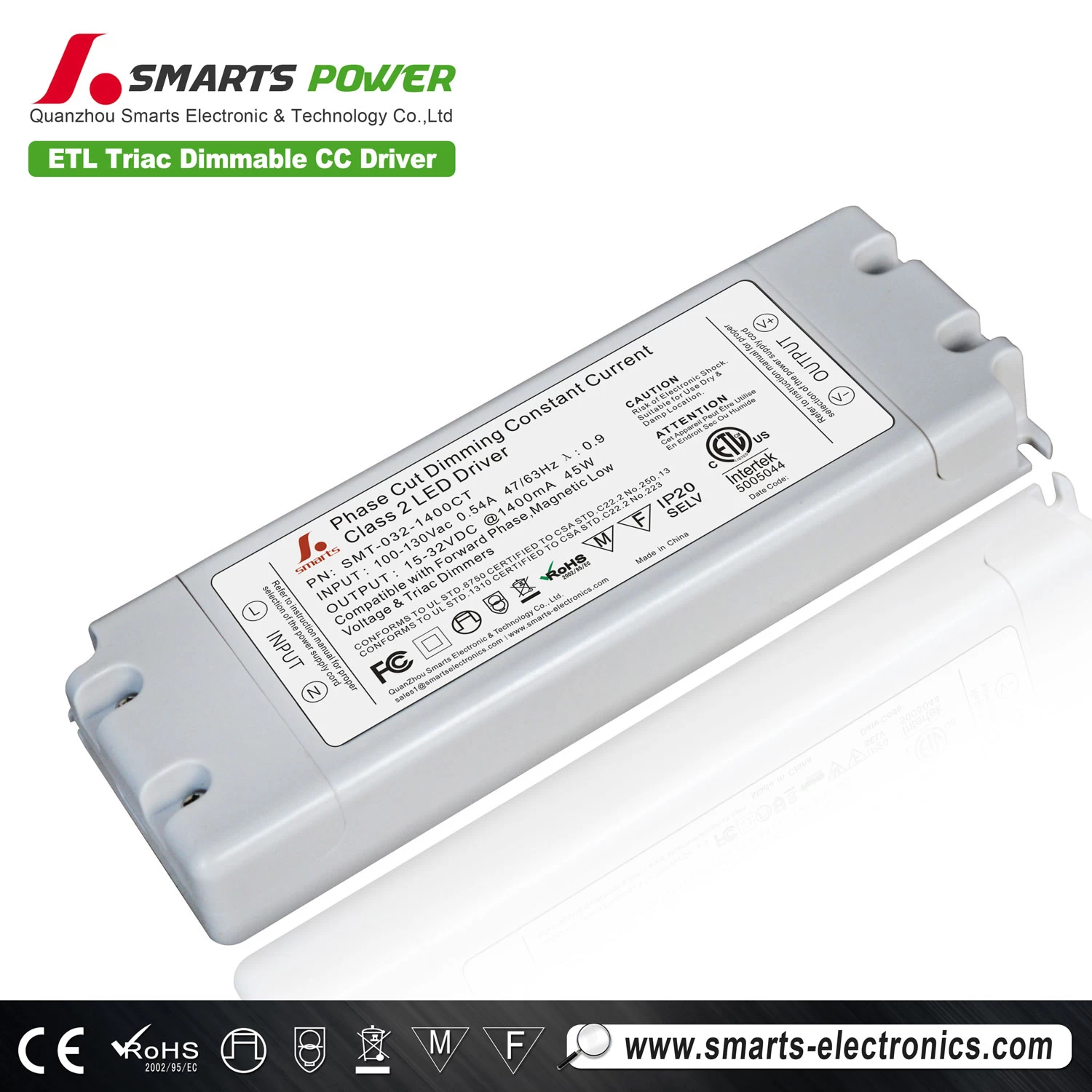

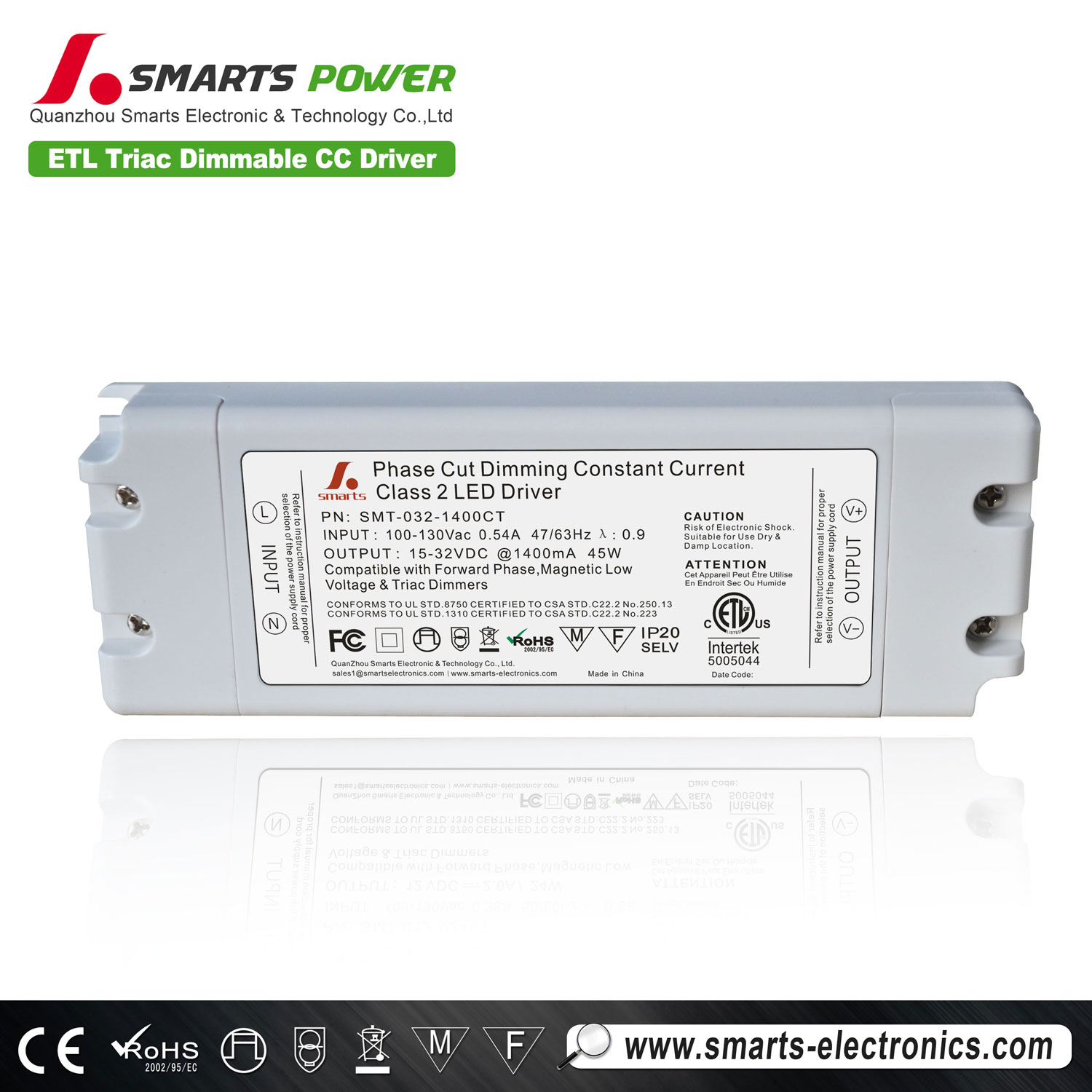

1400mA constant current led driver for triac dimming control

1400mA constant current led driver ; 1400mA 45w triac dimmable led driver ; triac dimmable led power supply

Product Description

Protection & Environment& Safety & EMC

Specifications:

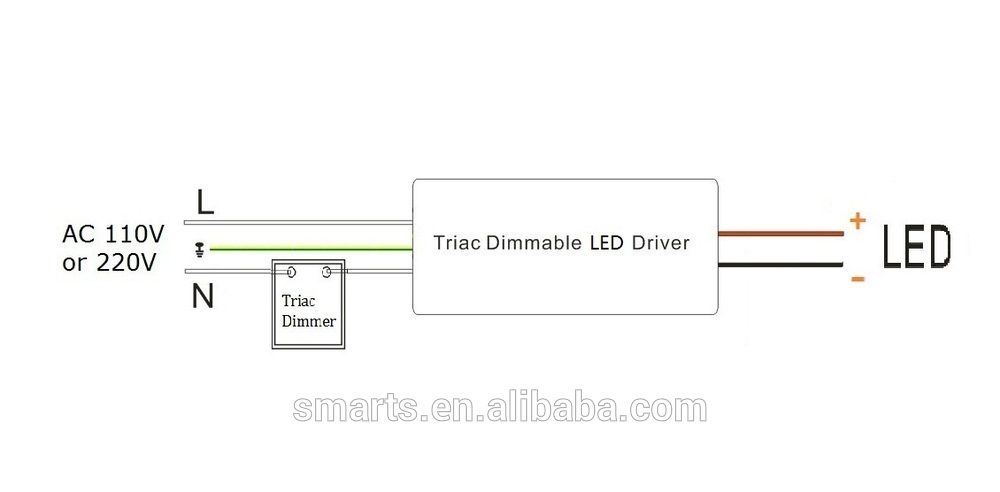

Dimming mode: traic dimmable
working mode:constant current type
PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
Full Load Efficiency (Typ.): >85%
AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
Case material:plastic housing
Waterproof rate: IP40
unit weight: 0.34kg
product size: 180*60*34mm
3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

Environment :

Working Temperature : -25 ~ +50°C
Working Humidity : 20 ~ 90% RH non-condensing
Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

Applications:

plastic cover 45w traic dimmable constant current 1400ma led driver 15-32V
