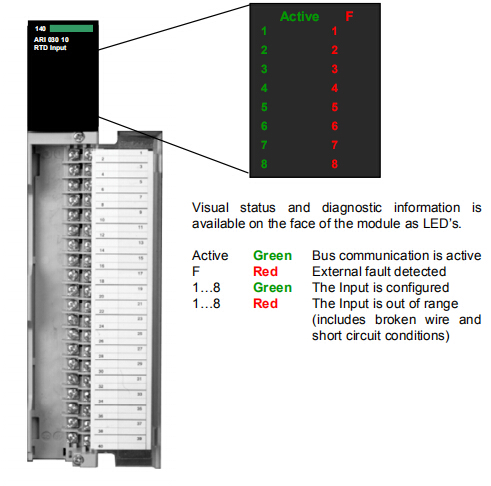

The Quantum 140ARI03010 RTD Input Module provides (8) channels of 2-wire, 3-wire and 4-wire RTD inputs. Temperature measurement data is provided to the Quantum CPU.
This module has broken wire and short circuit detection.
A Quantum removable terminal strip allows for easy maintenance.
Quantum backplanes (ordered separately) come in 2,3,4,6,10, and 16 slot versions. Any Quantum module can be used in any slot. A Quantum power supply is required in each rack. The power supply provides logic power to all modules on the bus.
|
Module Type
|
|
8 RTD Inputs
|
|
|
|
|
|
Signal Type
|
|
2-wire, 3-wire, 4-wire
|
|
|
|
|
|
Update Time (all channels)
|
|
640 ms for 2-wire or 4-wire; 1.2 s for 3-wire
|
|
|
|
|
|
Channel to Channel Isolation
|
|
300 Volts Peak to Peak
|
|
|
|
|
|
Channel to Bus Isolation
|
|
1780 Vac for 1 minute
|
|
|
|
|
|
IEC Platinum
|
|
-200 to +850 degrees C
|
|
PT100, PT200, PT500, PT1000
|
|
|
|
|
|
|
|
American Platinum
|
|
-100 to +400 degrees C
|
|
PT100, PT200, PT500, PT1000
|
|
|
|
|
|
|
|
Nickel
|
|
-60 to +180 degrees C
|
|
N100, N200, N500, N1000
|
|
|
|
|
|
|
|
Linearity
|
|
+/- 0.01% of full scale (0 to 60° C)
|
|
|
|
|
|
Resolution
|
|
0.1° C
|
|
|
|
|
|
Absolute Accuracy
|
|
+/- 0.5 degrees C (25° C); +/- 0.9 degrees C (0 … 60° C)
|
Schneider 140ARI03010
140ARI03010 | Schneider | Analogue input module
Email:sales3@amikon.cn
Range of product
|
Modicon Quantum automation platform
|
Product or component type
|
Analogue input module
|
