Modicon Quantum 140CRP93200 Remote IO Head

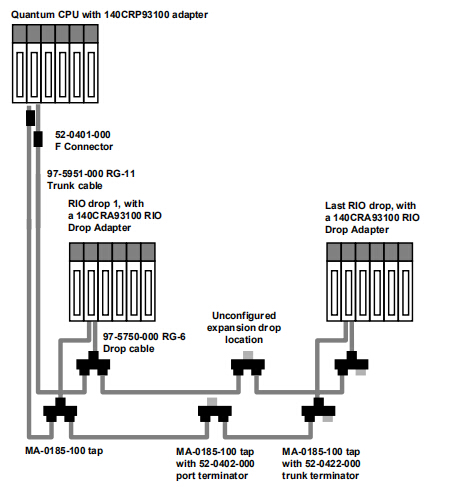

The Remote IO Head Dual Channel module is installed in the same backplane as the system controlling CPU module. The RIO head transfers data bi-directionally between the CPU and Remote IO drop used to interconnect the RIO head module and one or more RIO drop modules.
RIO is based on a coaxial cabling scheme that provides long distance capability up to 5 km (16,400 ft) with Coaxial cable or longer with optional fiber optic cable. It is a high performance network operating at 1.544 Mbits/s for high IO data throughput.
|
Drop Type
|
|
Quantum, 200 Series, 500 Series, 800 Series, Sy/max
|
|
|
|
|
|
CDrops
|
|
31 Maximum (any combination)
|
|
|
|
|
|
Words/Drop
|
|
64 In / 64 Out
|
|
|
|
|
|
ASCII Support
|
|
2 ports / drop, 32 ports (16 drops) maximum*
|
|
|
|
* Requires ASP892000, ASJ892101/102 or ASJ2920X0
|
|
|
|
at the RIO drops.
|
|
|
|
|
|
Coax Termination
|
|
Internal 75Ω
|
|
|
|
|
|
Coax Shield
|
|
Tied to chassis ground
|
|
|
|
|
|
Data Transfer Rate
|
|
1.544 Mbaud
|
|
|
|
|
|
Isolation
|
|
500 VDC Coaxial cable center conductor to ground
|
|
|
|
|
|
Power Dissipation
|
|
3.8 W
|
Schneider 140CRP93200
140CRP93200 | Modicon Quantum I/O Module
Email:sales3@amikon.cn
Range of product
|
Modicon Quantum automation platform
|
Product or component type
|
RIO head-end adaptor module
|
