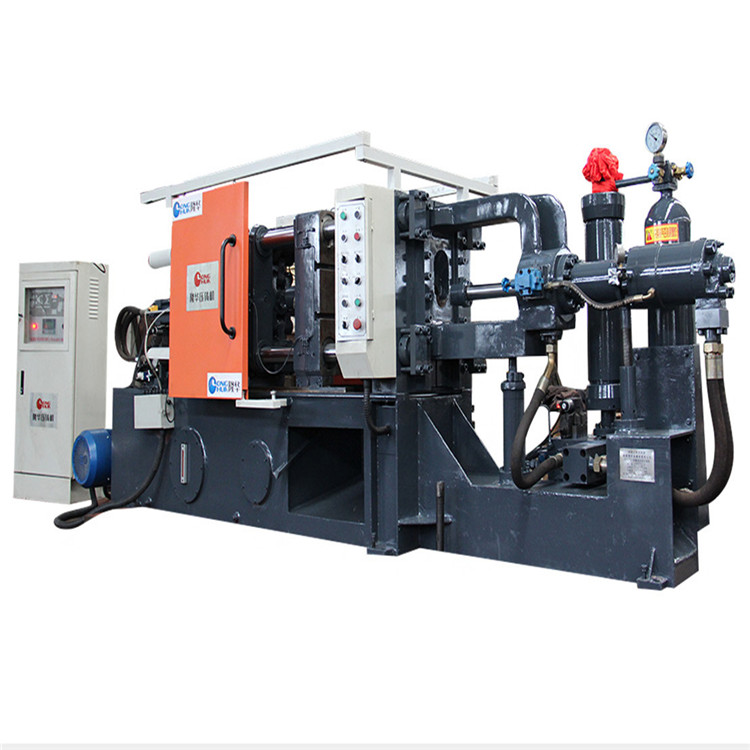

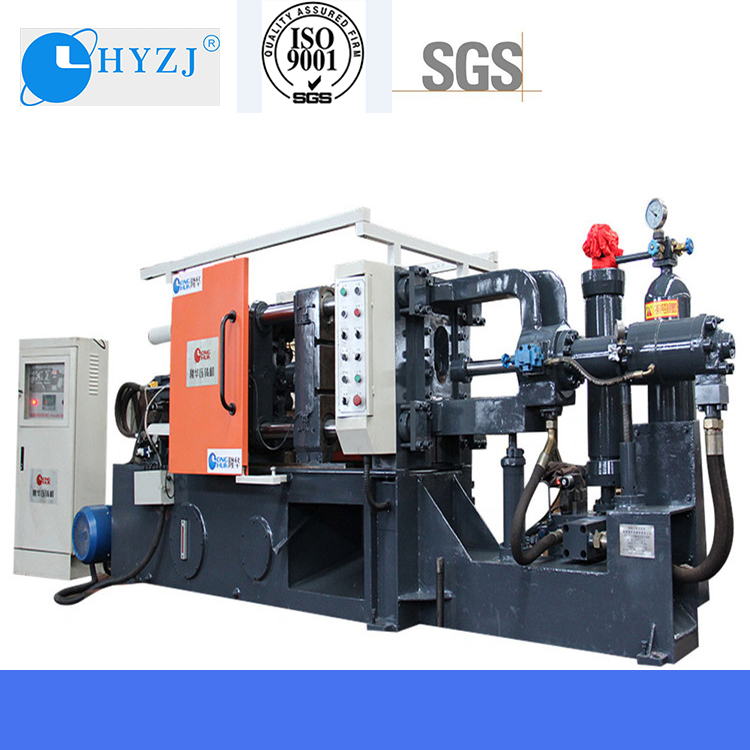

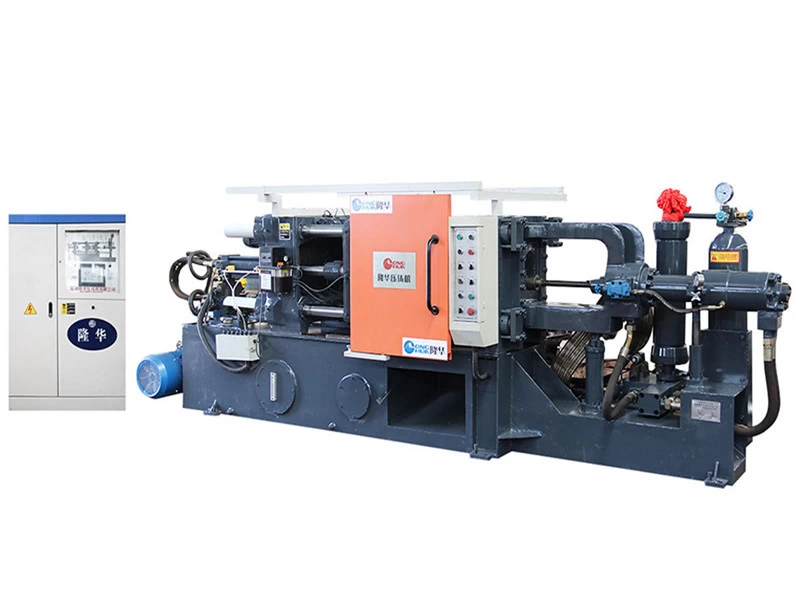

140T Fully Automatic Aluminum Alloy Horizontal Die Casting Machine

Longhua die casting machine is characterized by energy saving and high efficiency. Combined with automatic equipment, it can realize the full range operation of machine instead of human.



 Fully Automatic Aluminum Alloy Horizontal Die Casting Machine

Cold Chamber Die Casting Machine



Parameters of cold chamber die casting machine(140T)

Items

Unit

Specification

Hydraulic Working Pressure

MPa

7

Clamping Force

KN

1400

Space Between Tie Bars

mm

420*420

Tie Bar Diameter

mm

¢80

Die Opening Stroke

mm

350

Injecction Force(intensify)

KN

180

Plunger launch distance

mm

120

Injection position

mm

0  --  140

Plunger Diameter

mm

¢40----¢60

Injection Stroke

mm

320

Casting pressure (intensify)

MPa

143/92/64

Casting Fiange Protrusion

mm

10

Casting Fiange Diameter

mm

110

(40Mpa) Max Casting Area Under 40Mpa

CM2

375

lnjection Weight(Al)

Kg

1.6

Die Height(Min--Max)

mm

200~500

Ejector Force

KN

100

Ejector Steoke

mm

80

Motor Capacity

Kw

11

Machine Dimensions  (L*W*H)

m

4.5*1.2*1.5

Referential Machine Weight For Uplifting

T

4.7

Oil Tank Capacity

L

300

WE reserve the right to make any technical improvement without further notice

Product features:

1. Easy to handle

- Completely automatic process cycle and analysis function

- Permanent process monitoring via sensors

- Extensive security installations

2.Excellent performance

- High efficiency and reduced scrap

- High quality casting of complex and large parts

- Extremely stable value of the machine

- Multi-shift operation possible

 3.Flexible

 - Small or large casting clusters

- Non-ferrous metals including zinc, aluminium, bronze and brass alloys

- Moulding chamber easily adaptable for shell-, sand- and block moulds.


Hydraulic system:

1.  Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and Speed control as well as low pressure die close protection functions).

2.  Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).

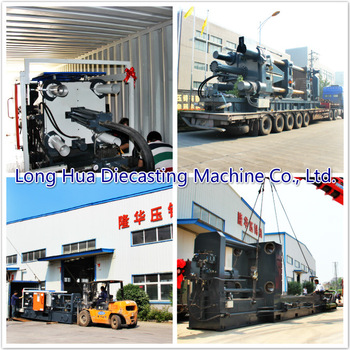

Packaging and delivery of die casting machines:

We have our own factory, containers can be directly from the factory to extract die-casting machine and related machine parts. Our packing is standard packing. The wooden cases we use are for export use only.

Die casting machine products:

Engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.

Electric escalator handrail/steps,industrial/road/railway/air/agricultural machinery, spotlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.

Auto die casting machine composition
