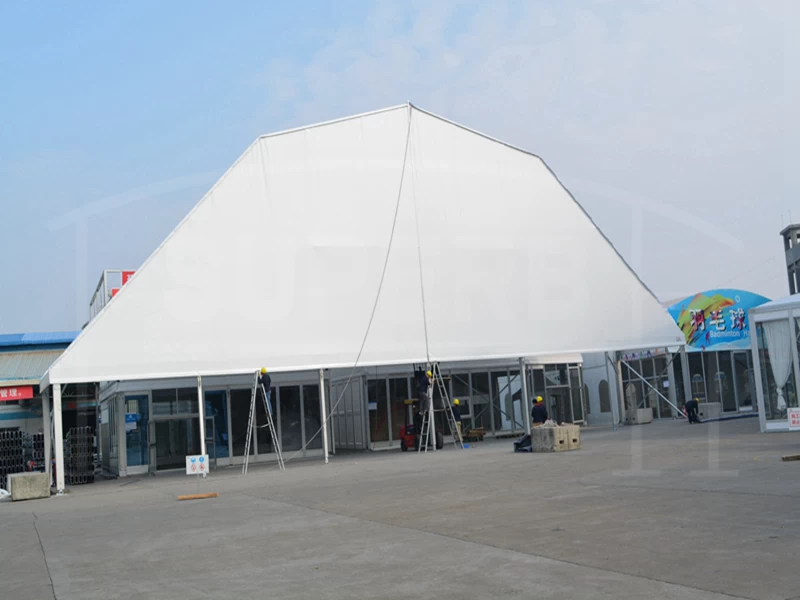

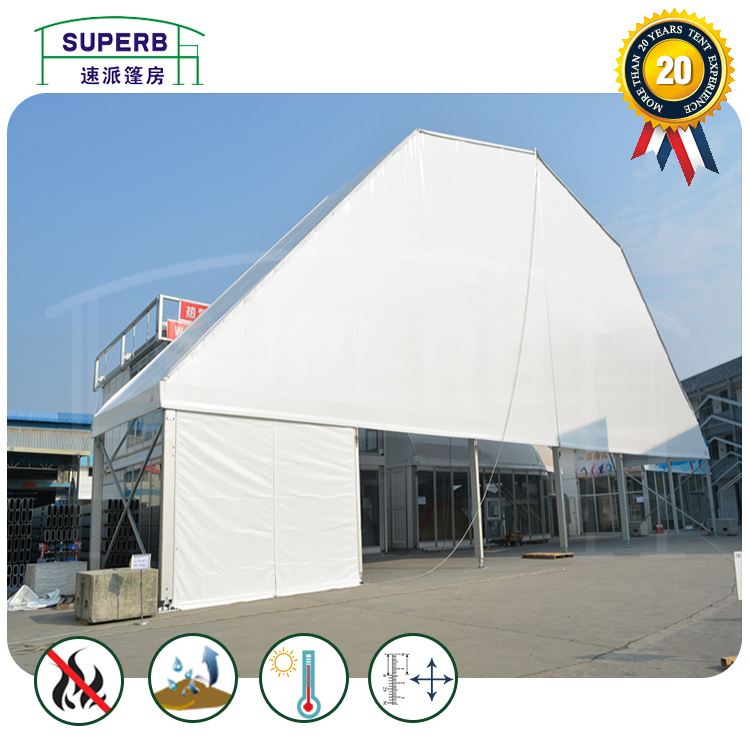

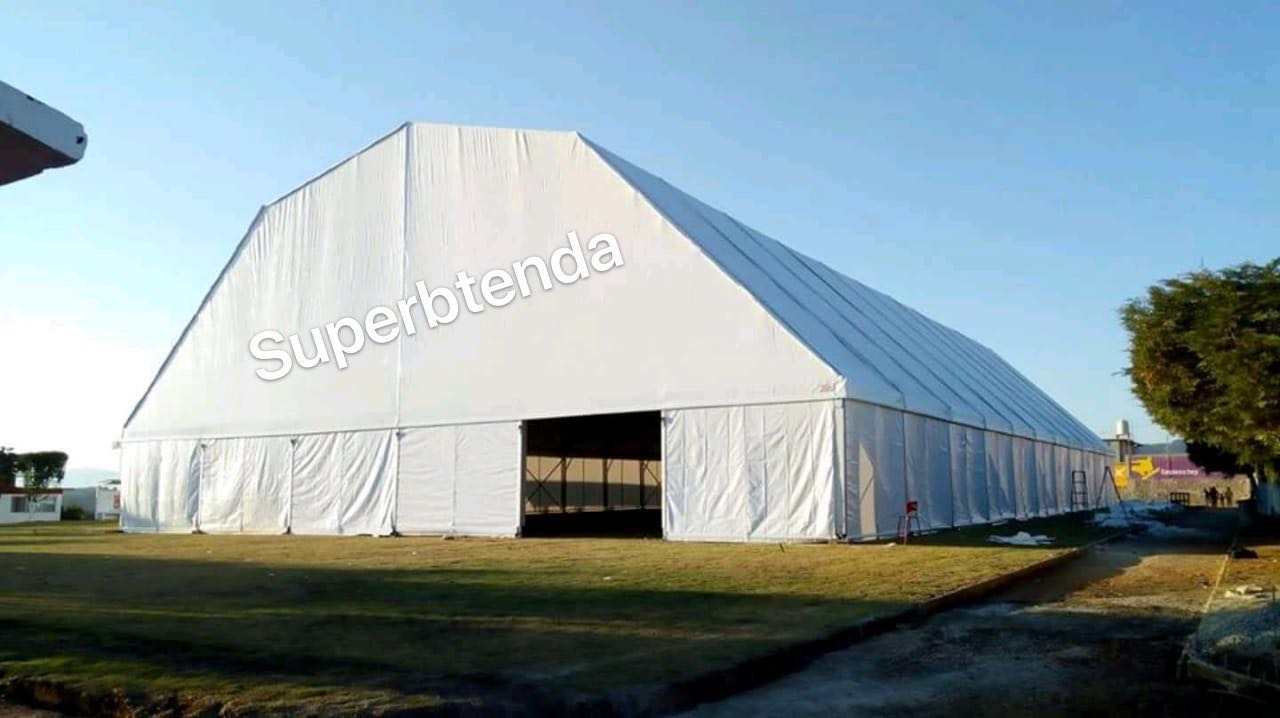

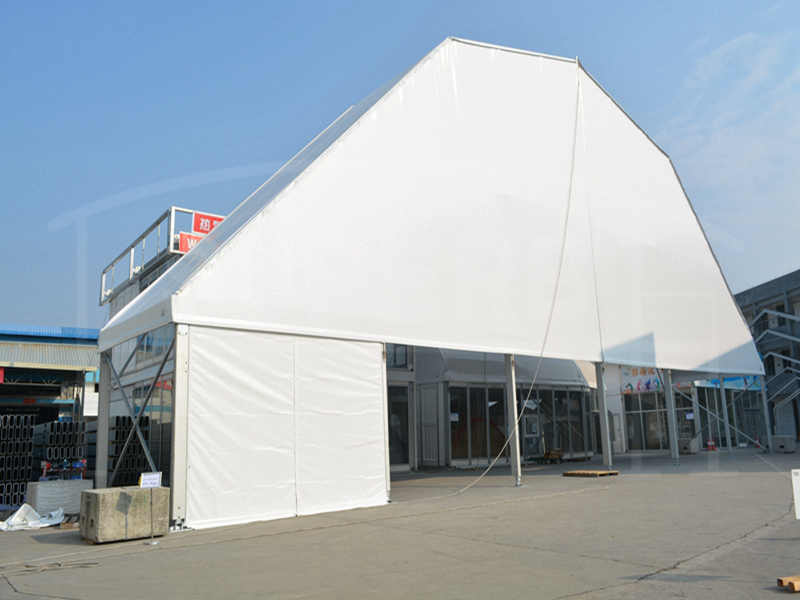

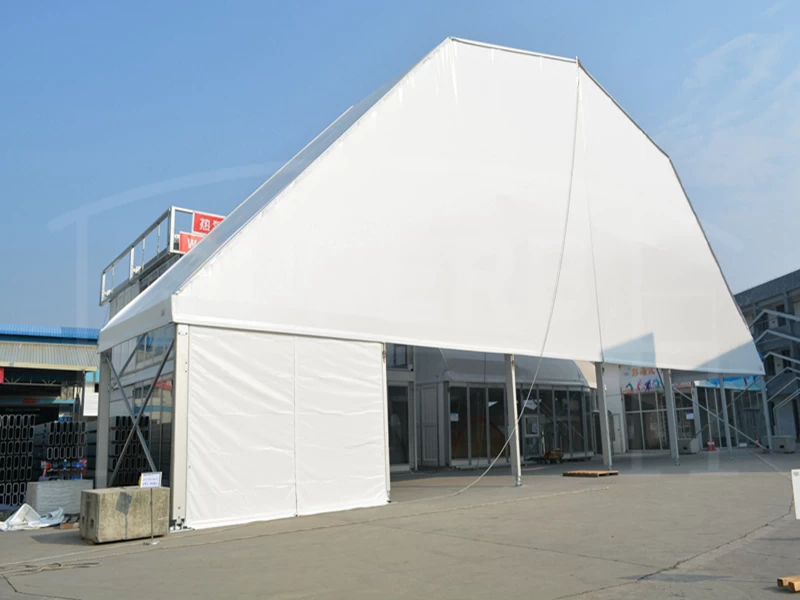

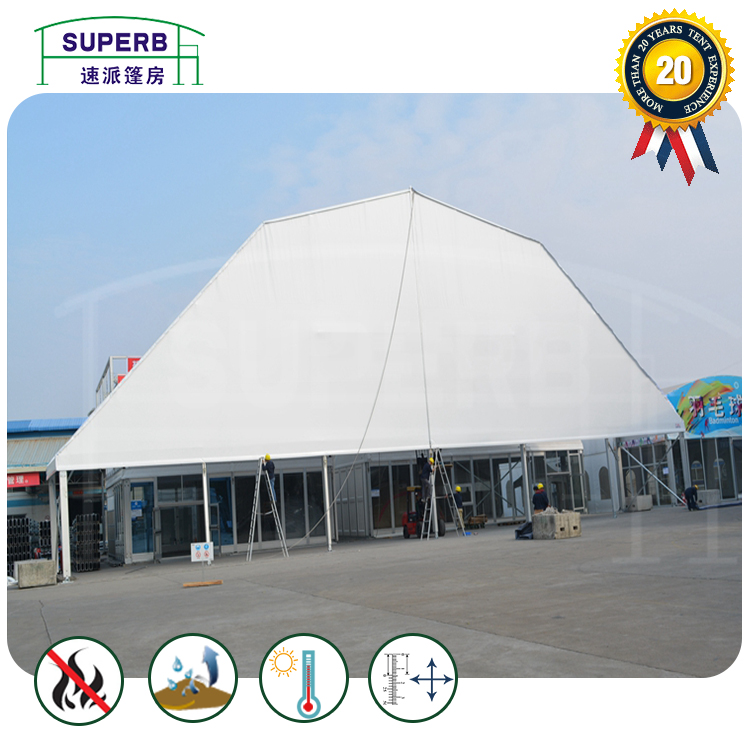

Product Name:14M Outdoor Polygon Tent For Concert
Polygon for concert / 14 M high, 30 M wide of focused and 13 M of height of 2nd connection as high and large to place enough machine giant - scenarios - lighting product description.

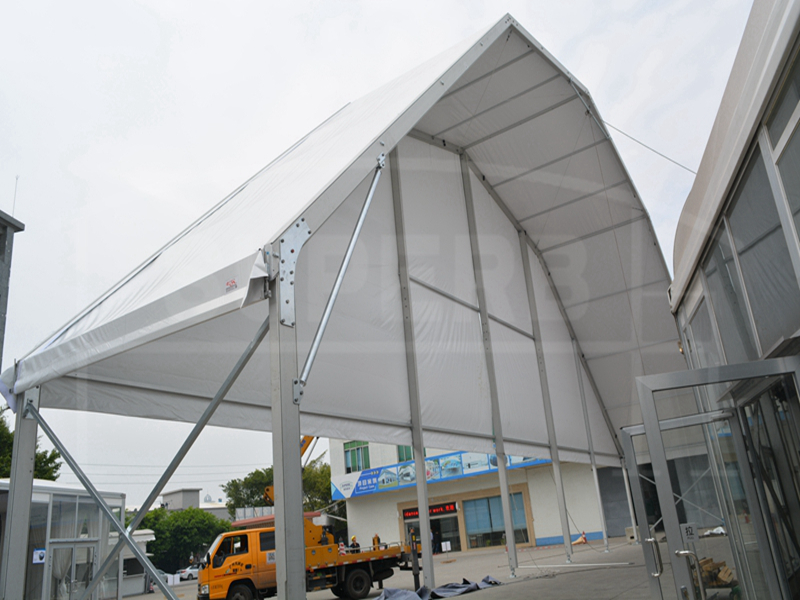

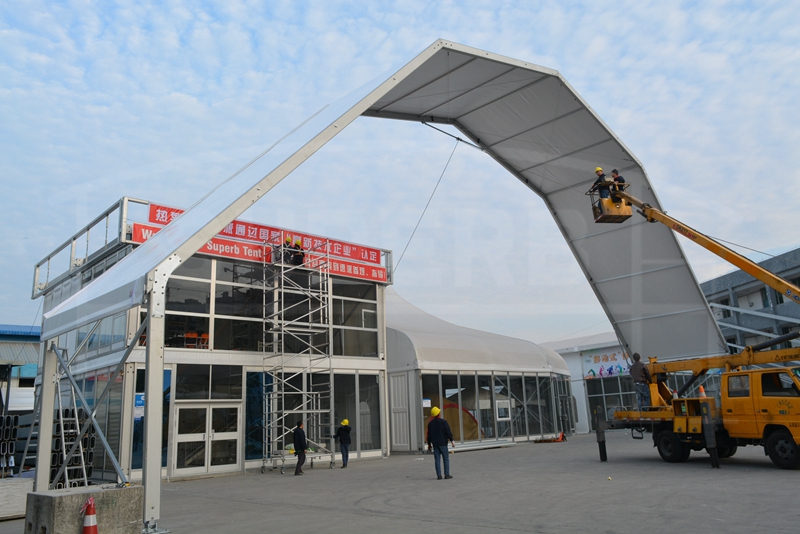

1)Polygon Tent's frame:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
Hard pressed extruded aluminum 6061/T6(15HW), anodized surface finishing.
Main frame profile size: 300x140x5mm ;
2)Polygon tent's connections:
Hot-dip galvanized steel;
Made of steel with powder coating zinc.
3)Polygon tent's life span:
Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
4)Polygon tent's structure safety parameters's:
Wind load: 120km/h (0.5kn/M2)
Snow load: 25kg/sq.m
5)Polygon tent 's Color available:
White, red, yellow, blue, green, black, grey, transparent etc
6)Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.

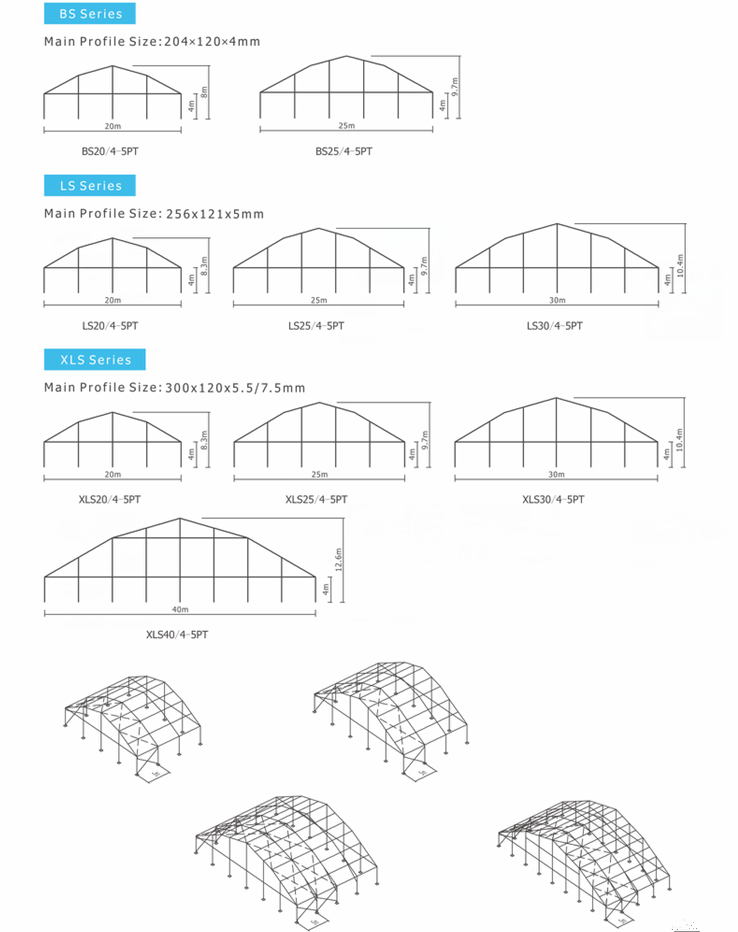

The specification of 14M Outdoor Polygon Tent For Concert:
|
Type
|
Span (m)
|
Side height (m)
|
Ridge height (m)
|
Bay Distance (m)
|
Longest Component (m)
|
Wind Load (km/h)
|
|
XLS30/4-5PT
|
30
|
3.9
|
11.6
|
5
|
10.7
|
100
|
|
XLS40/4-5PT
|
40
|
3.9
|
13.5
|
5
|
10.7
|
100
|
|
Main frame Profile
|
300x120x5mm(4-channel)
|
|
Eave Connection
|
Hot-dip Galvanized Twin Steel Plate
|
|
Roof Fixing
|
Bar Tension
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of polygon tent:
