15-30vdc constant current power source with triac dimmable

15-30vdc constant current power source with triac dimmable

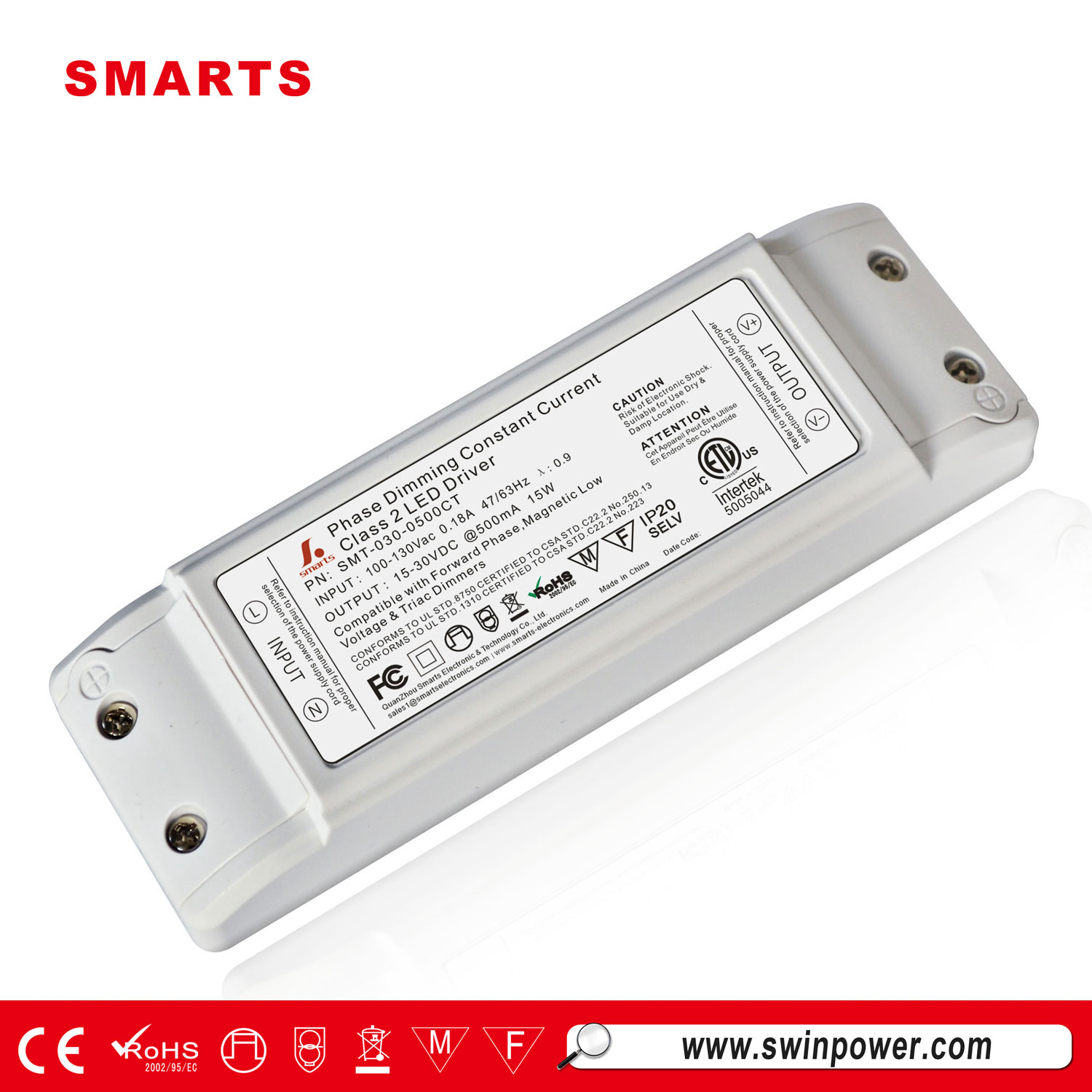

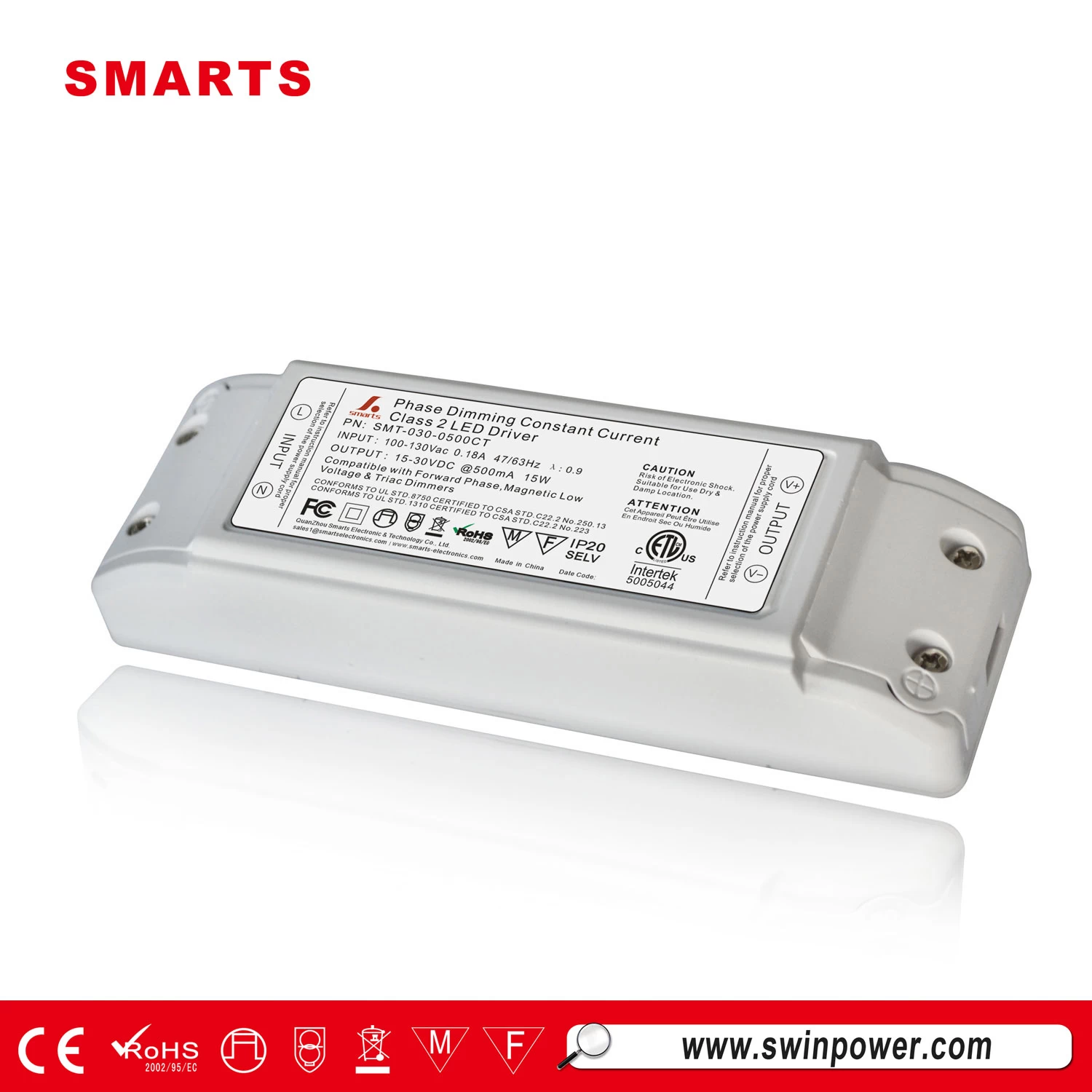

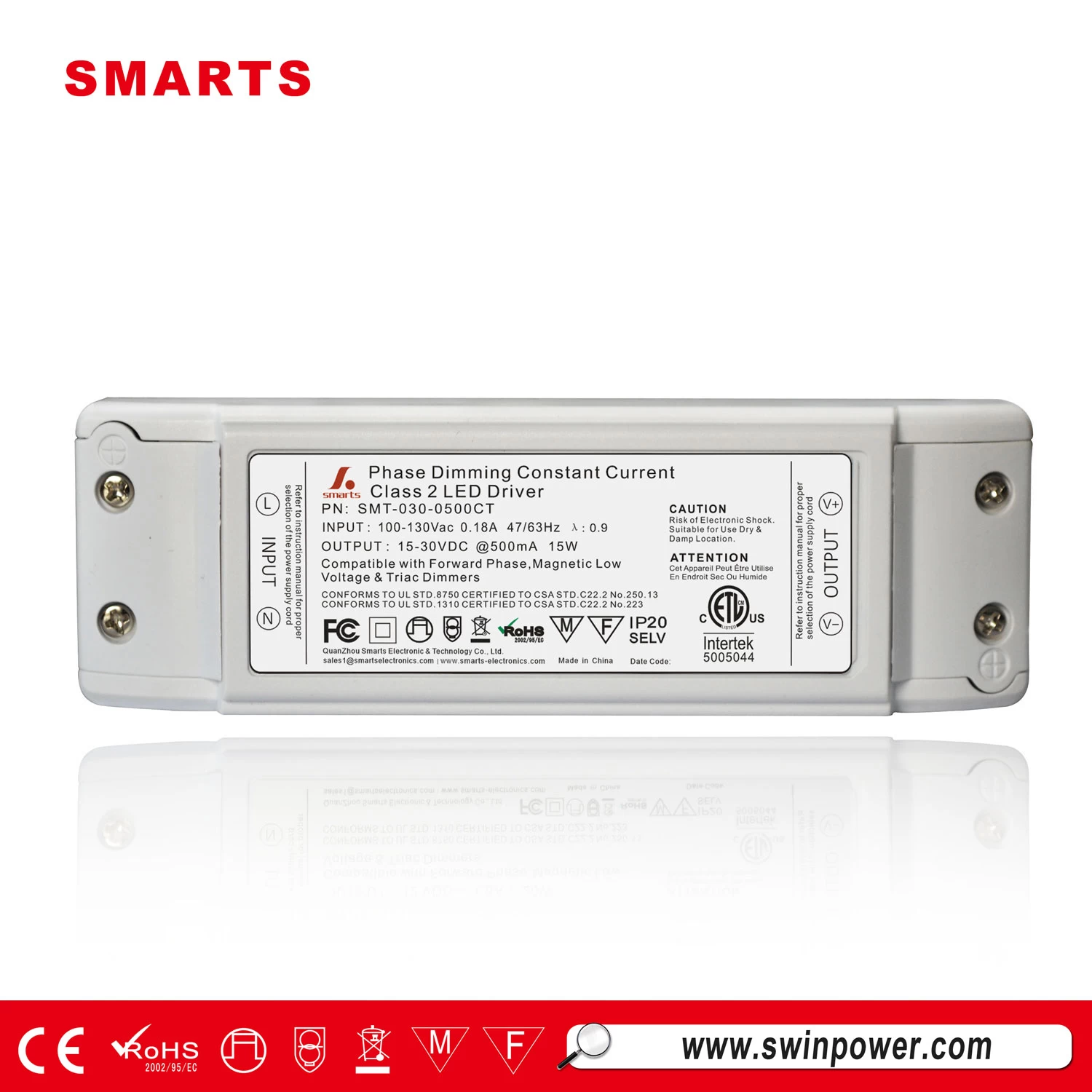

SMT-030-0500CT is 30v led driver with triac dimmable,which is ETL/cETL,CE,ROHS,FCC approval for 5 years.low voltage led driving lights suit for ac-dc led lights.

Specifications:

• Working mode: Constant current
• Energy transfer: AC-DC
• Dimming mode: Triac dimmable
• PF:>0.90
• Efficiency: 88%
• RippleI & Noise (max.) : 150mVp-p
• Voltage Tolerance : ±5%
• Line Regulation : ±1%
• Load Regulation : ±2%
• Case material:  Plastic housing
• Waterproof rate:  IP20
• 5 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

• High efficiency,save energy ,protected environment.
• High stability and low ripple, increase light efficiency and decrease light attenuation.
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant current
• Protections:Short circuit/Overload/Over temperature
• Cooling by free air convection
• 100% full load burn-in test.
• Suitable for LED lighting
• Brand electrotronic components.
• ROHS material.

Environment:

• Working temp: -30~+50℃ (Refer to output load derating curve)
• Working humidity: 20~99% RH non-condensing(Waterproof)
• Storage temp. humidity:  -40~+80℃,10~99%RH

Safety:

• Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP20 approved
• Withstand Voltage : I/P-O/P: 3000KVAC
• Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

• indoor LED illuminating lights, LED Neon
• LED urban Decoration,LED Lighting Advertising
• LED Display, Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels

 Question:

Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?

 Answer:

Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
