150 Meter Automatic Diamond Wire Saw Sharpening Machine

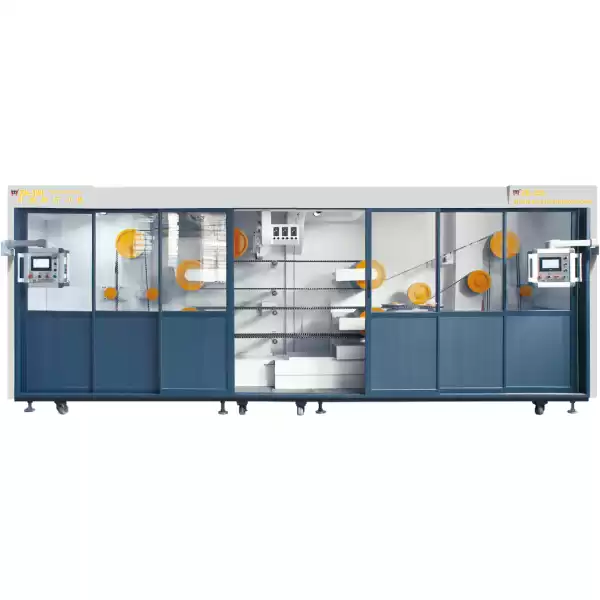

ZK-150 Diamond wires sharpening machine

Diamond wires sharpening machine is a new processing equipment for whole wires sharpening.



Automatic Diamond Wire Saw Sharpening Grinding Machine


DESCRIPTION:

Diamond wires sharpening machine is a new processing equipment for whole wires sharpening.  Servo motor drives the grinding wheel, variable frequency drives the whole wires, combine with PLC sharpening parameters, to achieve automatic sharpening. This machine enables auto tool-setting and grinding, helps to improve production efficiency, achieves perfect sharpening results. Meanwhile, this could avoid processing defects such as ellipse, conicity etc. Wires from 20m to 150m with beads’ diameter from Φ6.0 to Φ13.0mm are workable for the machine, high efficiency enables 150m wires sharpened in 25 min. Closed processing environment with dust absorption system ensures clean working condition.


FEATURES:

  • Dual grinding wheel, dual frequency conversion,dual operation panel.

  • Automatic grinding device with servo motor and variable frequency driving.

  • Wire rotation speed controlled via frequency converter.

  • Personalized mirco-computer interface and digitized display.

  • Procetion device and dust absorption system.


FUNCTIONS AND TECHNICAL PARAMETERS:

  • Power Voltage: AC Three-Phase 380v, 50hz (other voltages and frequencies are upon demand)

  • Wire Outer Diameter: 6-13cm

  • Wire Length: 14m-120m

  • Spindle Motor Power: 7.5kw

  • Main Grinding Wheel Motor Power: 3kw

  • Vice Grinding Wheel Motor Power: 3kw

  • Main Swing Motor Power: 0.75kw

  • Vice Swing Motor Power: 0.75kw

  • Main Servo Motor Power: 0.75kw

  • Vice Servo Motor Power: 0.75kw

  • Overall Dimension(mm): 6000*1900*2400

  • Net Weight: 4000kg

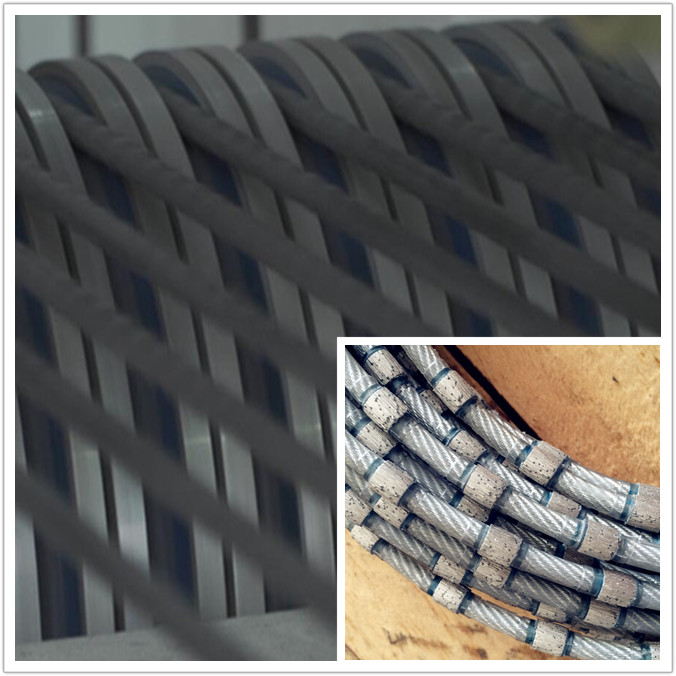

Grinding Result:
