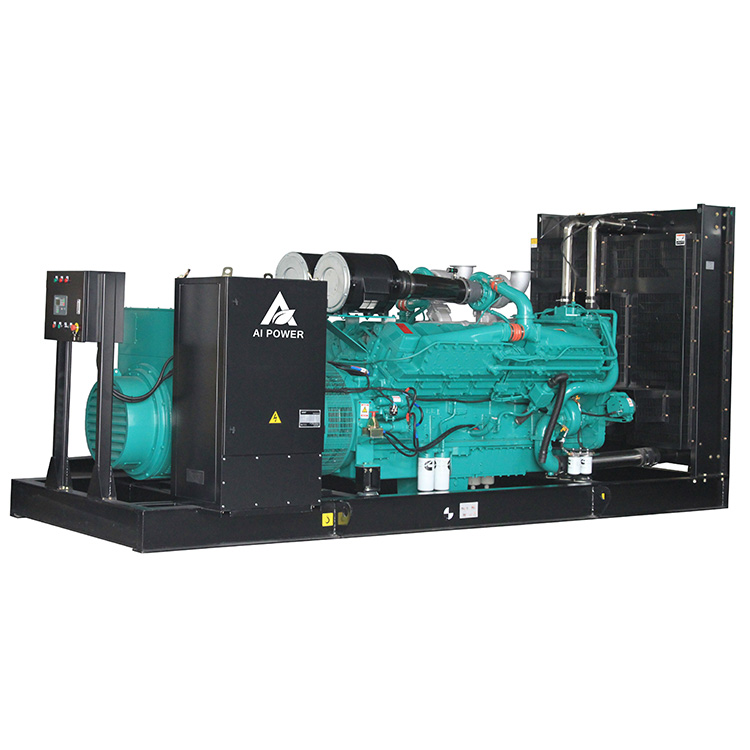

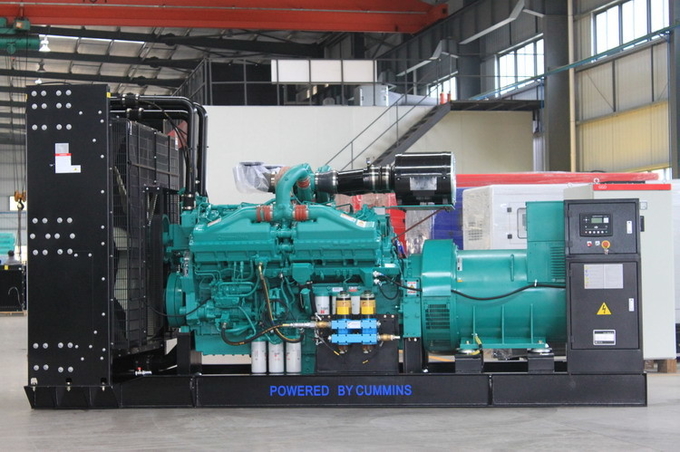

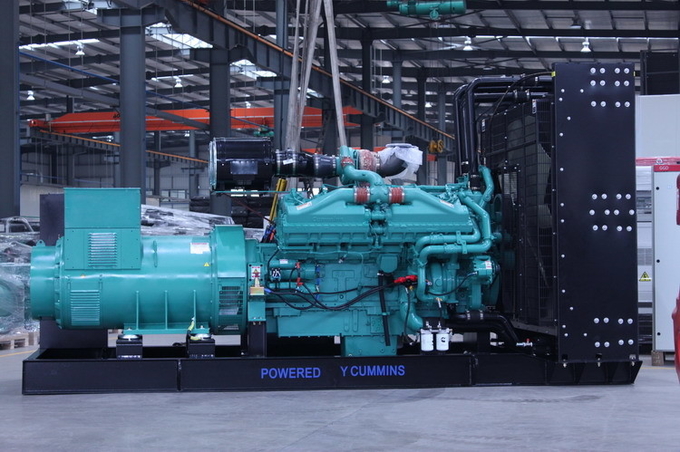

1500 KVA 1200KW 3 Phase Electric Generating Set With Cummins KTA50-GS8 50HZ

Cummins KTA50-GS8 with Leroy Somer, Stamford alternator




1500 KVA 1200KW 3 Phase Electric Generating Set With Cummins KTA50-GS8 50HZ


Product Description:
1. Prime power 1200KW, standby power 1320KW.
2. Powered by Cummins engine KTA50-GS8
3. Original Stamford alternator.
4. Famous brand air breaker.
5. Electric start with batteries.
6. Deep sea controller.
7. ATS is for option.

Genset Specifications:

Genset model AC1650
Genset rated power 1200KW/1500KVA
Rated voltage 400/230V (adjustable)
Rated current 2160 Amps
Frequency 50 Hz
Power factor 0.8
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, radiator
Overall dimension (L×W×H) mm 5800×2280×2500
Gross weight (kg) 13000


Engine Specifications:

Diesel Engine
Brand CCEC Cummins
Model KTA50-GS8
Number of Cylinders 16
Rotating Speed 1500RPM
Cylinder Arrangement 60º Vee form
Cycle Four stroke
Aspiration Turbocharged and air-to-air intercooled
Bore×Stroke(mm) 159 x 159
Displacement(L) 50.3
Compression Ratio 14.9:1
Speed Governor EFC speed governor
Cooling System Closed cycle water-cooled with fan drived by belt
Speed Stability (%) ≤5%
Total Lubrication System Capacity (L) 178
Fuel Consumption at 100% Load 204 g/kw.h
Starting Method DC 24V Electrical starting


Alternator Specifications:

Alternator Brand STAMFORD
Alternator
Data
Alternator Model PI734C
Prime Power kw/kva 1200/1500
Features Brushless, self-excitation, AVR regulation,
IP23 protection grade,100% copper winding wire
Number of bearing 1
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type





Product Details


Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.


Product Advantages

1. Low exhaust gas (the electricity gushing out type engine reaches Europe Ⅲ standard.
2. Independent fuel direct gush-oil system.
3. Low fuel consumption.
4. Steady performance.
5. Good power-weight ratio.
6. Small, compact structure, beautiful appearance.
7. Easy to facilitate installation and maintenance.

Prime 1200KW Cummins Generator Set with 50Hz Power Rating, and 1650KVA Standby Power, available for 60HZ Power Rating. Optional for Stamford, Marathon or other Alternator, UK DeepSea or SmartGen Control System. High Standard and New Genuine Quality Cummins Diesel Generators!
