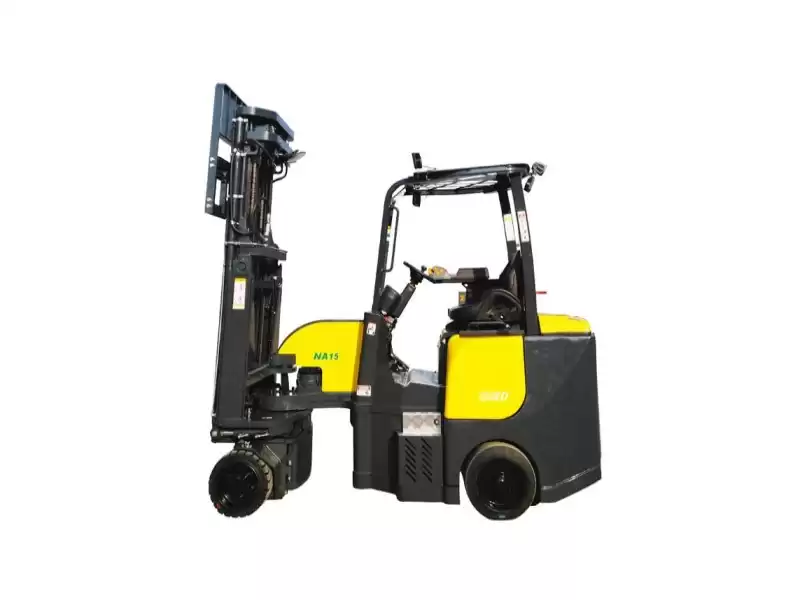

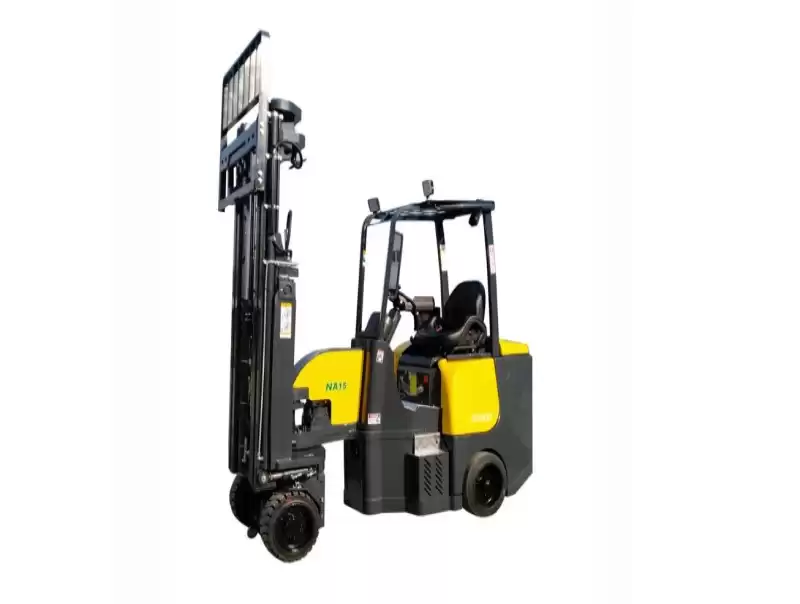

NA series articulated forklift is a versatile narrow aisle forklift that can help you deal with pallets in the smallest
spaces. No matter if you are working in a small warehouse or you need to
take out a lot of goods from a corner or gap in your space. You can manipulate
these narrow aisle forklifts skillfully and easily get what you need without
worrying about damaging your warehouse walls, shelves or inventory itself.

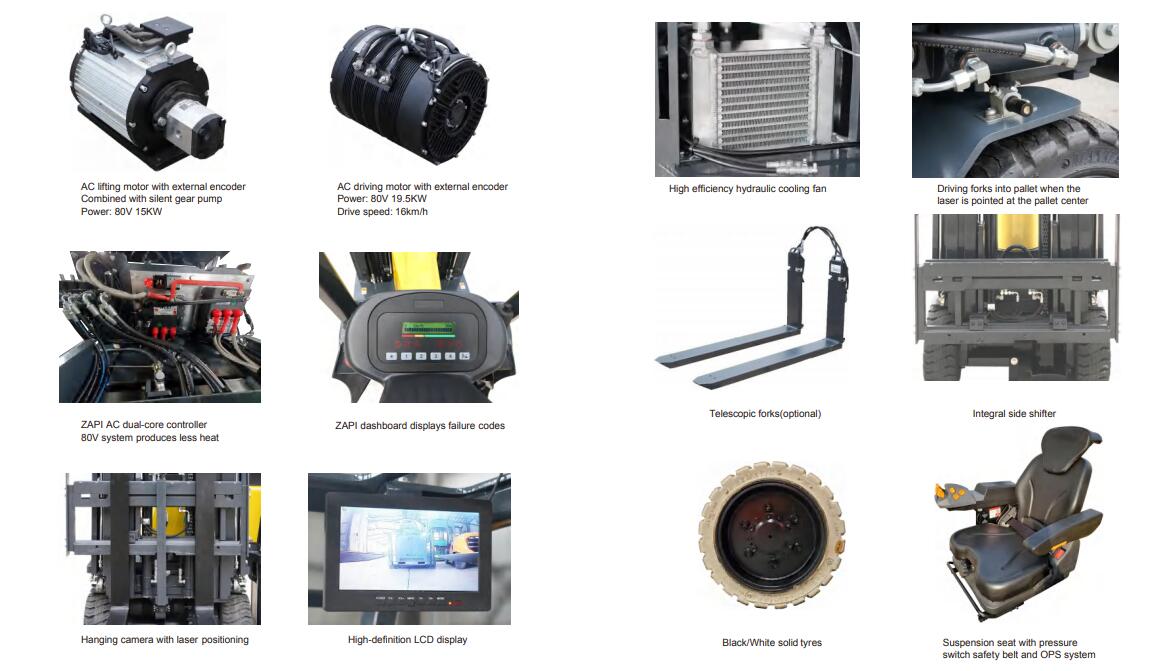

Configurations
|
Standard parts
|
Optional parts
|
|

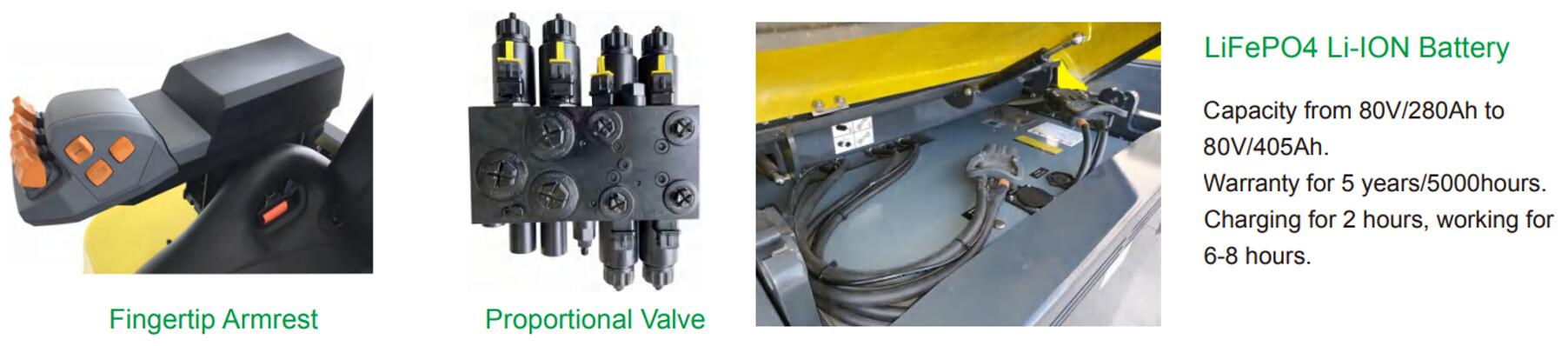

Fingertip
armrest
|
Wireless camera
and monitor
|
|
Electro-hydraulic
proportional valve
|
Lithium ion
battery
|
|
80V AC ZAPI
controller
|
Double deep
forks
|
|
80V AC
lifting&;driving motor
|
Weighing forks
|
|
80V 400AH lead
acid battery and customized charger station
|
Height
pre-selector
|
|
LED &; warning
light
|
Cabin
|
|
Cooling fans
|
White tyres
|
|
Triplex full
free mast
|
Quad mast
|
|
Integral side
shift
|
Fork positioner
|
|
Load backrest
|
|
|
Black solid
tyres
|
|
|
Backup mirror
|
|
|
Suspension seat
with safety belt and OPS system
|
|
|
Guiding lasers
|
|
Specifications
|
Model
|
Unit
|
NA15
|
|
Capacity
|
KG
|
1500
|
|
Mast lift
height
|
MM
|
4300-7050
|
|
Mast free lift
height
|
MM
|
1365-2435
|
|
Mast closed
height
|
MM
|
2265-3335
|
|
Mast
full extended height
|
MM
|
5561-8311
|
|
Overall
length(excluding forks)
|
MM
|
2780
|
|
Ground clearance
|
MM
|
50
|
|
Overhead guard
height
|
MM
|
2270
|
|
Chassis width
rear
|
MM
|
1030
|
|
Chassis width
front
|
MM
|
980
|
|
Load center
|
MM
|
600
|
|
Wheelbase
|
MM
|
1735
|
|
Seat height
|
MM
|
1220
|
|
Mast tilt
angle(back/fwd)
|
DEGREE
|
3/1
|
|
Front chassis
rotate angle(left/right)
|
DEGREE
|
220
|
|
Ground speed
|
KM/H
|
16
|
|
Lift speed(load/unload)
|
M/S
|
0.44/0.5
|
|
Front tyre size
|
MM
|
412x174
|
|
Rear tyre size
|
MM
|
457x150
|
|
Grade
ability(load/unload)
|
%
|
18/20
|
|
Battery
voltage/capacity
|
V/AH
|
80/400
|
|
Weight including
battery
|
KG
|
5150
|
|
Weight excluding
battery
|
KG
|
6400
|
|
Traction motor
|
KW
|
19.5
|
|
Lifting motor
|
KW
|
15
|
|
Min net working
aisle width
|
MM
|
1800
|
|
Transfer aisle
width
|
MM
|
2700
|
