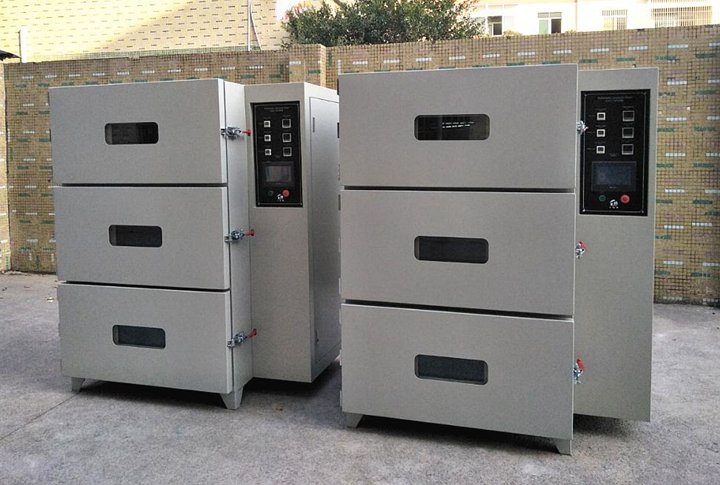

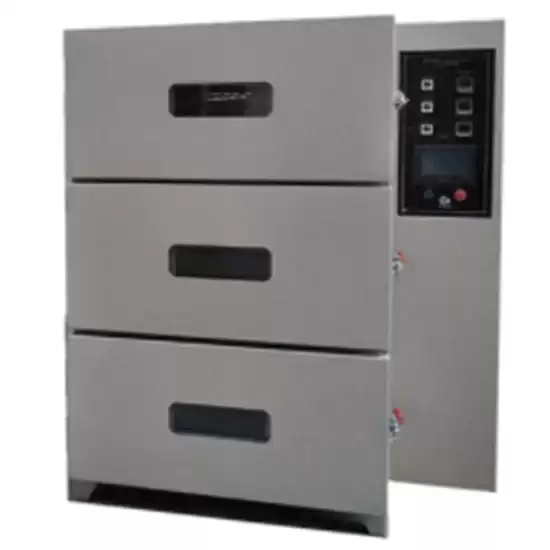

150C 450L Three-Layer Programmable Vacuum Drying Oven



This product is suitable for the vacuum baking process of various materials. It adopts industry-leading uniform temperature technology with temperature fluctuation of +2℃, vacuum chamber-0.098 Mpa can be maintained for more than 24 hours, and multiple quality and safety protection are ideal equipment to ensure drying effect.


Function Features
1.AISET three-position PID temperature controller is selected for temperature control, which has high temperature control resolution.
2.Temperature probe is made of Taiwan Hualing and placed in the back of the vacuum chamber to reflect the working temperature quickly and truly.
3.Triple over-temperature protection device automatically disconnects heating when exceeding the set temperature to ensure the safety of materials and equipment.
4.Equipped with timed shutdown function, timed after constant temperature, automatic shutdown at the end of baking time, each layer can be independently timed.
5.Air blowers of all layers can be opened independently, and can be used as cooling blowers when stopping heating.

6.Select high-quality SUS stainless steel seamless electric heat pipe, which can raise temperature rapidly and save energy and durable.


Structural Characteristics

1.The vacuum chamber is heated by surrounding hot air, and the design of circulating duct is innovated to ensure high precision and uniform temperature in the chamber.

2.The material of inner chamber is T3.9mm high quality SUS stainless steel, which can resist corrosion of battery slurry and electrolyte.

3.Multilayer insulation material constitutes a sealed insulation layer to prevent heat loss and effectively solve the problem of temperature crossing in adjacent warehouse and heat generation on the outer wall.

4.The door is a double-layer tempered glass structure with over-pressure protection function. When the air pressure in the chamber is too high, it can automatically deflate, so that the air pressure in the chamber can be restored to the allowable range.

5.The vacuum chamber and the door are equipped with silica gel sealing rings. The inside of the chamber -

0.098Mpa state can be maintained for more than 24 hours.


Main Specifications

Volume

450L total,150L for each layer

Time settable range

1~999hours

Touch Screen

7.0 inch color touch screen

PLC

Programmable Controller

Temperature Controller

Shanghai Yatai Brand PID Temperature Controller

Vacuum Meter

Matsushita (Japan) Digital Display Vacuum Meter

Operating Interface

Color touch screen + PID thermostat + digital vacuum meter; automatic ventilation, constant temperature, cooling and other actions can be settled

Chamber Size

300 mm(H)*800mm(W)*600mm(L) each layer

Power

3KW (Peak Power) each layer

Power Supply

Three-phase 380V

Matching Gas Source

Vacuum-0.095-0.1Mpa Compressed air0.40.5Mpa Dry air0.10.2Mpa

Working Temperature

RT150

Temperature Control Accuracy

±1

Uniformity of Temperature Distribution

Temperature difference of each place in the working chamber is ≤±2℃

Heating Rate

It takes about 28 minutes from room temperature (25) to rise to 80

Heating Mode

Electric heating, surrounded hot air circulation, each layer is independent

Over-temperature Protection

Each layer is equipped with double mechanical over-temperature protection to measure temperature independently.

Alarm Mode

Alarm light + buzzer on

Chamber Vacuum Degree

0 ~ - 0.098 Mpa, the vacuum degree maintained above 96% after 24 hours of holding pressure.

Pressure Transition Velocity

less than 1 minute

Chamber Material

SUS Stainless Steel Plate

Machine Shell Material

Made of SECC steel plate with plastic spraying on the surface.

Overall Size

1810mm(H)*1470mm(W)*1060mm(L)

Weight

800KG
