E1B35(53)03-3(5) SC20

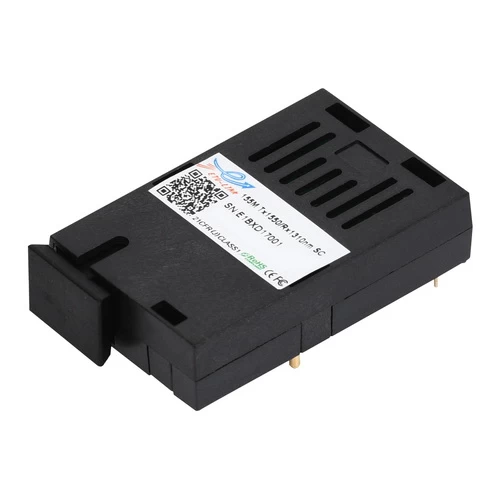

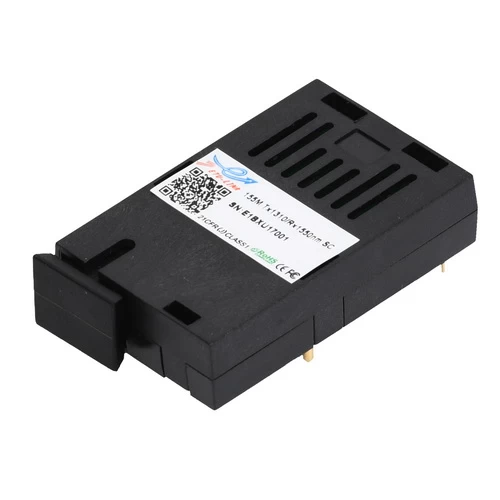

155M 1X9 SC Bi-Directional Transceiver, 20KM Reach
Tx1310nm/Rx1550nm (Tx1550/Rx1310nm)
Features
Ø SC/FC/ST Single Fiber Transceiver
Ø Industry Standard 1x9 Footprint
Ø Multi-rate of 1M~155Mbps operation
Ø Single 3.3/5V Power Supply
Ø Uncooled 1310nm FP/ 1550nm FP laser transmitter
Ø LVTTL/TTL Signal Detection Output
Ø Wave Solderable and Aqueous Washable
Ø Class 1 laser safety certified
Ø ROHS Compliant
Applications
Ø SONET/SDH/PDH Equipment Interconnect
Absolute Maximum Ratings
|
Parameter
|
Symbol
|
Min.
|
Max.
|
Units
|
Note
|
Storage Temperature
|
Ts
|
-40
|
85
|
℃
|
|
Power Supply Voltage
|
Vcc
|
0
|
4.5
|
V
|
E1B35 (53) 03-3SC20
|
0
|
6
|
V
|
E1B35 (53) 03-5SC20
|
Soldering Temperature
|
|
|
260
|
℃
|
10 seconds on leads only
|
Input Voltage
|
Vin
|
GND
|
Vcc
|
V
|
|
Output Current
|
Iout
|
0
|
30
|
mA
|
|
