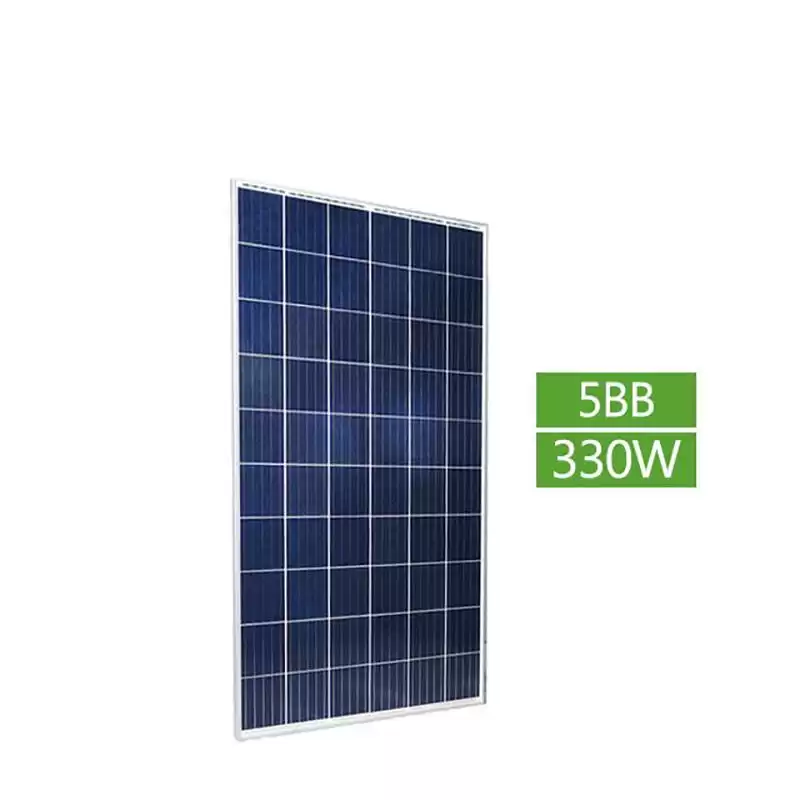

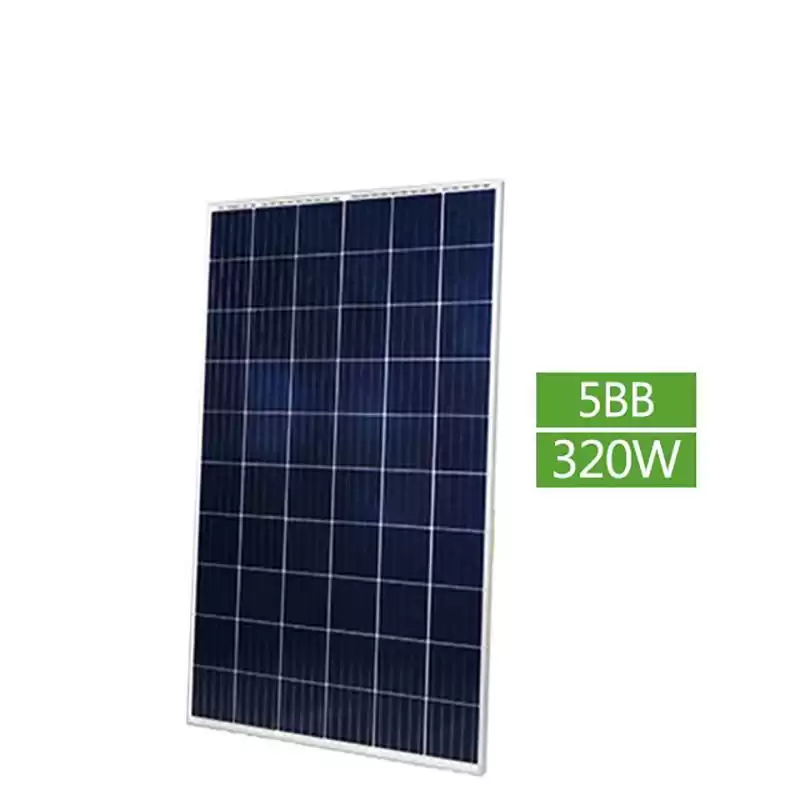

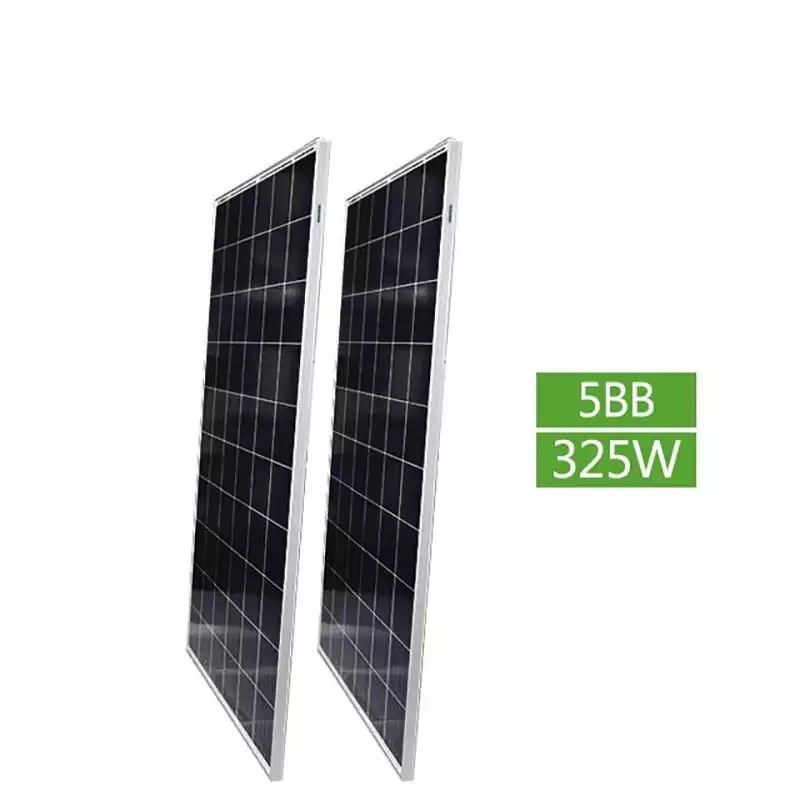

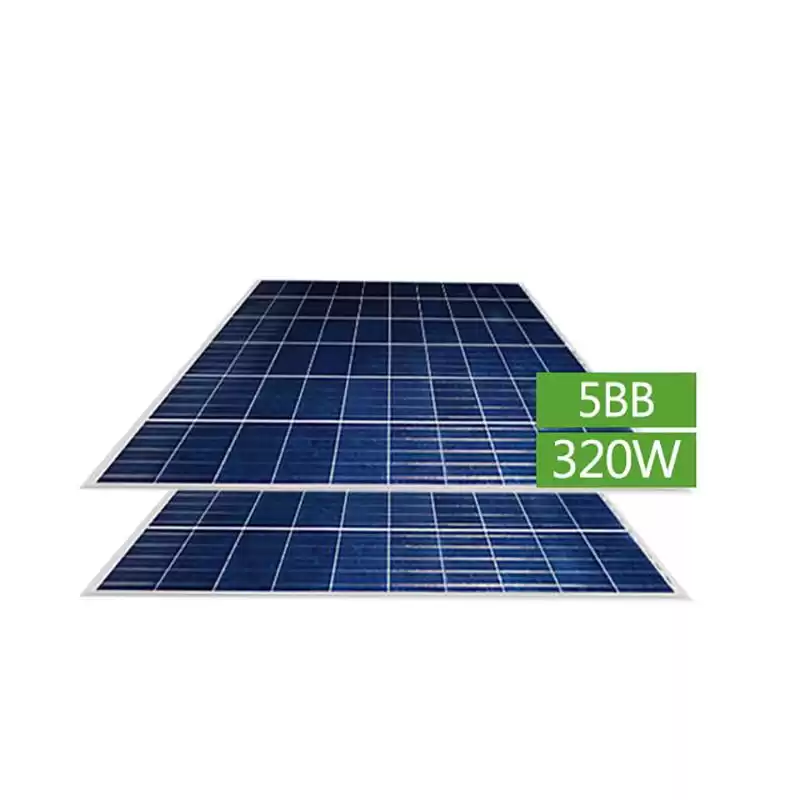

156*156mm Poly-Crystalline Solar Panel

High efficiency, high quality, save your energy, environmental Poly-crystalline solar panels. 30 PCS Polycrystalline Solar panel in one pallet.


  • Warranty25 years
  • CertificateTUV、SGS、CE、IEC、CQC

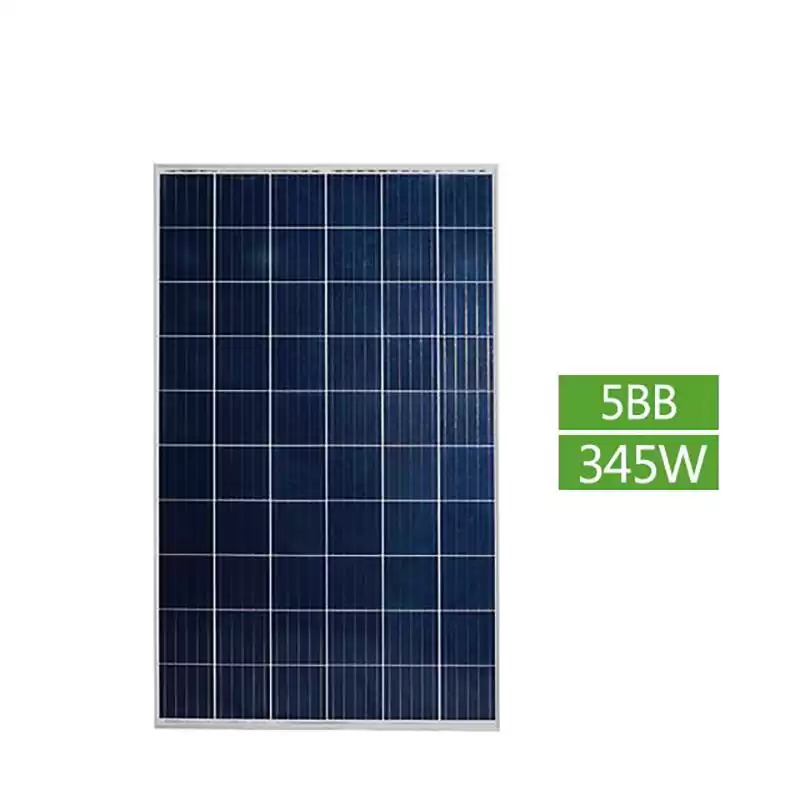

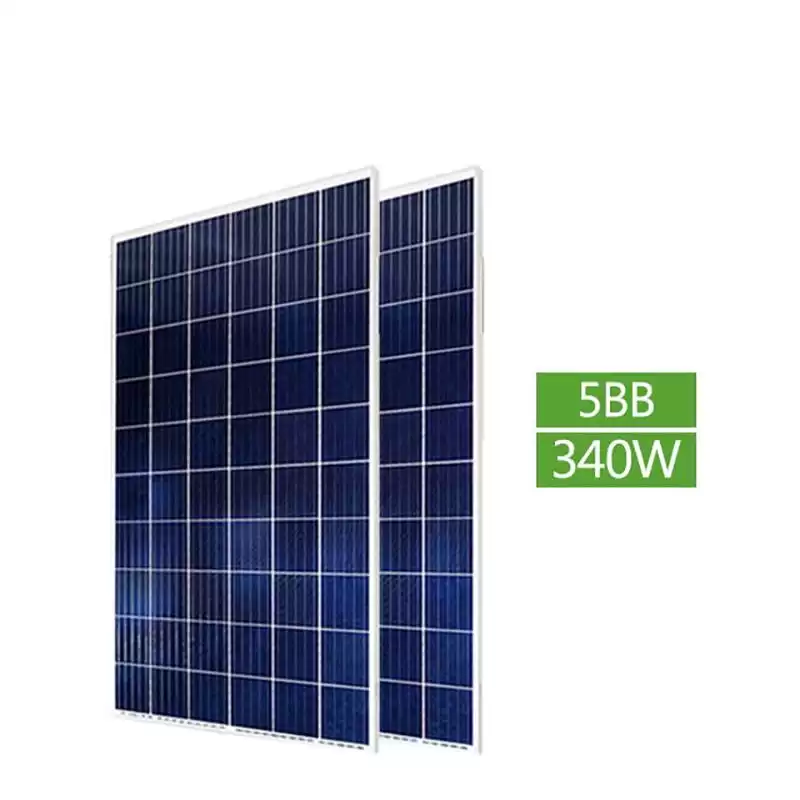

320W-345W 72Cell Poly Solar Panel design solution


Product Description




Module Number SKT320P6-24
SKT325P6-24
SKT330P6-24
SKT335P6-24 SKT340P6-24
SKT345P6-24
Testing Condition
STC STC STC STC STC STC
Maximum Power (Pmax/W)
320 325 330 335 340 345
Open Circuit Voltage (Voc/V)
45.7 46.1 46.3 46.5 46.6 46.8
Short Circuit Current (Isc/A)
9.24 9.34 9.45 9.55 9.64 9.73
Voltage at Maximum Power (Vmp/V)
37.5 37.6 37.7 37.9 38.1 38.3
Current at Maximum Power (Imp/A)
8.53 8.64 8.75 8.86 8.92 9.02
Module Efficiency(%)
16.5 16.7 17.0 17.3 17.5 17.7
STC (Standard Testing Conditions): Irradiance 1000W/m2, Cell Temperature 25 ℃, Spectra at AM1.5



Product Details




High Efficiency ,Extreme Weather Resilience.

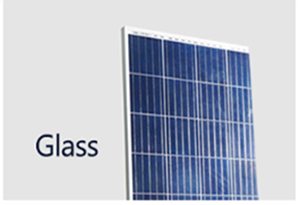

 Anti-relective glass.

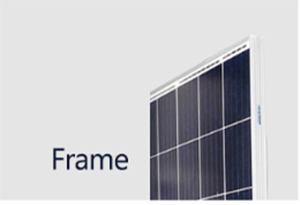

Conventional frame.

  Good heat dissipation function.





Production






1. Fully automatic single string machine
2. Fully automatic typesetting
3. interconnected & Automatic laying
4. EL before lamination & appearance

5. Laminate

6. Fully automatic edge cutting

7. Visual inspection after lamination

8. Fully automatic glue assem

9. automatic glue fillinge

10. fully automatic curing

11. Fully automatic frustration

12. Fully automatic insulation withstand voltage test

13. Fully automatic IV&EL test

14. Automatic nameplate printing and pasting,automatic corner protecting packaging, automatic classification

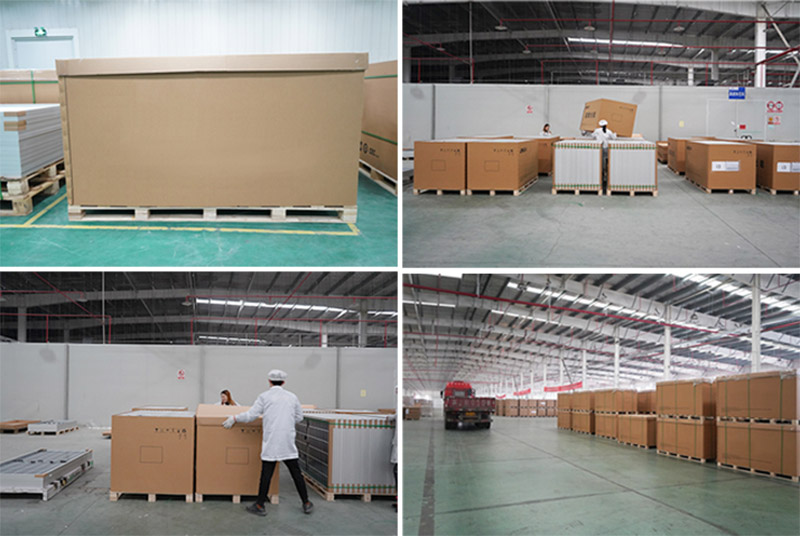

Packing & Delivery

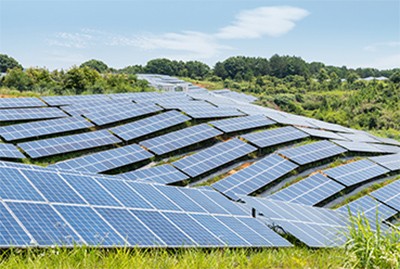

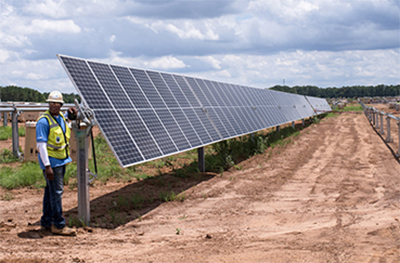

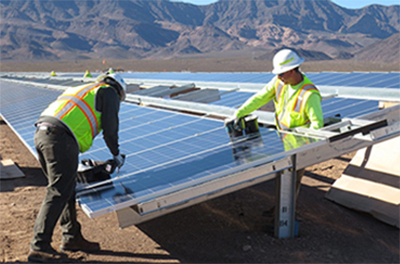

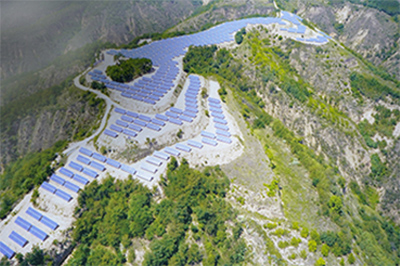

Project

North America 1.5MW

GuiZhou, China 200KW

Africa 1MW

Latin America 30KW

FAQ

Q How can we guarantee quality?
A : Always a pre-production sample before mass production;
     Always final Inspection before shipment.

Q :  Why should you buy from us not from other suppliers?

A : Greystone is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Greystone modules have been used in residential,

commercial and off-grid systems around the world.

Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
     Accepted Payment Currency : USD ,EUR ,CNY.
     Accepted Payment Type : T/T ,L/C ,Credit Card.
