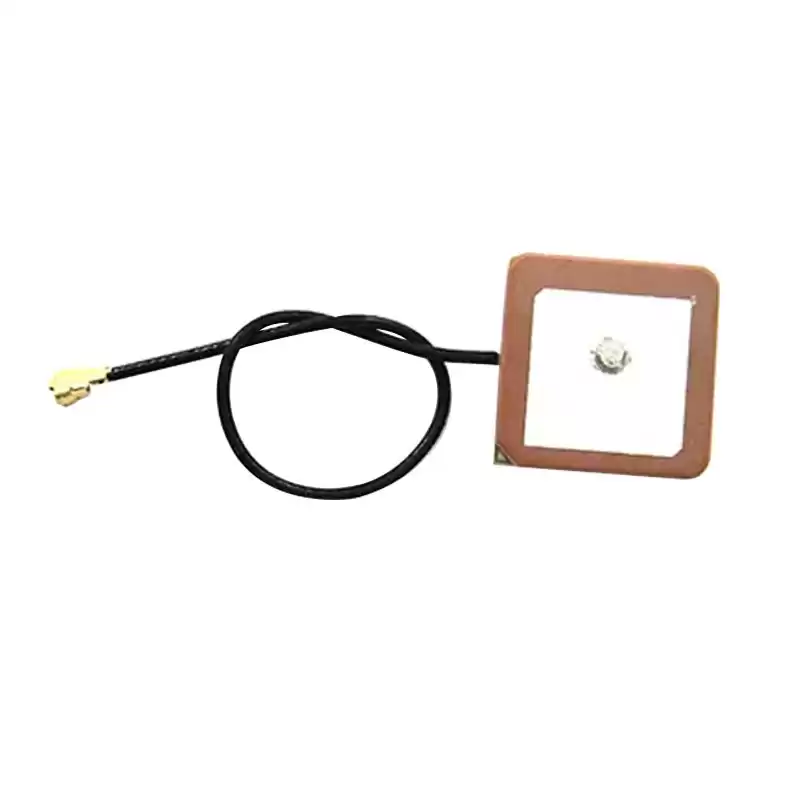

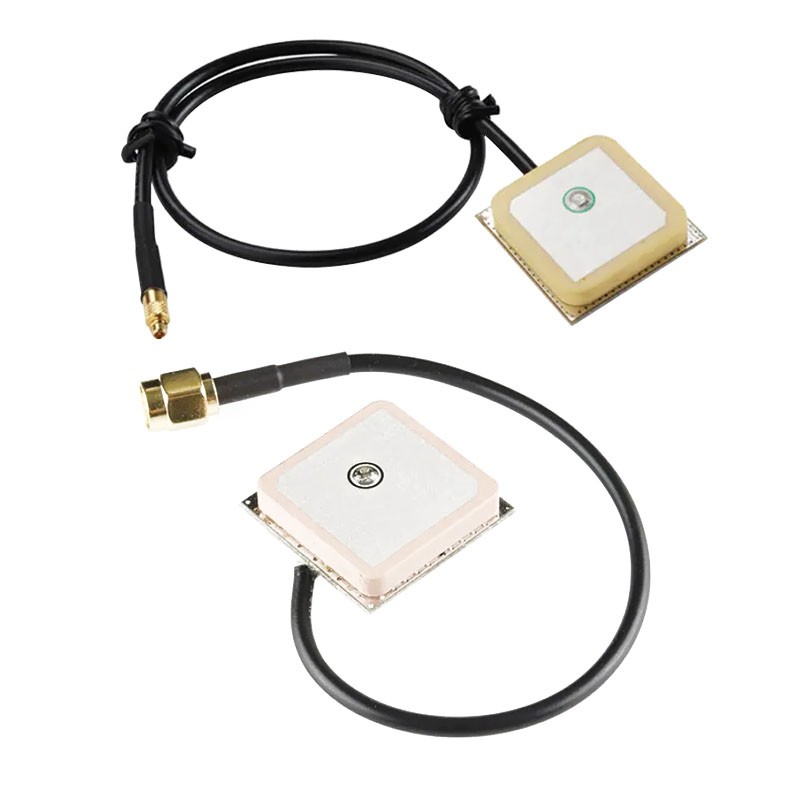

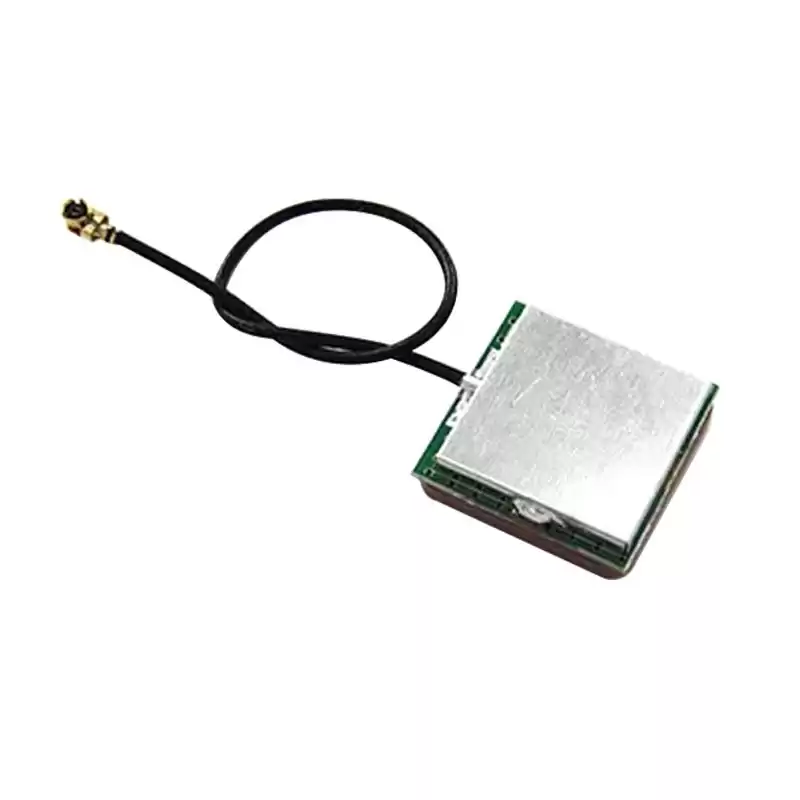

1575.42MHz GPS Ceramic Patch Antenna 15x15mm Length Customized GPS Active Antenna with IPEX MCX SMA Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



1575.42MHz GPS Ceramic Patch Antenna 15x15mm Length Customized GPS Active Antenna with IPEX MCX SMA Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
GPS Frequency Range(MHz)  1575.42MHz
VSWR  ≤1.5
Gain(dBi)   28±3
Input Impedance(Ω)  50
Cable Type 1.13mm/RG178/Customizable
Connector Type  IPEX/MHF/UFL/MCX/SMA
Mounting  /
Housing /
Storage Temperature  -45'c to +75'c
Operating Temperature  -45'c  to+75'c



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags Active Internal GPS Antenna          ceramic gps antenna          GPS Ceramic Active Antenna          Active GPS Ceramic Antenna          Internal GPS Antenna          GPS Active Antenna
