Product Description

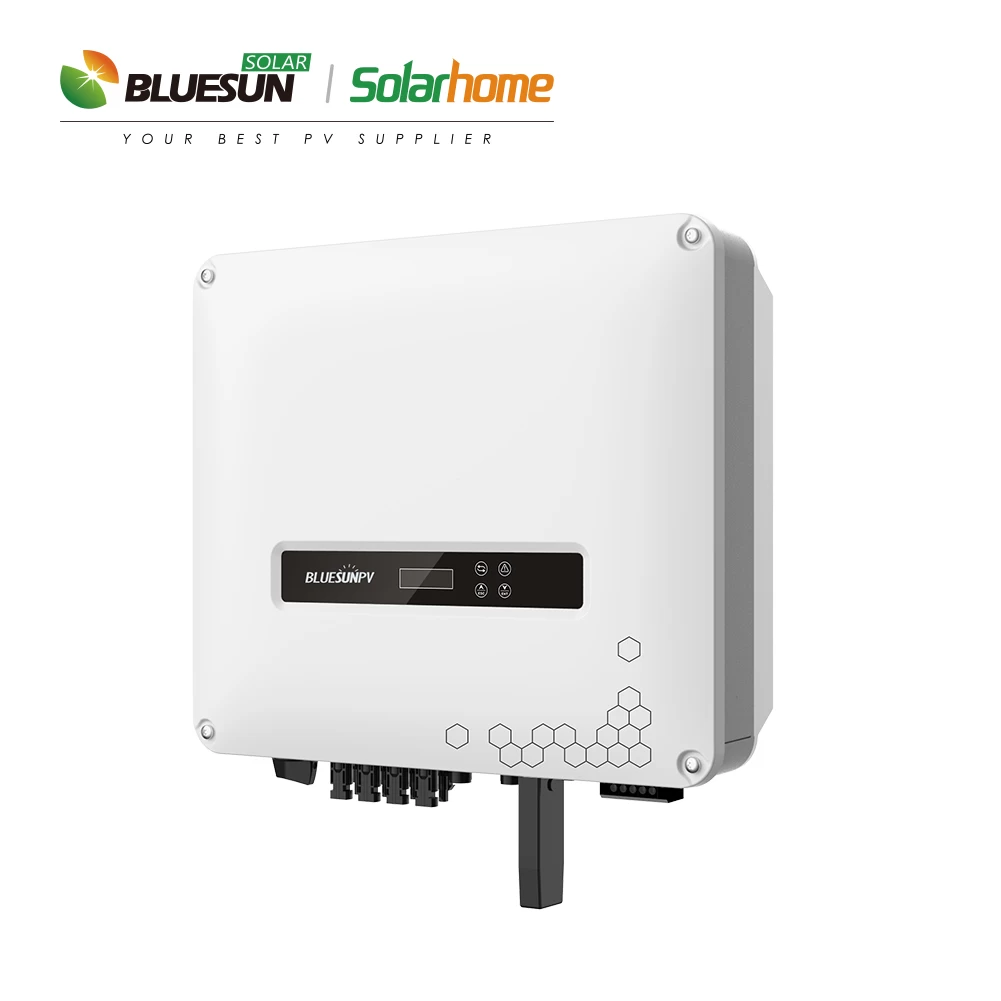

Recommended product: BSMBSM12K/15K/17K/20K-B This type of inverter is well protected and suitable for outdoor use and is easy to install.
Smart On Grid Inverter

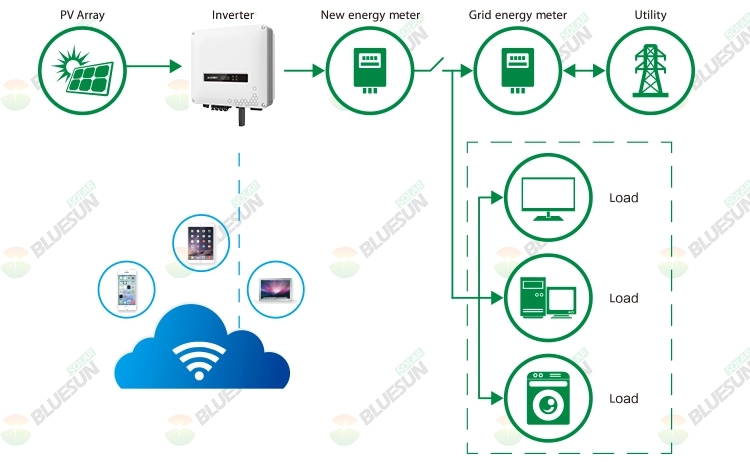

Solar Inverter Diagrams
Technical Parameters
|
Items
|
BSM12K-B
|
BSM15K-B
|
BSM17K-B
|
BSM20K-B
|
|
DC Input
|
|
Max. PV input voltage
|
1000Vdc
|
|
Rated PV voltage
|
600Vdc
|
|
Max. PV input current
|
44A(4×11A)
|
|
No. of MPPTs
|
2
|
|
No.of PV strings per MPPT
|
2月2日
|
|
MPPT voltage range
|
200Vdc ~950Vdc
|
|
Starting voltage
|
200Vdc
|
|
AC Output
|
|
Rated AC output power
|
12kW
|
15kW
|
17kW
|
20kW
|
|
Max. output power
|
13.2kVA
|
16.5kVA
|
18.7kVA
|
22kVA
|
|
Rated AC output voltage
|
380/400/415Vac
|
|
Rated output current
|
17.4A
|
21.7A
|
24.6A
|
29.0A
|
|
Max. output current
|
19.1A
|
23.9A
|
27.1A
|
31.9A
|
|
Rated grid frequency
|
50/60Hz
|
|
Grid frequency range
|
45~55Hz/55~65Hz
|
|
Power factor
|
>0.99 full load
|
|
Adjustable power factor
|
0.8 (leading) ~ 0.8 (lagging)
|
|
THDi
|
<3% (rated power)
|
|
Efficiency
|
|
Max. efficiency
|
98.50%
|
98.60%
|
|
European efficiency
|
98.00%
|
98.30%
|
|
General
|
|
Dimensions (W×H×D)
|
480×420×180mm
|
|
Weight
|
25kg
|
|
IP grade
|
IP65
|
|
Noise level
|
≤25 dB
|
|
Self-consumption at night
|
<1W
|
|
Cooling type
|
Intelligent forced air cooling
|
|
Altitude
|
4000m (>3000m derating )
|
|
Operating temperature
|
-25ºC~+60ºC(>45ºC derating)
|
|
Relative humidity
|
0~95% (Non-condensation)
|
|
Display
|
LCD+LED
|
|
Communication
|
RS485/WiFi/GPRS/DRM(Australia)
|
|
DC terminal
|
MC4 Terminal
|
|
AC terminal
|
OT Terminal
|
|
Installation method
|
Wall-mounted
|
|
Standard
|
EN62109-1, EN62109-2 NB/T32004, AS3100, AS4777, EN 61000-6-2, EN 61000-6-3, IEC 62116,IEC 61727,IEC 60068-2-1,IEC 60068-2-2,IEC
|
|
60068-2-14,IEC 60068-2-30
|

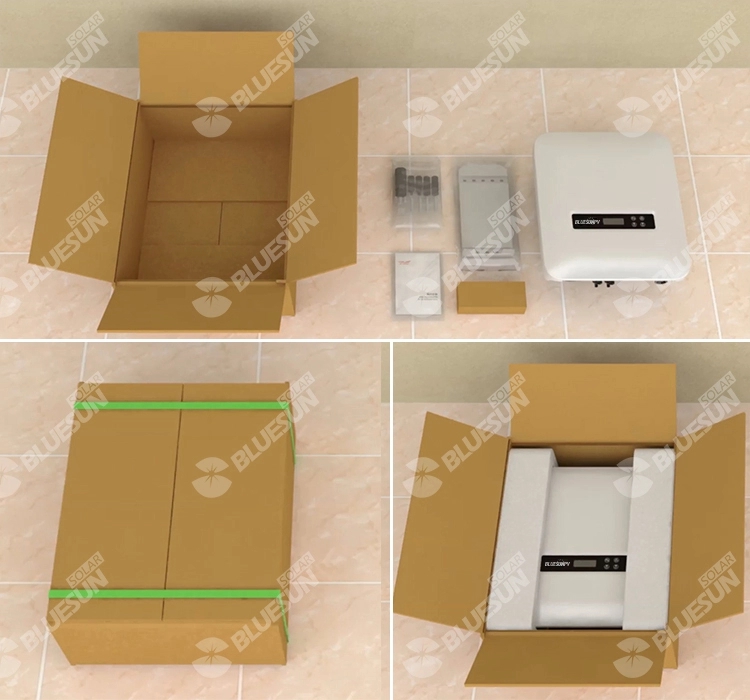

Packing&Projects
