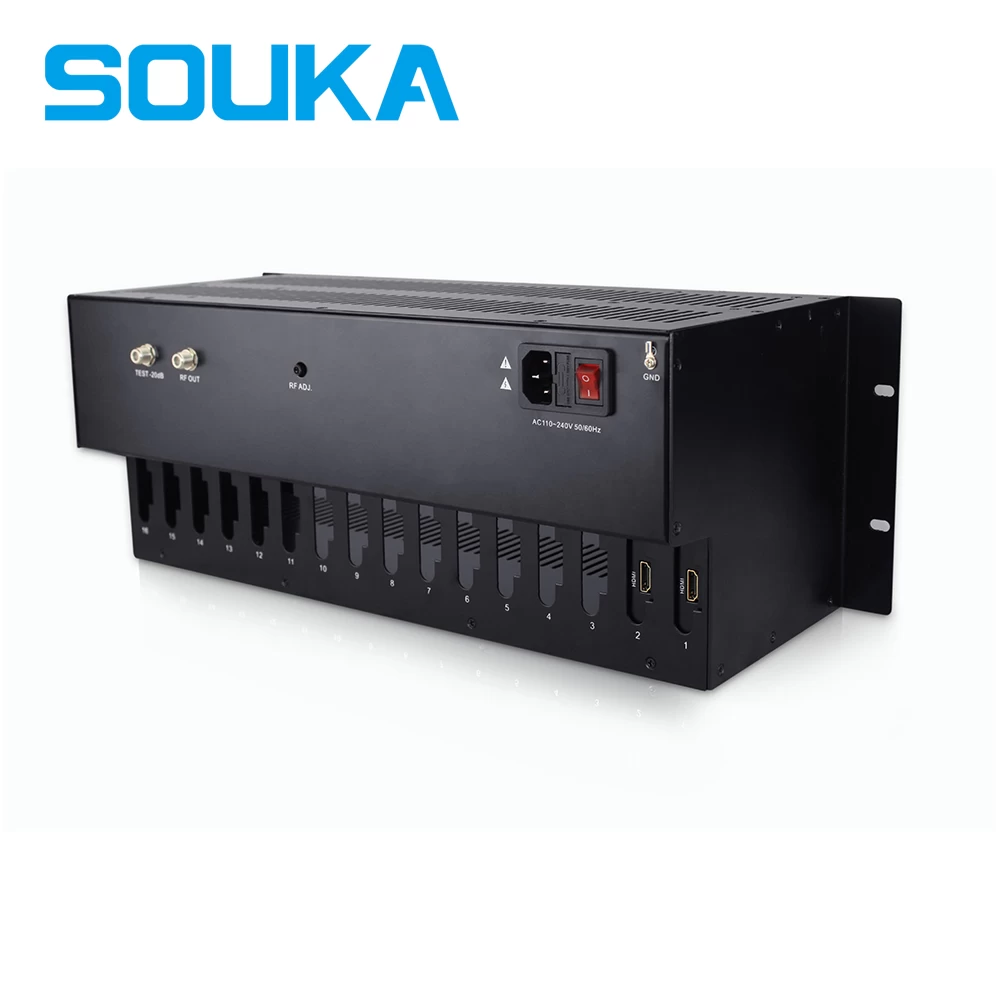

The SKD2700M is a 4RU pre-installed headend system which is perfectly set in factory. It consists of 16 pieces modulator cards and a base unit with power supply and active combiner. With its size and cost-saving price, it becomes the most popular digital modulator headend in HOTEL CABLE TV SYSTEM.
1. Support MPEG 2 video encoding and MPEG-1 Layer II audio encoding
2. Support 16 HD signal input and output in 1 RF combined signal
3. Output frequency up to 1000MHz
4. No need combiner cabling
5. Output resolution 1080P @30FPS
|
ENCODING
|
|
Input Connector
|
HD 1.4
|
|
VIDEO
|
Encoding
|
MPEG 2
|
|
Input Resolution
|
1920*1080_60P;
1920*1080_50P; 1920*1080_60i;
|
|
1920*1080_50i; 1280*720_60P;
1280*720_50P
|
|
Bitrate
|
2 ~ 18 Mbps
|
|
AUDIO
|
Encoding
|
MPEG 1 Layer II
|
|
Sample Rate
|
48KHz
|
|
Bitrate
|
384kbps
|
|
MODULATION
|
|
ATSC
|
Standard
|
ATSC A/53 (6M)
|
|
Constellation
|
8VSB
|
|
MER
|
≥ 32 dB
|
|
DVB-C J.83A
|
Standard
|
Annex A (8M)
|
|
Constellation
|
16QAM, 32QAM, 64QAM, 128QAM,
256QAM
|
|
MER
|
≥ 36 dB
|
|
Symbol Rate
|
3 ~ 6.952 Ms/s
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
DVB-C J.83B
|
Standard
|
Annex B (6M)
|
|
Constellation
|
64QAM, 256QAM
|
|
MER
|
≥ 36 dB
|
|
DVB-T
|
Standard
|
DVB-T COFDM
|
|
Bandwidth
|
6M, 7M, 8M
|
|
Constellation
|
4QAM, 16QAM, 64QAM
|
|
MER
|
≥ 32 dB
|
|
Transmission Mode
|
2K, 4K, 8K
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
DTMB
|
Standard
|
GB20600-2006 (8M)
|
|
Constellation
|
4QAM, 16QAM, 32QAM, 64QAM
|
|
MER
|
≥ 32 dB
|
|
Interleaving Mode
|
INTLV_NONE, INTLV_240,
INTLV_720
|
|
Rate Code
|
0.4, 0.6, 0.8
|
|
Carrier Type
|
Multi-carrier ,
Single-carrier
|
|
Sync Frame
|
420, 595, 945,
|
|
PN Phase
|
Variable, Constant
|
|
ISDB-T
|
Standard
|
ARIB STB-B31 (6M)
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
MER
|
≥ 42 dB
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
Transmission Mode
|
2K, 4K, 8K
|
|
Interleave
|
0, 1, 2, 3
|
|
OUTPUT
|
|
RF
|
Output Level
|
≥ 30dBmV
|
|
Output Frequency Range
|
50 ~ 999.999MHz
|
|
Out-band Rejection
|
≥ 60dB
|
|
SYSTEM
|
|
Management
|
Control Keys; NMS; APP
|
LCN Insertion
|
YES
|
|
Language
|
English
|
Upgrade
|
NMS
|
|
GENERAL
|
|
Power Supply
|
AC 90 ~ 240 V
|
Power Consumption
|
|
|
|
|
|
|
|
ORDER INFO
|
Standard Model
|
ATSC/J.83B
|
J.83A
|
DVB-T
|
DTMB
|
ISDB-T
|
|
SKD2711
|
|
●
|
|
|
|
|
SKD2712
|
|
|
|
●
|
|
|
SKD2713
|
|
|
●
|
|
|
|
SKD2715
|
|
|
|
|
●
|
|
SKD2718
|
●
|
|
|
|
|
