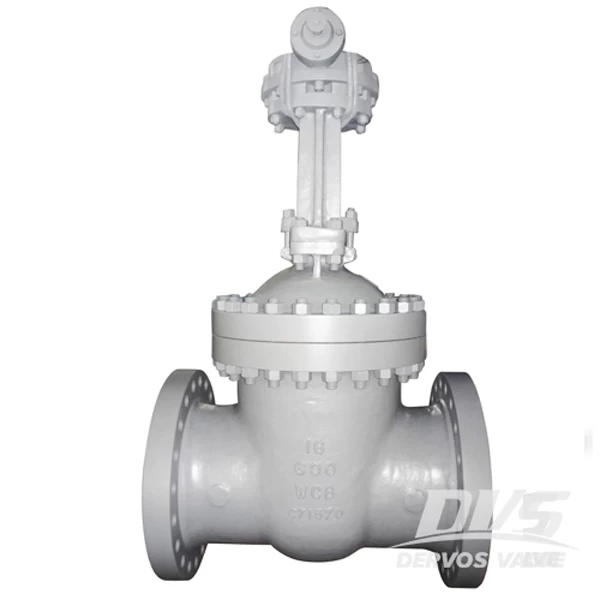

16 Inch Flanged Gate Valve WCB Rising Stem API 600


  • MaterialCast Steel Gate Valve, Carbon Steel Gate Valve
  • Method of OperationGear Operated Gate Valve

The 16 inch cast steel gate valve with gearbox and 600LB RF flange is designed as per API 600. The bolted bonnet gate valve features in rising stem, resilient wedge and metal seat.

Quick Detail

Type

Gate Valve

Size

16"

Pressure

Class600

Construction

Bolted Bonnet, Rising Stem, OS&Y, Flexible Wedge, Metal Seat

Connection

RF Flange

Operation

Gearbox

Design Code

API 600

Face to Face

ASME B16.10

Flange End

ASME B16.5

Pressure & Temp

ASME B16.34

Test & Inspection

API 598

Body Material

A216 WCB

TrimMaterial

Trim 5

Temperature Range

-29℃~+425℃

Medium

Water, Oil and Gas

Origin

China


Dimension & Material

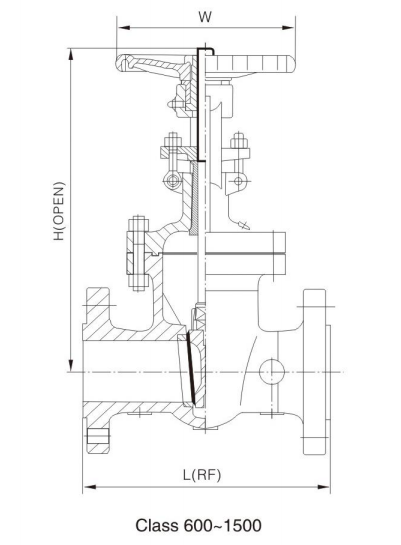

Fanged Gate Valve Dimensions


Class 600
NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
DN mm 50 65 80 100 150 200 250 300 350 400 450 500 600
L-L1
(RF-BW)
in 11.5 13 14 17 22 26 31 33 35 39 43 47 55
mm 292 330 356 432 559 660 787 838 889 991 1092 1194 1397
L2
(RTJ)
in 11.625 13.125 14.125 17.125 22.125 26.125 31.125 33.125 35.125 39.125 43.125 47.25 55.375
mm 295 333 359 435 562 664 791 841 892 994 1095 1200 1407
H
(OPEN)
in 18.625 21.75 23.375 28 1/16 38 3/16 44 3/16 52.375 59 13/16 68.125 72.25 90.125 98 13/16 119
mm 474 553 593 713 970 1122 1330 1519 1730 1835 2290 2510 3022
W in 9.875 9.875 11 13/16 13.75 19 11/16 22 1/16 28.375 24 24 24 24 30 30
mm 250 250 300 350 500 560 720 610* 610* 610* 610* 760* 760*
WT
(kg)
RF 41 58 88 131 253 413 623 784 1288 1820 2150 2540 4080
BW 35 50 68 104 208 328 496 637 1120 1448 1828 2201 3360
*Manual gear operator is recommended


No Part Name Carbon steel to ASTM Alloy steel to ASTM Stainless steel to ASTM
WCB LCB WC6 WC9  C5 CF8 CF8M CF3 CF3M
1 Body A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
2 Seat Ring A105 A350 LF2 A182 F11 A182 F22 A182 F5 A182 F304 A182 F316 A182 F304L A182 F316L
3 Wedge A216 WCB A350 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
4 Stem A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L
5 Bonnet nut A194 2H A194 4 A194 7 A194 8
6 Bonnet bolt A193 B7 A320 L7 A193 B16 A193 B8
7 Gasket SS Spiral Wound graphite or SS Spiral Wound PTFE
8 Bonnet A216 WCB A352 LCB A217 WC6 A217 WC9 A217 C5 A351 CF8 A351 CF8M A351 CF3 A351 CF3M
9 Backseat bushing A182 F6 A182 F6 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L
10 Stem packing Graphite or PTFE
11 Lantern A182 F6 A182 F6 A182 F304 A182 F304 A182 F304 A182 F304 A182 F316 A182 F304L A182 F316L
12 Gland Nut A194 2H A194 8
13 Gland Eyebolt A193 B7 A193 B8
14 PIN Carbon steel or Stainless Steel
15 Gland A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
16 Gland Flange A216 WCB A351 CF8
17 Stem Nut A439 D2 or B148-952A
18 Nipple Carbon steel or Stainless Steel
19 Retaining Nut Carbon steel
20 Hand Wheel Ductile Iron or carbon steel
21 Name Plate Stainless steel or Aluminum
22 H.W.Lock Nut

Carbon steel
