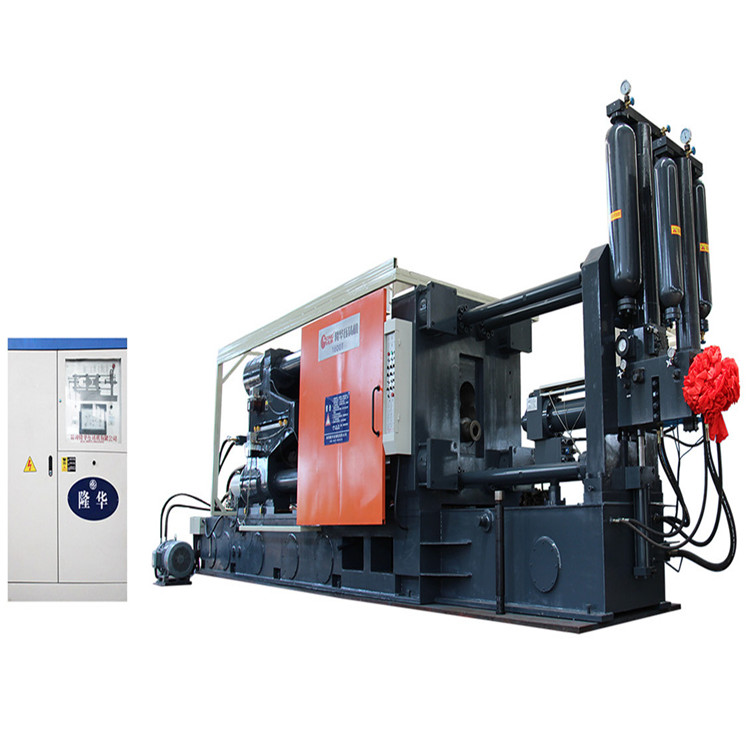

1600T Automatic intelligent die casting machine for making aluminium shells

Die-casting products are also known as die-casting pieces. Below is the picture of our machine die-cast products, including: LED lamp shell, electric housing, radiator, high voltage cable card, door handle, art knife case and so on.



1600T Automatic intelligent die casting machine for making aluminium shells

Automatic intelligent die casting machine for making aluminium shells




Advantages of die casting machine:

1.Adhering to the service mode of "turnkey project", we help customers from machine model selection, logistics and transportation, die casting workshop layout planning, machine installation and debugging,operator technical training through - train service.

2.Strong after-sales service guarantee, the company set up a special after-sales service center, open a 24-hour repair phone, receive the repair phone, maintenance personnel will immediately arrange personnel to repair and provide system fault solutions for customers.Technical personnel to the scene to the user operation personnel on-site interpretation when debugging and on-site operation training, make the user operation personnel has the ability of independent operation, the company after-sales service personnel to review regularly or irregularly, and supplemented by "greeting" service, ensure smooth service system at any time free of charge for users to provide professional technology, equipment supporting consulting.



                  LH series of standard parameter table (1600T)

Items

Unit

Specification

Hydraulic Working Pressure

MPa

16

Clamping Force

KN

16000

Space Between Tie Bars

mm

1250*1250

Tie Bar Diameter

mm

¢260

Die Opening Stroke

mm

1200

Injecction Force(intensify)

KN

1285

Plunger launch distance

mm

360

Injection position

mm

--175  --350

Plunger Diameter

mm

¢110----¢150

Injection Stroke

mm

930

Casting pressure (intensify)

MPa

137---73

Casting Fiange Protrusion

mm

25

Casting Fiange Diameter

mm

260

(40Mpa) Max Casting Area Under 40Mpa

CM2

4000

lnjection Weight(Al)

Kg

30.8

Die Height(Min--Max)

mm

500~1400

Ejector Force

KN

570

Ejector Steoke

mm

250

Motor Capacity

Kw

37*2

Machine Dimensions  (L*W*H)

m

11.8*4.6*4.7

Referential Machine Weight For Uplifting

T

90

Oil Tank Capacity

L

3000

WE reserve the right to make any technical improvement without further notice


Cooperative r&d unit:

Since 2006, we have established a production base of die casting machines with such institutes as Anhui Institute of Science and Technology, Chinese Academy of Sciences, Nanjing University, China University of Science and Technology and Tsinghua University to jointly develop and produce intelligent die casting machines and oilfield equipment, new energy equipment.
