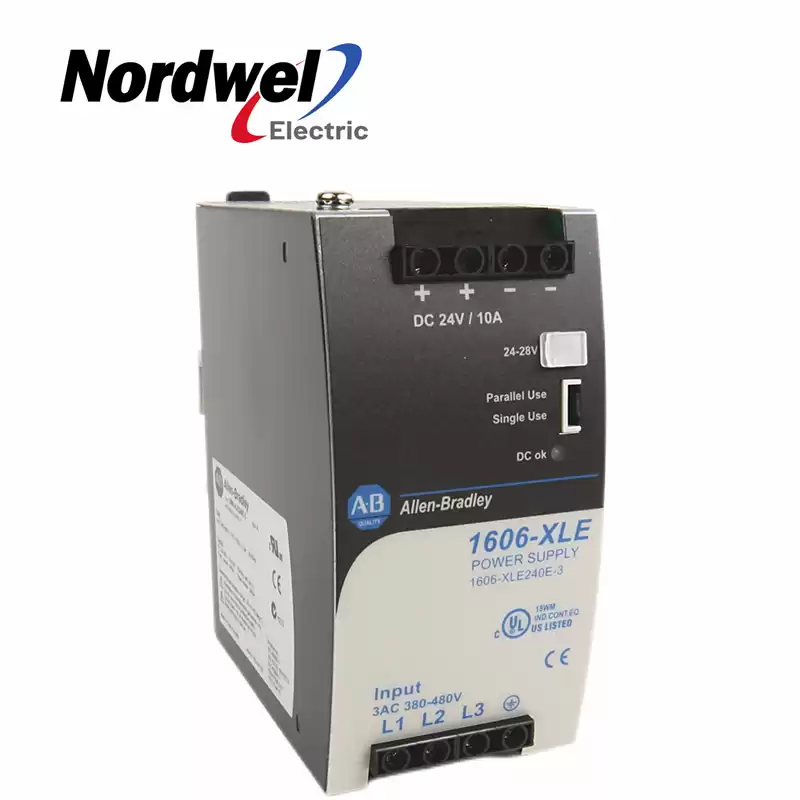

Technical Description of 1606-XLE240EE
The 1606-XLE240EE Switched Mode Power Supply operates with a 180-264V AC Input Voltage
and a 240W Output Power. It has Screw Terminals and a Compact Size.
Overview
The 1606-XLE240EE 24 Volts DC switched-mode power supply is a reliable DC power supply unit manufactured
by / Automation. It is specialized to work with AC or DC voltage rated at 200 to 240 Volts
AC or 210 to 375 Volts DC, respectively. The 1606-XLE240EE power supply is characterized by a high short-circuit
current (48 Amps) that enables the reliable initial powering of loads that have unpredictable behavior.
Technical Specifications for 1606-XLE240EE
Manufacturer Automation
Product Type Switched Mode Power Supply
Input Voltage 180-264V AC
Output Power 240W
Output Current 10A
Terminals Screw
Signal DC-OK
Output Voltage Adjustable
Size Compact
Heat Generation Minimal
