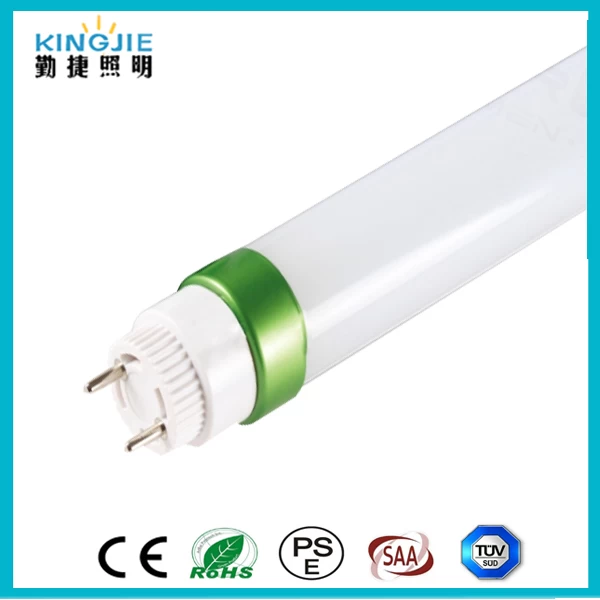

160LM/W colorful ring T8 LED Tube CE ROHS TUV

high lumen, more energy-saved, beautiful surface



1G13,G5 cap,rotatable cap and non-rotatable cap,colorful rings are available
2Constant current internal driver, safety guaranteed
3High PF value over 0.9 for decrease of electricity loss
4High quality PCB for good heat dissipation
5No flicker,no delay, Instant on/off


Model
Size (mm)
Watt
Input Voltage
SMD LED
Material
PF
CRI Cap Beam Angle Light efficiency
T8-60CM-10W
Φ26*L600
10w AC85-265V
SMD2835
6063 aviation Aluminum+ PC cover
>0.92
>80
G5, G13     140°
160LM/W or more higher
T8-120CM-18W
Φ26*L1200
18w
AC85-265V
SMD2835
6063 aviation Aluminum+ PC cover
>0.92
>80
G5, G13
140°  160LM/W or more higher
T8-150CM-25W Φ26*L1500
23w AC85-265V
SMD2835
6063 aviation Aluminum+ PC cover
>0.92
>80
G5, G13
140°
160LM/W or more higher

***Remark: other wattages,sizes,lumen are available




Warning: Switch off power supply BEFORE COMMENCING WORK!


Step1. Remove the fluorescent lamp.

Step2. Cut off all wires which connected to inductive ballast or electrical ballast.



Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to  the label on the tube.




Step 4.Switch on power.


Perfect Used for factory, office, parking, shopping mall and Hotel lighting etc
