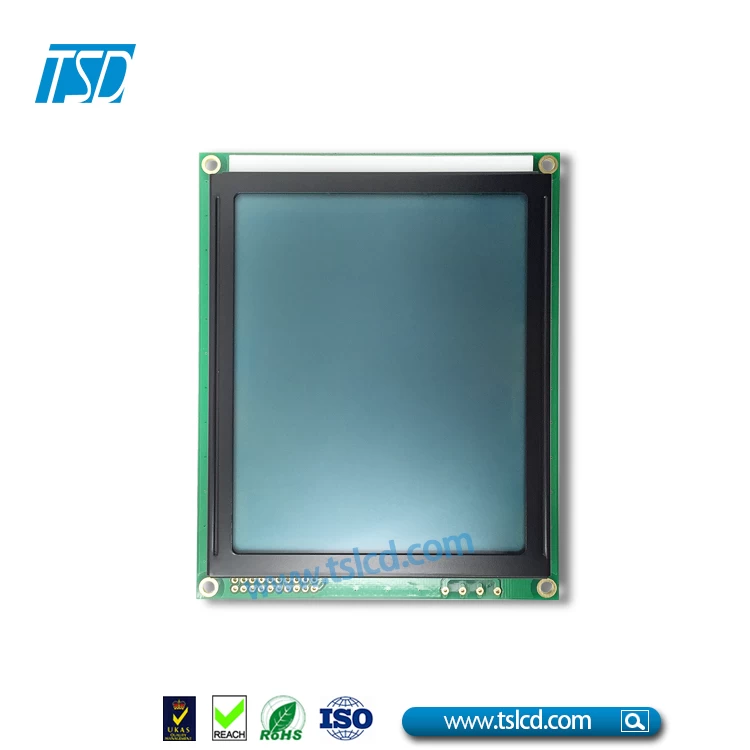

160x128 dots cob lcd module

160x128 dots graphic lcd module

COB technology

STN-YG/ STN-blue/FSTN positive

Price competitive

Item		Spec.
Display type		STN,Blue,Negative,Transmissive
Description		160x128 dots lcd
Outline(mm)		129.0x102.0x12.1max
View Area(mm)		101.0x82.0
Active Area(mm)		92.76x74.2
Dot size		0.54x0.54mm
Dot pitch		0.58x0.58mm
Controller IC		T6963C+NT7086
Viewing direction		6H
Operating temperature		-20°C-70°C
Storage temperature		-30°C-80°C
Drive Mode		1/128 DUTY, 1/12 BIAS, vop=15.0v
Backlight		White LED
Polarizer Type		Positive, Transflective
