1610 Co2 Laser Cutting Machine Dual Heads 120W Tube

Baisheng laser 1610 fabric co2 laser cutting machine dual heads 120W laser tube for cutting engraving .

Synthetic Textile Laser Cutting Machine ,Filter Cloth Laser Cutting Machine .

1600*1300mm work size ,honeycomb platform suitable for soft textile fabrics engraving cutting ,the cutting kerf is narrow ,large area and double cutting heads enable the laser works at higher efficiency.




1610 Co2 Laser Cutting Machine Dual Heads 120W Tube


Of most  large bed co2 laser cutting machine 1600*1000 cutting bed is good choice for fabric cutting .

80W 100W 120W 150W  (CO2)glass tube Laser power.
1600 x 1000 mm work area.
Baisheng laser unique Design, Cost-effective China Manufactured laser machine.

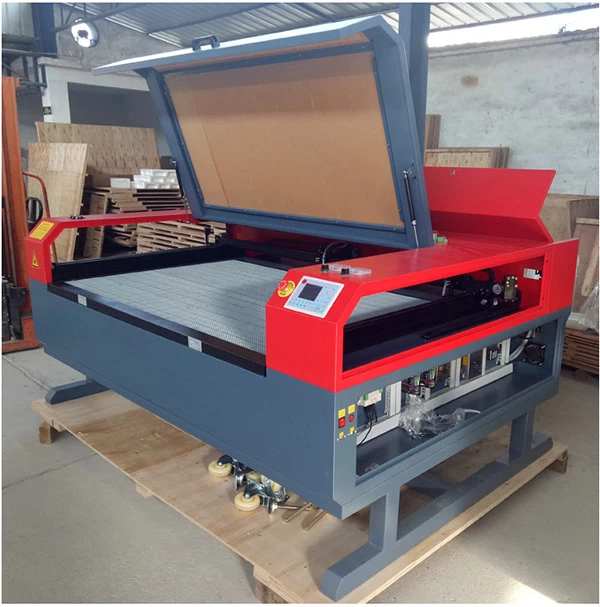

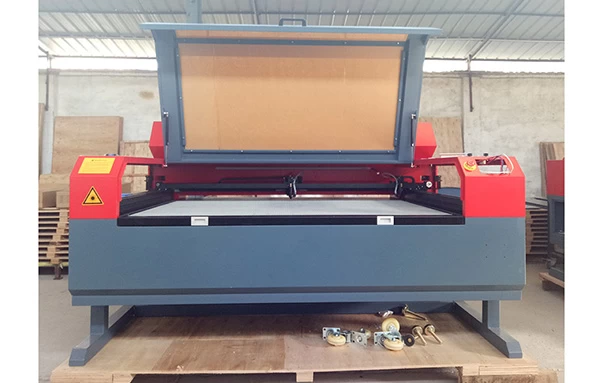

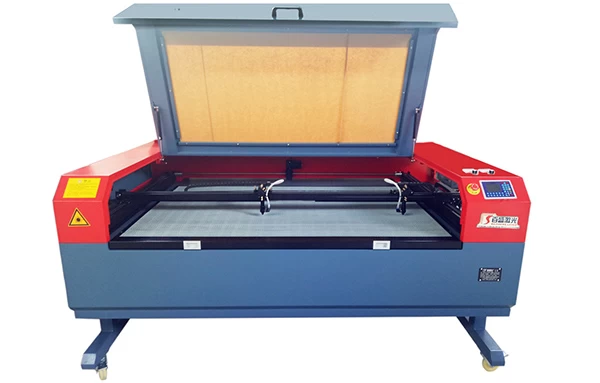

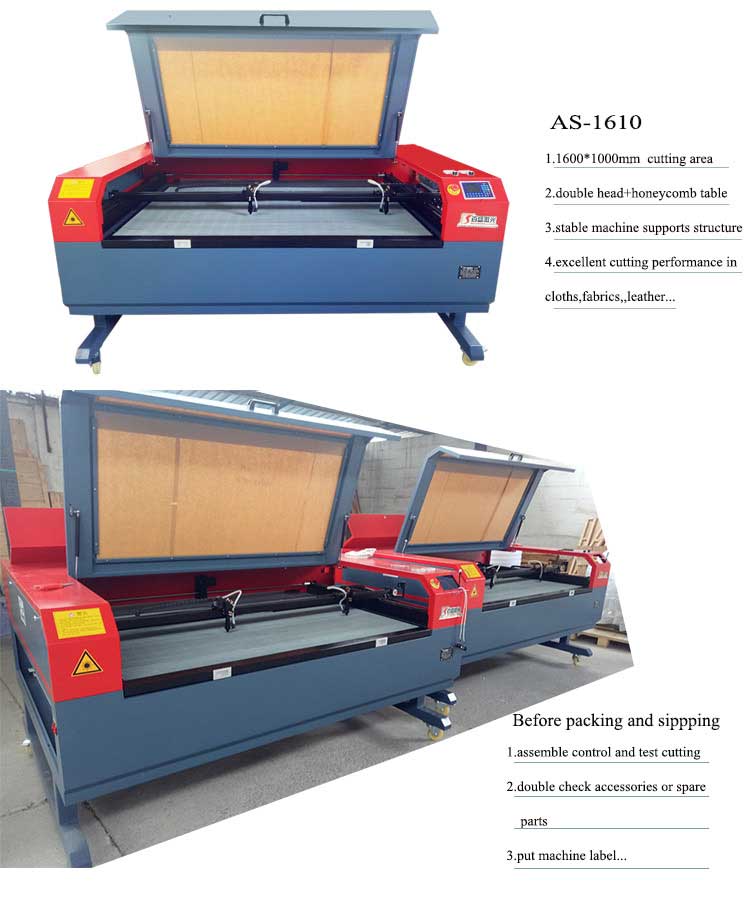

The floor-standing AS-1610C is a larger sized, dual laser tubes,powerful, versatile laser cutting-engraving machine - ideal for those who need a good sized work area for both engraving and cutting, with higher power for faster processing.

such cnc laser engraver is a popular laser machine for many types of industry and higher education.






1610 Co2 Laser Cutting Machine Technical Parameters

Model Name

AS-1610

Origin

China

Machine Type

Laser cutting and Laser engraving machine.

Control Interface

Ruida or Topwisdom

Memory

32 M flash memory in the machine for job storage.

Work Size

1600 x 1000 mm

Up / Down Work Table (Bed)

250 mm mechanically adjustable.(option)

Laser Tube Type

CO2 sealed glass tube

Tube brands

CDWG .Yongli.Reci co2 laser tube

Available Laser Power

80W / 100W /120W/150W CO2.

.water chiller

S&A China

Speed Range

0.1 mm/sec to 800 mm/sec.

Software Resolution

20,000 DPI.

Electronic Precision

< 0.01 mm.

Angle Accuracy

> 0.1º

Repeatability

> 0.1 mm.

Software version

Latest

Accepted File Formats

HPGL, BMP, DXF, AI, G-Code.

Interface

USB2

Motors

X and Y micro stepper motor China Leadshine



The AS-1610 comes with:

  • 80W / 100W / 120W /150W dual (CO2) laser tubes.

  • A minimum of 12 months warranty: laser machine and tubes 8 months.

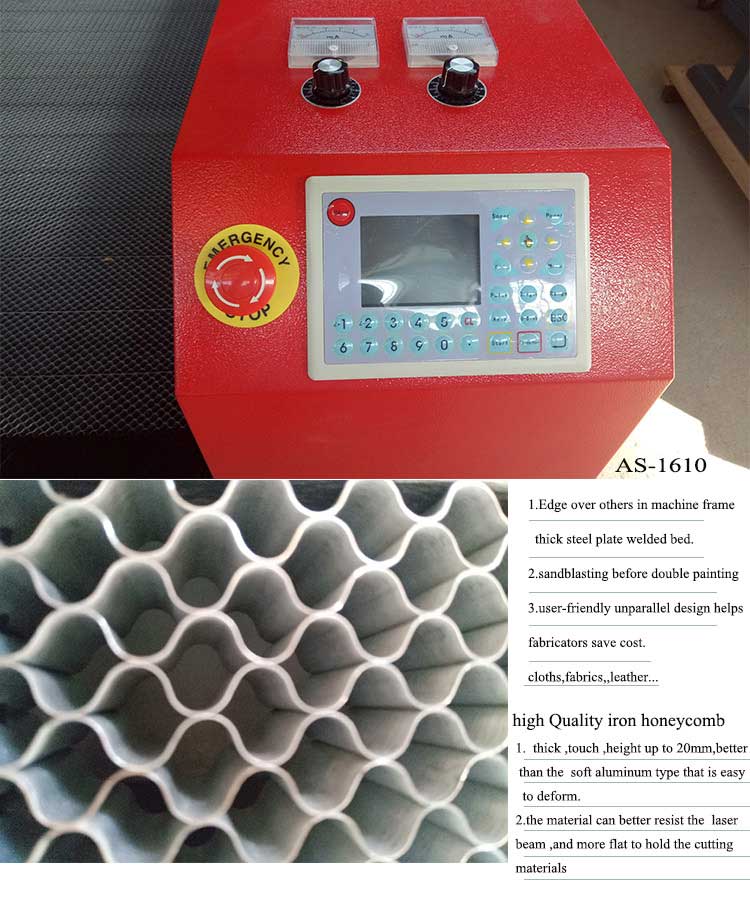

  • Knife-edge bar bed or honeycomb table.

  • Optical path red dot pointer.

  • Air assist pump.

  • water chiller

  • Laser design software.

  • memory stick operaton manual for installation.

  • on-line guide.


Baisheng co2 laser features or advantages:

1.since 2004,long years experience in producing high quality lasers ,widely used in job shops.

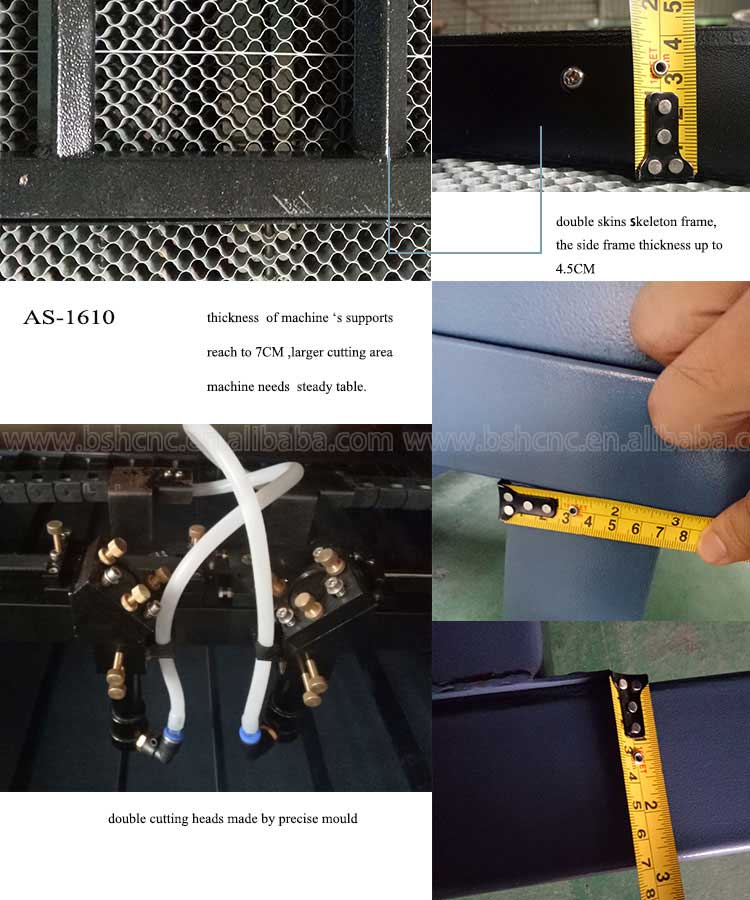

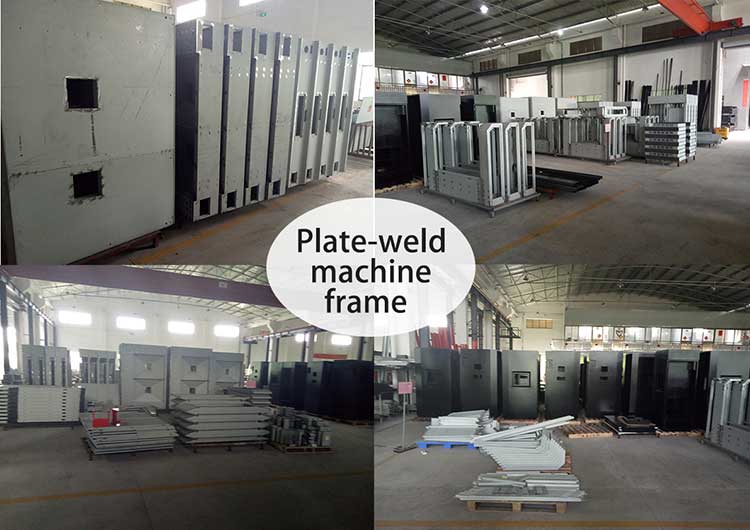

2.better machine bed.thick sheet steel welded bed,industrial grade.

3.better laser parts .

4.ready stock spare parts.and good after-sale service. world-wide agencies.
