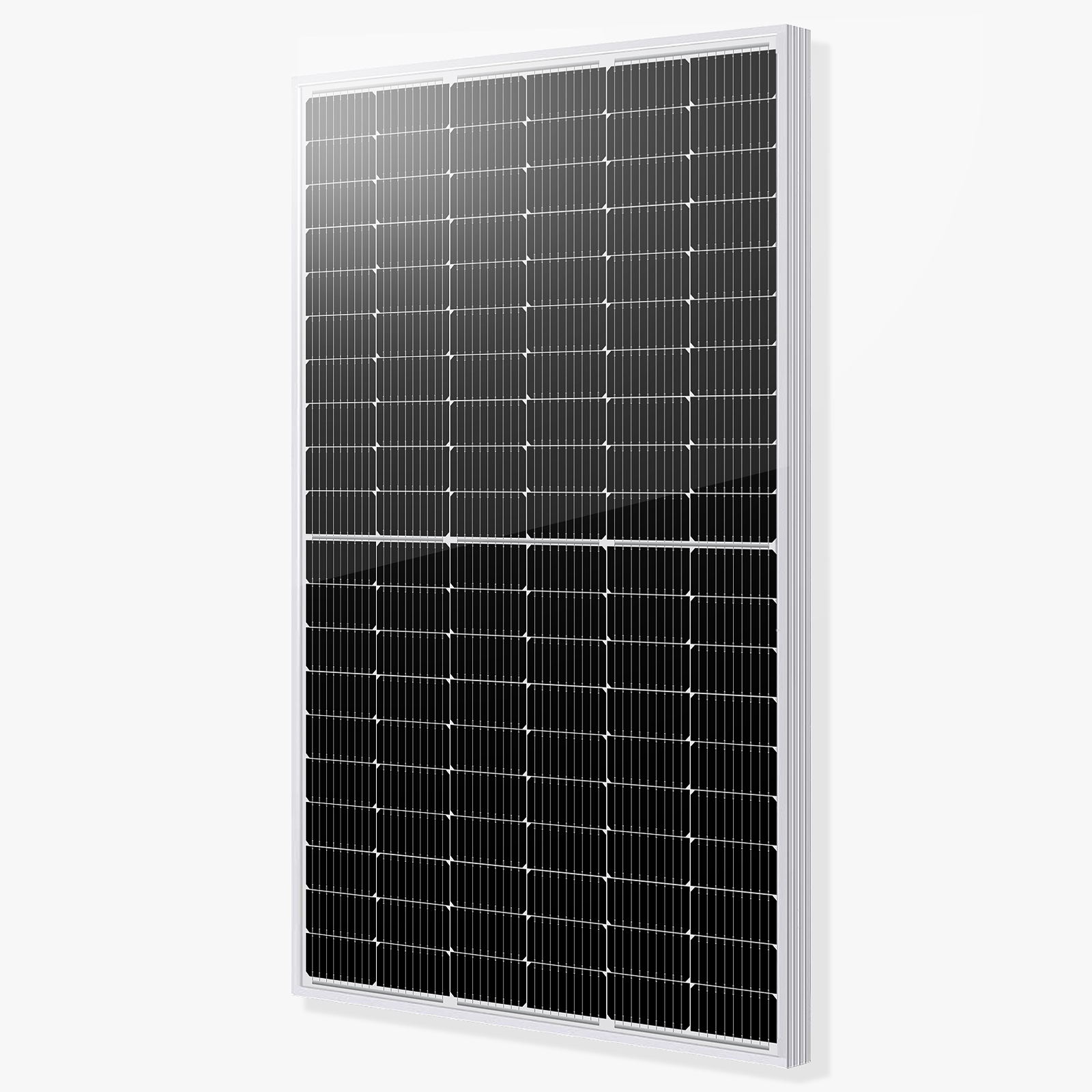

166mm 9BB Half cell Mono 370 Watt Solar Panel Price
The PV modules offered by SUNERISE are specially designed to meet the requirement of the market and are available in various ragnes, from 370w too 395w using PERC technology of crystalline silicon solar cells. These are high quality and high performance modules suitable for power generations and tested visually, mechanically and electrically according to the standard test conditions applicable worldwide.
JC (360~390)-120M Solar Panel Features
-
Excellent module efficiency up to 21.41%
-
IP68 junction box for long-term weather endurance
-
Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
-
Selected material and stringent quality system ensure PID free
-
Applicable to harsh environment of deserts, farmlands and seasides
-
Much lower risk of hot spot
|
Electrical Characteristics(STC)
|
|
Module
|
JC(360~390)-120M
|
|
Module Type
|
JC360M
|
JC365M
|
JC370M
|
JC375M
|
JC380M
|
JC385M
|
JC390M
|
|
Maximum Power (Pmax)
|
360W
|
365W
|
370W
|
375W
|
380W
|
385W
|
390W
|
|
Maximum Power Voltage (Vmp)
|
33.80V
|
34.00V
|
34.20V
|
34.40V
|
34.60V
|
34.80V
|
35.00V
|
|
Maximum Power Current (Imp)
|
10.65A
|
10.74A
|
10.82A
|
10.90A
|
10.98A
|
11.06A
|
11.14A
|
|
Open-circuit Voltage (Voc)
|
40.60V
|
40.80V
|
41.00V
|
41.20V
|
41.40V
|
41.60V
|
41.80V
|
|
Short-circuit Current (Isc)
|
11.24A
|
11.30A
|
11.36A
|
11.42A
|
11.48A
|
11.54A
|
11.60A
|
|
Module Efficiency (%)
|
19.76%
|
20.04%
|
20.31%
|
20.59%
|
20.89%
|
21.13%
|
21.41%
|
|
Power Tolerance
|
0~+5W
|
|
Temperature Coeffcient of Isc
|
0.05%/℃
|
|
Temperature Coeffcient of Voc
|
-0.31%/℃
|
|
Temperature Coeffcient of Pmax
|
-0.35%/℃
|
Warranty
