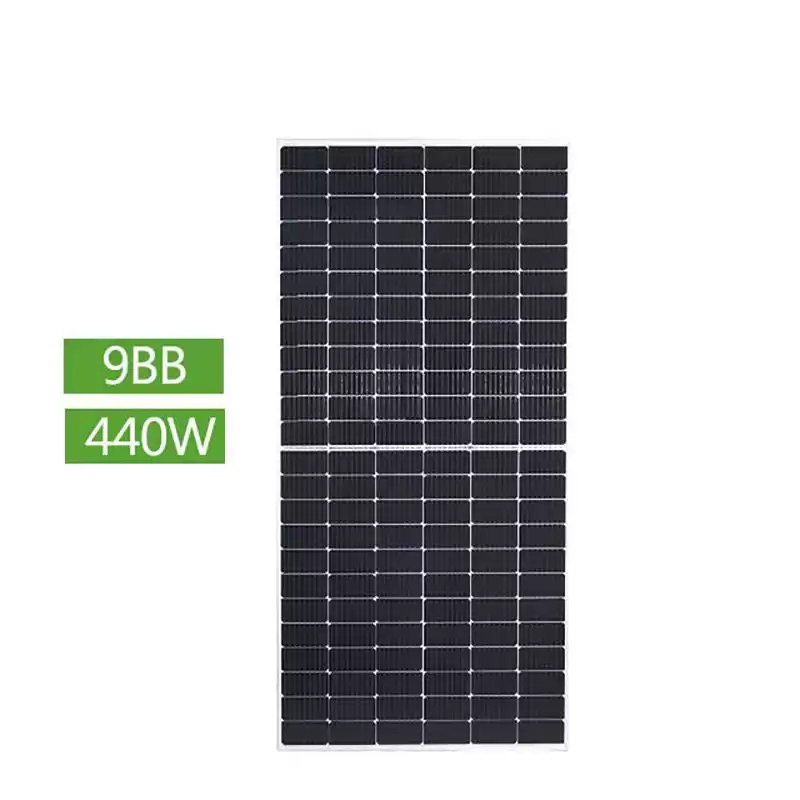

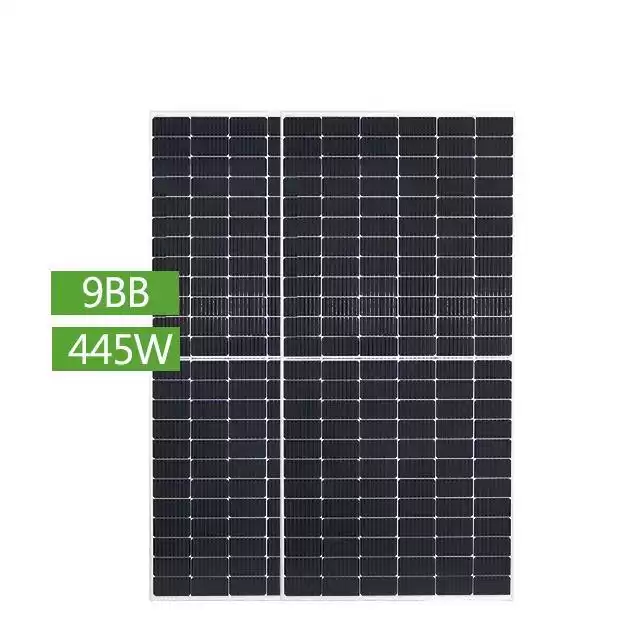

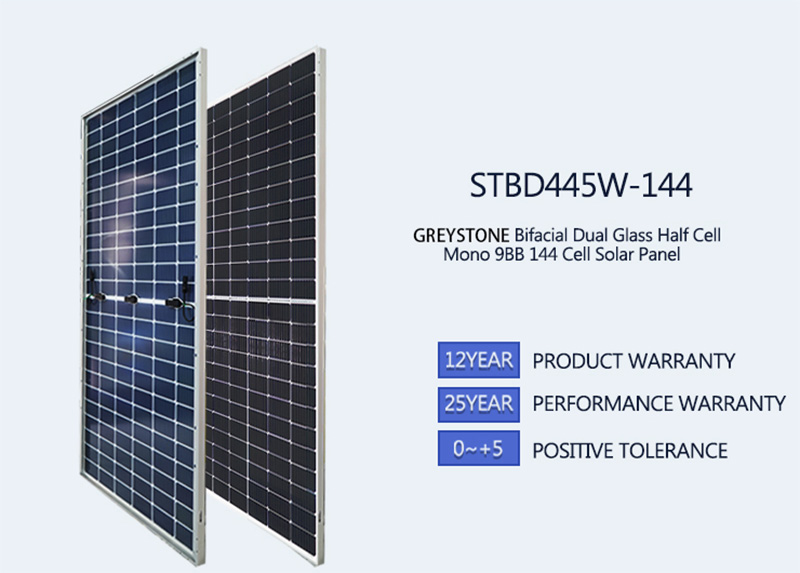

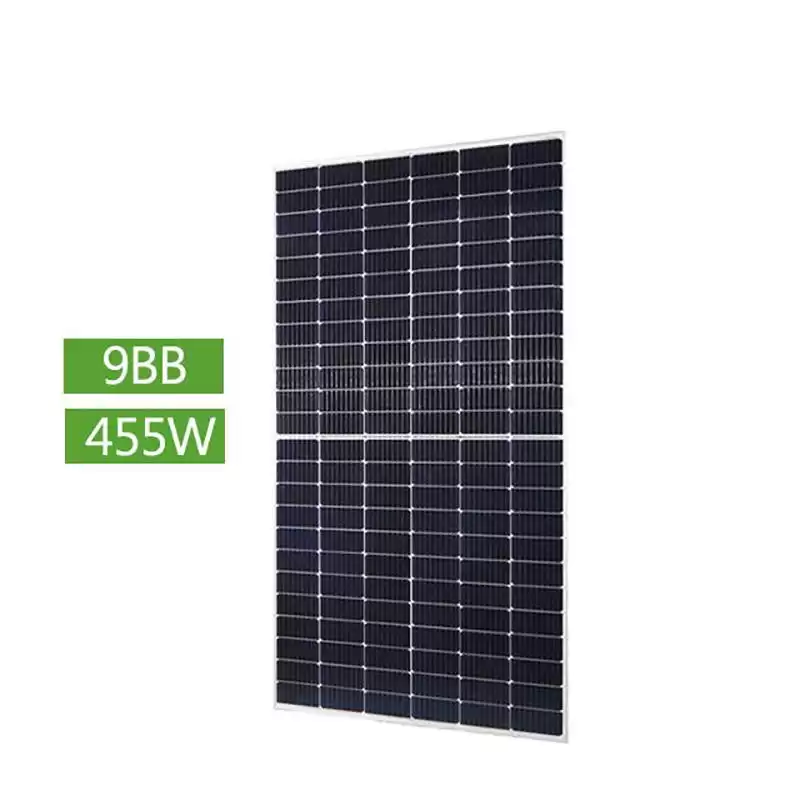

440W-455W 144Cell Mono Solar Panel design solution
Product Description
Electrical Characteristics
|
Model Number
|
BSM440M-72HPH
|
BSM445M-72HPH
|
BSM450M-72HPH
|
BSM455M-72HPH
|
Testing Condition
|
STC
|
Maximum Power (Pmax/W)
|
440
|
445
|
450
|
455
|
Open Circuit Voltage (Voc/V)
|
48.9
|
49.1
|
49.3
|
49.5
|
Short Circuit Current (Isc/A)
|
11.46
|
11.53
|
11.60
|
11.66
|
Voltage at Maximum Power (Vmp/V)
|
41.1
|
41.3
|
41.5
|
41.7
|
Current at Maximum Power (Imp/A)
|
10.71
|
10.78
|
10.85
|
10.92
|
Module Efficiency(%)
|
20.2
|
20.5
|
20.7
|
20.9
|
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5
|
|
High output-power, High shunt-resistance:
adapt the several environmental conditions.
|

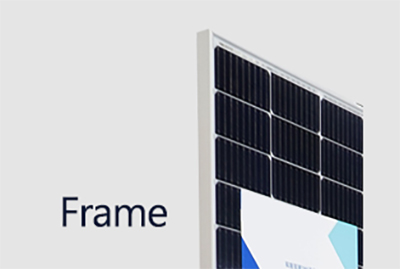

Excellent material for smooth and subtle edges
|
|

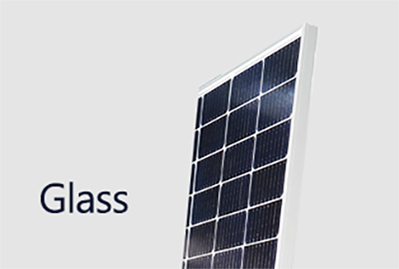

High-transmittance and low reflection
High mechanical strength
|
High current and voltage carrying capacity
Expansion connector are available for future requirement
|

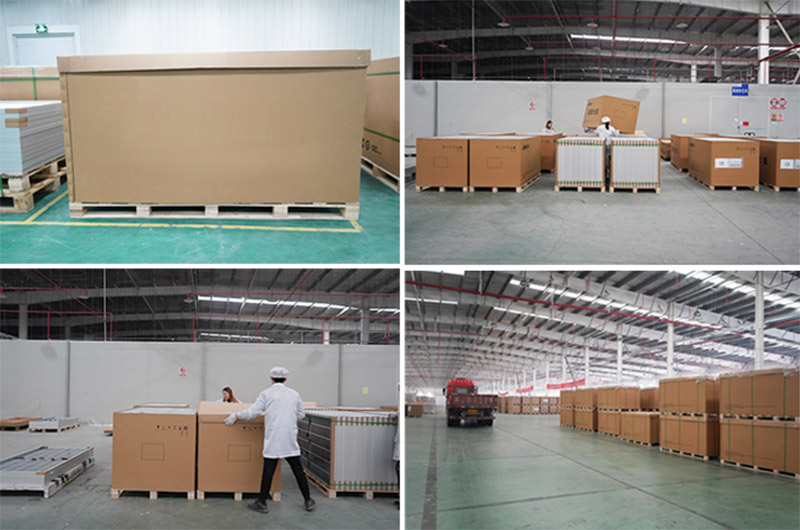

Packing & Delievery

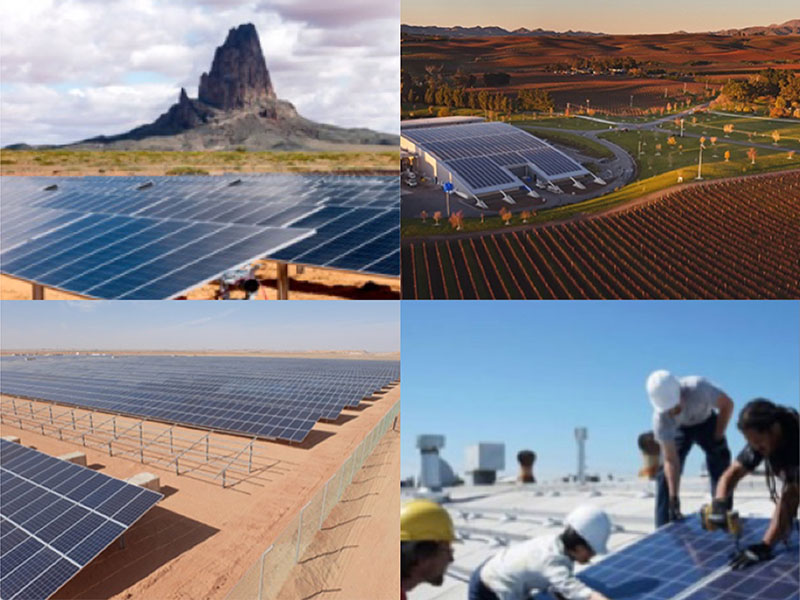

Global project
FAQ
Q：What products do you offer?
A: Our main products cover Solar panels, Solar system, Controller, Inverter, Battery, Mounting Structure, Solar pump, Solar air conditioner...
Q: What certificates do you offer?
Q: What certificates do you offer?
A: Normally, CE, TUV, ISO, CEC, UL.
Q: How long is the warranty of your products?
A: Normally, for solar panels, 10 years product warranty, 25 years linear power warranty.
Q: What about installation and after-sale policy?
A: A professional sales team will work for you. With 7*24h service, we promise we will try our best to solve your problem.
Q：what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA；
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean,Hind,Italian
