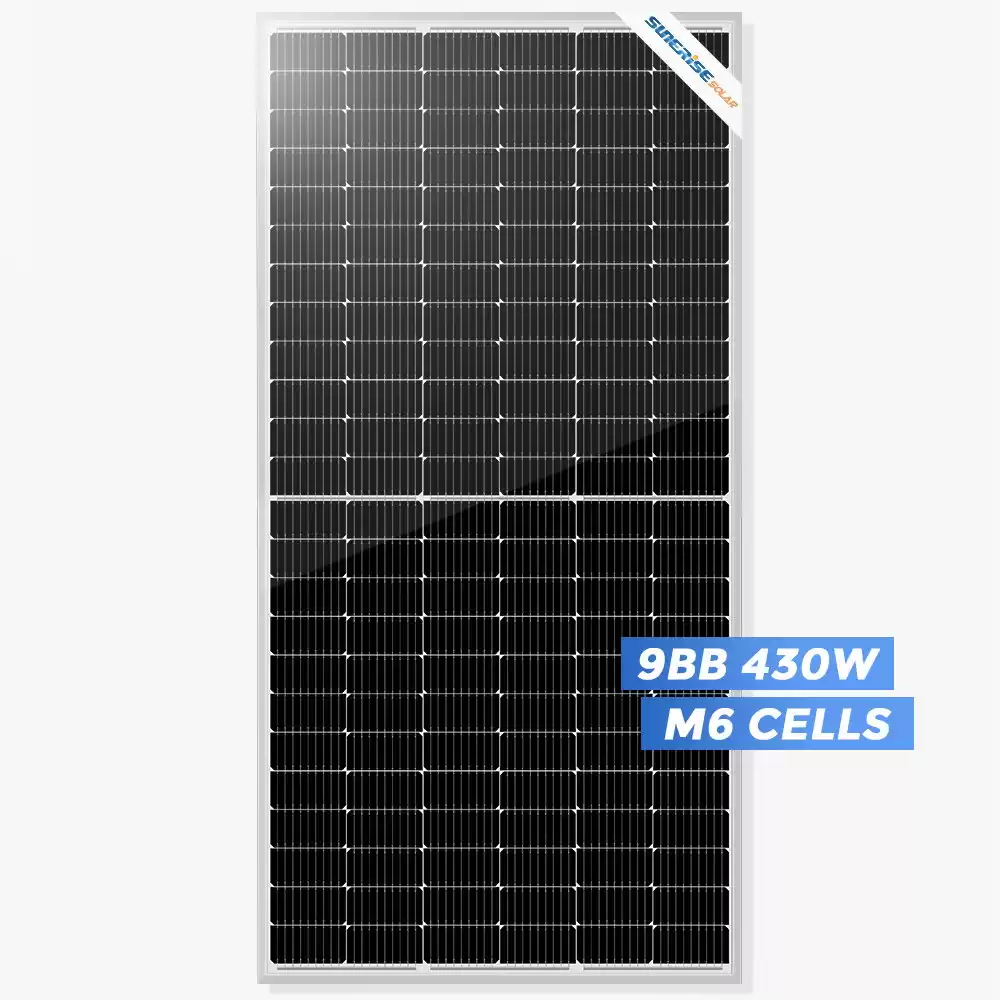

166mm Half Cut 430 watt Solar Panel with Best Price

Sunerise 166mm pv panel series power range 430w 435w 440w 445w 450w 455w with competitive price for grid-tied, off grid & hybrid solar power system.


  • Packing31pcs/pallet, 682pcs/40HQ
  • Lead Time15 Days
  • Junction BoxIP68, 3 Bypass Diodes
  • Warranty30 years
  • Dimension2094*1038*35mm
  • Numble of Cells144 Cells
  • Solar CellMono 9BB 166*83mm
  • CertificateTUV, ISO, CE, ETL, CQC

166mm Half Cut 430 watt Solar Panel with Best Price


With half-cut and MBB (Multi Busbar) technology, this solar panel has a rated power of up to 430wp. The 166mm 430w mono solar panels are widely used for residential self-consumption, industrial and commercial facilities.




JC (430~460)-144M Solar Panel Features



  • Excellent module efficiency up to 21.16%
  • IP68 junction box for long-term weather endurance
  • Heavy snow load up to 5400 Pa, wind load up to 3600 Pa
  • Selected material and stringent quality system ensure PID free
  • Applicable to harsh environment of deserts, farmlands and seasides
  • Much lower risk of hot spot


Electrical Characteristics(STC)

Module

JC(430~460)-144M

Module Type

JC430M

JC435M

JC440M

JC445M

JC450M

JC455M

JC460M

Maximum Power (Pmax)

430W

435W

440W

445W

450W

455W

460W

Maximum Power Voltage (Vmp)

41.51V

41.66V

41.81V

41.96V

42.11V

42.26V

42.41V

Maximum Power Current (Imp)

10.36A

10.44A

10.52A

10.61A

10.69A

10.77A

10.85A

Open-circuit Voltage (Voc)

48.70V

48.85V

49.00V

49.15V

49.30V

49.45V

49.60V

Short-circuit Current (Isc)

11.23A

11.26A

11.29A

11.32A

11.35A

11.38A

11.41A

Module Efficiency (%)

19.78%

20.01%

20.24%

20.47%

20.70%

20.93%

21.16%

Power Tolerance

0~+5W

Temperature Coeffcient of Isc

0.05%/℃

Temperature Coeffcient of Voc

-0.31%/℃

Temperature Coeffcient of Pmax

-0.35%/℃




Warranty & Certification





PV Panel Material





Our Factory



Packing & Delivery




Product Tags 430 watt solar panel price          166mm 430w mono solar panels          solar 430 watt price          430 watt solar panels          half cut cells 430w pv panel          430 watt solar panel
