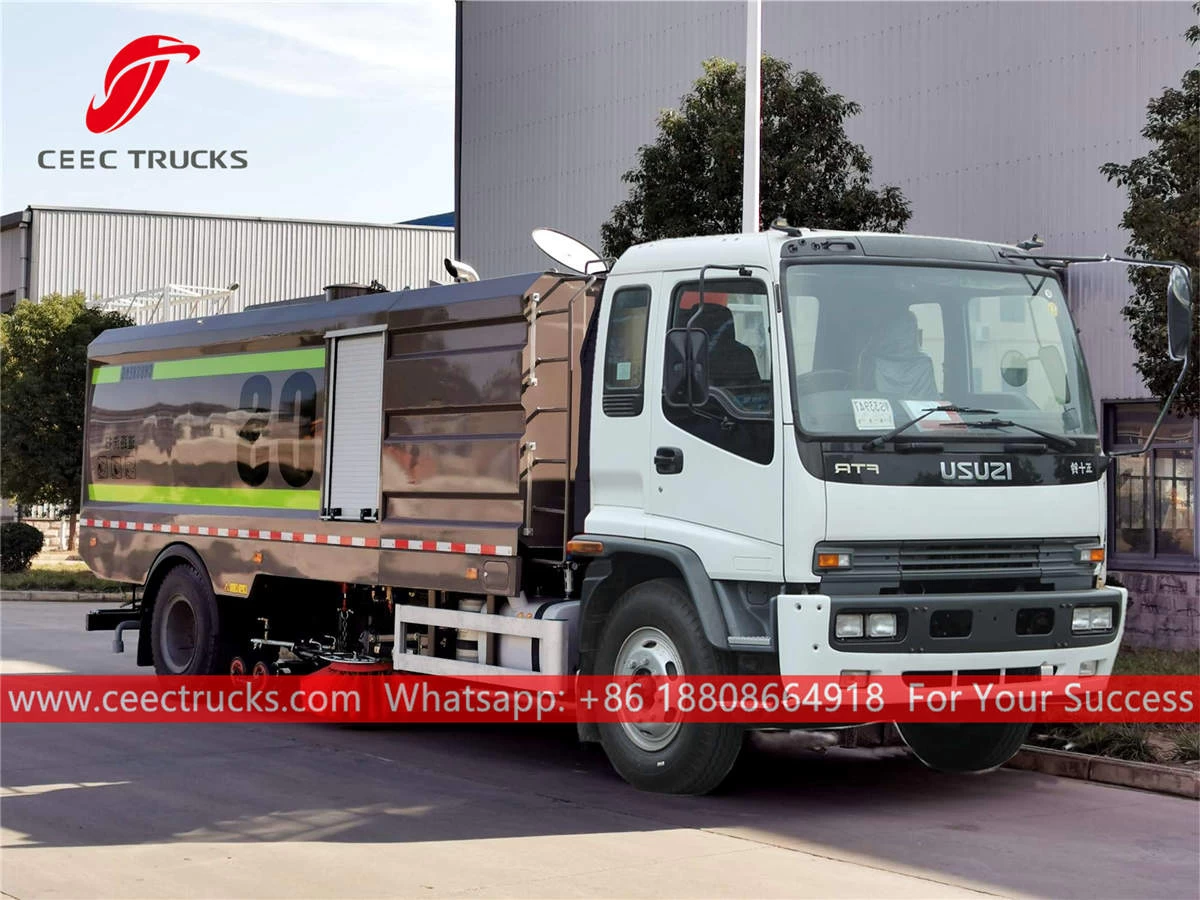

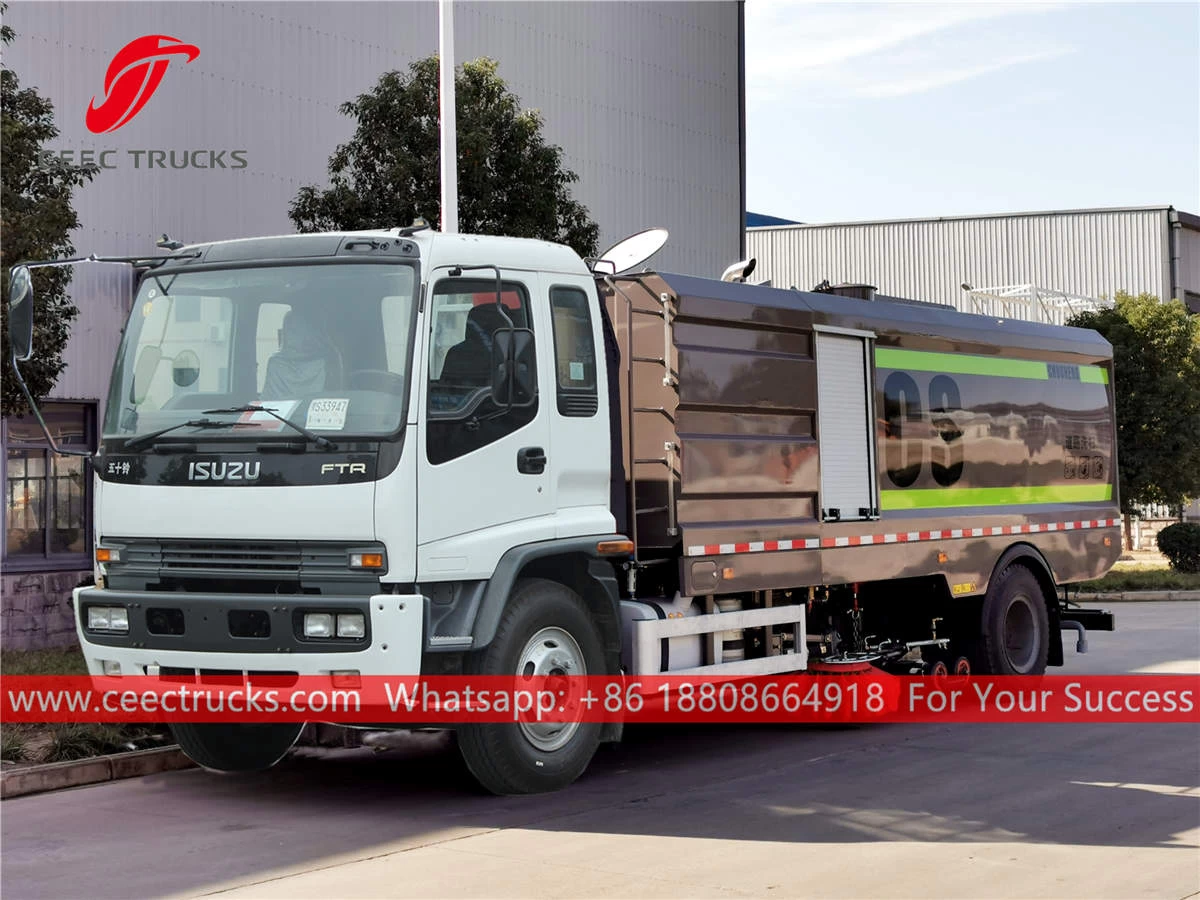

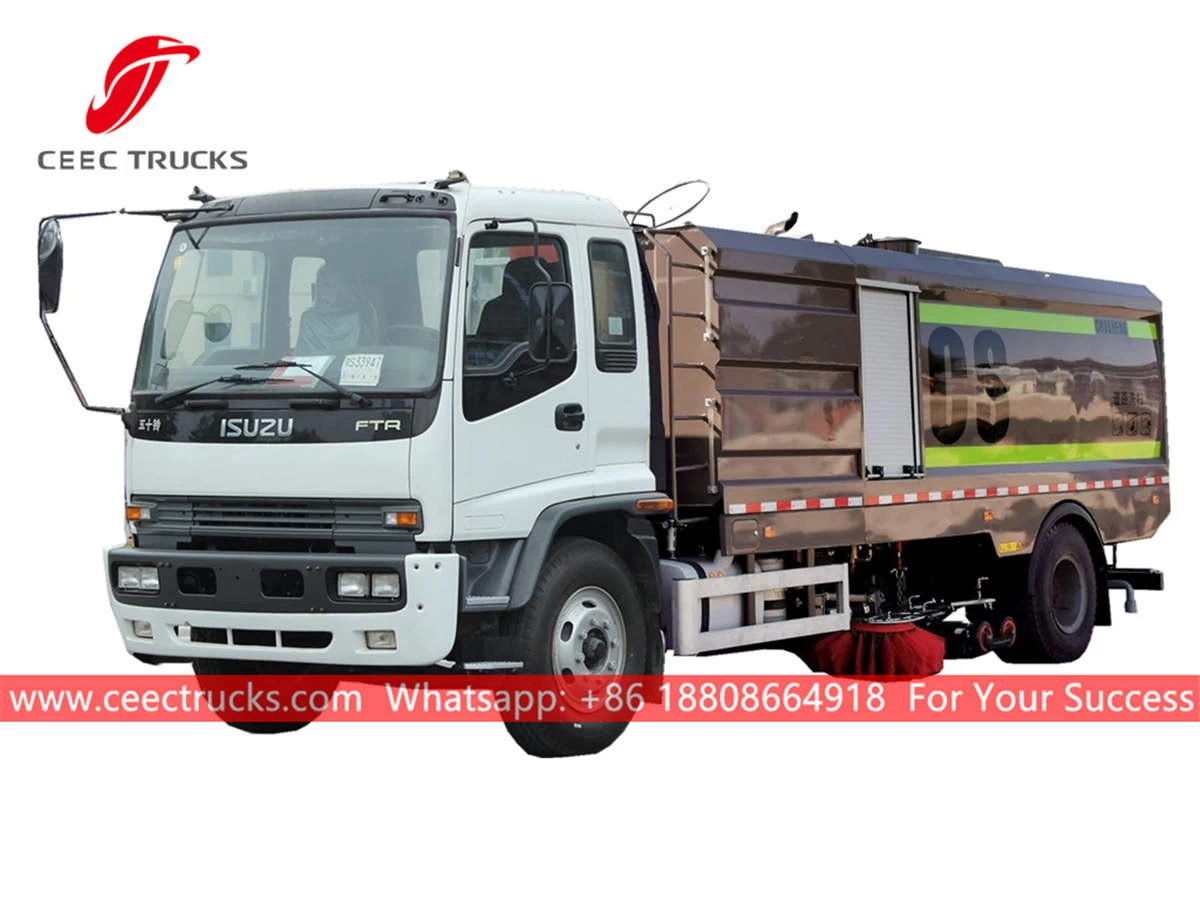

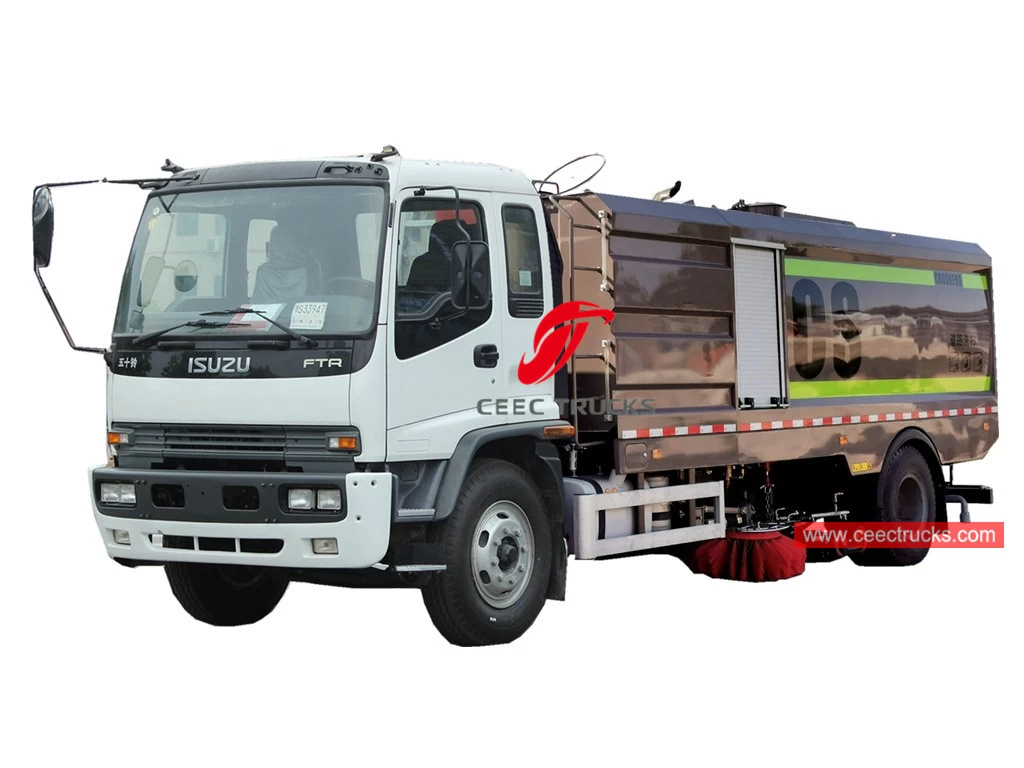

16CBM ISUZU Street washing and sweeping truck

New design ISUZU 16cbm road sweeper and washer vehicle, use ISUZU 4x2 chassis, MLD 6-shift manual gearbox, 205HP diesel engine, stainless steel dust bin and clean water body, 2 brushes system with washing system, with cabin electric control for convenient operation. All painting and logos depend on requirement.



ISUZU high quality road sweeper truck

 Applications:



ISUZU Street cleaner truck (also called road sweeping and washing vehicle, hydraulic street cleaning vehicle, vacuum road sweeper truck, ISUZU truck mounted street sweeping system) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



CEEC TRUCKS road sweeping vehicle use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC auxiliary engine, efficiently avoiding secondary pollution.



The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeping body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



ISUZU road cleaning truck (16 cbm)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

8650 * 2500 * 3000 mm

GVW / Kerb Weight

18,000kg / 12,500kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

205 HP (151 KW)

Displacement

5193 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4700 mm / 2

Tire Specification

10.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

110 km/h

Paint

Metallic paint

Superstructure

Body capacity

9 cbm water tank & 7 cbm dust tank

Tanker material

Stainless steel

Sweeping capacity

42,000 cbm/h

Sweeping speed

3-15 km/h

Max. sweeping width

3200 mm

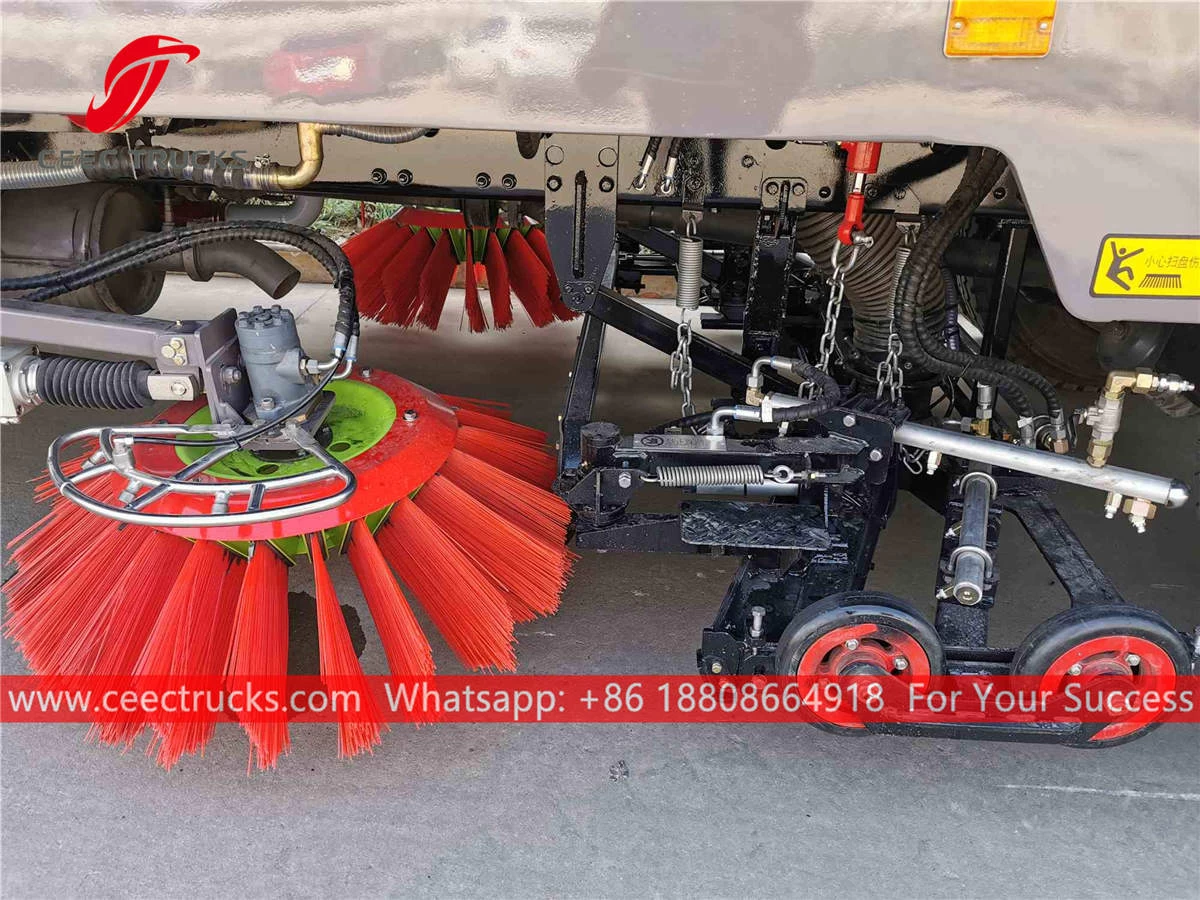

Brooms

2 set at each side, at diameter 800 mm

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful

JMC engine, 77HP (57kw), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel

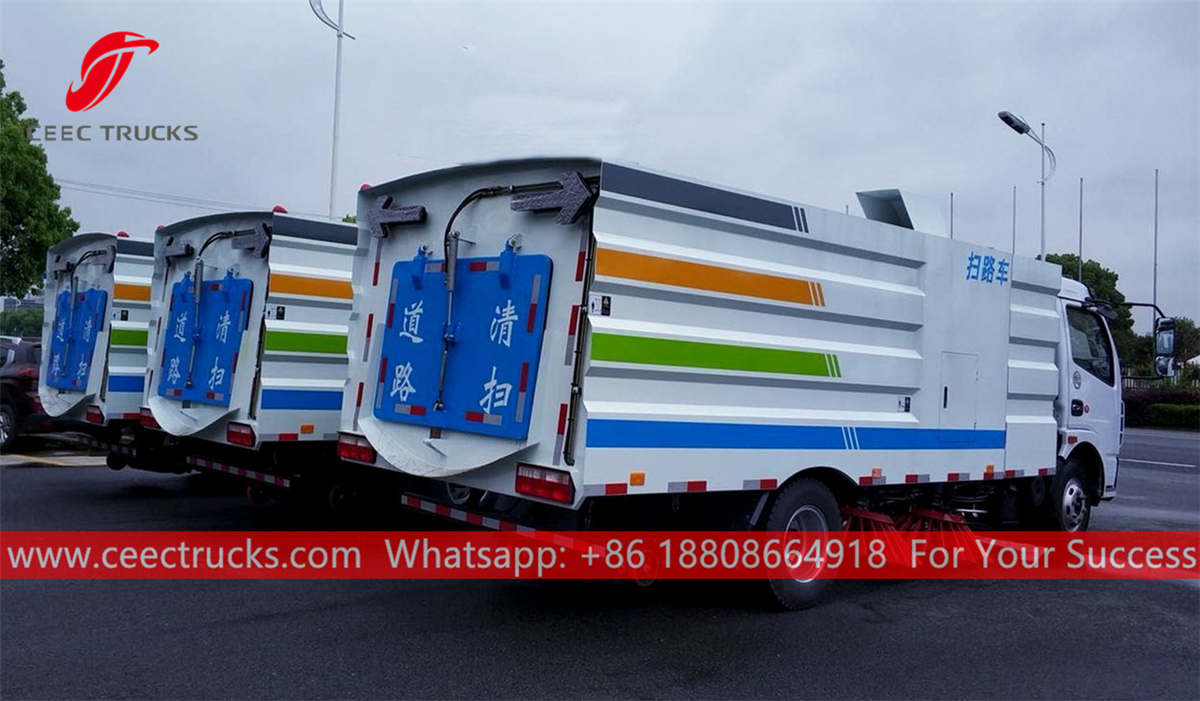

Street cleaner trucks for sale

(3 units street cleaner vehicles ready for delivery)
