SK-16AM

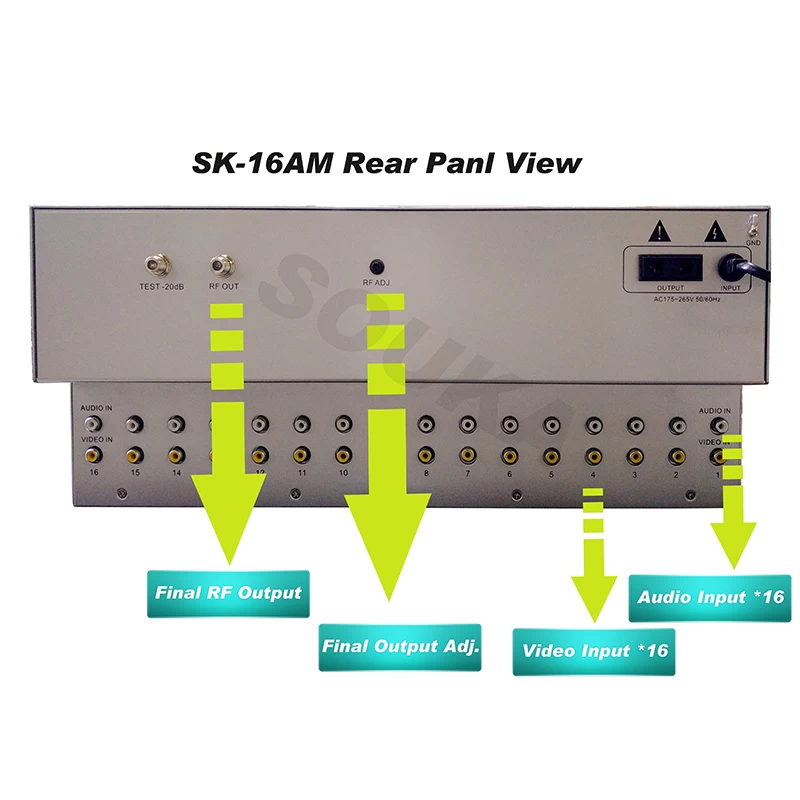

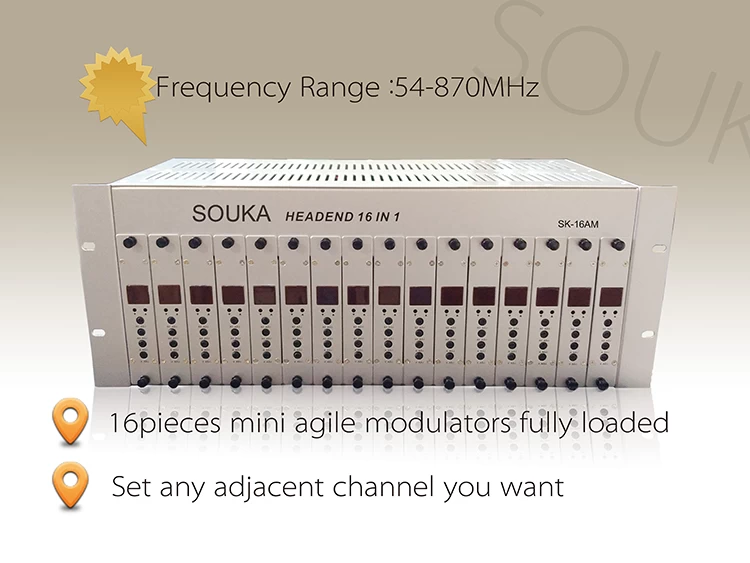

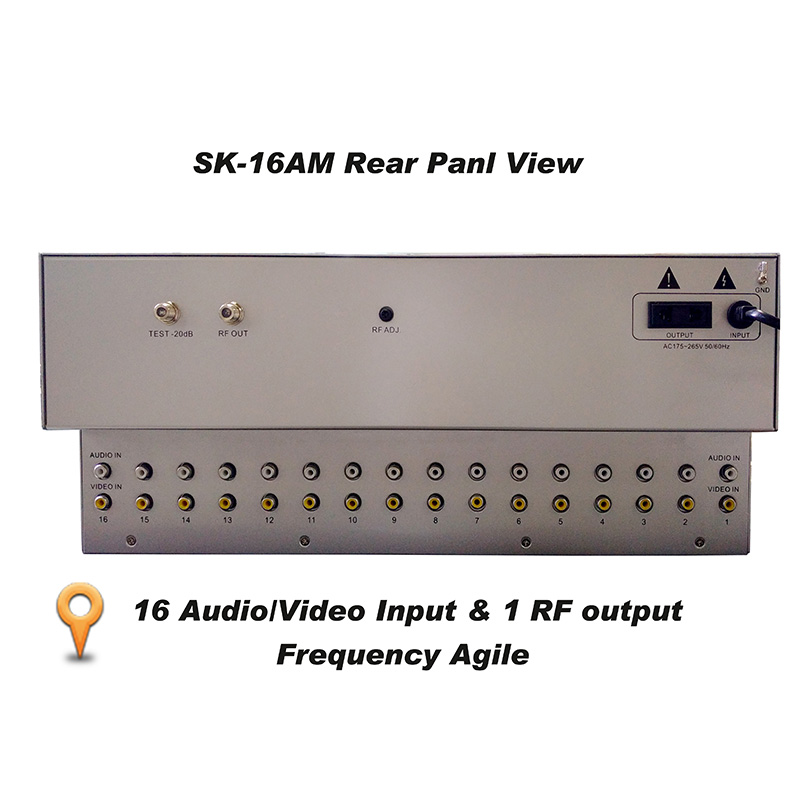

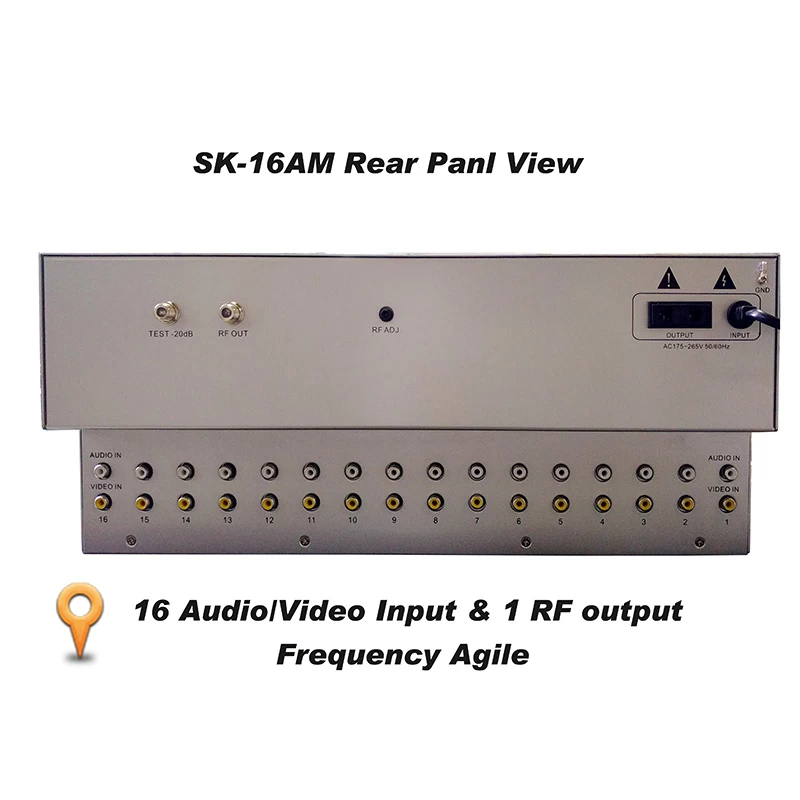

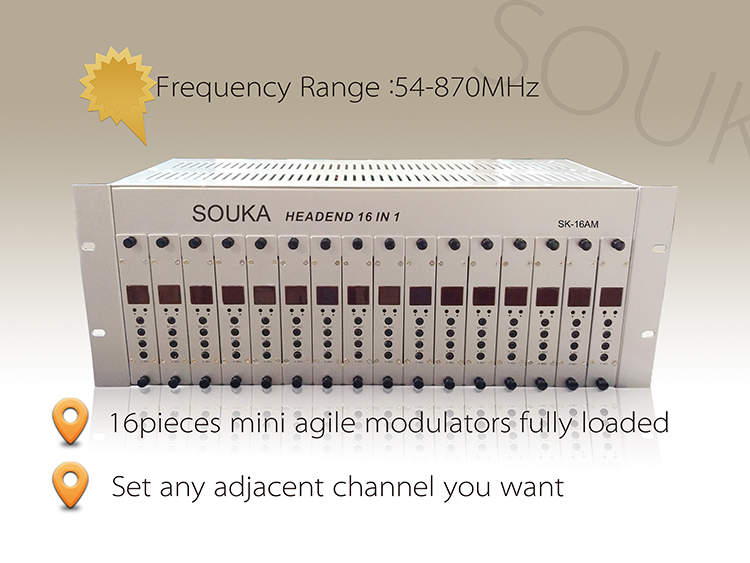

The SK-16AM is a 4RU rack mounted chassis that allows for installation of up to 16 pieces agile modulators.Built-in active combiner eliminates unnecessary cabling and potential connection problem and ensures high output level.
Features:
1.Full frequency agility allows the rapid creation of channel lineups.
2.Each channel is completely independent. Channel configuration is flexible.
3.Utilizes SAW(surface acoustic wave) filter for excellent performance inband C/N.
4.Non-volatile memory maintains channel selection in event of power loss.
5.Front-panel LED display and controls for conveninet monitoring and operation.
6.Switching power supply for installation flexibility and precise voltage regulation.
7.Two cooling fans for heat sink ensures long life performance.
|
Chassis
|
|
Output Frequency:
|
47-860MHz
|
|
Output Level :
|
≥45dBmV (105dBuV)
|
|
Voltage Input:
|
110-240V
|
|
Video Input
Connector:
|
RCA (Yellow)
|
|
Audio Input Connector:
|
RCA ( White )
|
|
RF Output
Connector:
|
75Ω F Female
Connector
|
|
Mini Modulator
|
|
RF
|
Output Frequency Range:
|
47-860MHz
|
|
Output Level:
|
≥45dBmV (105dBuV)
|
|
A/V Ratio :
|
-11 to -18 dB
(Adjustable)
|
|
C/N Ratio :
|
60dB typical
|
|
Frequency Stability:
|
±5KHz
|
|
Video
|
Input level:
|
1.0Vp-p @87.5%
Modulation
|
|
Differential Gain:
|
≤5% @87.5%
Modulation
|
|
Differential Phase:
|
≤5% @87.5%
Modulation
|
|
Audio
|
Input level:
|
1.0Vp-p (±50KHz)
|
|
Audio Pre-emphasis:
|
50 μs
|
