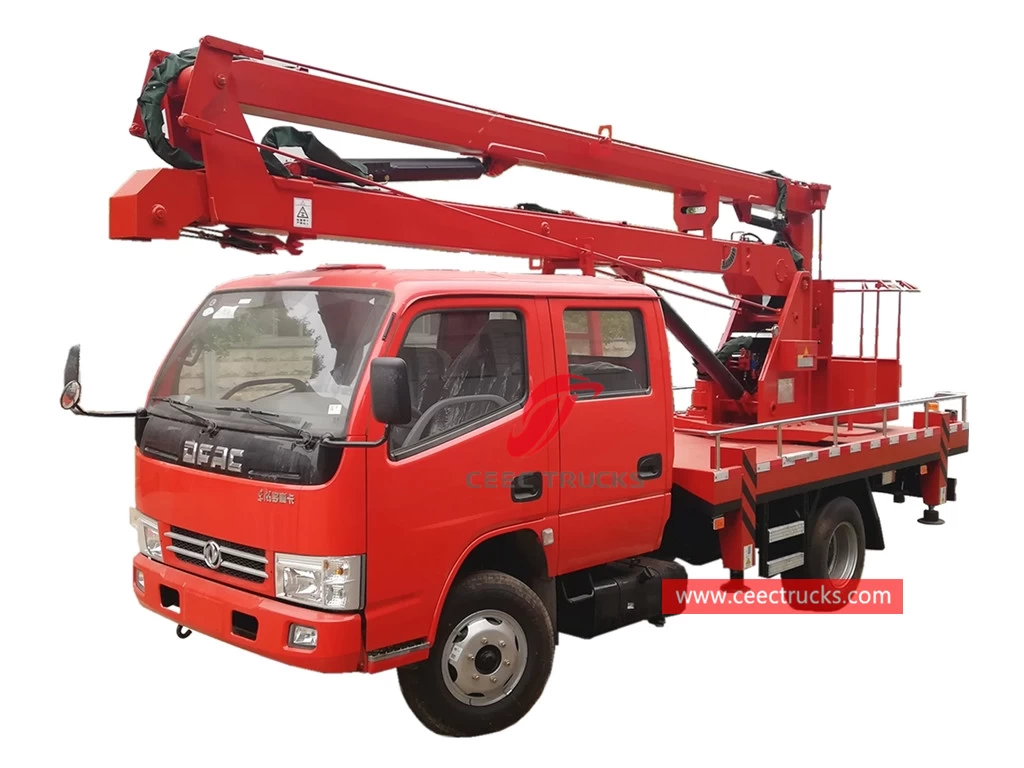

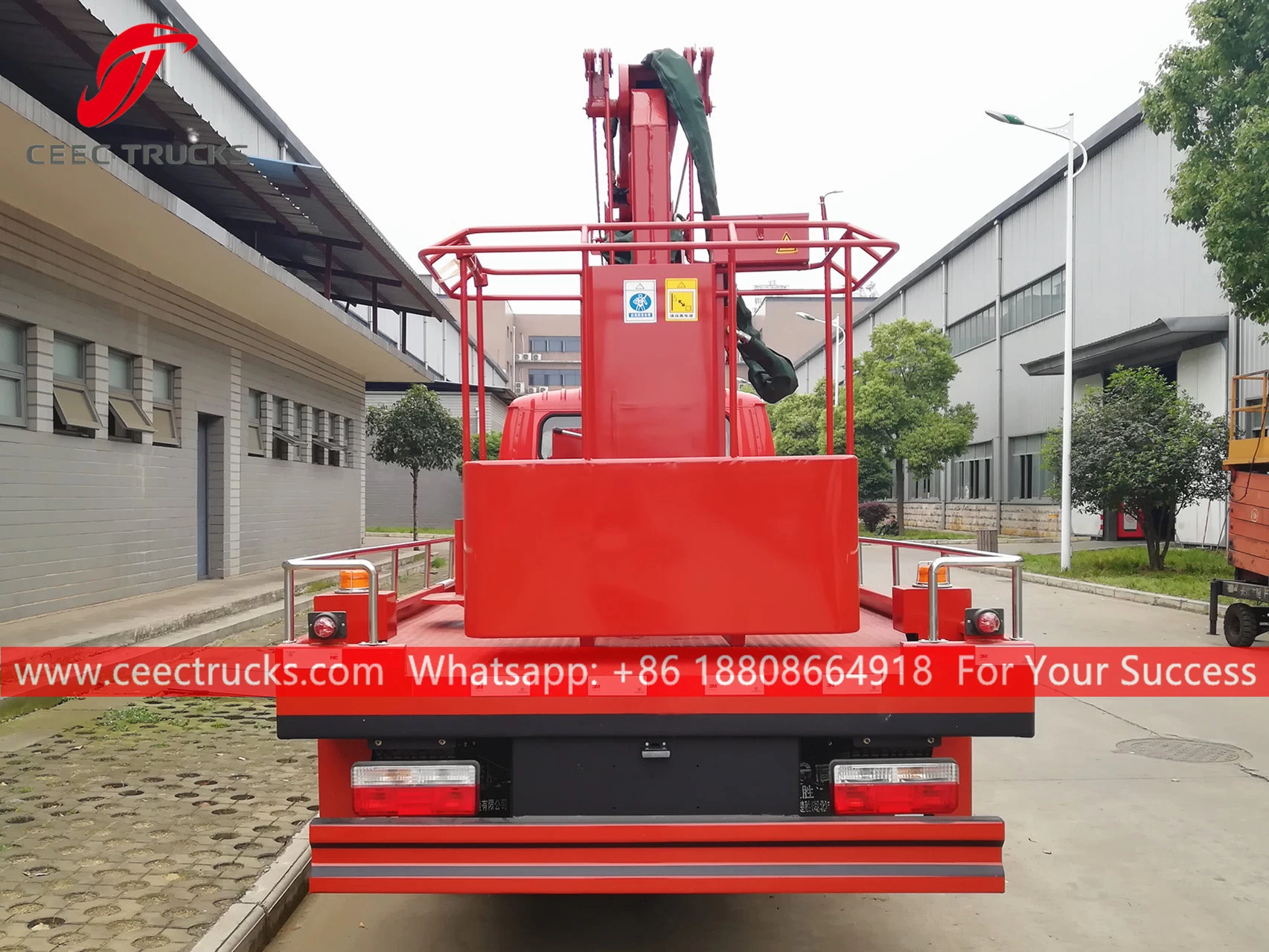

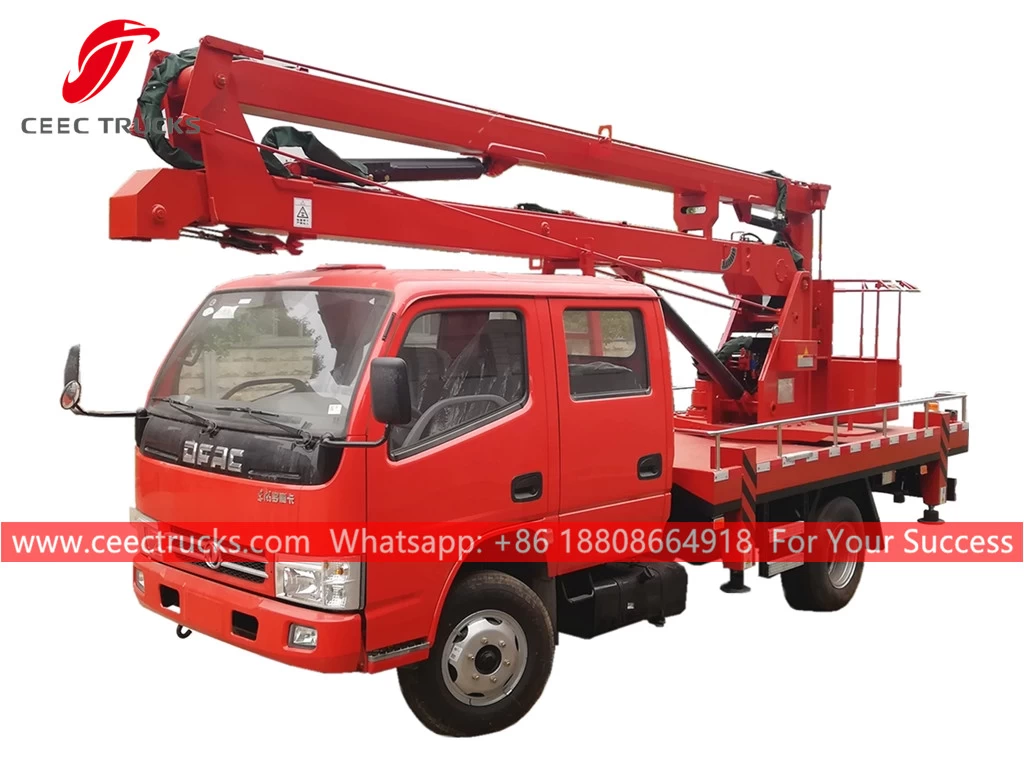

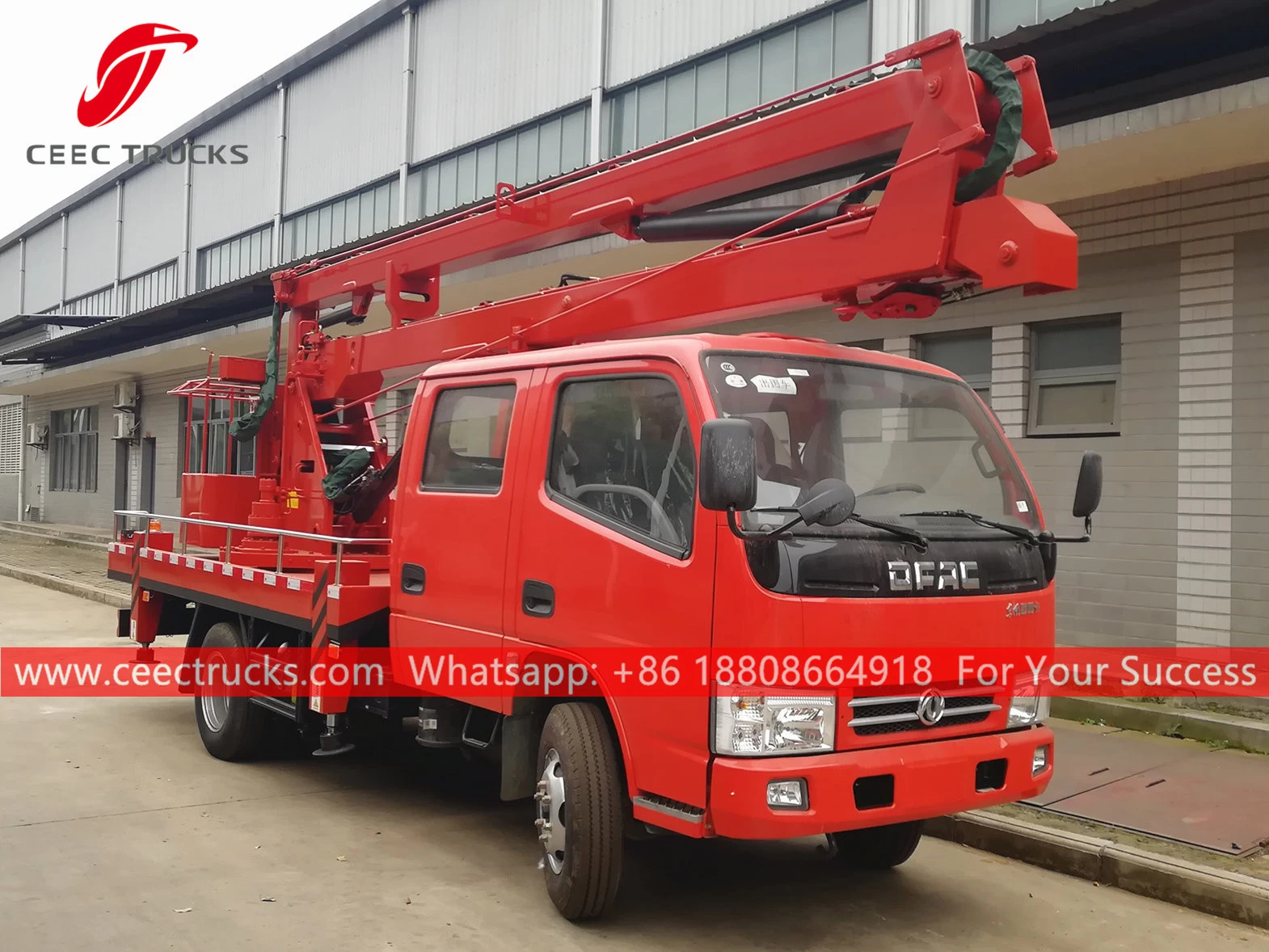

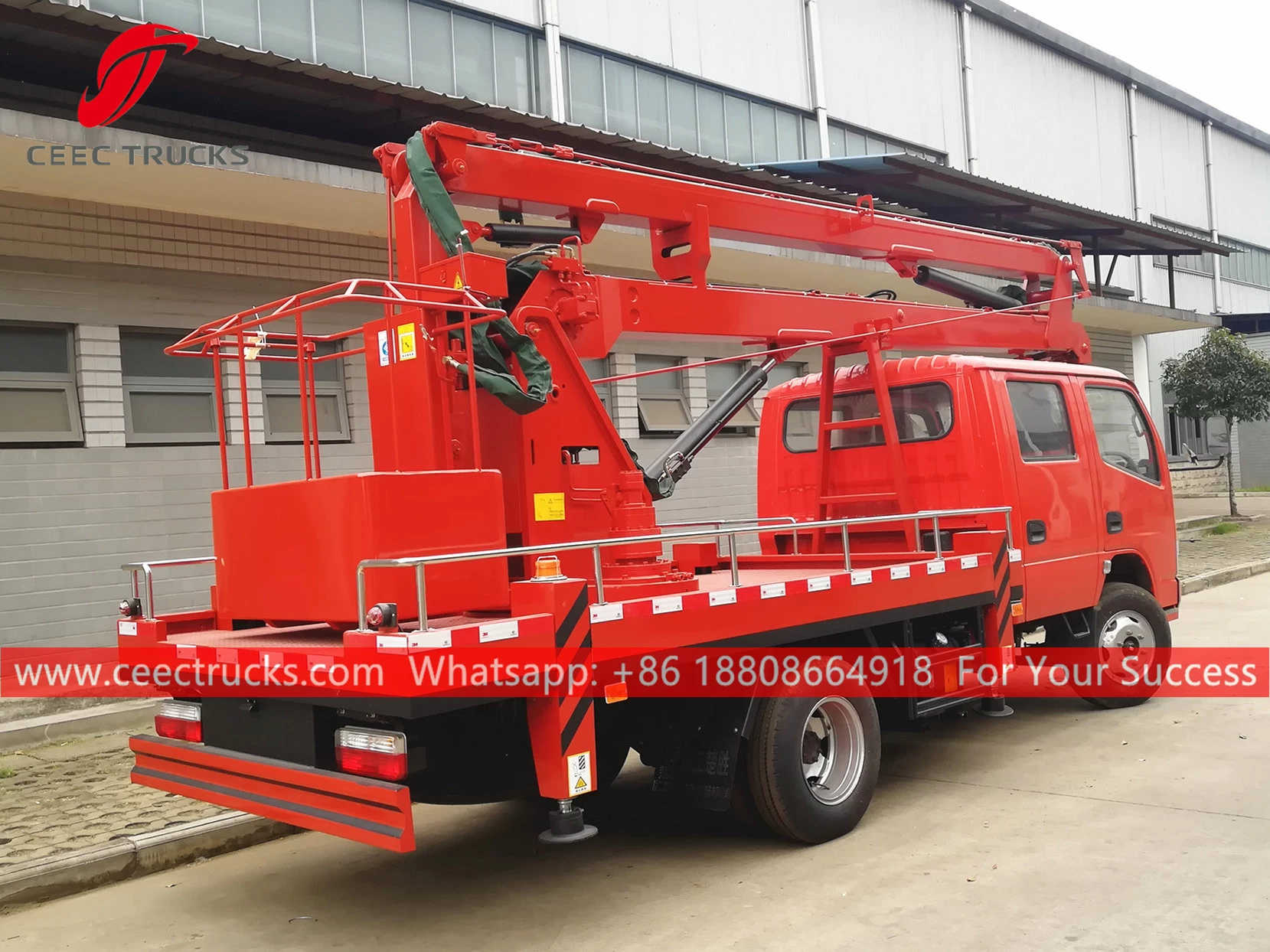

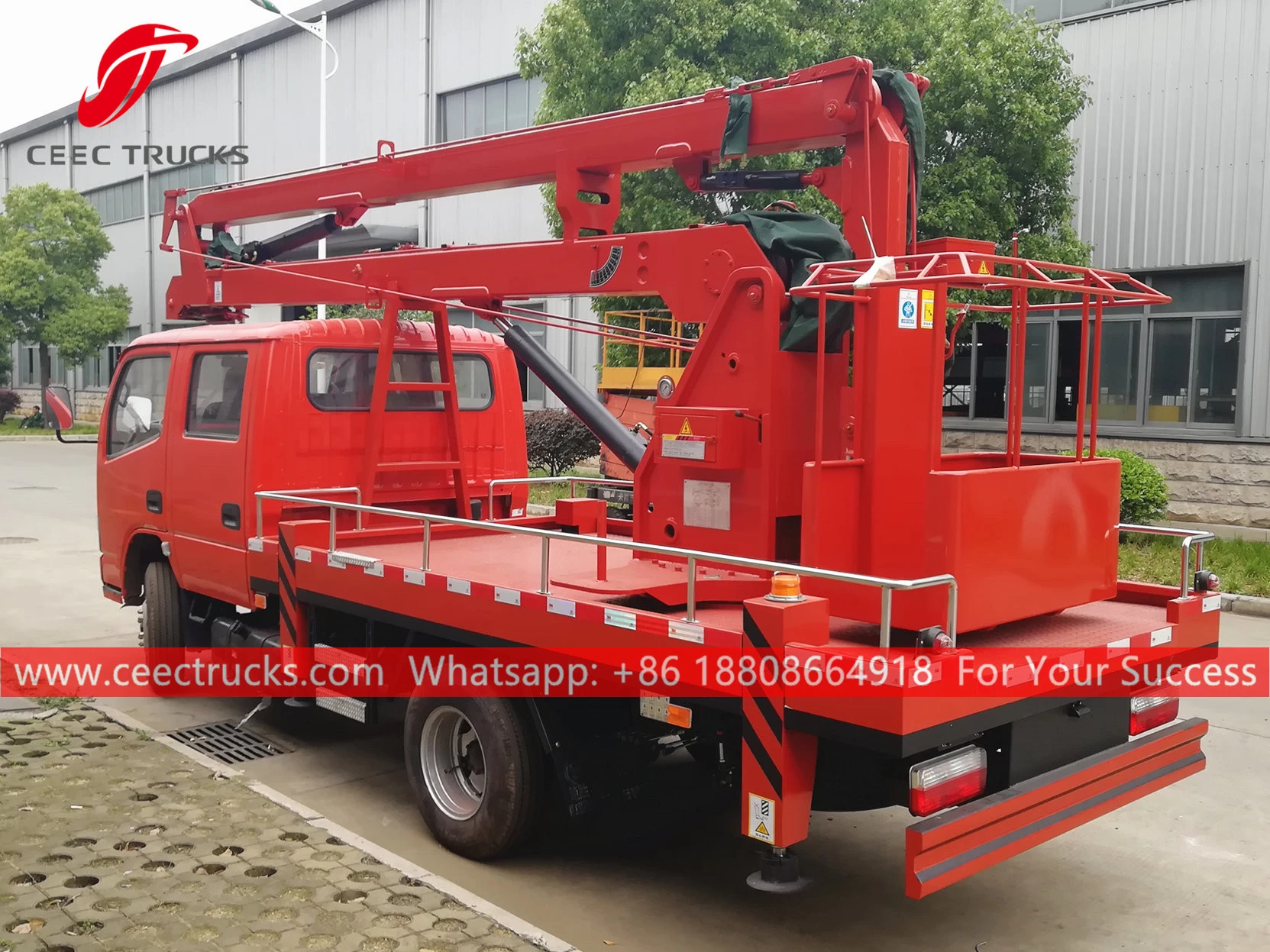

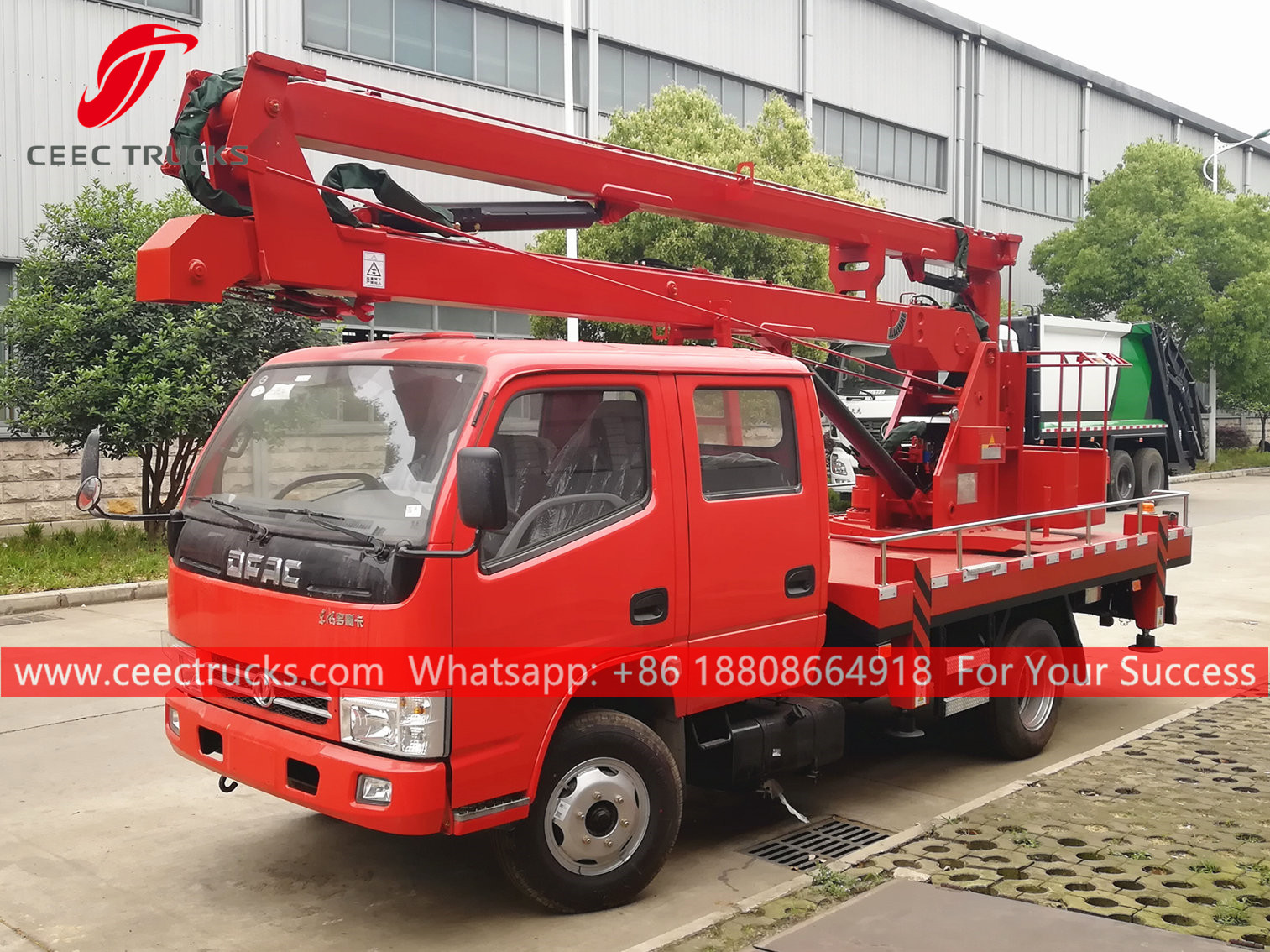

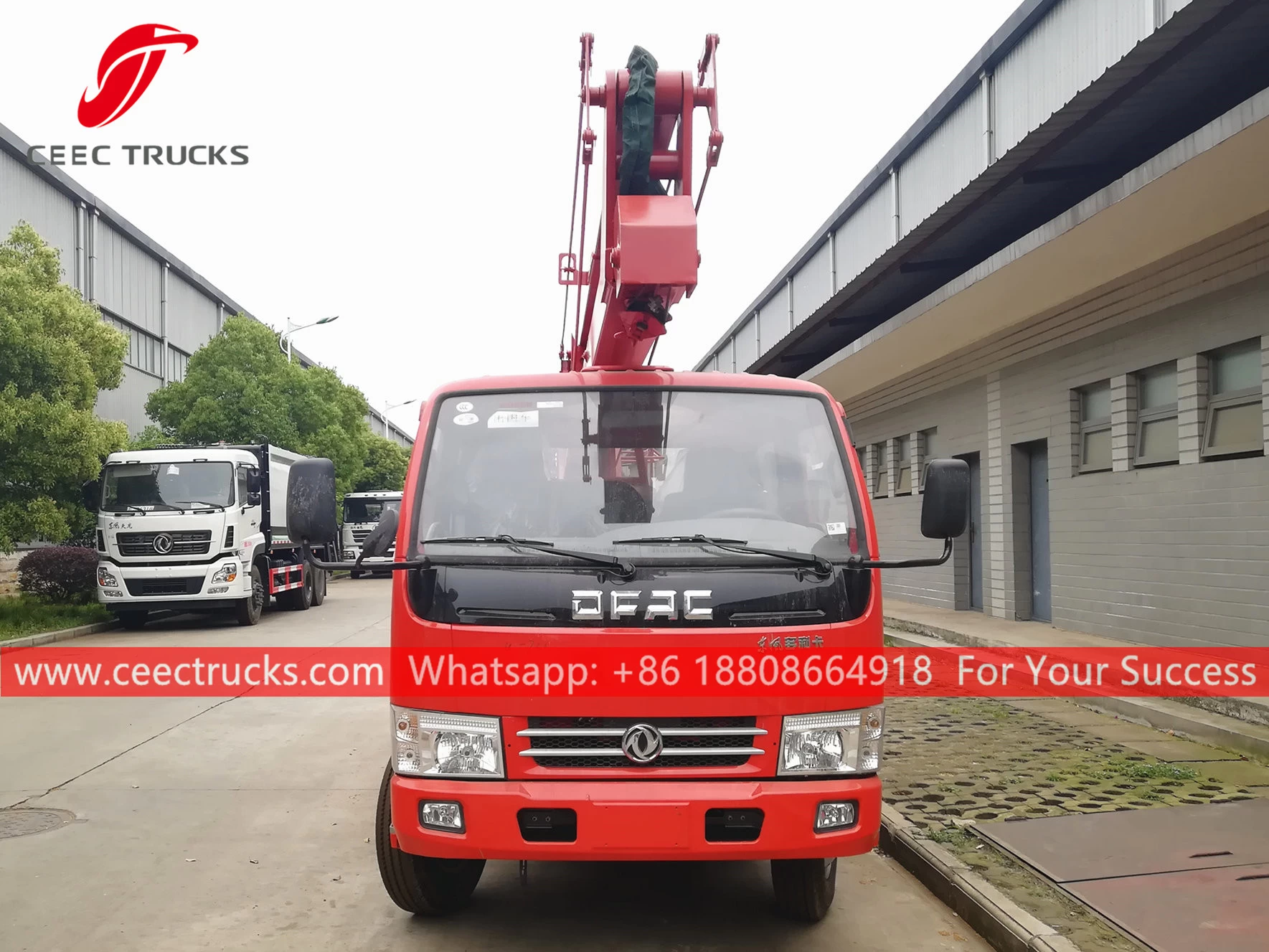

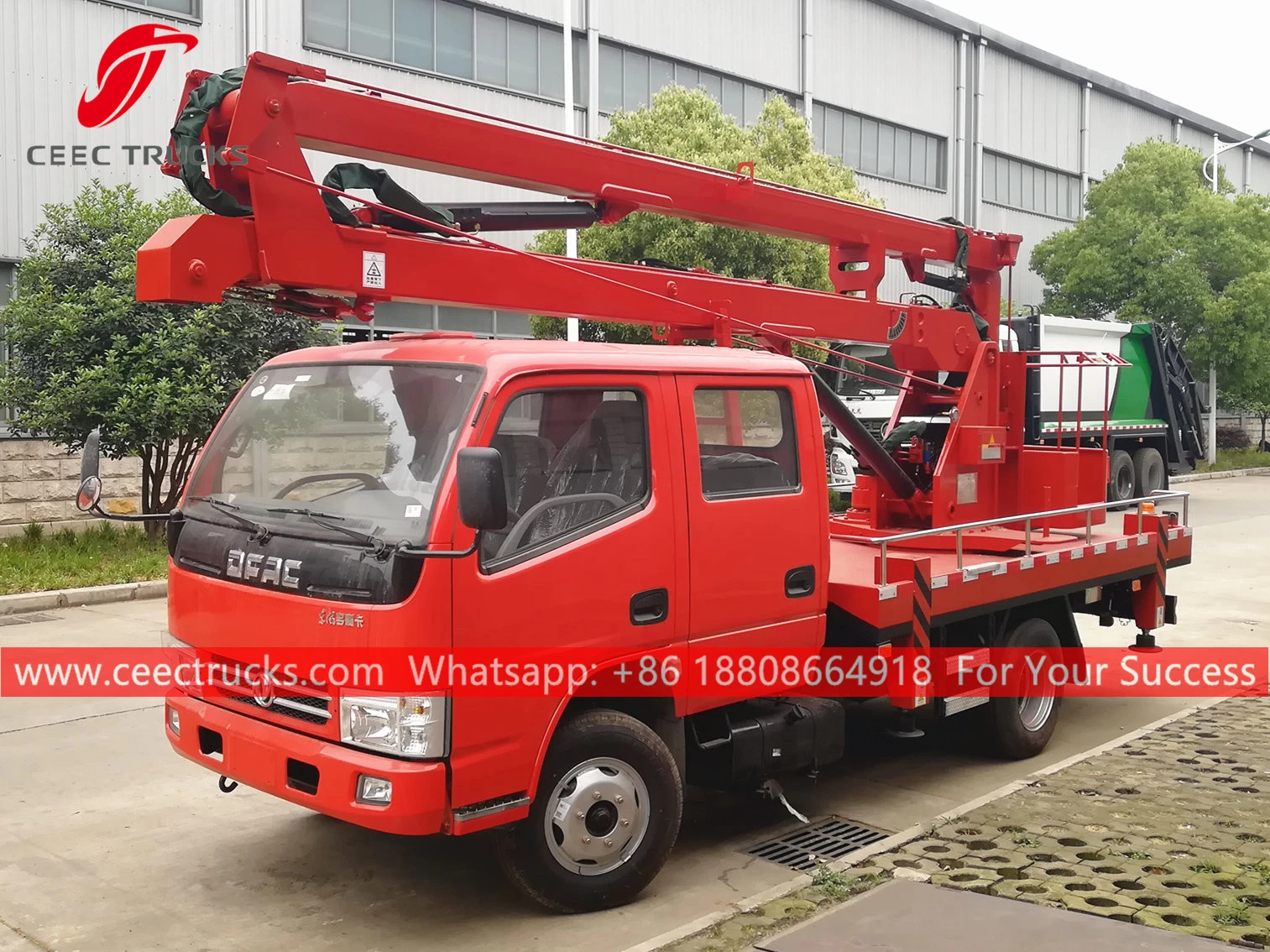

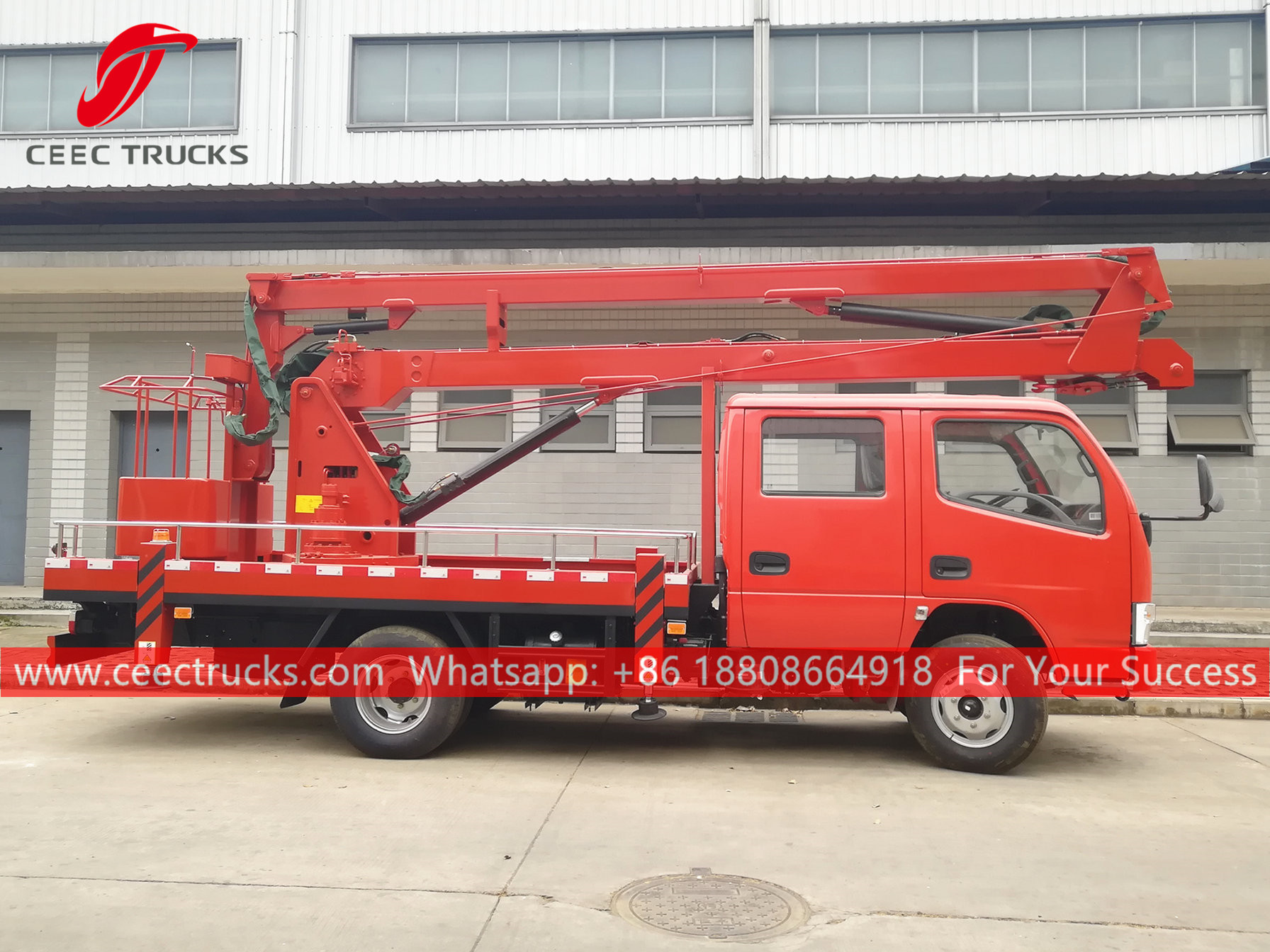

16m Aerial Working Pltaform Dongfeng

16m man lifting truck, Dongfeng brand model 4x2 chassis, 5-shift manual gearbox, 102HP diesel engine, painting and logos depend on requirement. Customer language control box.





 Applications:



Aerial Working Truck Dongfeng (also called Aerial Platform, Dongefng truck mounted aerial platform, arm lifting bucket truck Dongfeng, manlifter truck Dongfeng, Overhead Platform Operation truck Dongfeng) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



CEEC TRUCKS can supply aerial platform truck from 6m-8m, 8m-12m, 14m-16m, 18m, 20-24m, 28m-32m.Insulated cage is optional.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CHAOCHAI engine, super powerful, no overhaul within 100,000 km.

---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);

---- 4pcs outriggers and front support improve operation stability and safety;

---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;

---- Wireless remote control system is available.



 Specifications:



Aerial Working Platform Dongfeng (16M)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

7550 x 1980 x 3080 mm

GVW / Kerb Weight

6,050 kg / 5,725 kg

Cab

Cab Capacity

2+3 persons allowed

Air Conditioner

With air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CHAOCHAI engine

Power

102Ps (75 KW)

Displacement

3707 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, left hand drive

Transmission

Manual transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km

Wheelbase/No. of axle

3308 mm / 2

Tyre Specification

7.00-16 or 7.00R16

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Cage Rated Capacity

200 kg

Working Height

16 m

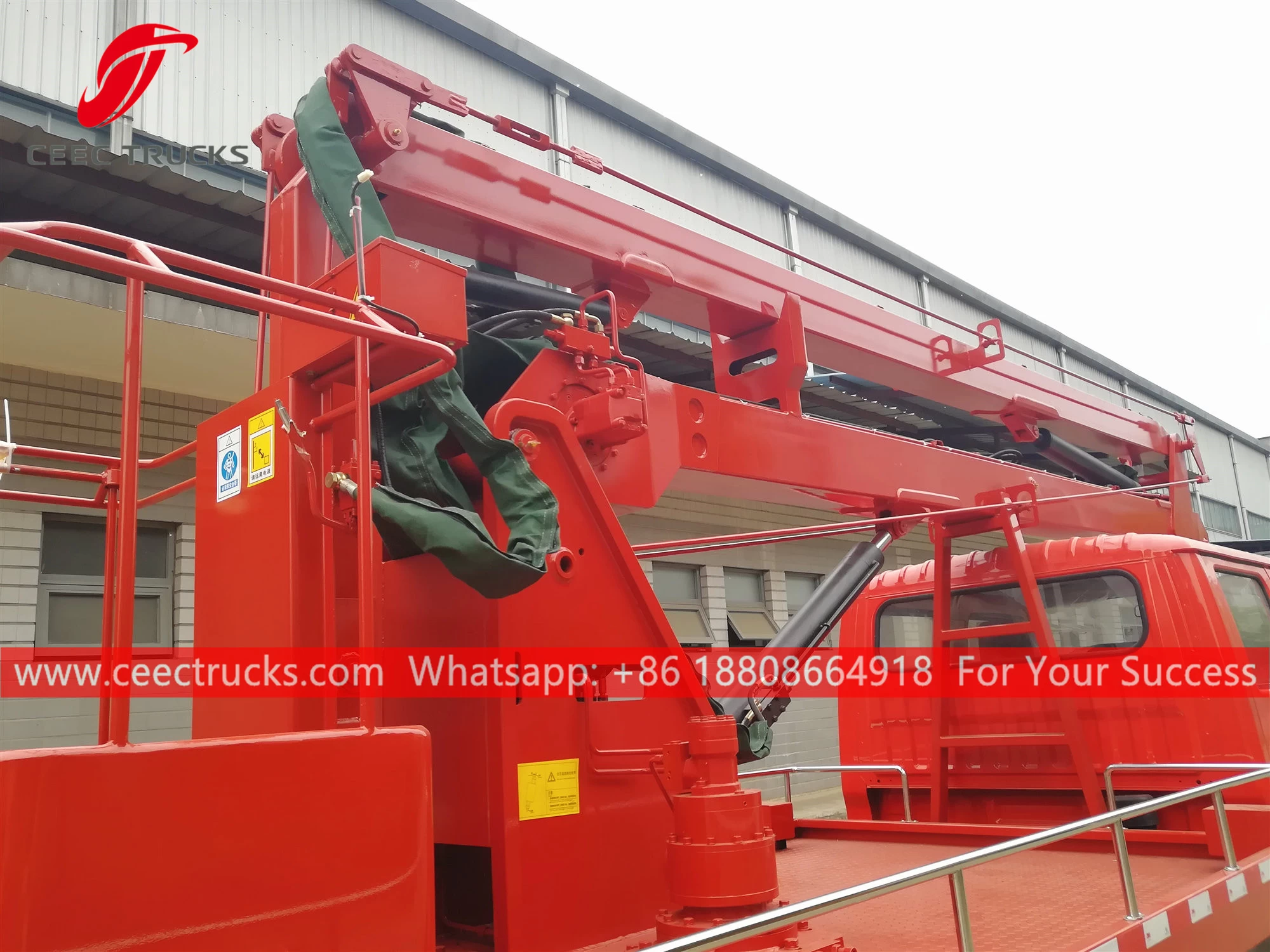

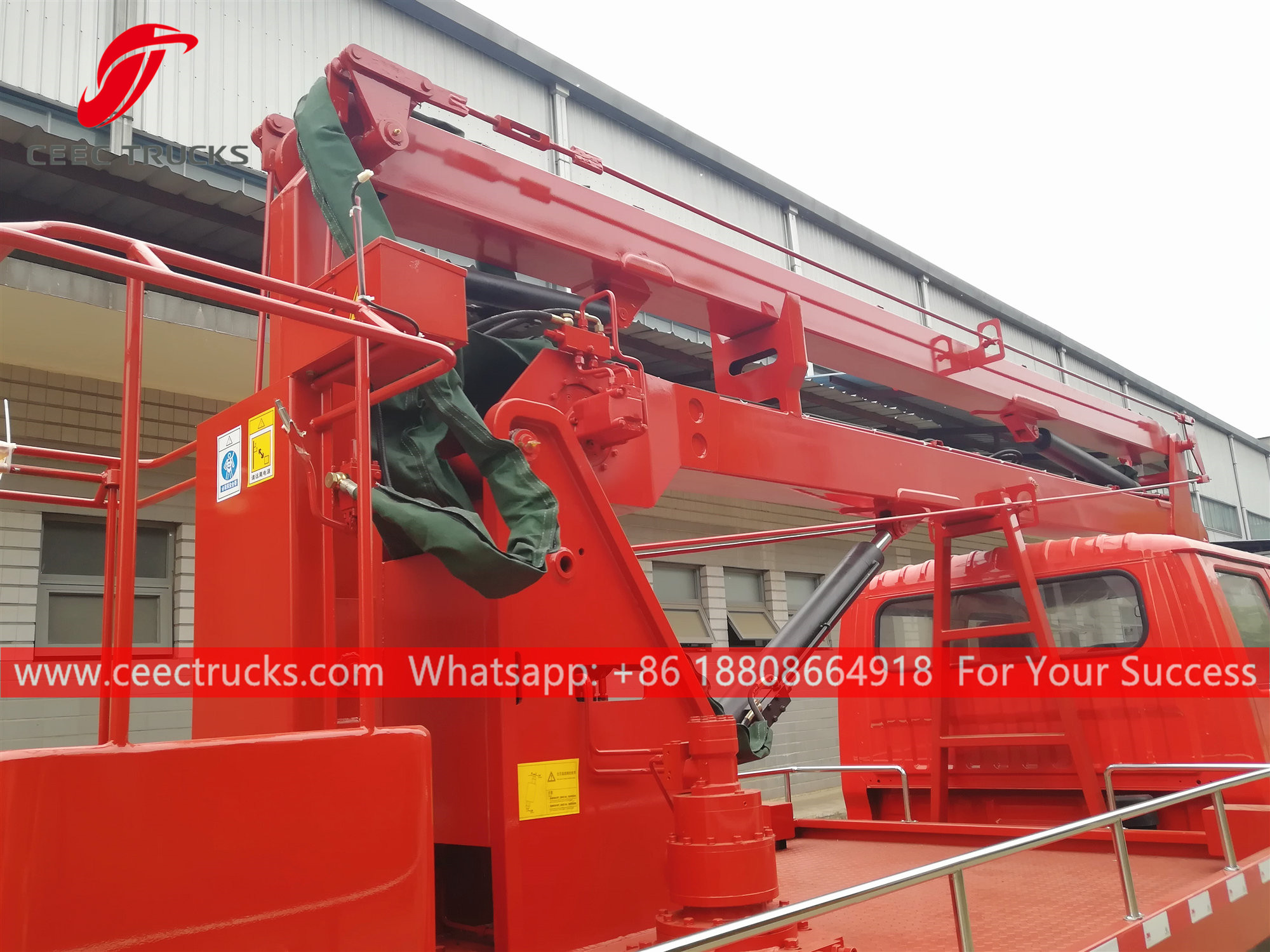

Beam

The beam is articulated & telescopic extension type, hydraulic actuated and controlled

Slewing

Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.

Control

Control both on the ground and remote control in cage

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

Optional

Insulated cage; Wireless remote control system
