System description

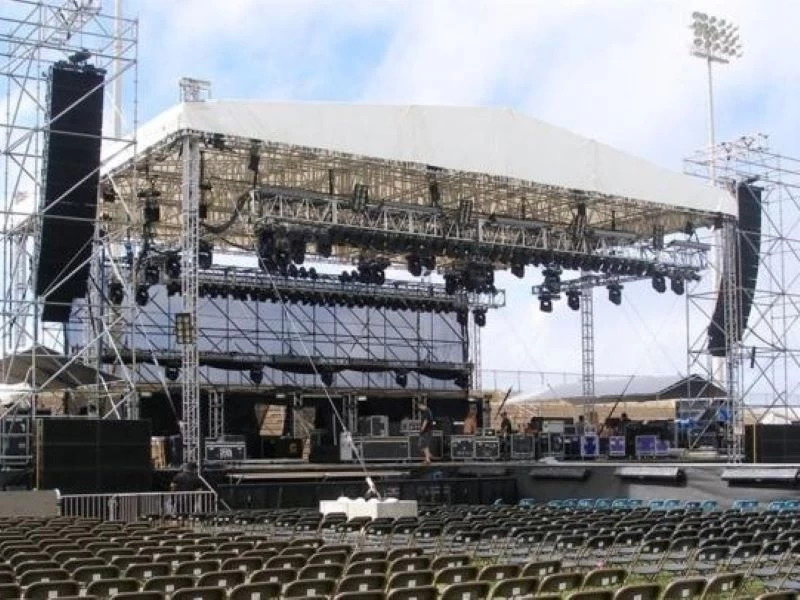

The 16m Span Triangle Roof Truss System extended from Box Truss System 16x12m. It is standard packages. It is modular and versatile. It is quick and easy to assemble, saving building time and labour cost. Besides, equipped with the Ringlock Scaffolding and the Stage System strengthened the whole roof. You can put the ITSC-CS39 into ITSC-CS52 to save the transportation volume and costs.Besides, you can also extend it to be Dome roof, Arc Roof,ect.
Features
-
Just install the system with your standard ITSC-CS52 and ITSC-CS39 in stock
-
Spigot connection make your installation much easier and quicker
-
Coating power to be black is available
Specification
|
Towers
|
390x390mm Spigot truss
|
|
Main grid
|
520x520mm medium duty truss
|
|
Dimensions
|
16x12m
|
|
Loading capacity
|
6300kg
|
|
Total weight
|
4500kg
|
|
Transporation volume
|
66m3
|
|
Max. wind speed
|
26m/s
|
Appplication
-
Product presentations
-
Theatre shows, musicals and operas
-
Concerts, festivals and fairgrounds
-
Exhibitioins and trade shows
-
Celebrations and parties
-
Conventions and larg-scale meetings
