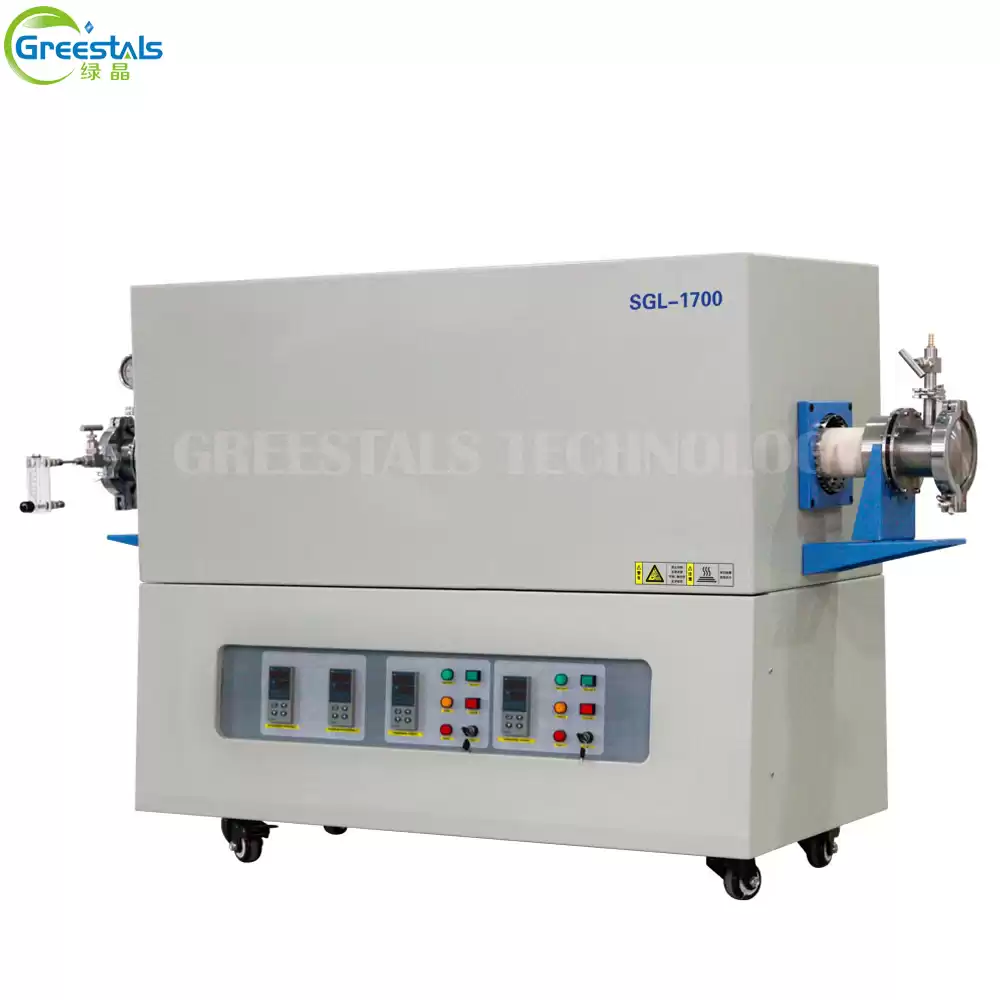

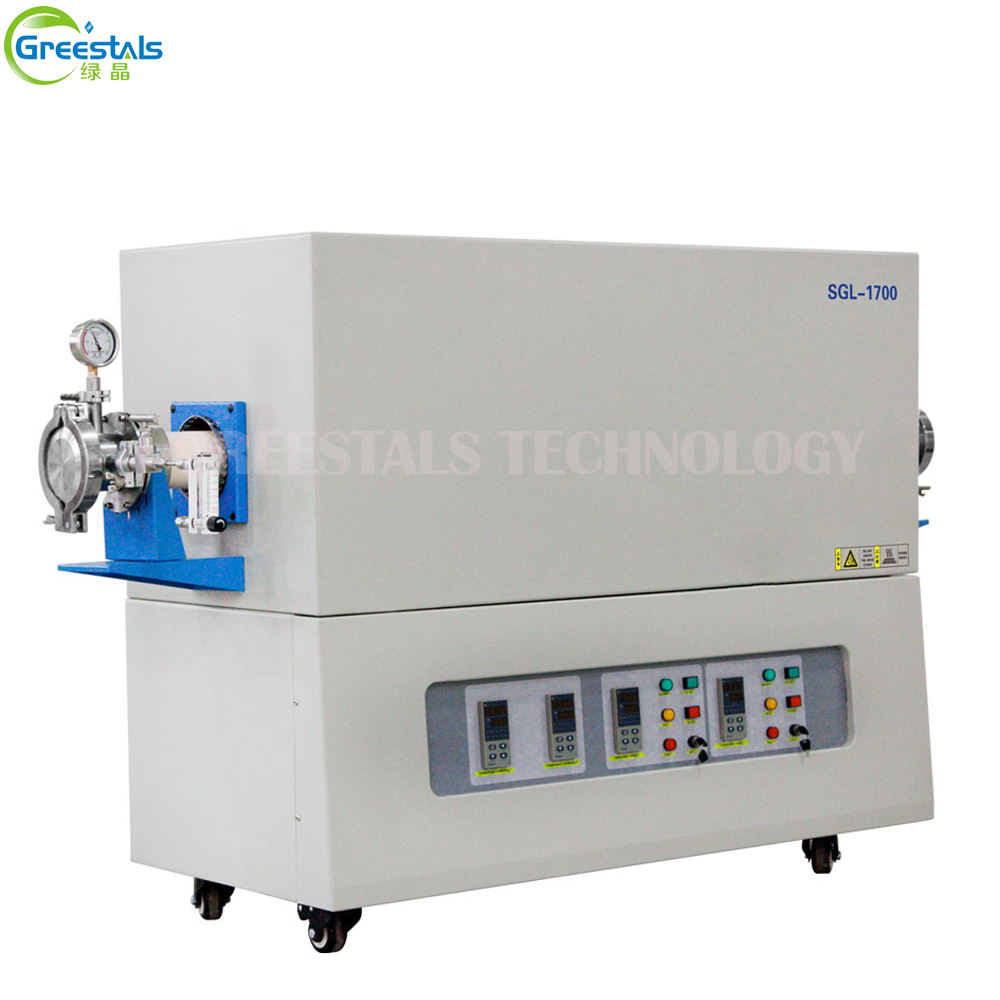

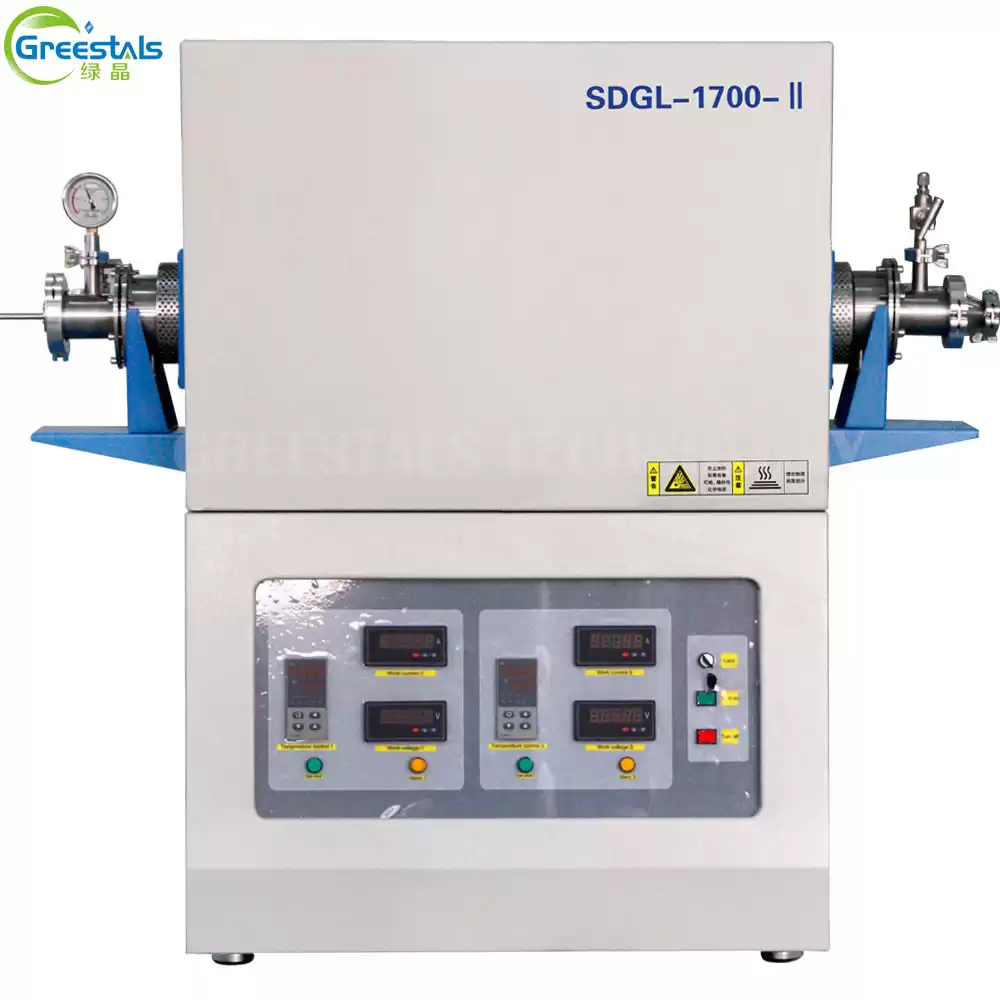

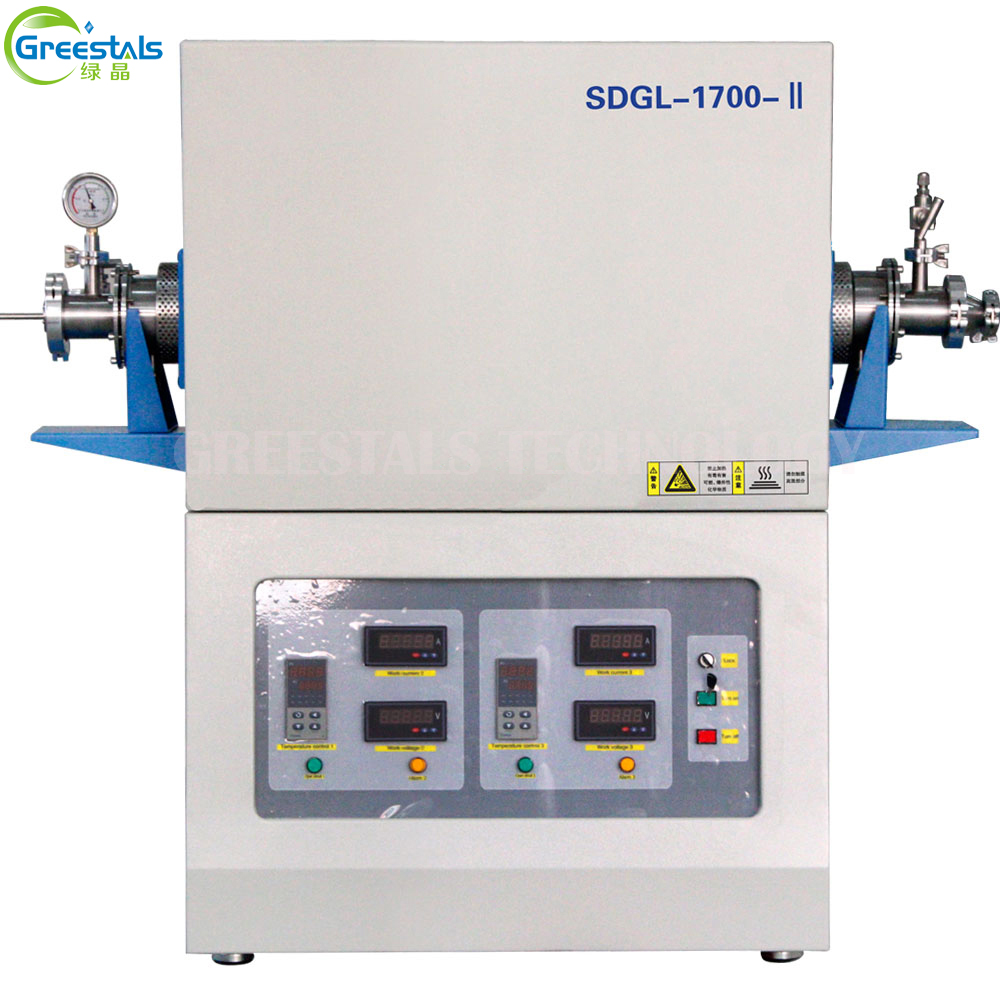

1700℃ Dual-zone Vacuum Tube electric lab furnace

Used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments, industrial and mining enterprises in electronic ceramic products pre- roasting, sintering, coating , high temperature pyrolysis of low-temperature deposition (CVD) process .


  • Max Temperature1650℃
  • Furnace Tube SizeDia40 60 80 100mm *1200mm
  • Heating Zone Size330mm+330mm


Main function and features:

1. Built-in two temperature zone, I-zone use silicon molybdenum rod as heating elements, II -zone use silicon carbide as heating elements, can create a temperature difference between any temperature gradient within 300 ° C.

2. Adopted water-cooled KF quick flange sealing, the connection can be done only by a clamp flange. It is very convenient to put in and take out the specimen. Avoiding bolt leakage by artificial operation and reduced the ratio of heating tube damaging which caused by installation flanges. Adopted circulating water cooling flange , with the chiller to reduce the temperature of the furnace mouth , and thus well protect seals to ensure gas tightness of the high-temperature furnace tube;

3. Furnace chamber adopts imported polycrystalline alumina fiber, good heat preservation performance,durable use, high tensile strength, no miscellaneous ball, high purity, energy saving effect is better than domestic fiber material.effective insulation and energy saving. imported silicon molybdenum rod and silicon carbide rod as heating element, greatly improve its service life , 99.99% alundum tube with high density, durable use,not easy break.

4. Reserved vacuum and gas path fast interface, could connect with our vacuum system or mixed gas system directly.

5. Reserved 485 convert interface, can be connected with PC through software. It has remote control, real time tracking, history recorder, and output report function. And can be installed the paperless recorder for data storage and output.

6. Built - in thermocouple, real-time monitoring the temperature of the heated material(for optional purchase).

7. On the flange can add a observation window, to real-time observe the sintered material conditions (for optional purchase).

8. Over-temperature will alarm and automatic cut off the power, leakage protection function, safe and reliable operation.


Main applications:

Used in metallurgy, machinery, light industry, commodity inspection, institutions of higher learning and scientific research departments, industrial and mining enterprises in electronic ceramic products pre- roasting, sintering, coating , high temperature pyrolysis of low-temperature deposition (CVD) process .

Techinical specification:

Model

SGL-1700-II

(Approved by CE certificate, ensure the safety operation of the machine. Certificate No.: GB/1067/4189/12 Issue )

Furnace chamber

High pure good quality polycrystalline alumina fiber, good heating preservation

Furnace tube

99.99% purity alumina tube

Furnace tube size

Ø40/60/80*1200mm

Heating element

Imported high quality silicon molybdenum rod / silicon carbide rod

Thermocouple

B-mode thermocouple / s-mode thermocouple

Temperature control mode

The temperature control system uses artificial intelligence technology with PID control, self - tuning function , 50 segments heating and cooling program

Seal type

KF flange with water cooling system, exclusion Seal

Optional vacuum degree

≤50Pa (standard pump + dial type pressure gauge)

≤10Pa (High configuration pump + digital pressure gauge)

≤0.005Pa (Molecular pump system)

Working temperature

≤1600℃

Maximum temperature

1650℃

Constant temperature accuracy

±1℃

Constant temperature length

120mm(it can be customized)

Maximum temperature heating rate

15℃/min

Recommended temperature heating rate

≤10℃/min

Rated power

≤6KW

Power supply

AC220V 50HZ/60HZ

Overall size

660*580*910mm

Weight

150KG

Standard accessories

Water cooling type sealing flange   1 pc

O-rings  4 pcs

Alumina tube  1 pc

Pipe plug  4 pcs

Crucible hook  1 pc
